Product Overview

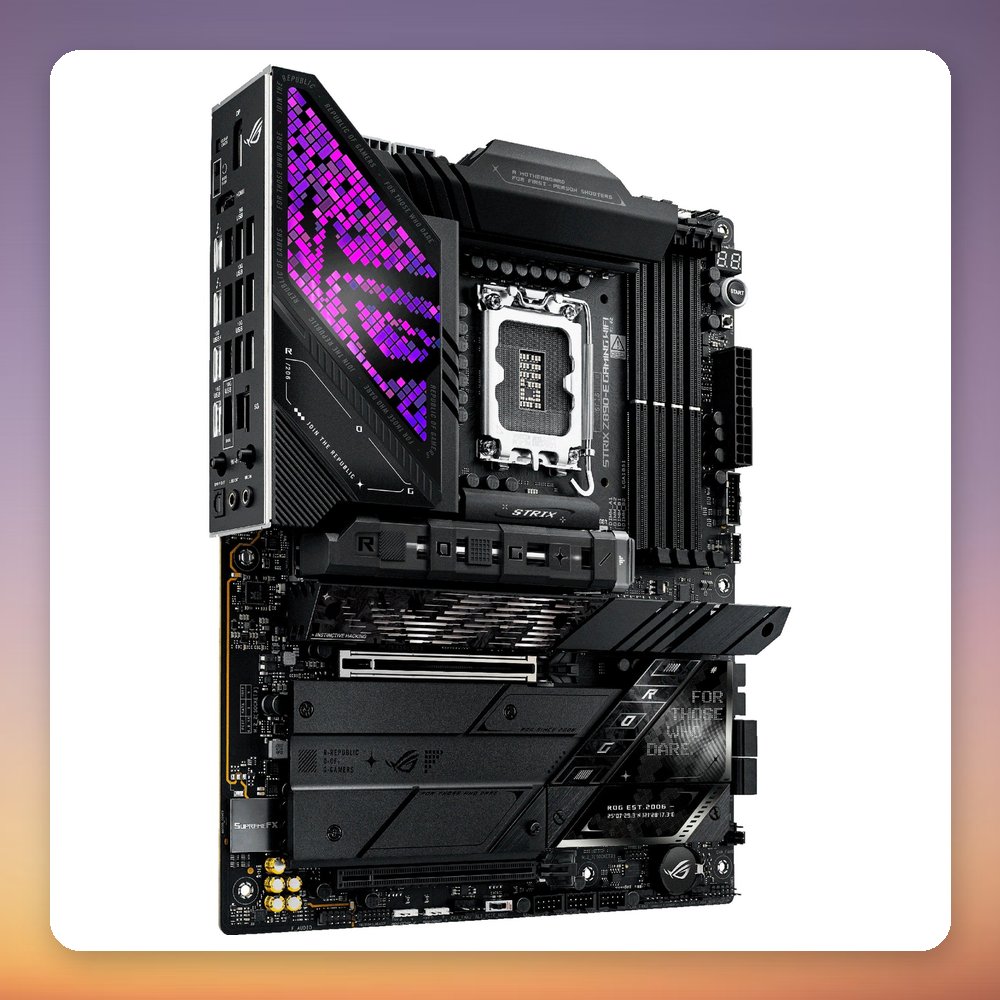

The Asus ROG Strix Z890-E Gaming WiFi is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 Core Ultra (Series 2, Arrow Lake) processors. What sets it apart is the storage and connectivity count: seven M.2 slots, two Thunderbolt 4 ports, Wi-Fi 7 with Bluetooth 5.4 and 5 Gigabit Ethernet, all on one board.

With four DDR5 slots supporting up to 256 GB (as listed by Wave; Icecat lists 192 GB) and memory speeds up to DDR5-9200 (OC), it suits high-end gaming and performance builds around a Core Ultra K-series CPU. A PCIe 5.0 x16 slot handles the graphics card, while the Realtek ALC4080 audio, eight PWM fan headers and Aura Sync RGB support cover the rest of the build. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix Z890-E Gaming WiFi
• MPN: 90MB1IM0-M0EAY0
• EAN: 4711387756133
• Socket: LGA 1851
• Chipset: Intel Z890
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-9200 (OC), max. 256 GB
• M.2 slots: 7x M.2 (M key), PCIe Gen 5.0 and Gen 4.0, 42-110 mm
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes)
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: 5 Gigabit Ethernet (Realtek), Wi-Fi 7, Bluetooth 5.4
• Rear USB: 7x USB-A 10 Gbit/s, 3x USB-A 5 Gbit/s, 2x USB-C 10 Gbit/s
• Thunderbolt: 2x Thunderbolt 4 (USB-C, DisplayPort video out)
• Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
• Audio: Realtek ALC4080, 7.1 channel
• RGB: Aura Sync, 3x addressable RGB headers, 1x RGB header
• Fan headers: 8x 4-pin PWM
• Power connectors: 24-pin ATX + 2x 8-pin
• Colour: Black
• Dimensions (W x D): 305 x 244 mm
