Product Overview

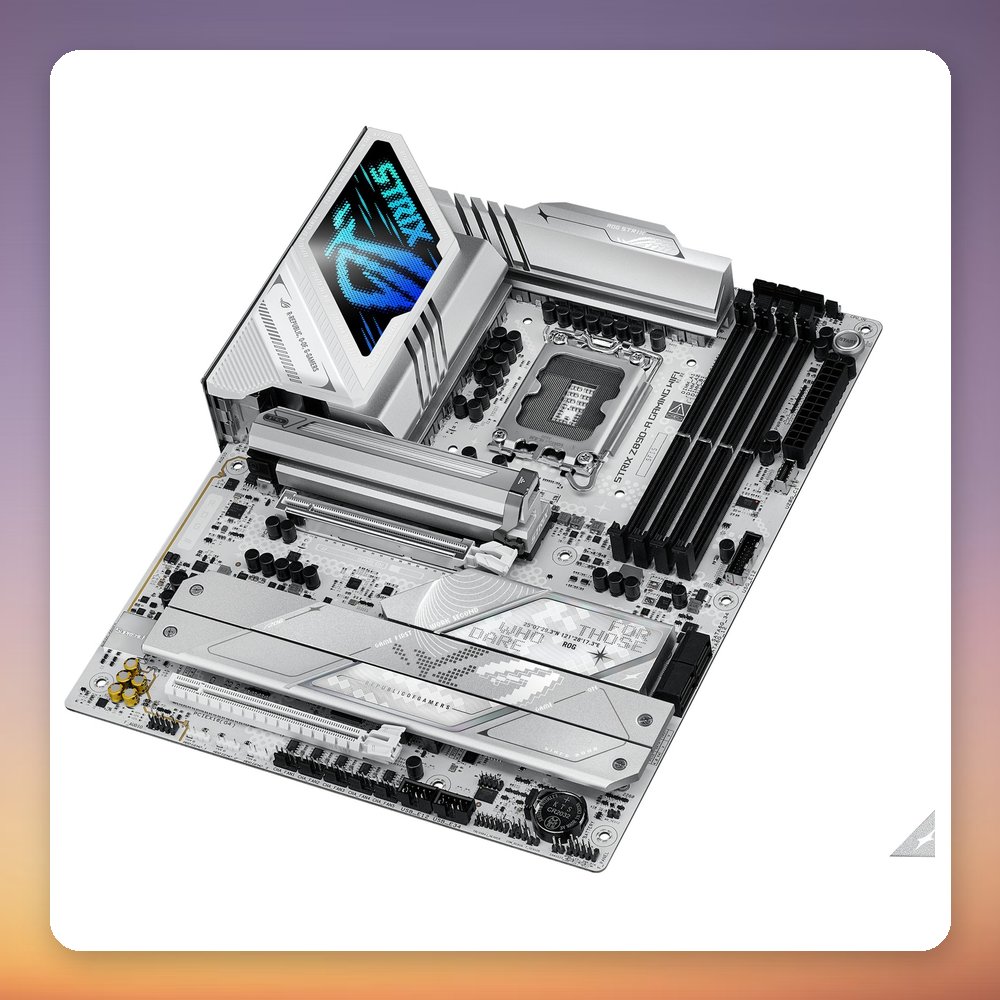

The Asus ROG Strix Z890-A Gaming WiFi is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 Core Ultra (Series 2) processors. It stands out with five M.2 slots (the first running at PCIe 5.0), a PCIe 5.0 x16 graphics slot, two Thunderbolt 4 ports and Wi-Fi 7 with Bluetooth 5.4 alongside 2.5 Gb Ethernet. Power delivery uses 16(90A)+1(90A)+2(90A)+2(80A) power stages.

This board suits an enthusiast Arrow Lake gaming build that needs plenty of fast storage and modern connectivity. Four DDR5 slots support speeds up to 8600 MT/s, with dual-channel operation and non-ECC memory. Features include an M.2 backplate, one RGB and three addressable RGB headers with AURA Sync, Realtek ALC4080 audio and eight 4-pin PWM fan headers. The box includes two SATA cables, an extra cooling kit and a WiFi Q-antenna. A BIOS update may be needed for the newest CPUs.

Specification

• Manufacturer: Asus
• Model: ROG Strix Z890-A Gaming WiFi
• MPN: 90MB1I90-M0EAY0
• EAN: 4711387758830
• CPU socket: LGA 1851
• Chipset: Intel Z890
• Form factor: ATX
• Supported processors: Intel Core Ultra 5 / 7 / 9 (Series 2, Arrow Lake)
• Memory: 4x DDR5 DIMM, dual-channel, up to 8600 MT/s, non-ECC
• M.2 slots: 5x M.2 (M key), slot 1 PCIe 5.0, slots 2 and 3 PCIe 4.0, up to 22110 length
• SATA ports: 4x SATA 6Gb/s, RAID 0, 1, 5, 10
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes)
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
• Rear USB and video: 2x Thunderbolt 4, 1x USB-C 10 Gbit/s, 5x USB-A 10 Gbit/s, 2x USB-A 5 Gbit/s, HDMI, DisplayPort
• Audio: Realtek ALC4080, 7.1 channels, optical S/PDIF out
• Power connectors: 24-pin ATX + 2x 8-pin EPS
• Fan headers: 8x 4-pin PWM
• RGB: 1x RGB header, 3x addressable RGB headers, AURA Sync
• Colour: White
• Dimensions (W x D): 305 x 244 mm
