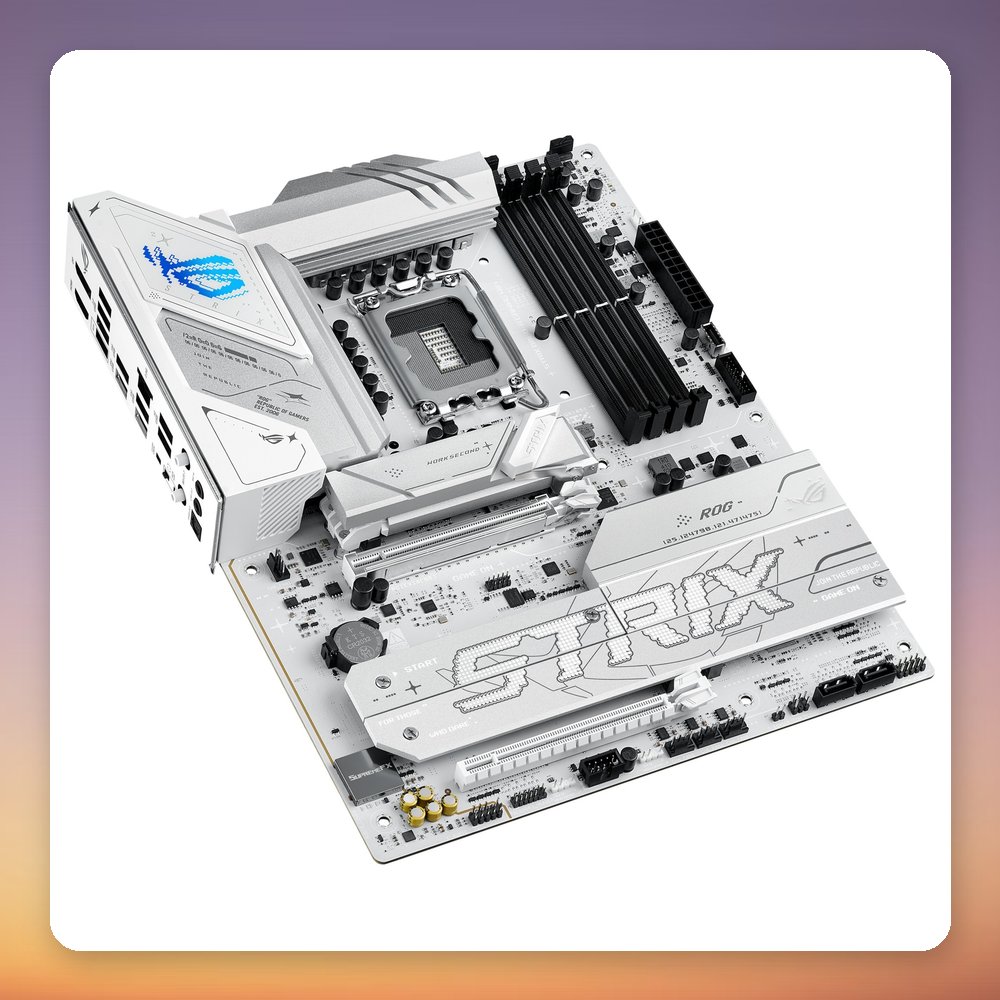

Product Overview

The Asus ROG Strix B860-A Gaming WiFi is an ATX motherboard for LGA 1851 Intel Core Ultra (Series 2) processors, built around the Intel B860 chipset. It stands out with a PCIe 5.0 x16 slot, four M.2 slots (one PCIe 5.0, three PCIe 4.0), a USB4 port, 2.5 Gigabit Ethernet and Wi-Fi 7 with Bluetooth 5.4, plus a white colour scheme with Aura Sync RGB.

It suits a gaming or general-purpose Intel build that needs plenty of fast storage and modern connectivity. Four DDR5 DIMM slots take up to 256 GB, with support up to DDR5-8600+ MT/s (OC). Four SATA III ports allow RAID 0, 1, 5 and 10, and there are seven 4-pin PWM fan headers and three addressable RGB headers. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix B860-A Gaming WiFi
• MPN: 90MB1JI0-M0EAY0
• EAN: 4711387788424
• Socket: LGA 1851 (Socket V1)
• Chipset: Intel B860
• Form factor: ATX
• Supported processors: Intel Core Ultra (Series 2) – Core Ultra 3, 5, 7 and 9 2xx models
• Memory: 4x DDR5 DIMM, dual channel, up to 256 GB (non-ECC, unbuffered)
• Memory speed: Up to DDR5-8600+ MT/s (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes)
• M.2 slots: 4x M.2 (Key M, 42–110 mm): 1x PCIe 5.0, 3x PCIe 4.0
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Intel 2.5 Gigabit Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4
• Rear USB ports: 1x USB4 (20 Gbps), 3x USB-A 3.2 Gen 2 (10 Gbps), 2x USB-A 3.2 Gen 1 (5 Gbps), 4x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (iGPU CPUs only)
• Audio: Realtek ALC1220P 7.1 channel, optical S/PDIF out
• Fan and RGB headers: 7x 4-pin PWM fan, 3x addressable RGB, Aura Sync
• Colour: White
• Dimensions (W x H x D): 305 x 50 x 244 mm
• Weight: 1.4 kg
