Product Overview

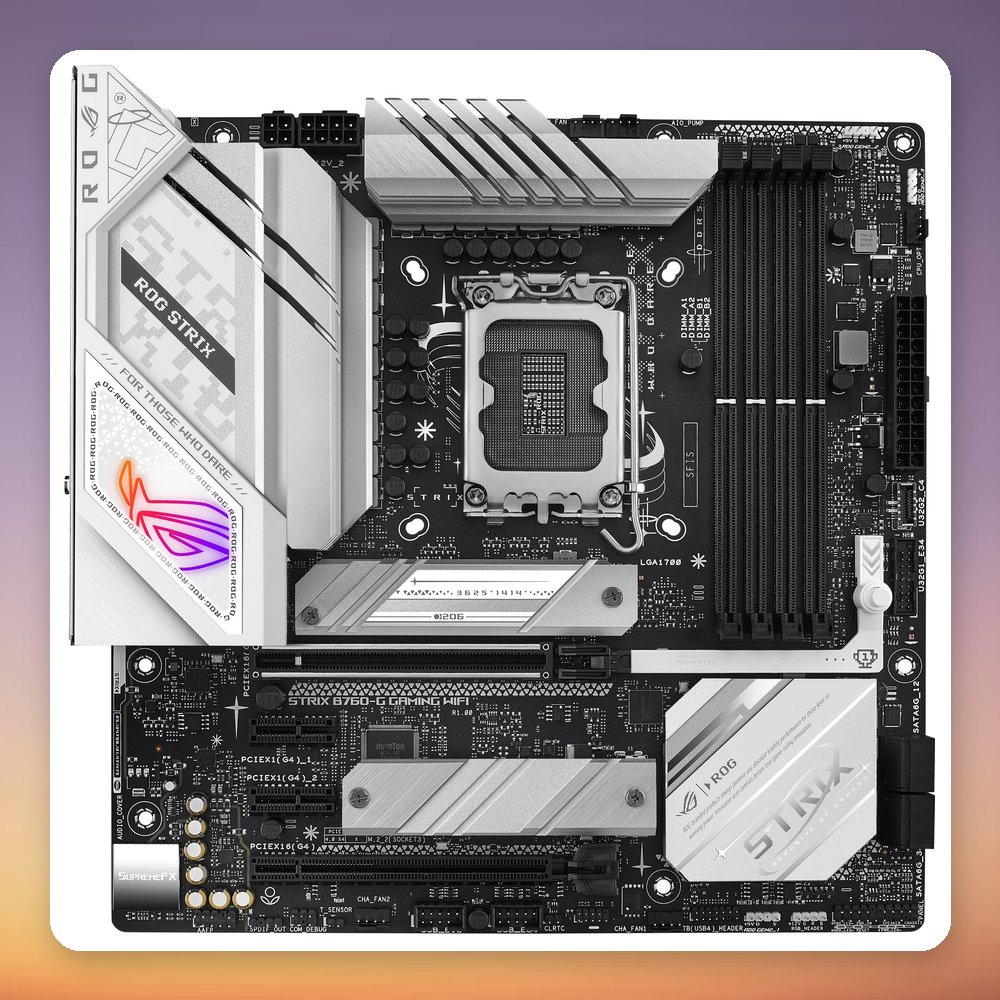

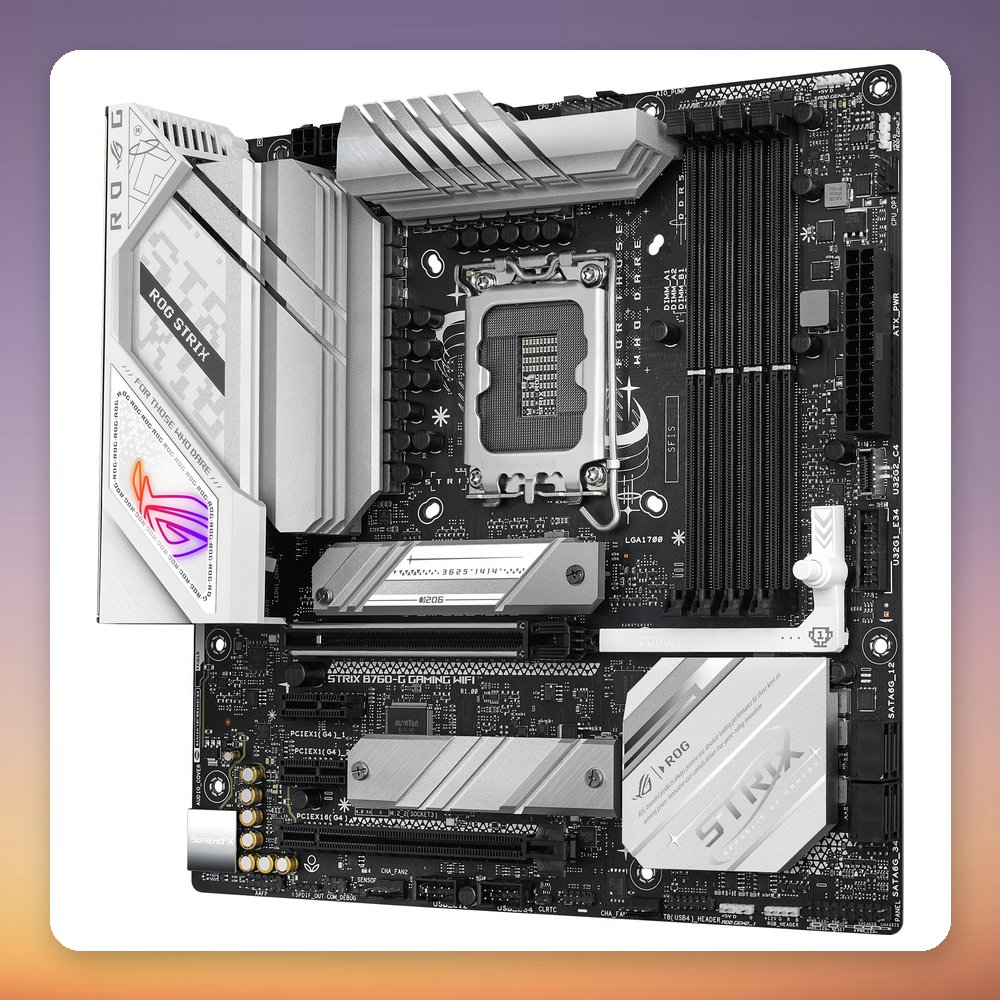

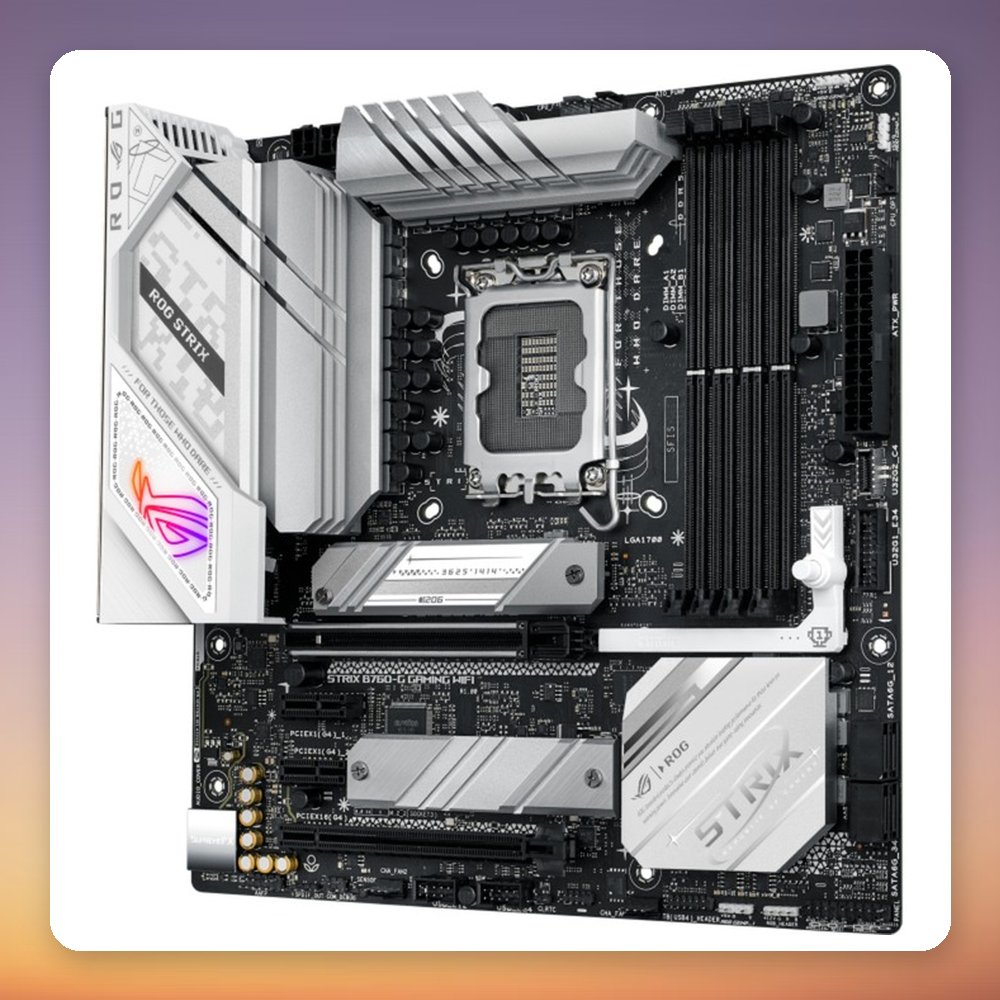

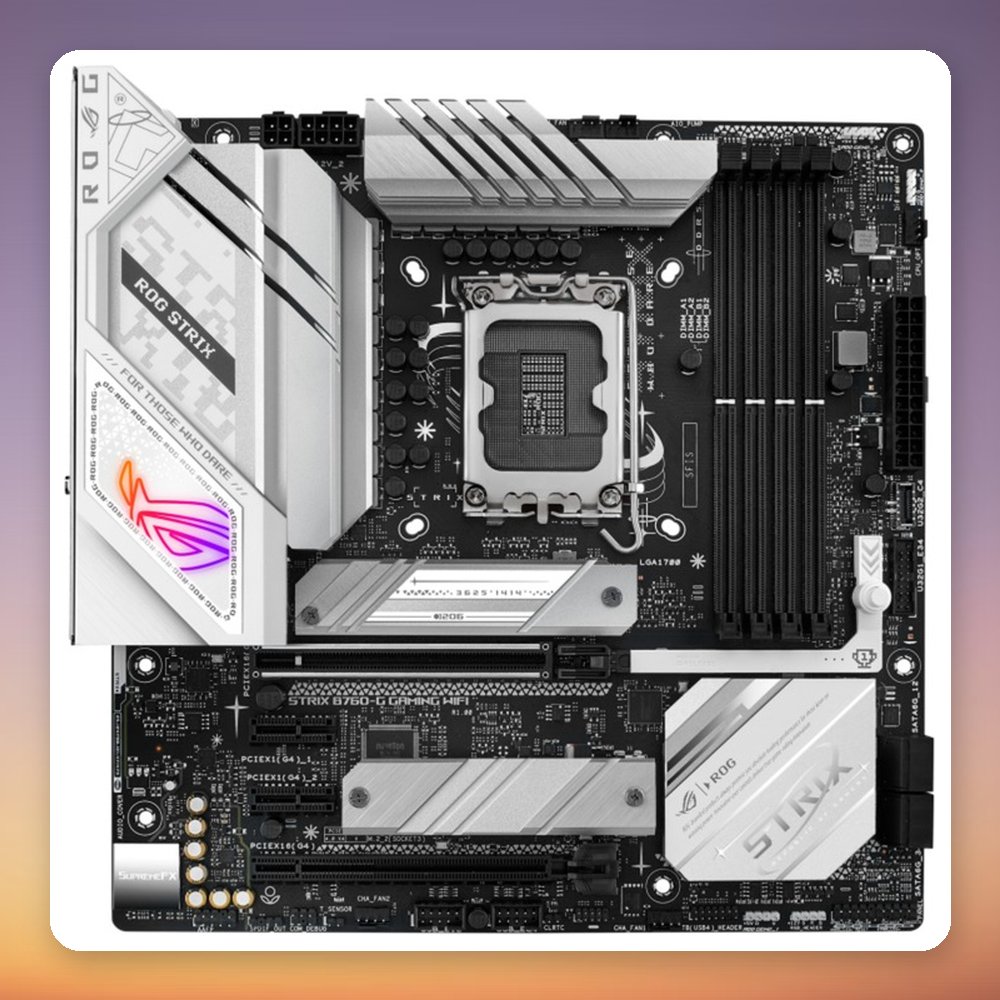

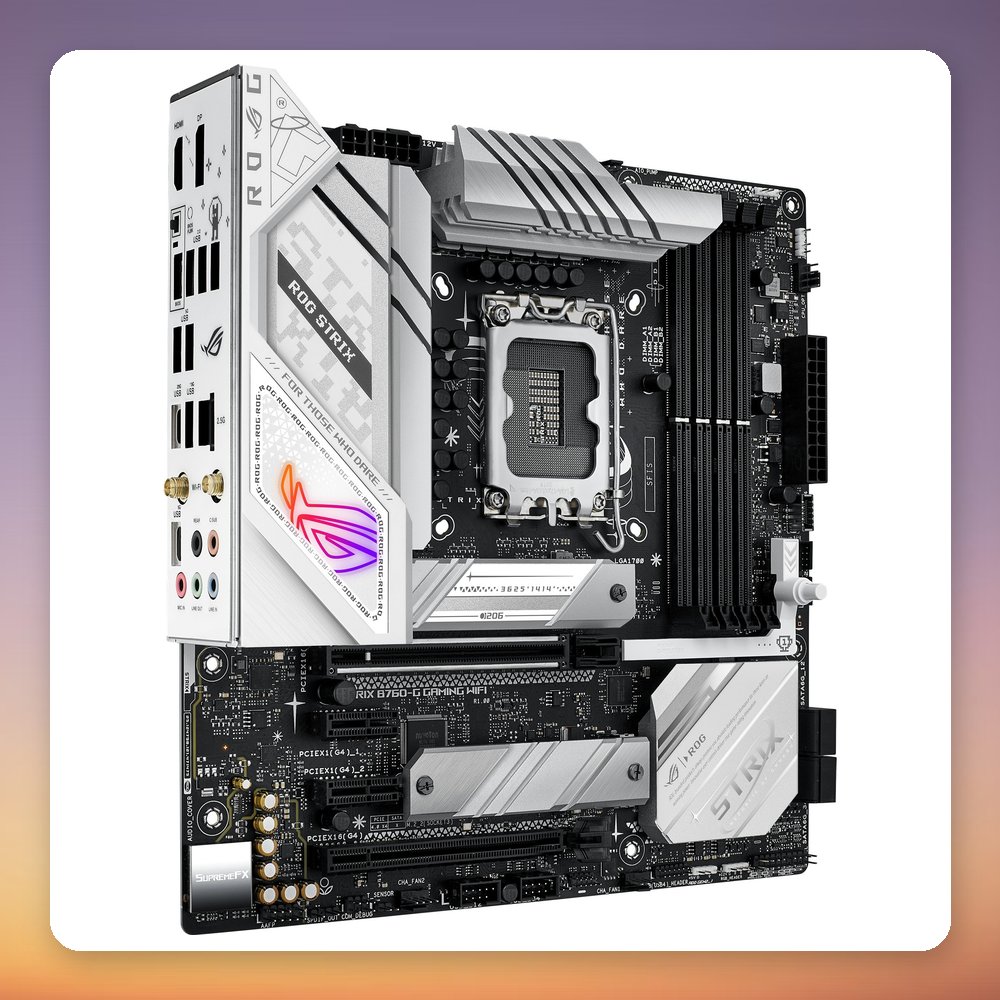

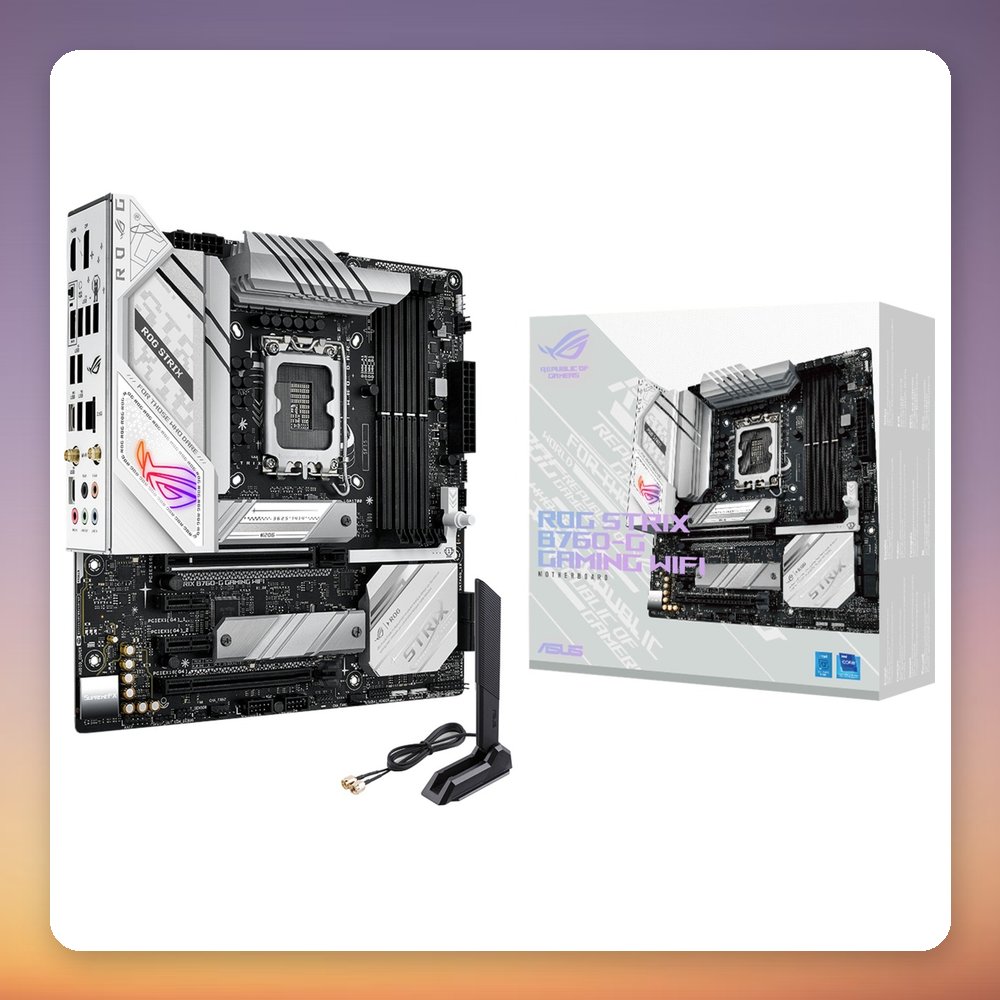

The Asus ROG Strix B760-G Gaming WiFi is a micro ATX motherboard for LGA 1700 processors, built on the Intel B760 chipset. Its main selling points are four DDR5 slots supporting up to 192 GB, a PCIe 5.0 x16 slot, two PCIe 4.0 M.2 slots and a 12+1 power stage design, with each stage rated to 60A. A physical PCIe Q-Release button makes removing the graphics card easier.

This board suits a compact gaming PC built around a 12th or 13th Gen Intel Core CPU. Connectivity includes Intel 2.5 Gb Ethernet, Wi-Fi 6E with Bluetooth 5.3, a USB 3.2 Gen 2×2 Type-C port, HDMI and DisplayPort, plus SupremeFX 7.1-channel audio. Its black PCB, bare heatsinks and white accents pair with most builds, and Aura Sync RGB headers are included. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix B760-G Gaming WiFi
• MPN: 90MB1EQ0-M1EAY0
• EAN: 4711387120002
• Socket: LGA 1700
• Chipset: Intel B760
• Form factor: micro ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB
• Memory speed: DDR5-4800 to 7800+ (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe x1
• M.2 slots: 2x M.2 (M key), PCIe 4.0, 42-80 mm
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB 3.2 Gen 2×2 Type-C, 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (requires a CPU with integrated graphics)
• Audio: ROG SupremeFX 7.1-channel (S1220A)
• Power connectors: 24-pin ATX, 8-pin + 4-pin EPS
• RGB: Aura Sync, 1x RGB header, 3x addressable RGB headers
• Dimensions (W x D): 244 x 244 mm
