Product Overview

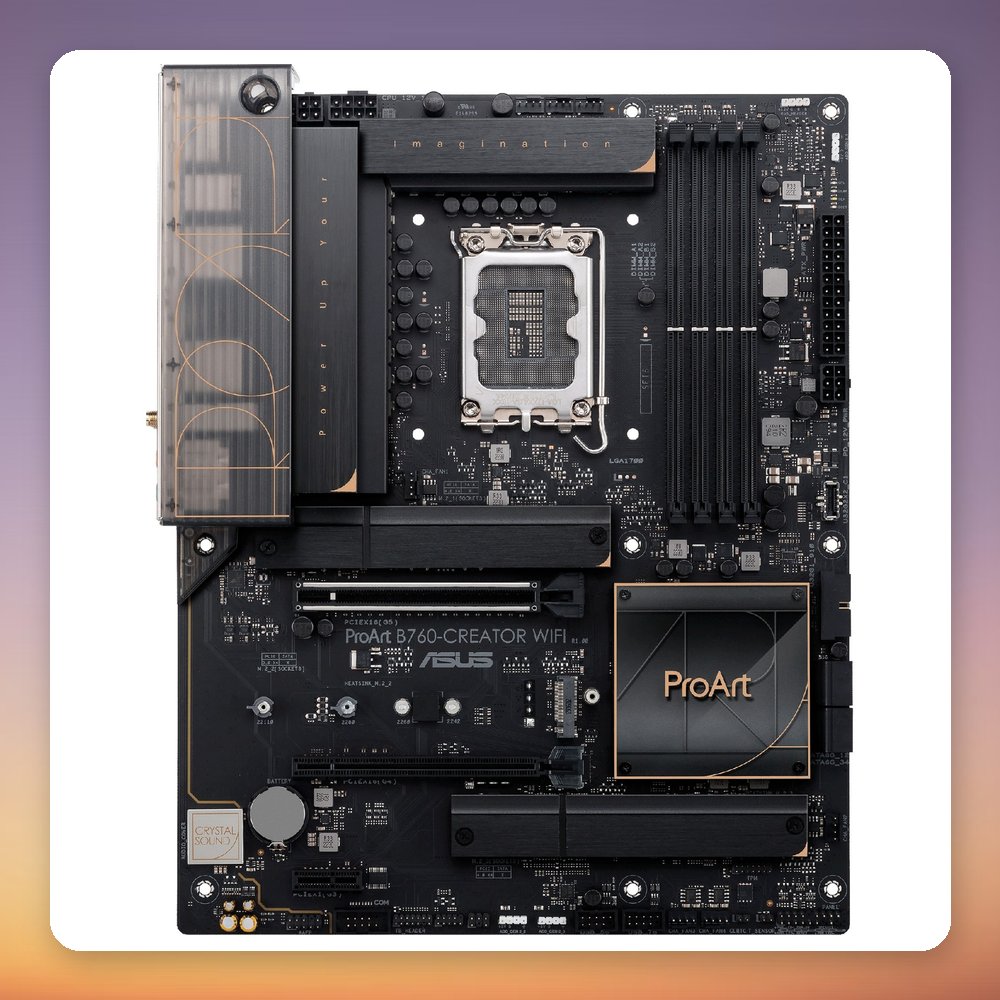

The Asus ProArt B760-Creator WiFi is an ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. What sets it apart from most B760 boards is its connectivity: a 20 Gbit/s USB-C 3.2 Gen 2×2 internal connector, a Thunderbolt header, and two Ethernet ports (Realtek 2.5 Gb and Intel 1 Gb) alongside Wi-Fi 6 and Bluetooth 5.2. It has four DDR5 slots for up to 192 GB, three M.2 slots and a PCIe 5.0 x16 slot.

This board suits builders who want a B760 platform with plenty of storage and expansion: three M.2 slots, four SATA ports and RAID 0, 1, 5 and 10 support. The dual LAN setup and 7.1-channel Realtek audio add to the I/O, while seven 4-pin PWM fan headers and AURA Sync RGB headers cover cooling and lighting. Supports 12th and 13th generation Intel Core processors, and a BIOS update may be needed for the newest CPUs. Measures 244 x 305 mm.

Specification

• Manufacturer: Asus
• Model: ProArt B760-Creator WiFi
• MPN: 90MB1FY0-M1EAY0
• EAN: 4711387275962
• Socket: LGA 1700
• Chipset: Intel B760
• Form factor: ATX (244 x 305 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 192 GB, up to DDR5-7200
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1
• M.2 slots: 3x (Slot 1: PCIe 4.0, Slot 2: PCIe 3.0, Slot 3: PCIe 4.0), 42-110 mm
• SATA ports: 4x SATA 6 Gbit/s
• Networking: 2.5 Gb Ethernet (Realtek), 1 Gb Ethernet (Intel), Wi-Fi 6, Bluetooth 5.2

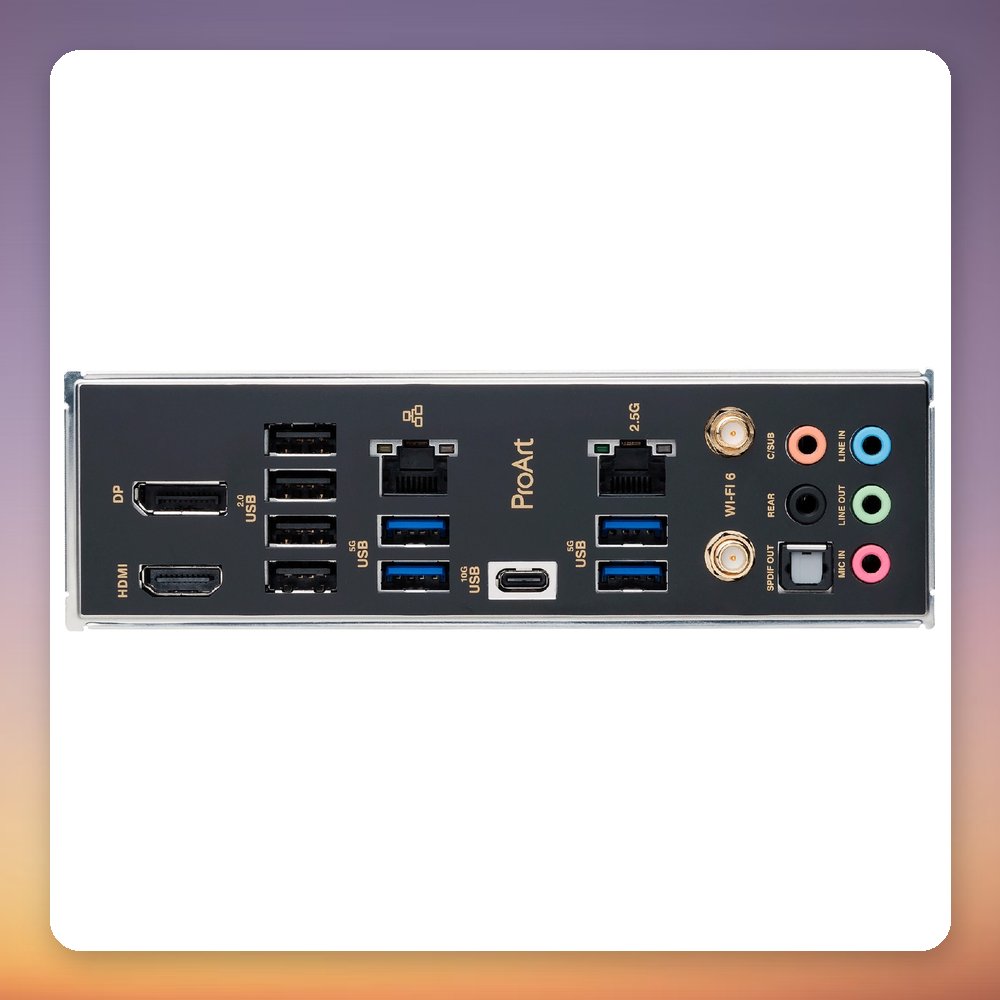

• Rear USB: 1x USB-C 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Internal USB: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s)
• Video outputs: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
• Audio: Realtek 7.1 channel HD audio, optical S/PDIF out
• Fan headers: 7x 4-pin PWM
• RGB: 3x addressable RGB headers, 1x RGB header, AURA Sync
• RAID: 0, 1, 5, 10
