Product Overview

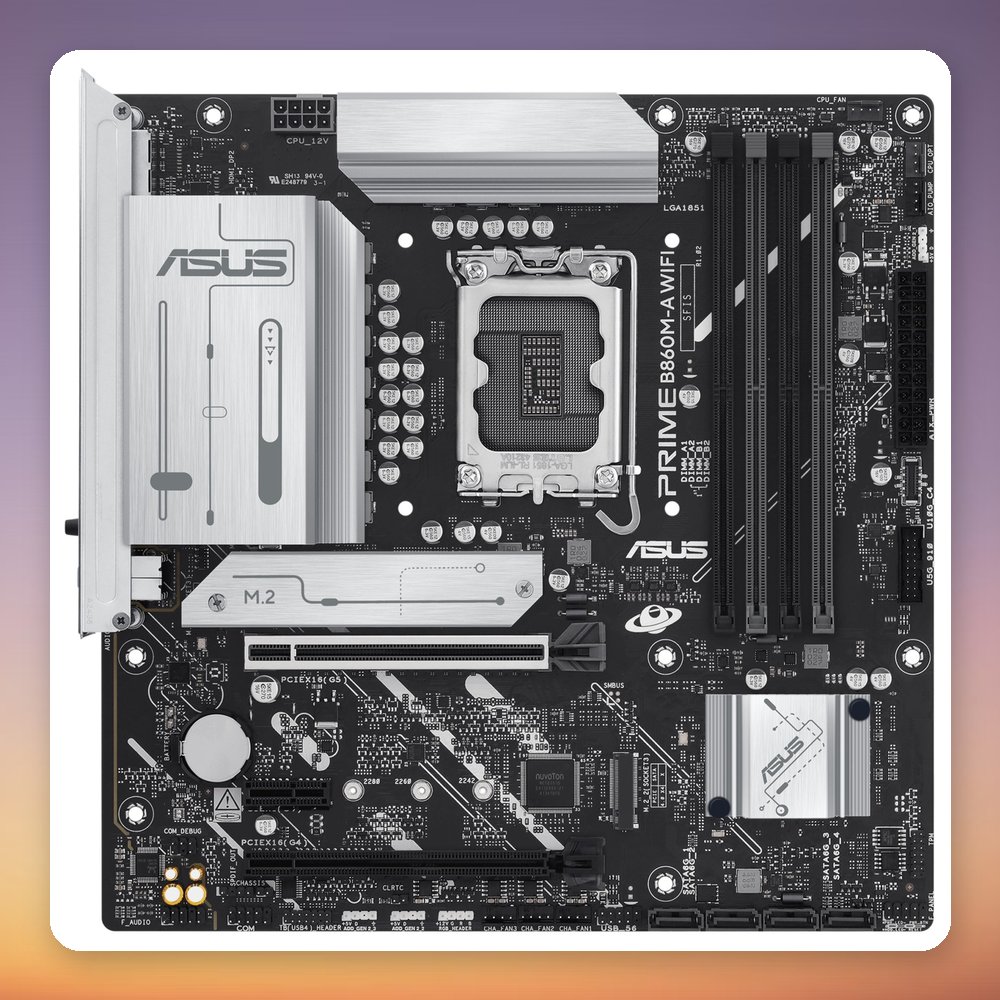

The Asus PRIME B860M-A WIFI is a micro ATX motherboard built on the Intel B860 chipset for LGA 1851 processors from the Intel Core Ultra (Series 2) family. It takes up to 256 GB of dual-channel DDR5 across four DIMM slots, with memory speeds quoted up to DDR5-7600+ (OC). Its first M.2 slot runs at PCIe 5.0 and the PCIe x16 slot is also Gen 5.

With Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gigabit Ethernet on board, this board suits a compact gaming or everyday PC without needing extra network cards. Storage is covered by two M.2 slots (up to 2280) and four SATA III ports, with RAID 0, 1, 5 and 10 support. Rear I/O includes a 20 Gbps USB-C port, HDMI and two DisplayPorts for CPUs with integrated graphics. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: PRIME B860M-A WIFI
• MPN: 90MB1JY0-M0EAY0
• EAN: 4711387806289
• Socket: LGA 1851
• Chipset: Intel B860
• Form factor: micro ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB, non-ECC, up to DDR5-7600+ (OC)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes), 1x PCIe 4.0 x1
• M.2 slots: 2x M.2 (M key, up to 2280): 1st slot PCIe 5.0, 2nd slot PCIe 4.0
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Realtek 2.5 Gigabit Ethernet, Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 3.2 Gen 2×2 (20 Gbps), 1x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Video outputs: 1x HDMI, 2x DisplayPort (requires CPU with integrated graphics)
• Audio: 7.1 channel, with mic, line-in and line-out jacks
• RGB headers: 3x addressable RGB, 1x RGB
• Power connectors: 24-pin ATX + 8-pin ATX12V
• BIOS: UEFI AMI, 256 Mb flash ROM
