Product Overview

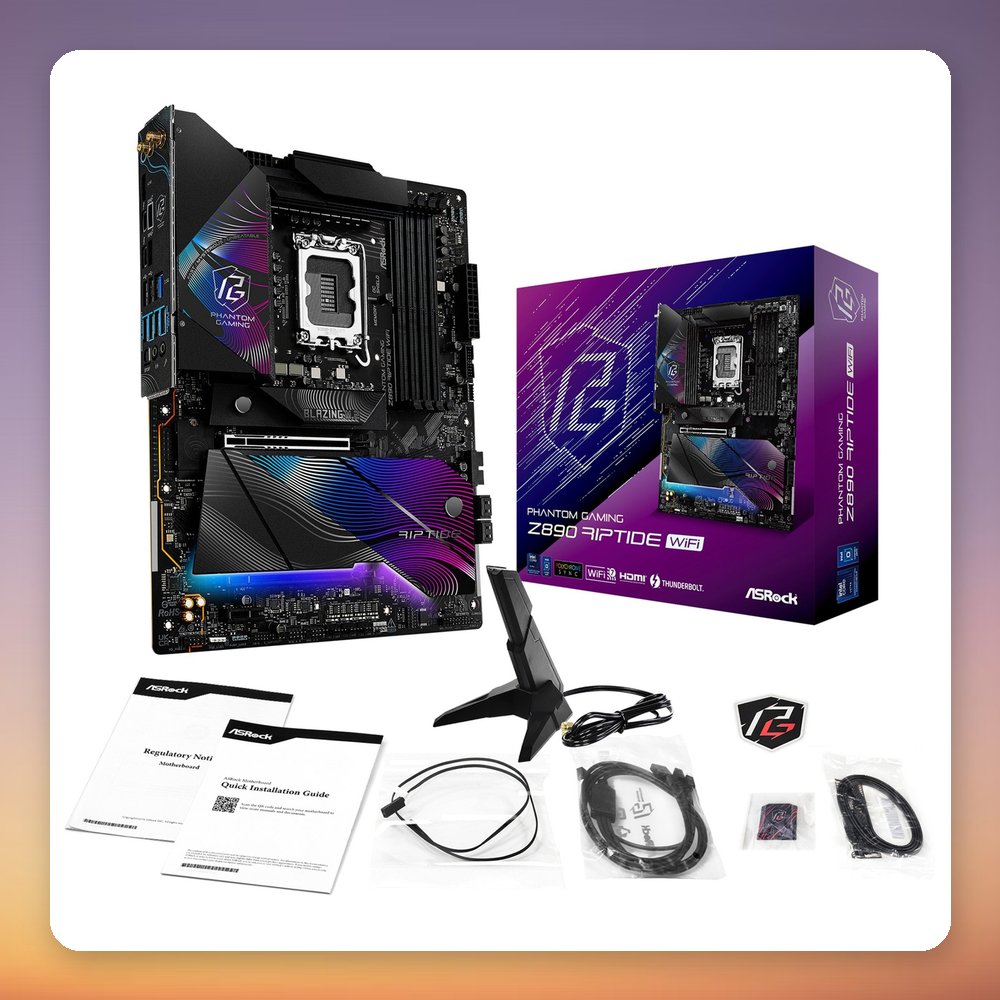

The ASRock Z890 Riptide WiFi is an ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors, covering Core Ultra 5, 7 and 9 (Arrow Lake) CPUs including K and KF models. Its main strengths are five M.2 slots, one of them PCIe Gen 5.0, two Thunderbolt 4 ports on the rear panel and built-in WiFi 7 with Bluetooth 5.4 alongside 2.5 Gb Ethernet.

With four DDR5 slots supporting up to 256 GB, a PCIe 5.0 x16 slot for the graphics card and four SATA ports, this board suits a high-capacity Intel Arrow Lake gaming or general-purpose PC. Storage-heavy builds benefit from the five M.2 slots, and eight 4-pin PWM fan headers plus RGB and addressable RGB headers cover cooling and lighting. Newer CPUs may need a BIOS update.

Specification

• Manufacturer: Asrock
• Model: Z890 Riptide WiFi
• MPN: 90-MXBPB0-A0UAYZ
• EAN: 4710483949647
• Socket: LGA 1851
• Chipset: Intel Z890
• Form factor: ATX
• Memory: 4x DDR5 DIMM, up to 256 GB, dual channel
• Memory speeds: DDR5-4400 up to 9066 (OC)
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes), 1x PCIe 4.0 x1
• M.2 slots: 5x M.2 (Key M): 1x PCIe Gen 5.0, 3x PCIe Gen 4.0
• SATA: 4x SATA 6 Gb/s, RAID 0/1/5/10
• Networking: 2.5 Gb Ethernet (Killer E3100G), WiFi 7, Bluetooth 5.4
• Rear USB: 2x USB-A 10 Gbit/s, 4x USB-A 5 Gbit/s, 2x USB-A 2.0, 2x Thunderbolt 4
• Video output: 1x HDMI, 2x Thunderbolt 4 DisplayPort (iGPU CPUs only)
• Audio: Realtek ALC1220
• Fan/RGB headers: 8x 4-pin PWM, 3x ARGB, 1x RGB
• Power connectors: 24-pin ATX + 2x 8-pin CPU
• Dimensions (W x H): 244 x 305 mm
