Name: Sapphire NITRO+ X870EA WIFI7 Phantom Link AM5 ATX Motherboard, AMD X870E
Brand: Sapphire
SKU: 100146190
Price: 458.22 EUR
Availability: InStock

Sapphire NITRO+ X870EA WIFI7 Phantom Link AM5 ATX Motherboard, AMD X870E

€458.22

Delivery: 7-12 business days
Sapphire NITRO+ X870EA WIFI7 Phantom Link AM5 ATX Motherboard, AMD X870E

Four M.2 slots, two of them PCIe Gen 5.0
Two USB4 ports with DisplayPort Alt mode and 15W power delivery
Supports up to 256 GB DDR5, up to 8400 MT/s (OC)
5G LAN, Wi-Fi 7 and Bluetooth 5.4 onboard

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100146190 Category: AMD Motherboards Tags: card,, gaming, graphics, Sapphire,, WIFI7, Brand: Sapphire

Description
Additional information

✅

Product Overview

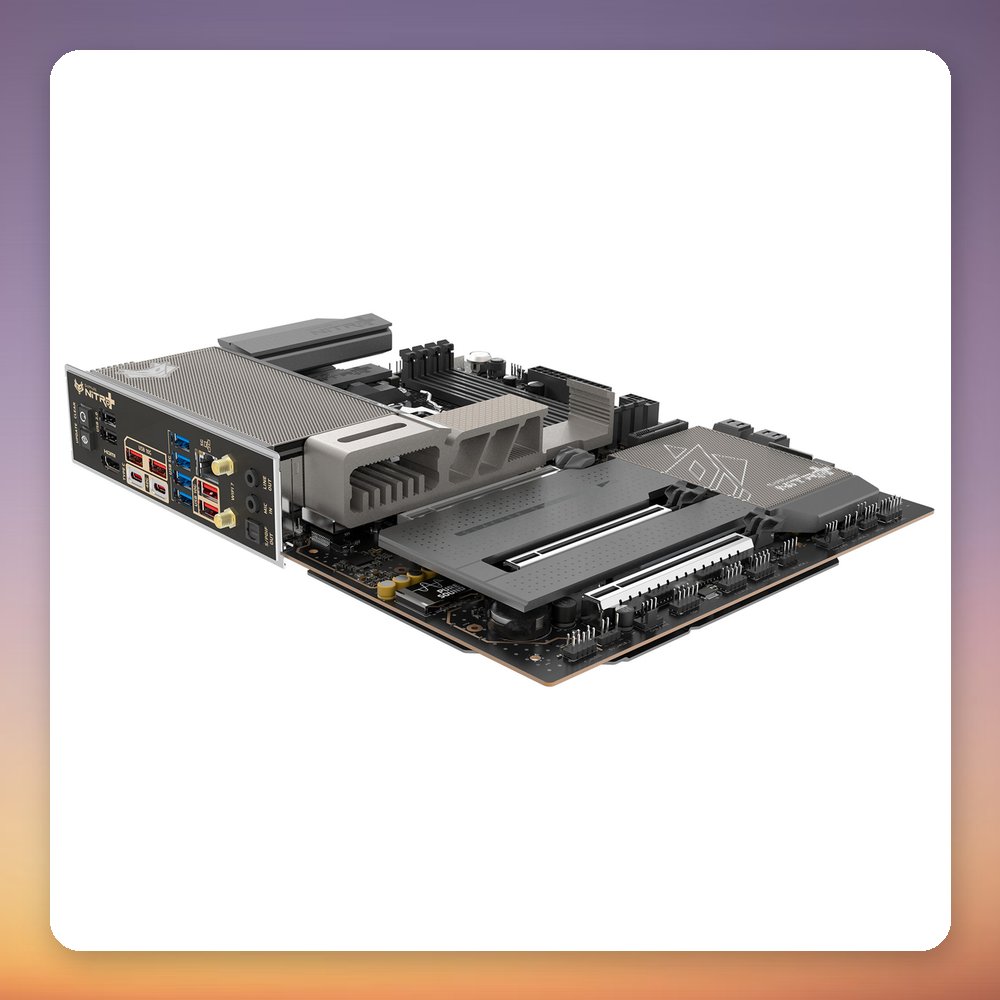

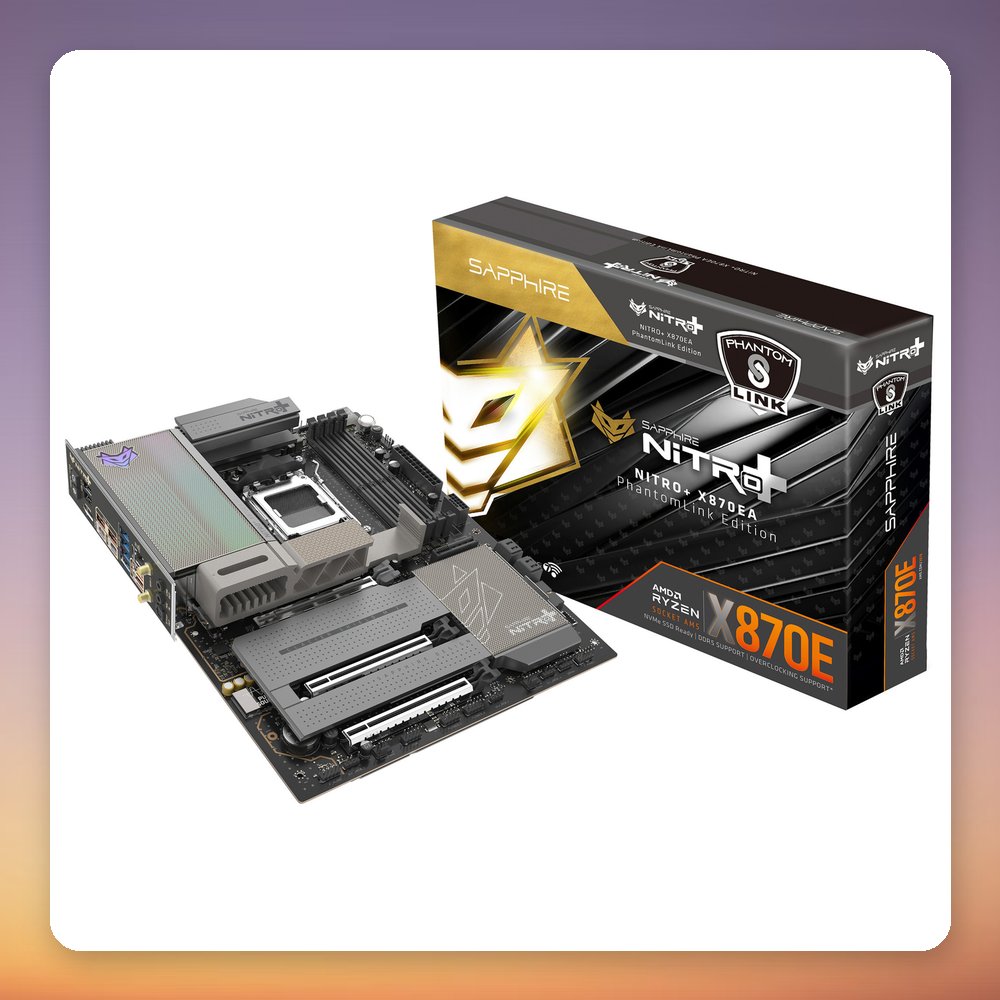

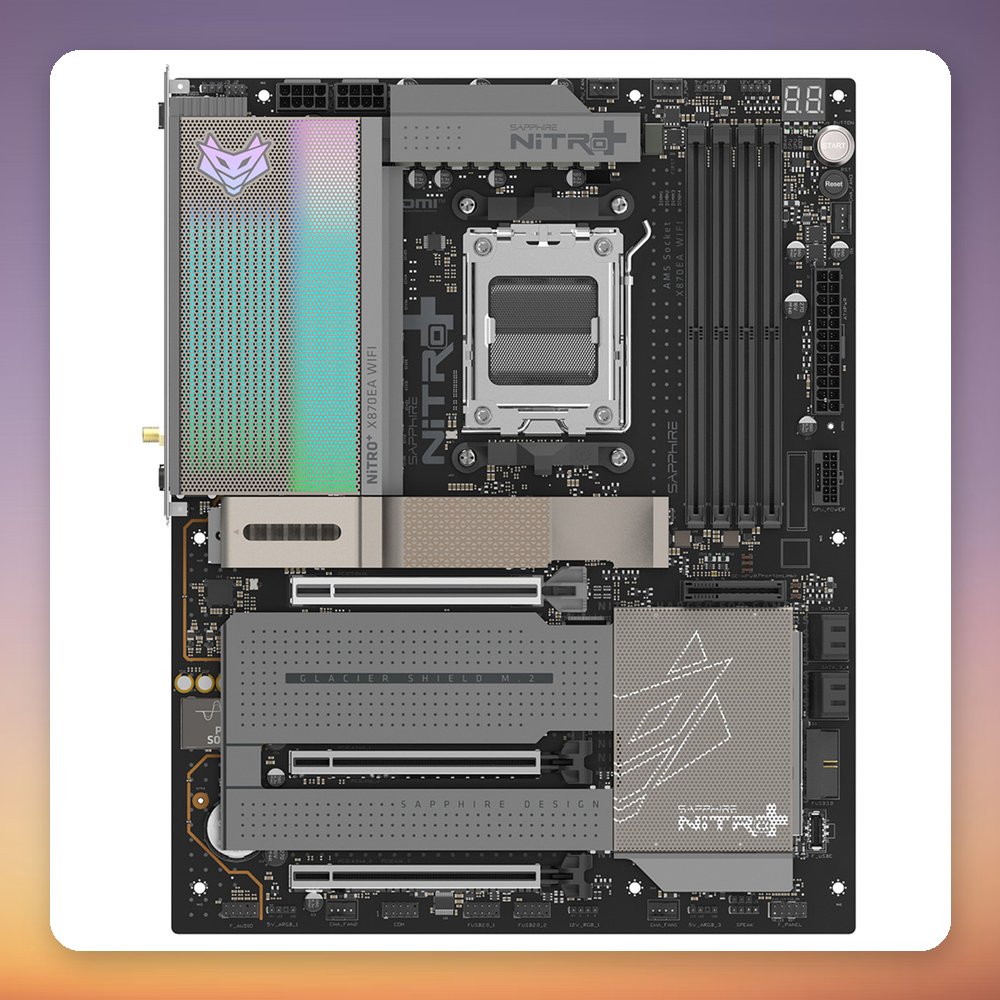

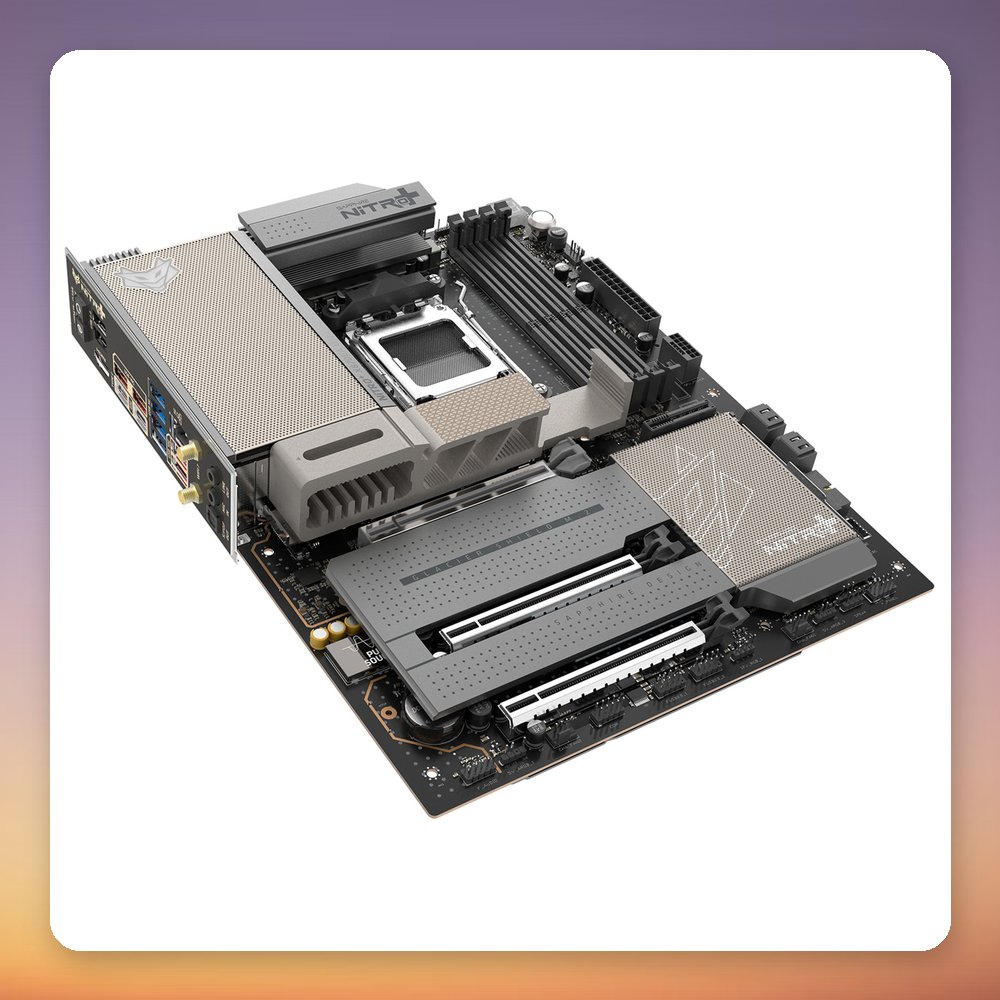

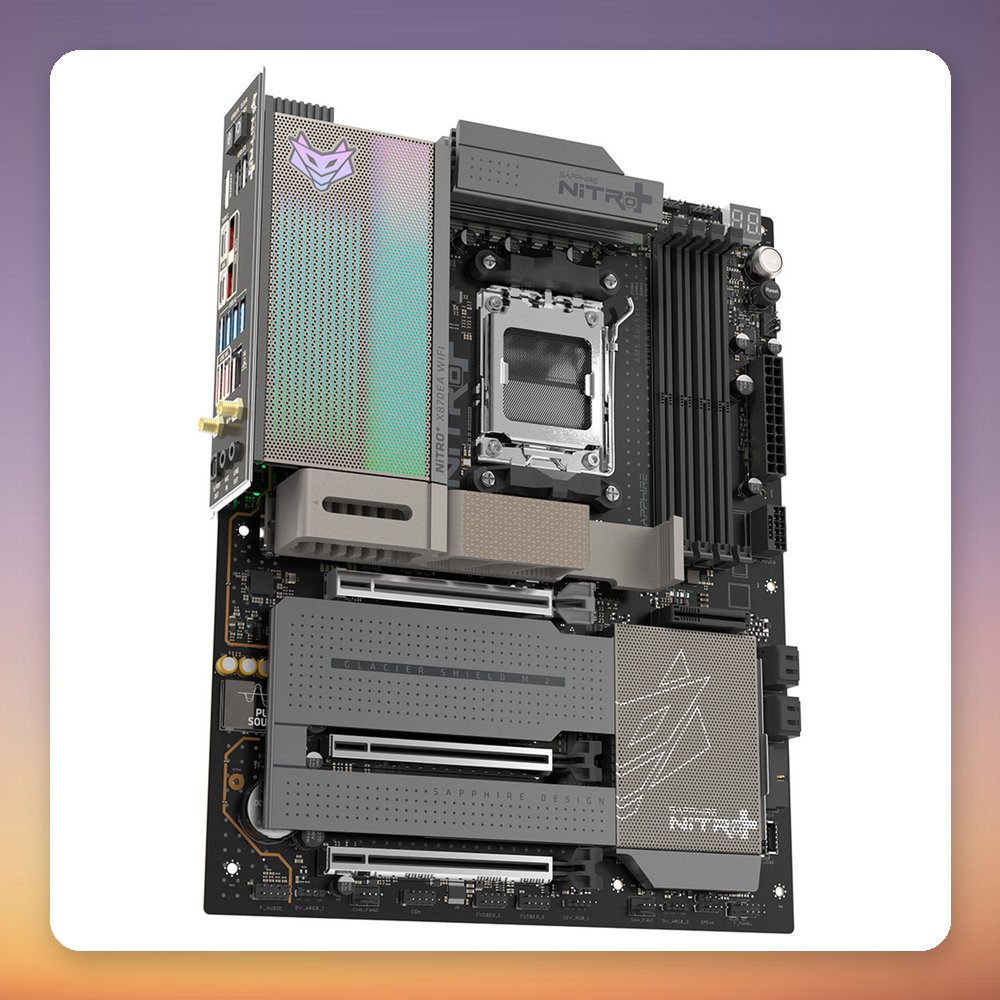

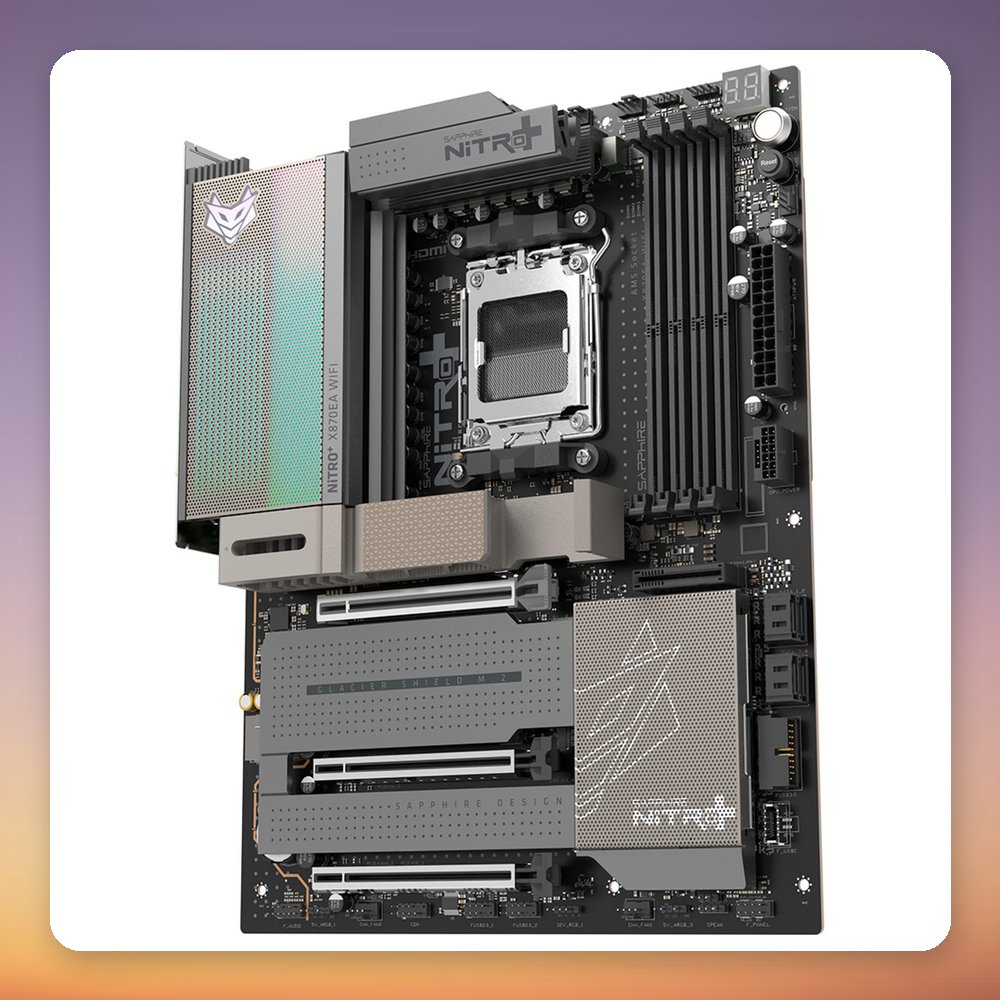

The Sapphire NITRO+ X870EA WIFI7 Phantom Link is an ATX motherboard for Socket AM5 built on the AMD X870E chipset. It stands out with four M.2 slots, two of them PCIe Gen 5.0 and two PCIe Gen 4.0, plus two USB4 ports that support DisplayPort Alt mode video output and 15W power delivery. Networking is covered by 5G LAN, Wi-Fi 7 and Bluetooth 5.4.

With four DDR5 slots supporting up to 256 GB at speeds up to 8400 MT/s (OC), this board suits high-end AM5 builds around Ryzen 7000, 8000 and 9000 series processors, including X3D models. Storage is well provided for, with four SATA connectors alongside the M.2 slots. The black and silver design and Mystic Light RGB support make it a good match for a matching-colour build. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: Sapphire
Model: NITRO+ X870EA WIFI7 Phantom Link
MPN: 52122-01-40G
EAN: 48951062968930
Socket: AMD AM5
Chipset: AMD X870E
Form factor: ATX (244 x 305 mm)
Memory: 4x DDR5, dual channel, up to 256 GB
Memory speed: DDR5-8400 to 5600 (OC), 5600 to 4800 (JEDEC)
M.2 slots: 4x M.2 (Key M): 2x PCIe Gen 5.0, 2x PCIe Gen 4.0
SATA: 4x SATA
PCIe slots: 3x PCIe x16 (1x PCIe x16, 2x PCIe x4)
LAN: Realtek 8126 5G LAN
Wireless: Wi-Fi 7, Bluetooth 5.4
Rear USB: 2x USB4, 4x USB-A 10 Gbit/s, 4x USB-A 5 Gbit/s, 2x USB-A 2.0
Audio: Realtek ALC897 codec
RGB: Mystic Light
Power connectors: ATX12V (24-pin + 2x 8-pin)
Colour: Black/silver

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.5 kg
