Name: Sapphire A520M-E AM4 Micro-ATX Motherboard, AMD A520, DDR4-3200, 64 GB Max
Brand: Sapphire
SKU: 100146172
Price: 70.49 EUR
Availability: InStock

Sapphire A520M-E AM4 Micro-ATX Motherboard, AMD A520, DDR4-3200, 64 GB Max

€70.49

Delivery: 7-12 business days
Sapphire A520M-E AM4 Micro-ATX Motherboard, AMD A520, DDR4-3200, 64 GB Max

Supports up to 64 GB DDR4-3200 in dual channel
Four SATA ports plus one M.2 PCIe slot
Four USB 3.2 Gen 1 ports on the rear panel
HDMI and VGA outputs for CPUs with integrated graphics

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100146172 Category: AMD Motherboards Tags: A520M-E,, AMD, motherboard,, Ryzen, Sapphire, Brand: Sapphire

Description
Additional information

✅

Product Overview

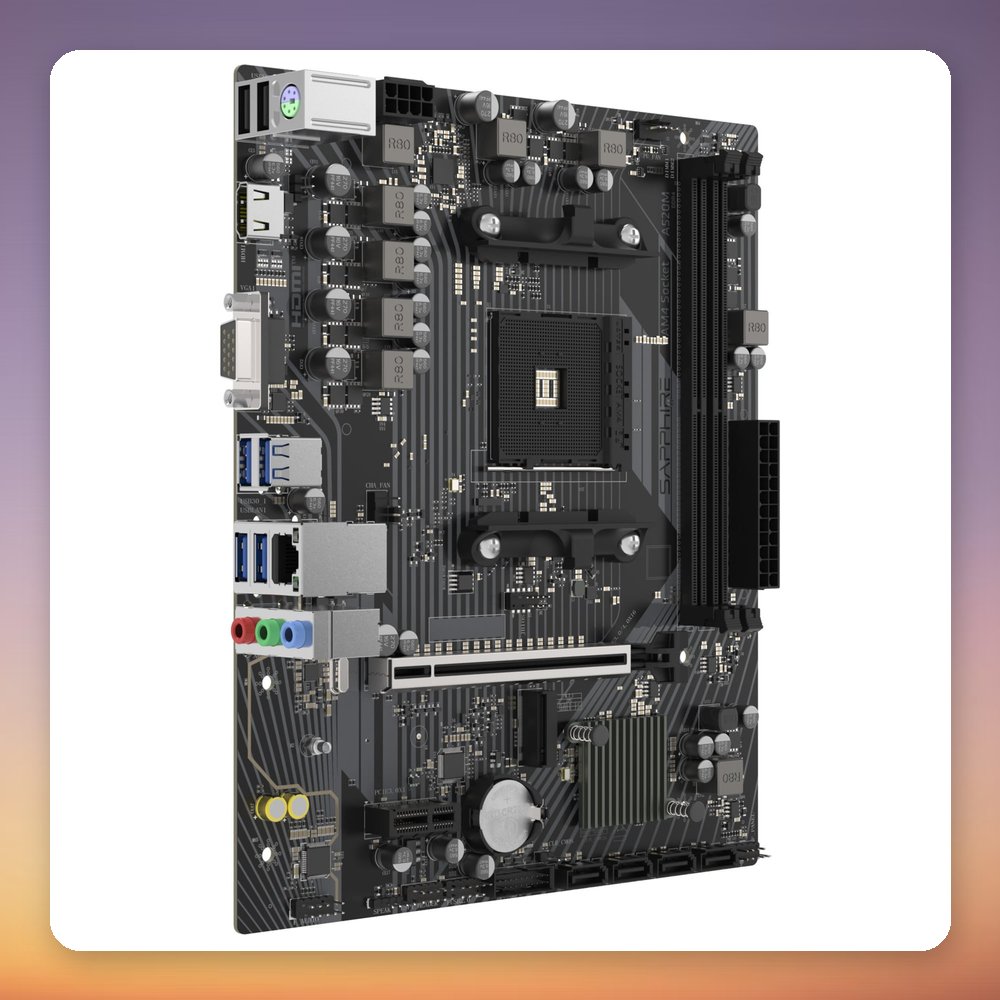

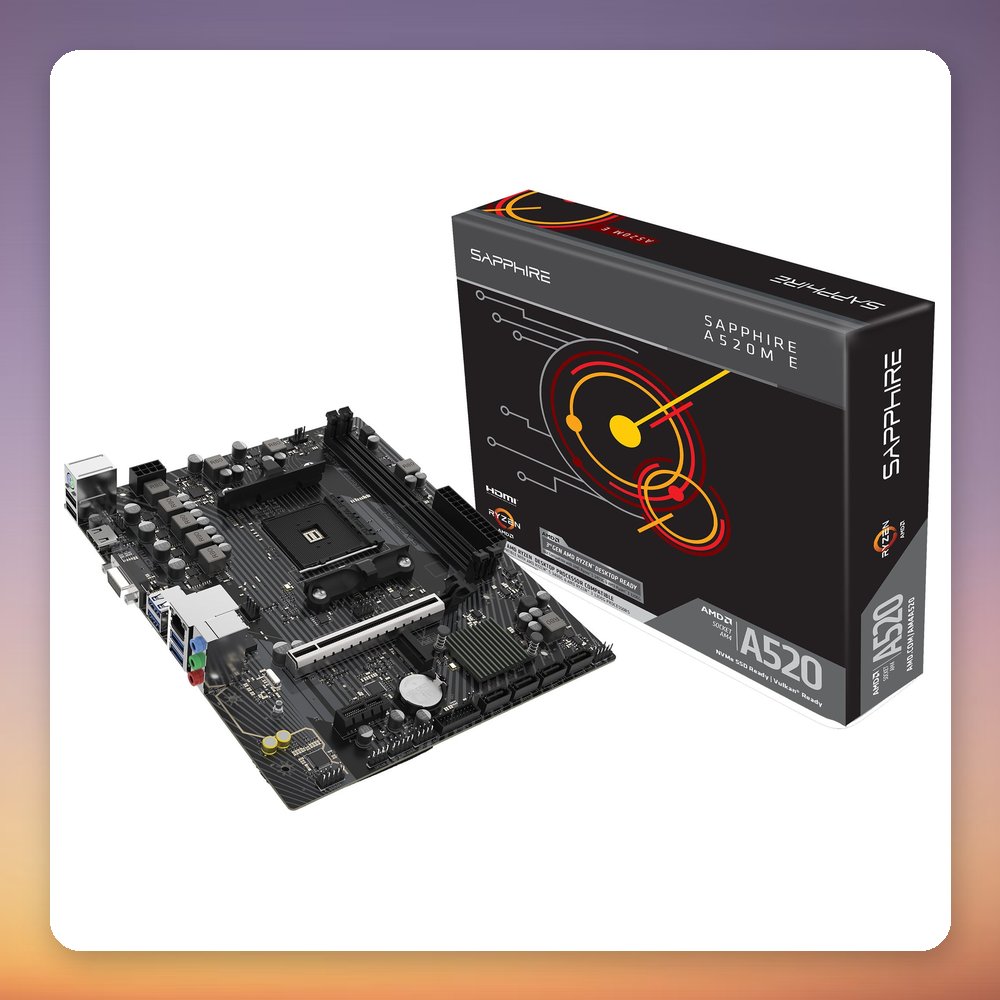

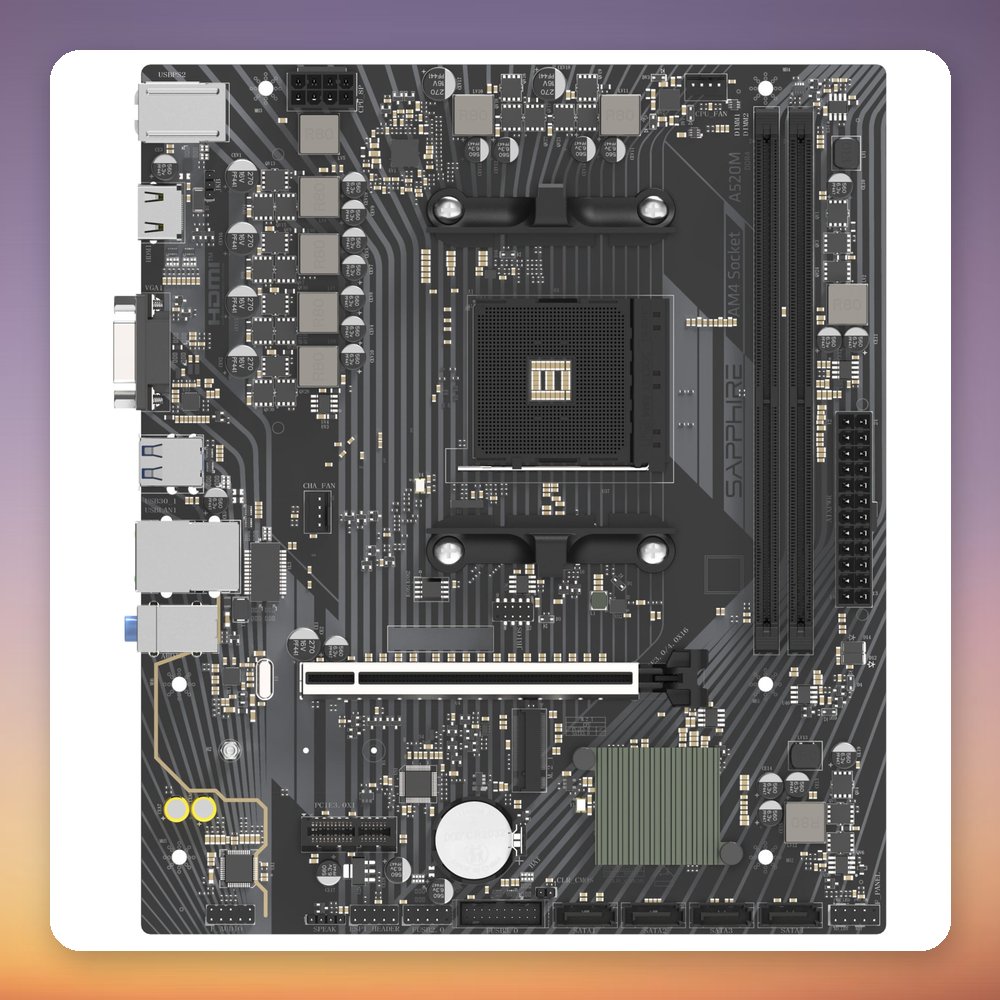

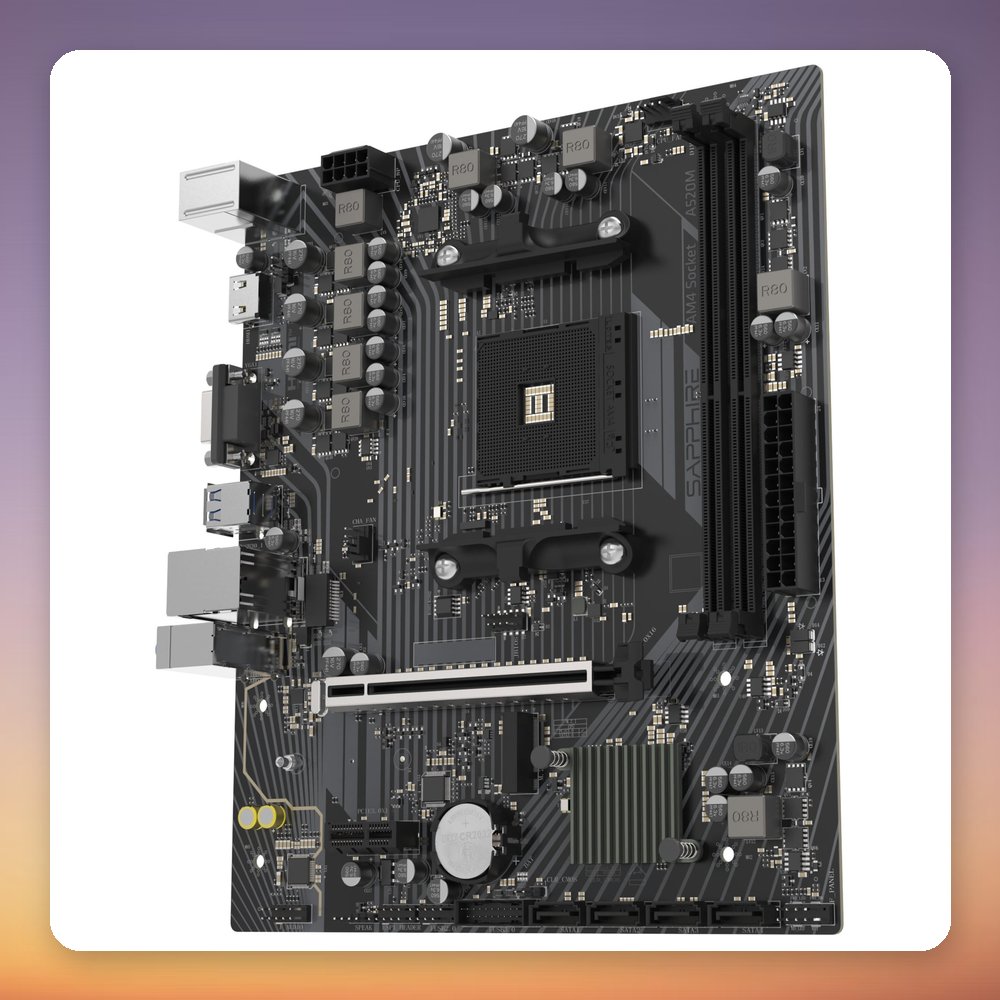

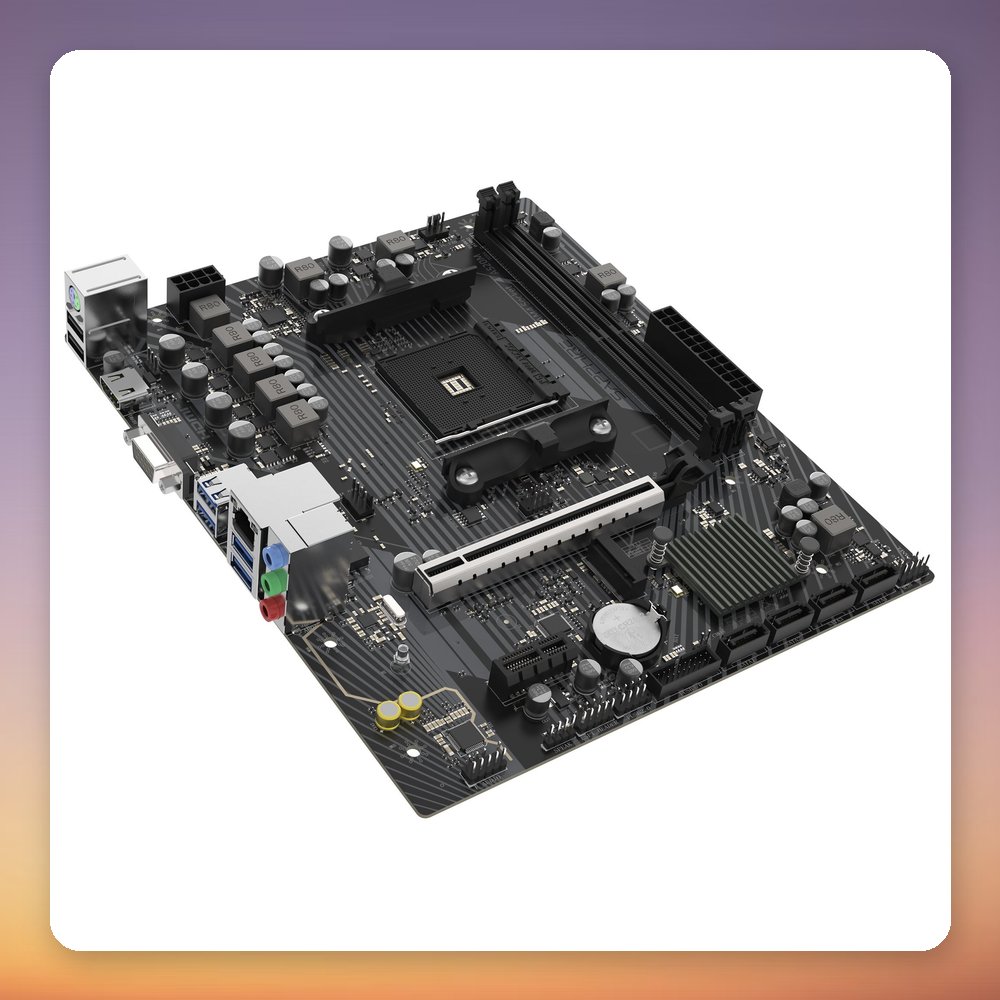

The Sapphire A520M-E AM4 motherboard is a compact µATX board built on the AMD A520 chipset for AMD processors in the AM4 socket. It has two DDR4 slots supporting up to 64 GB of dual-channel memory at speeds up to DDR4-3200, one PCIe 3.0 x16 slot, one PCIe 3.0 x1 slot, four SATA connectors and one M.2 slot with M key for PCIe SSDs.

This board suits a budget or compact AM4 gaming or home PC. Video outputs (HDMI and VGA) work only when the installed CPU has integrated graphics. Networking is covered by Gigabit LAN (Realtek RTL8111M), and the Realtek ALC897 codec provides 8-channel audio. The external panel offers four USB 3.2 Gen 1 and two USB 2.0 ports plus a PS/2 combo port. A BIOS update may be needed to support the newest processors.

Specification

Manufacturer: Sapphire
Model: A520M-E
MPN: 52119-04-40G
EAN: 4895106296886
Socket: AMD AM4
Chipset: AMD A520
Form factor: µATX (235 x 244 mm)
Memory slots: 2x DDR4, dual channel
Maximum memory: 64 GB
Supported memory speeds: DDR4-3200 / 3000 / 2800 / 2666 / 2400 / 2133
ECC memory support: Yes
Expansion slots: 1x PCIe x16, 1x PCIe x1
Storage connectors: 4x SATA, 1x M.2 (M key, PCIe)
RAID levels: 0, 1, 10
Rear USB ports: 4x USB-A 3.2 Gen 1 (5 Gbit/s), 2x USB-A 2.0
Video outputs: 1x HDMI, 1x VGA (CPU with integrated graphics required)
LAN: Gigabit, Realtek RTL8111M
Audio: Realtek ALC897, 8-channel
Power connectors: ATX12V (24-pin + 8-pin)
BIOS: 256 Mbit AMI UEFI BIOS
