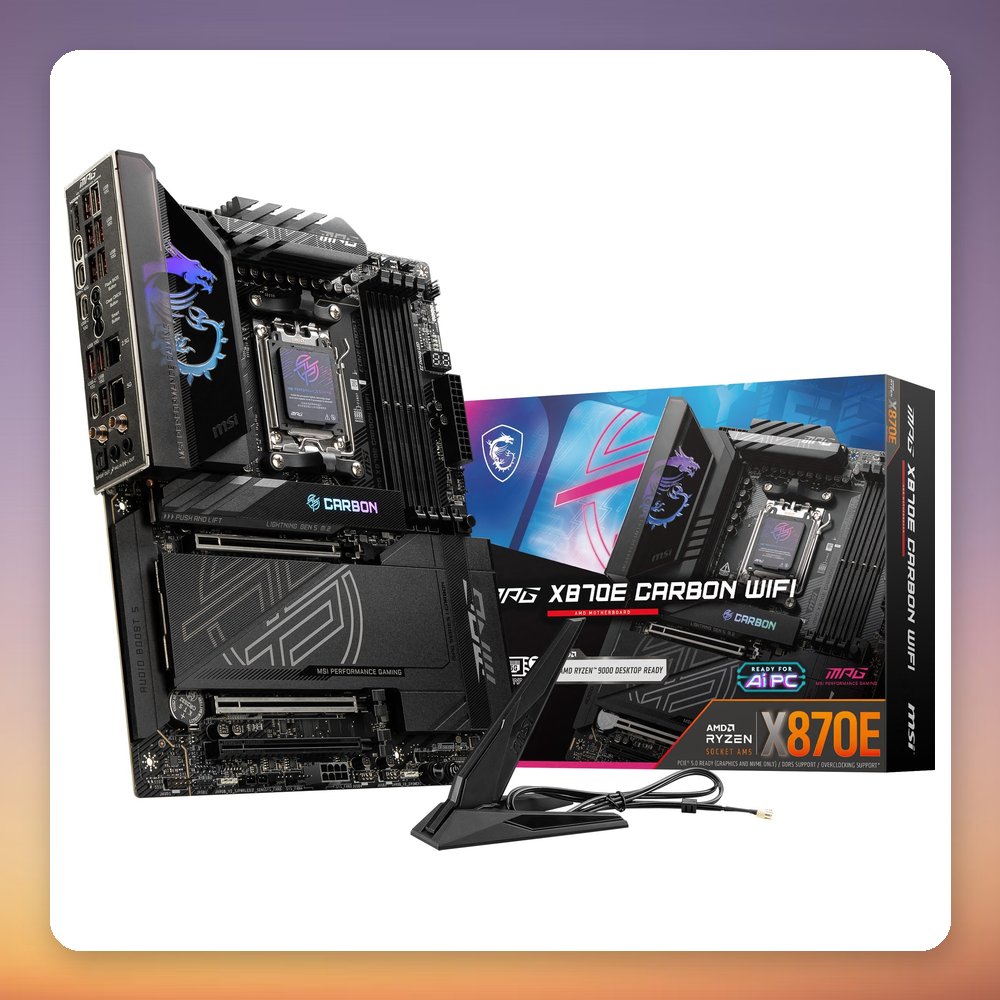

MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE

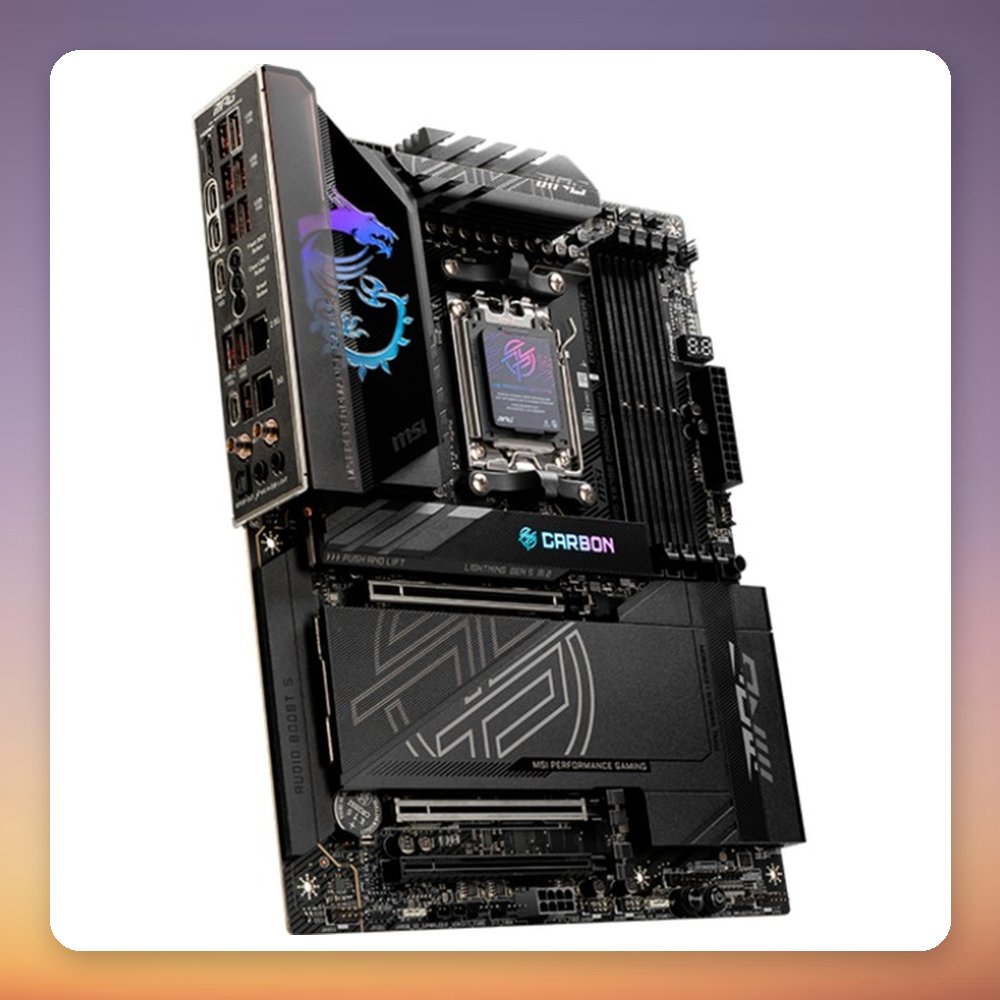

MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE – image 2

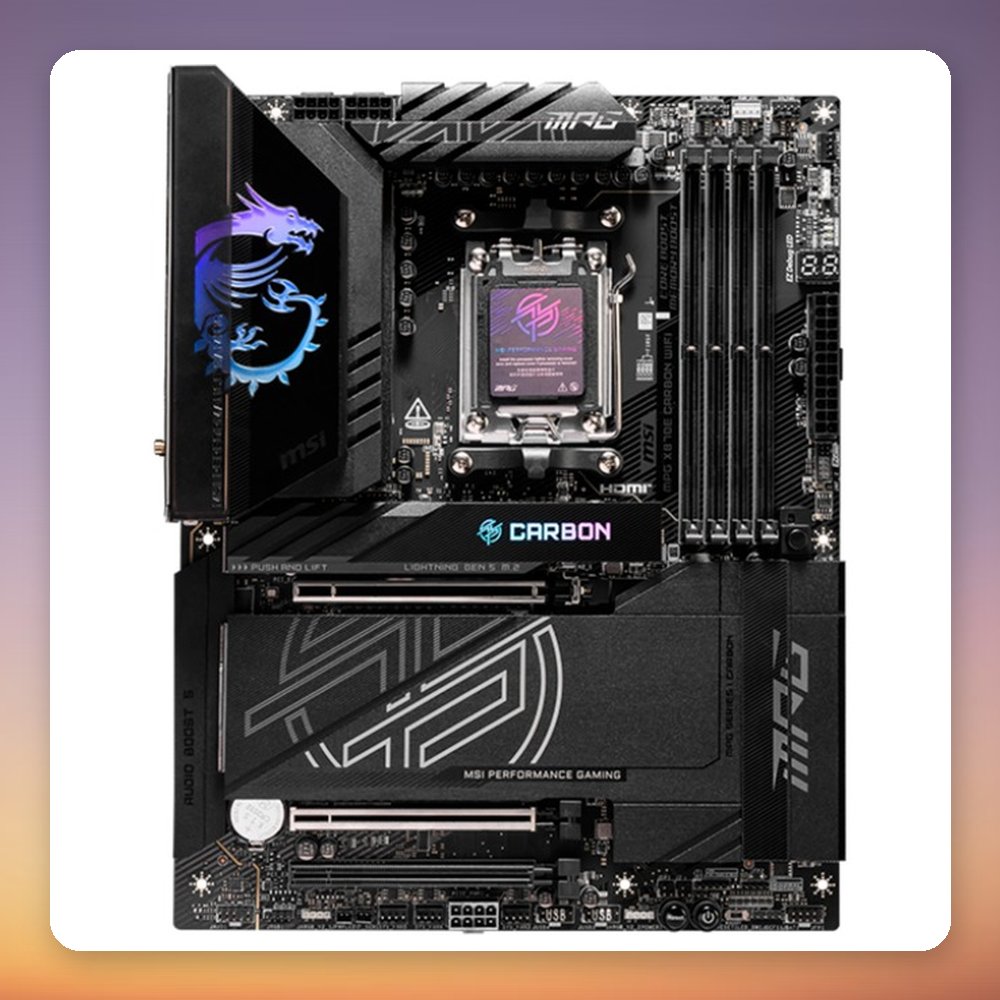

MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE – image 3

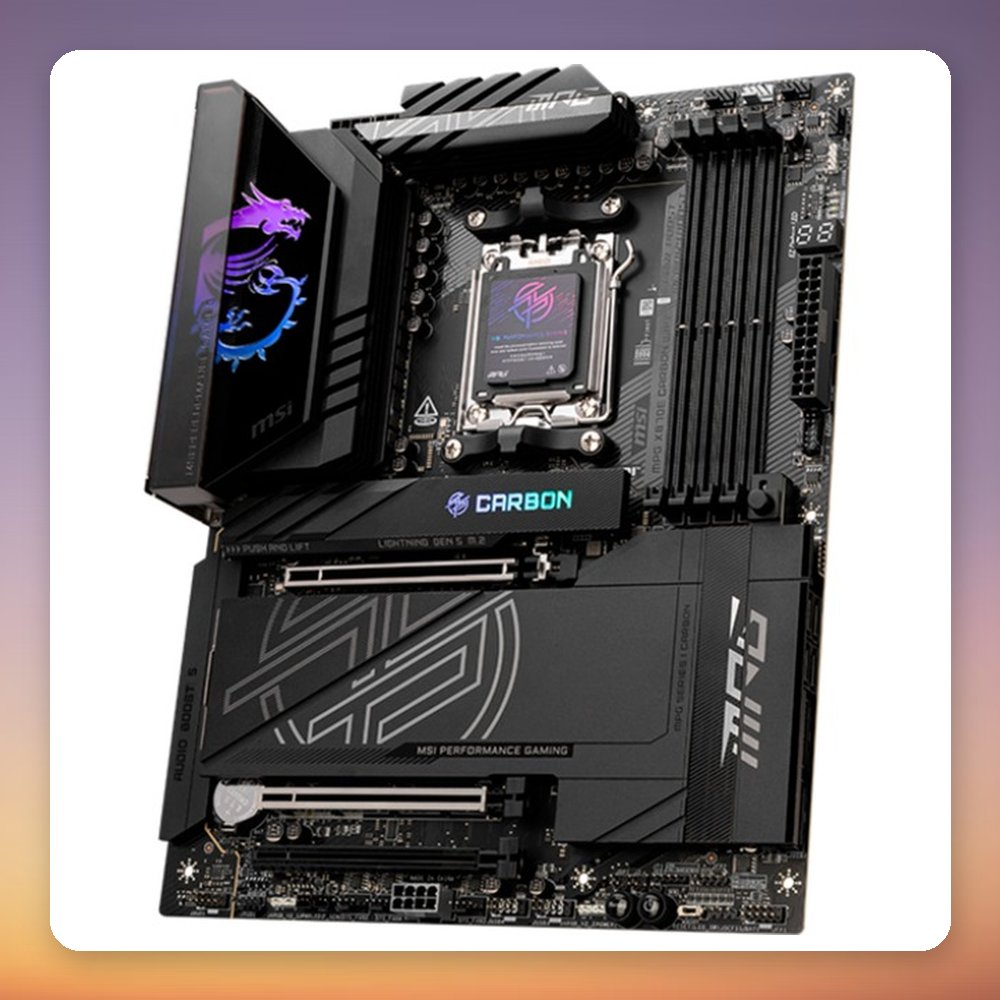

MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE – image 4
MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE – image 5
MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE – image 6

MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE

€616.78

Delivery: 7-12 business days
MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE

  • Two of four M.2 slots run at PCIe Gen 5.0
  • Dual Ethernet: 5 GbE plus 2.5 GbE
  • Wi-Fi 7 and Bluetooth 5.4 on board
  • Two USB4 ports plus nine USB-A 3.2 Gen 2

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100076042 Category: Tags: , , , , Brand:

✅

Product Overview

The MSI MPG X870E Carbon WiFi is an ATX motherboard built on the AMD X870E chipset for Socket AM5 processors. What sets it apart is the connectivity: 5 Gb and 2.5 Gb Ethernet, Wi-Fi 7 with Bluetooth 5.4, two USB4 ports and four M.2 slots, two of which run at PCIe Gen 5.0. It has four DDR5 slots supporting up to 256 GB, with overclocked speeds listed up to DDR5-8400+.

This board suits high-end AMD builds based on Ryzen 7000, 8000 and 9000 series processors, including the X3D models, where fast storage and wired and wireless networking matter. It offers eight 4-pin PWM fan headers, three addressable RGB headers and Mystic Light RGB control. The fitted PCIe 5.0 x16 slot covers a current graphics card, and four SATA ports handle additional drives. A BIOS update may be needed to support the newest processors. Realtek ALC4080 audio is onboard.

Specification

  • Manufacturer: MSI
  • Model: MPG X870E Carbon WiFi
  • MPN: 7E49-001R
  • EAN: 4711377253536
  • Socket: AM5
  • Chipset: AMD X870E
  • Form factor: ATX
  • Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
  • Memory speed: DDR5-4800 (JEDEC) up to 8400+ (OC)
  • M.2 slots: 4x M.2 (M key): 2x PCIe Gen 5.0, 2x PCIe Gen 4.0
  • SATA ports: 4x SATA III, RAID 0/1/10
  • PCIe slots: 1x PCIe x16 (Gen 5.0) plus 2x PCIe x4 slots
  • Ethernet: Realtek 8126-CG 5 GbE and Realtek 8125 2.5 GbE
  • Wireless: Wi-Fi 7 and Bluetooth 5.4

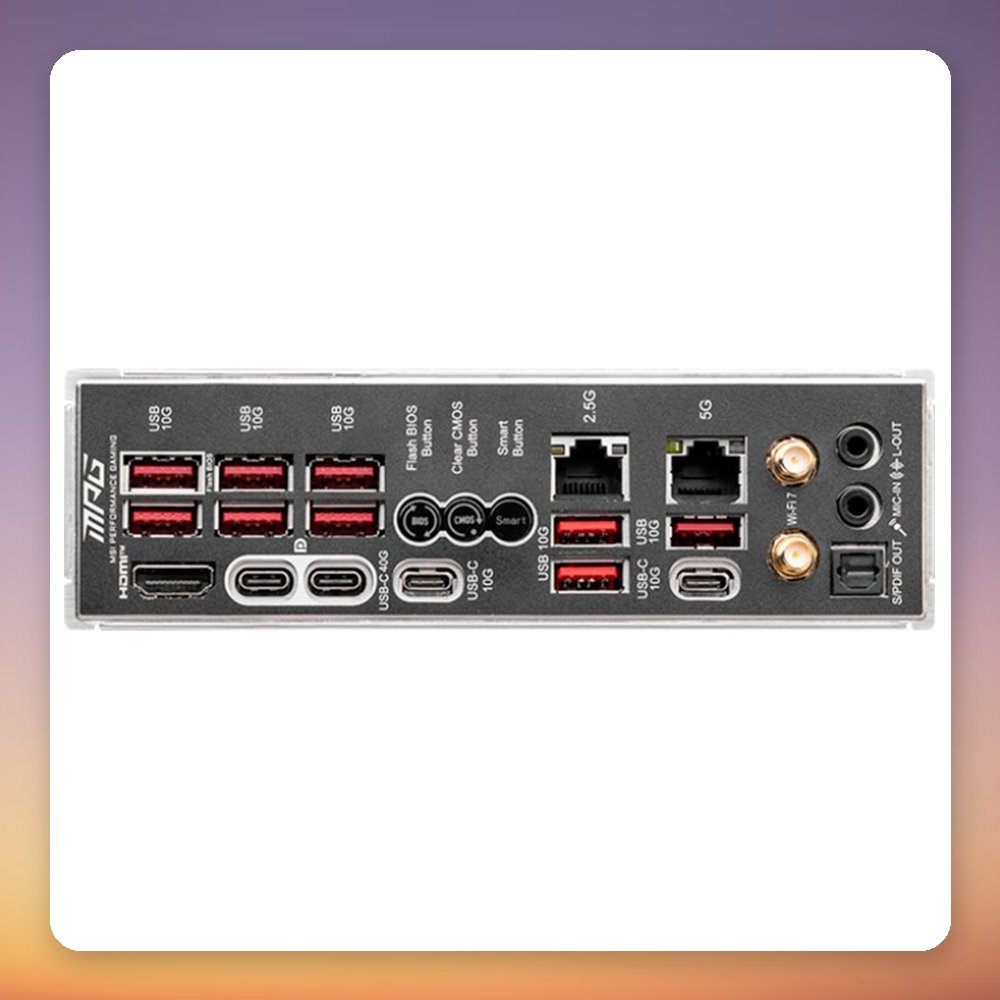

  • Rear USB: 2x USB4, 2x USB-C 3.2 Gen 2, 9x USB-A 3.2 Gen 2
  • Video outputs: 1x HDMI, 2x DisplayPort via USB4 (needs a CPU with integrated graphics)
  • Audio: Realtek ALC4080, 7.1 channels
  • Fan headers: 8x 4-pin PWM
  • RGB: Mystic Light, 1x RGB header, 3x ARGB headers
  • Dimensions (W x H): 243.84 x 304.8 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 1.5 kg
