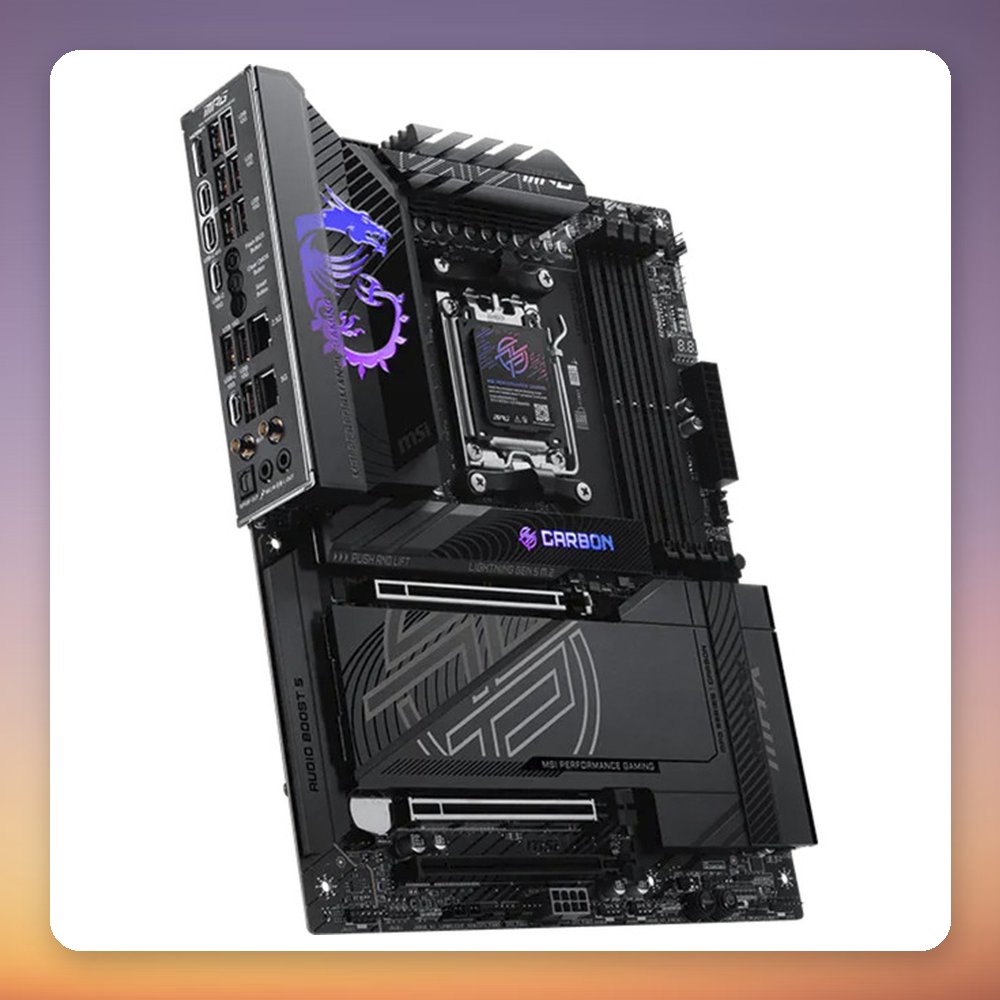

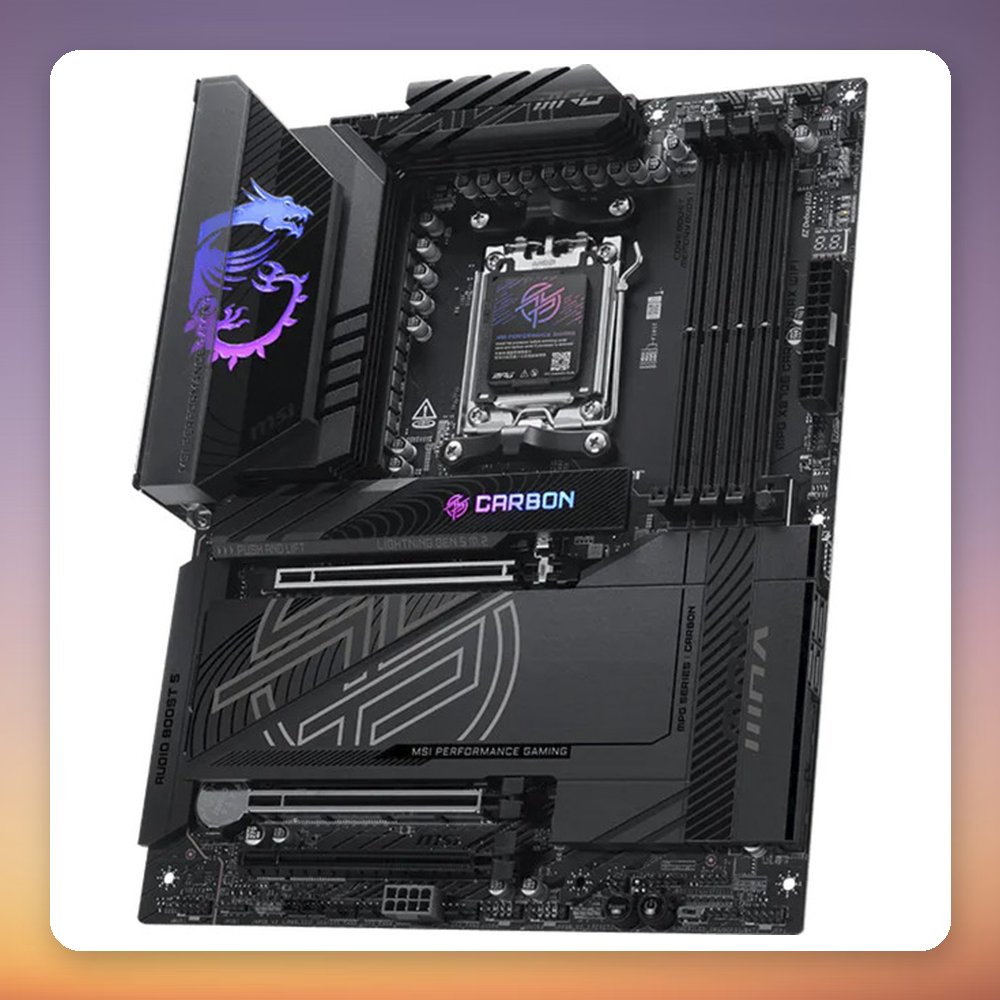

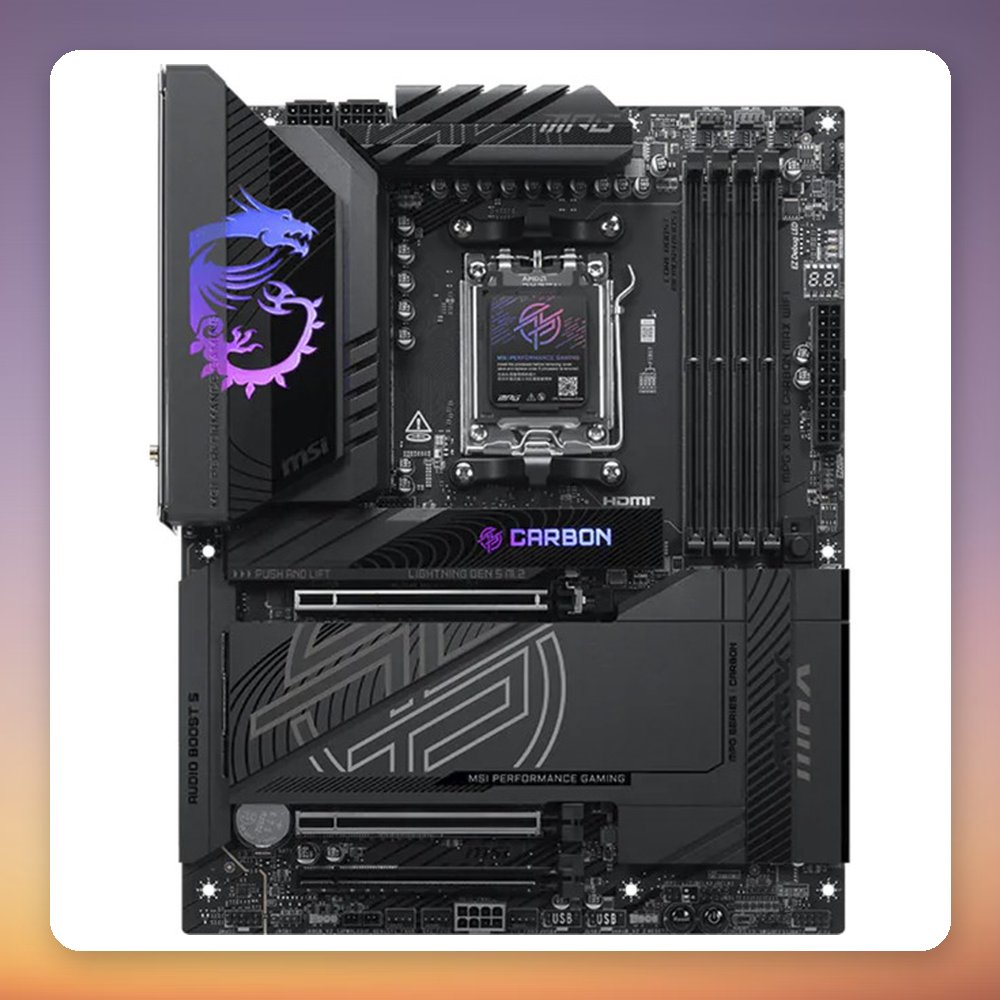

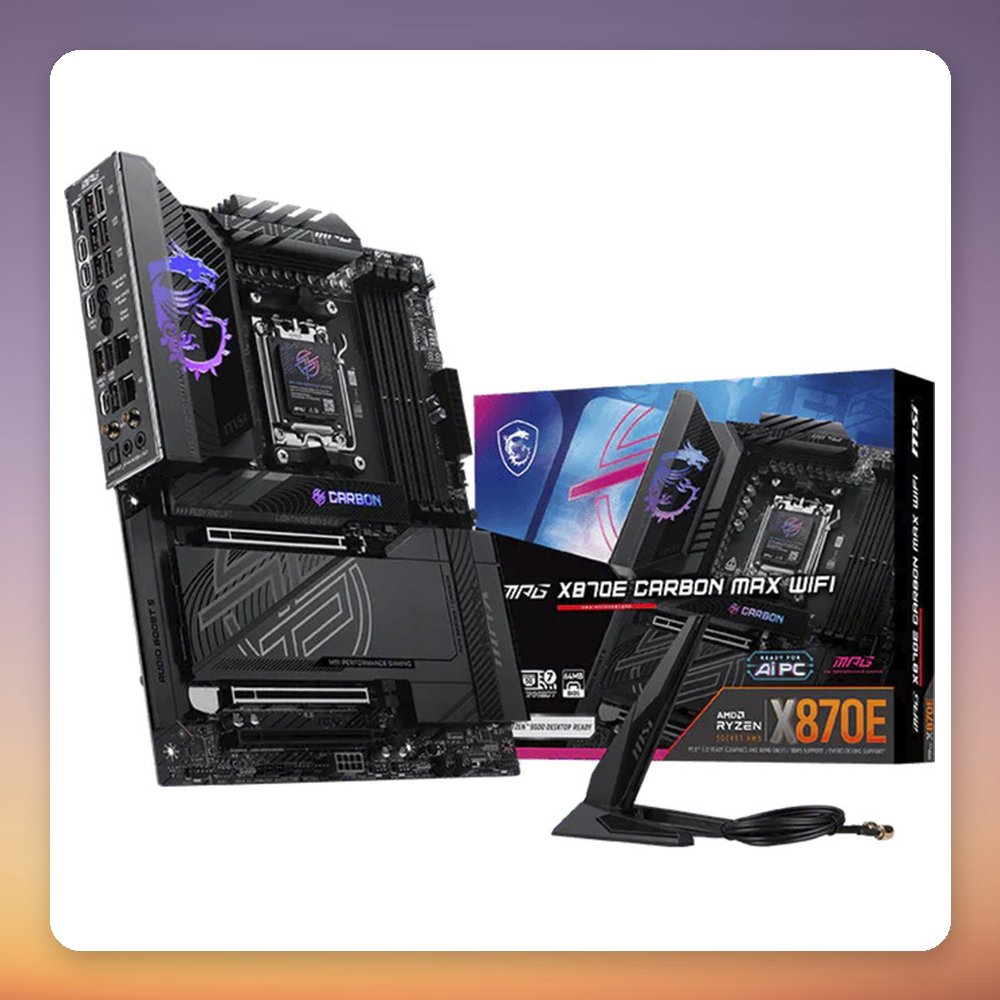

MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver
MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver – image 2
MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver – image 3
MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver – image 4
MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver – image 5

MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver

€724.04

Delivery: 7-12 business days
MSI MPG X870E CARBON MAX WIFI AM5 ATX Motherboard, DDR5, Wi-Fi 7, Silver

  • Four M.2 slots, two of them PCIe Gen 5.0
  • Two USB4 ports plus nine USB-A 5 Gbps ports
  • Wi-Fi 7, Bluetooth 5.4 and up to 5G LAN
  • DDR5 support up to 9000 MT/s (OC)

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100219531 Category: Brand:

✅

Product Overview

The MSI MPG X870E CARBON MAX WIFI is an ATX motherboard for Socket AM5, built on the AMD X870E chipset. It stands out with four M.2 slots (two PCIe Gen 5.0, two PCIe Gen 4.0), two USB4 ports, Wi-Fi 7 with Bluetooth 5.4 and three LAN controllers, including 10 Gigabit, 5 Gigabit and 2.5 Gigabit Ethernet. It supports four DDR5 slots, with memory speeds up to 9000 MT/s (OC).

This board suits high-end AM5 gaming and enthusiast builds based on Ryzen 7000, 8000 and 9000 series processors, including X3D models. With a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot (x8 lanes) and a PCIe 4.0 x16 slot (x4 lanes), plus four SATA ports, it leaves room for a graphics card and plenty of storage. Accessories include SATA cables, an EZ M.2 Clip and a Wi-Fi antenna. A BIOS update may be needed for the newest CPUs.

Specification

  • Manufacturer: MSI
  • Model: MPG X870E CARBON MAX WIFI
  • MPN: 7E49-022R
  • EAN: 4711377415156
  • Socket: AMD AM5
  • Chipset: AMD X870E
  • Form factor: ATX
  • Memory: 4x DDR5, dual channel, up to 256 GB (as per specifications)
  • Memory speed: DDR5 5600-4800 MT/s (JEDEC), up to 9000 MT/s (OC)
  • PCIe slots: 1x PCIe x16, 1x PCIe x8, 1x PCIe x4 (x16 slots)
  • M.2 slots: 4x (2x PCIe Gen 5.0, 2x PCIe Gen 4.0), Key M, 60-110 mm
  • SATA ports: 4x
  • LAN: Realtek 8126 5G LAN, Realtek 8125 2.5G LAN
  • Wireless: Wi-Fi 7, Bluetooth 5.4

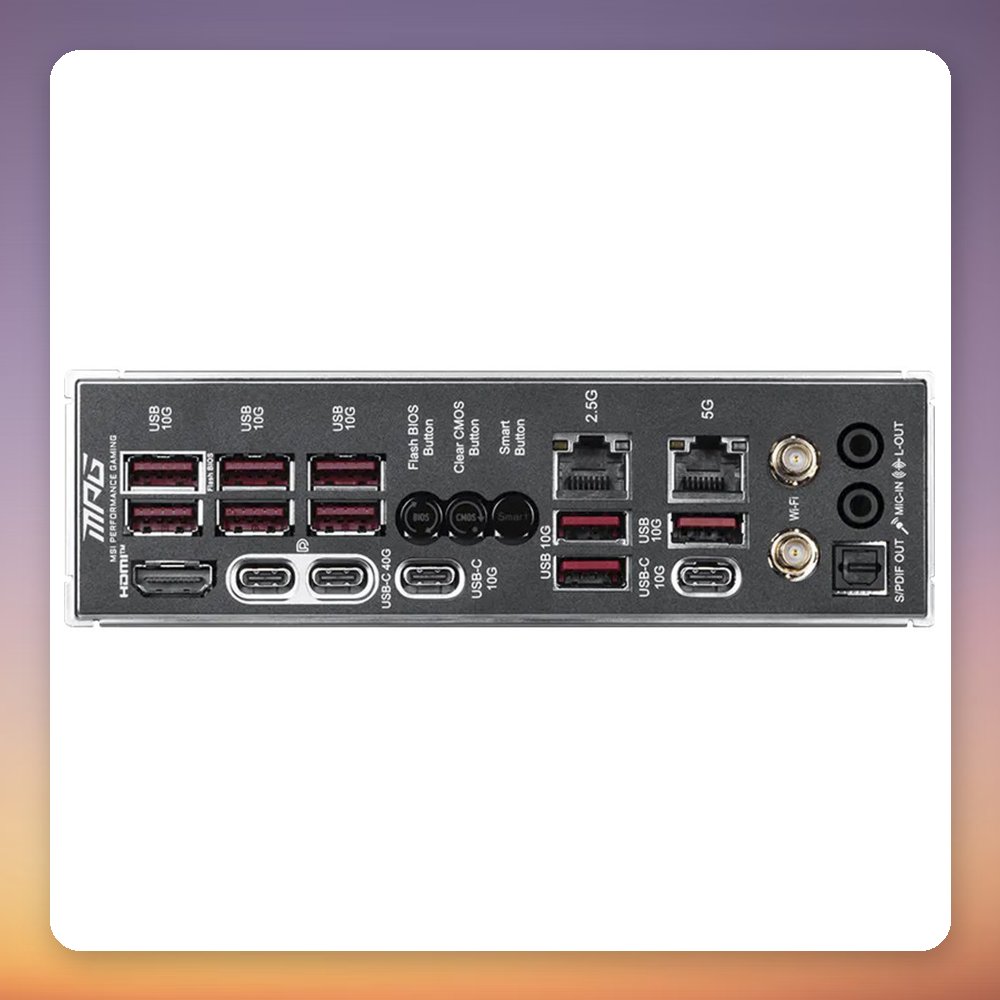

  • USB (rear): 2x USB4, 1x USB-C 20 Gbps, 2x USB-C 10 Gbps, 9x USB-A 5 Gbps
  • Video output: 1x HDMI, 2x USB4 DisplayPort (HBR3, up to 4K@60Hz)
  • Audio: Realtek ALC4080 codec
  • RGB: Mystic Light, 1x RGB header, 3x ARGB headers
  • Fan headers: 7x 4-pin PWM
  • Colour: Silver
  • Dimensions (W x H): 243.84 x 304.8 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 1.43 kg
