Product Overview

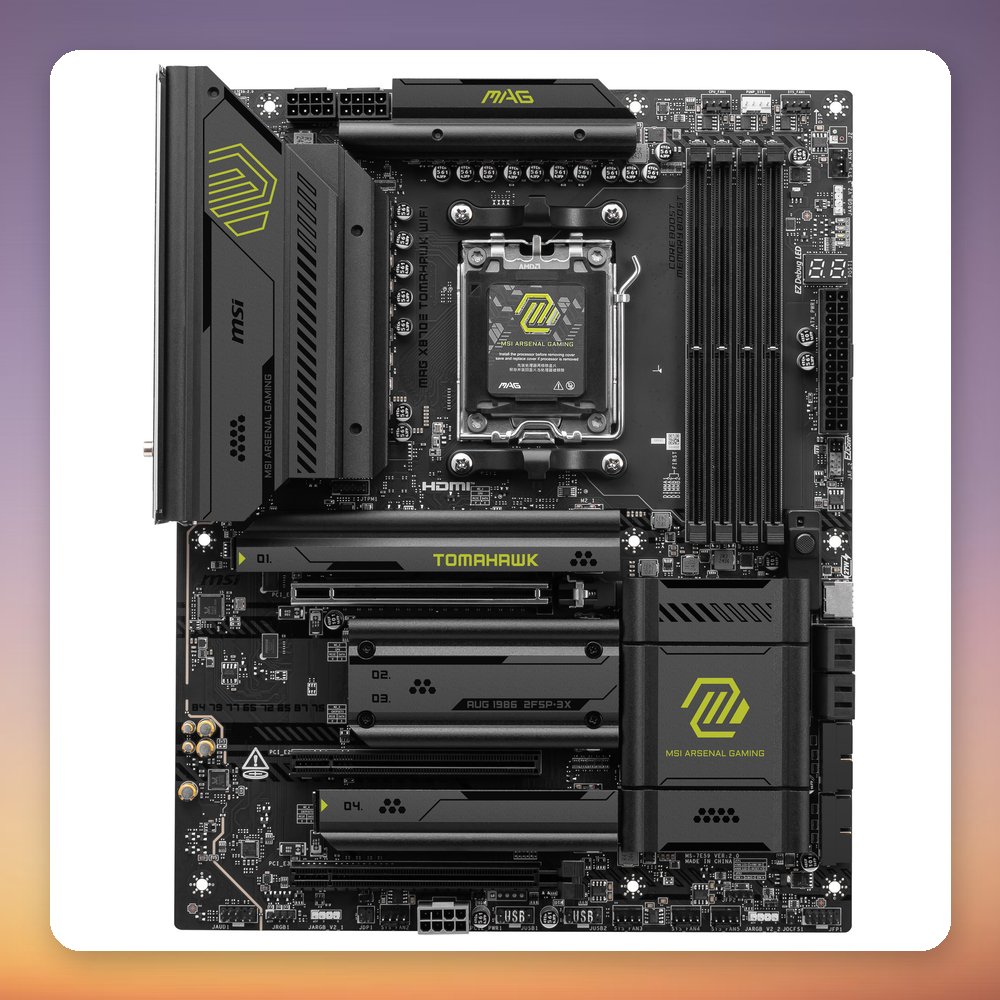

The MSI MAG X870E TOMAHAWK WIFI is an ATX motherboard for the AMD AM5 socket, built on the X870E chipset. It stands out with four M.2 slots (two PCIe Gen 5.0, two PCIe Gen 4.0), two USB4 ports with DisplayPort video output, Wi-Fi 7 with Bluetooth 5.4 and a Realtek 5G LAN port, which is faster than the usual 2.5G.

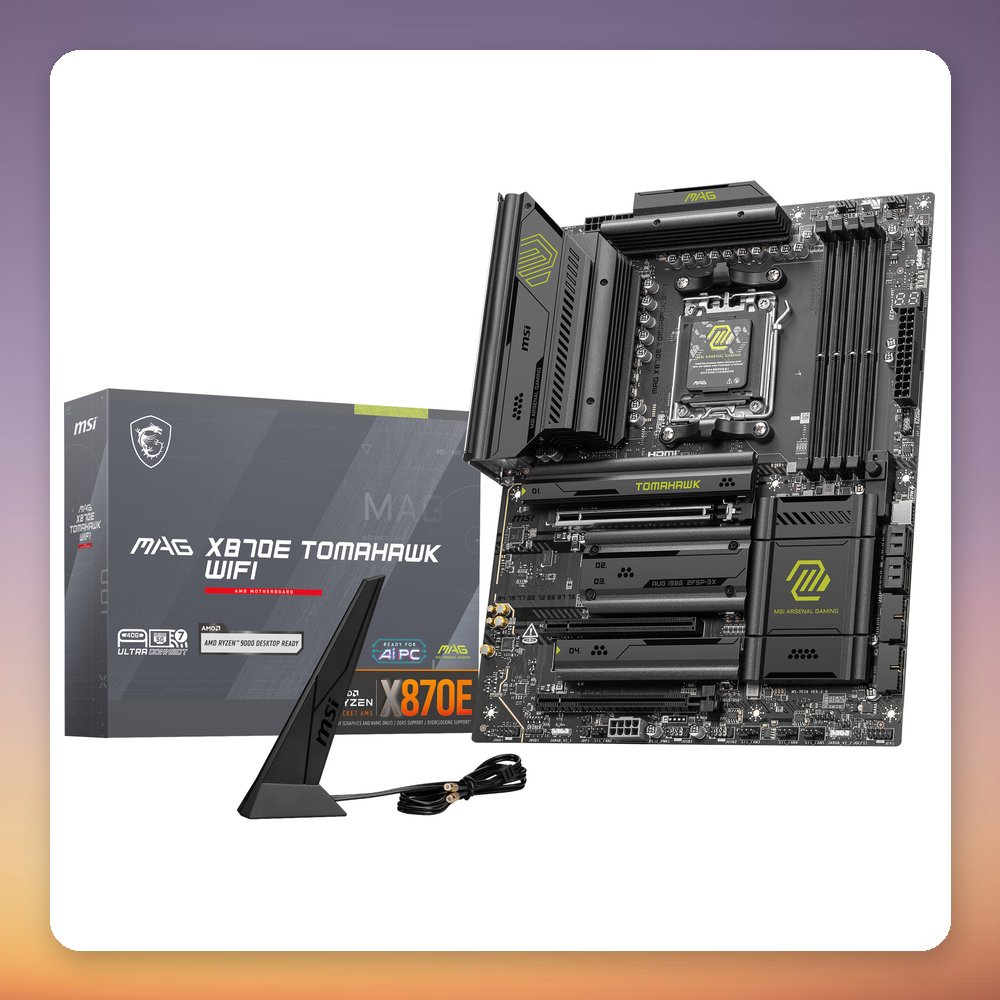

With four DDR5 slots supporting up to 256 GB at speeds up to 8400 MT/s (OC), it suits high-end Ryzen 7000, 8000 and 9000 series gaming and general-purpose builds, including X3D models. It also offers four SATA ports, a PCIe 5.0 x16 slot for graphics, a 20 Gbit/s USB-C header and Mystic Light RGB support. A BIOS update may be needed for the newest processors. Supplied with SATA cables, an EZ WiFi antenna and a USB stick.

Specification

• Manufacturer: MSI
• Model: MAG X870E TOMAHAWK WIFI
• MPN: 7E59-004R
• EAN: 47113772919270
• Socket: AMD AM5
• Chipset: AMD X870E
• Form factor: ATX
• Memory: 4x DDR5 DIMM, up to 256 GB, dual channel
• Memory speed: DDR5-4800 to 5600 (JEDEC), up to 8400 MT/s (OC)
• M.2 slots: 4x (2x PCIe Gen 5.0, 2x PCIe Gen 4.0), 60-110 mm
• SATA ports: 4x
• PCIe slots: 3x PCIe x16 (x16, x4, x1) plus 1x PCIe x1
• LAN: Realtek 8126 5G LAN (RJ-45)
• Wireless: Wi-Fi 7, Bluetooth 5.4
• Rear USB: 2x USB4, 1x USB-C 10 Gbit/s, 2x USB-A 10 Gbit/s, 3x USB-A 5 Gbit/s, 4x USB-A 2.0
• Internal USB-C: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s)
• Audio: Realtek ALC4080 codec
• RGB: Mystic Light; 3x addressable RGB header, 1x RGB header
• Dimensions (W x H): 243.84 x 304.8 mm
• Colour: Black
