Product Overview

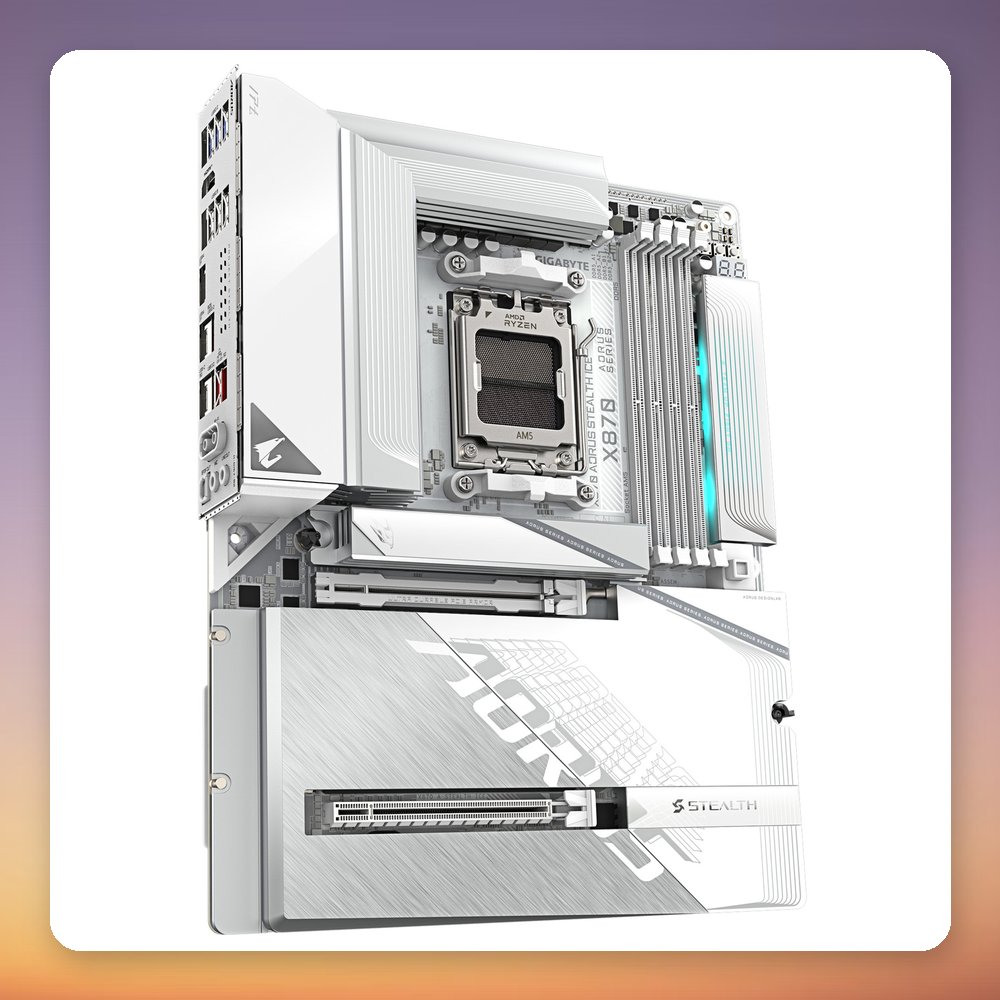

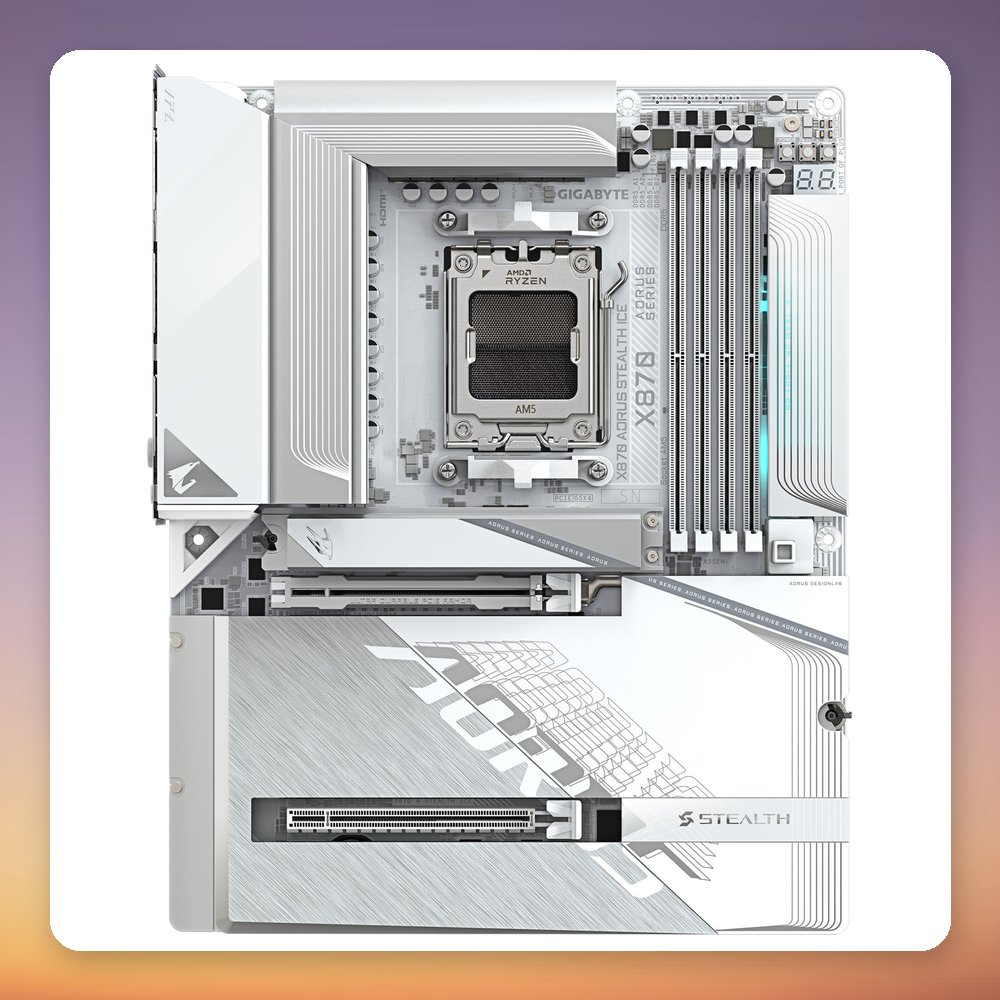

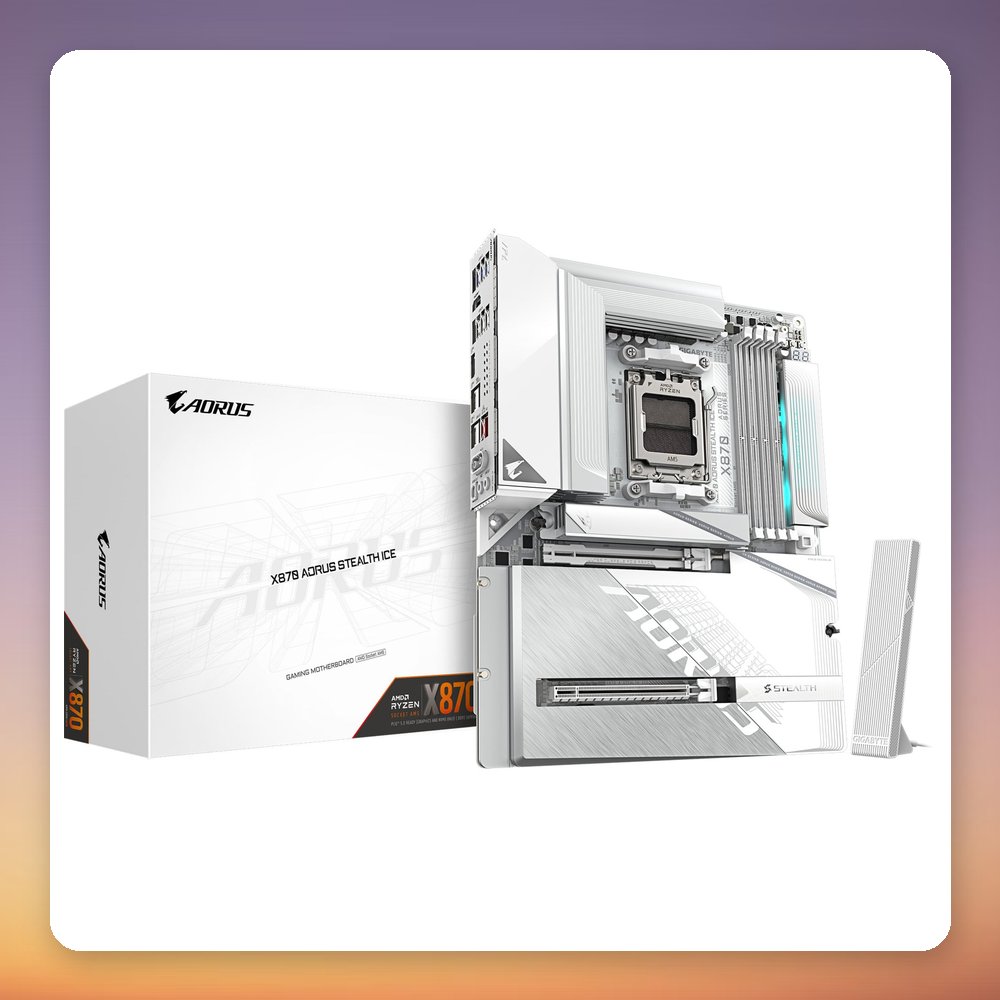

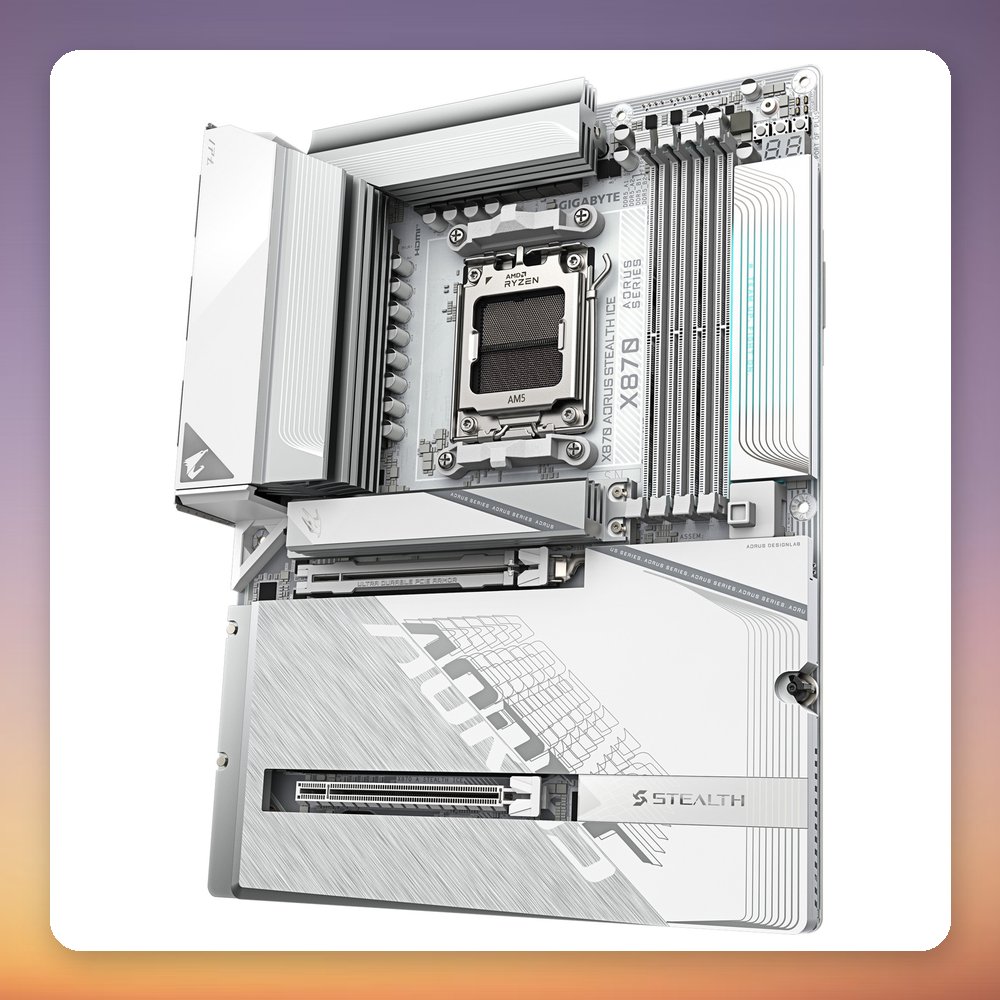

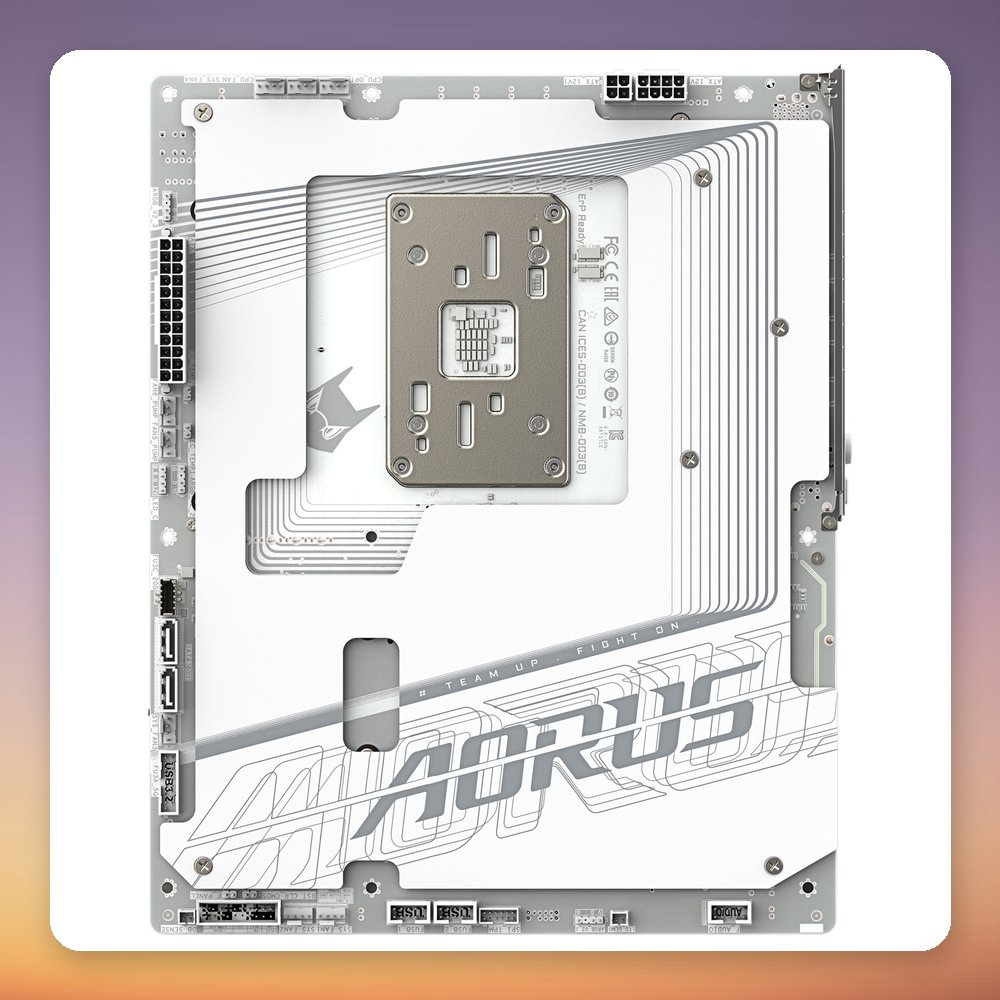

The Gigabyte X870 AORUS STEALTH ICE is an ATX motherboard for Socket AM5 built on the AMD X870 chipset, finished in silver and white. It stands out with four M.2 slots (two of them PCIe 5.0), two USB4 ports, a Realtek 5GbE LAN chip and Qualcomm Wi-Fi 7 with Bluetooth. Four DDR5 slots take up to 256 GB, with supported speeds listed up to DDR5-8000 (OC).

This board suits an all-white AM5 build with a Ryzen 7000, 8000 or 9000 series processor, including X3D models. The PCIe 5.0 M.2 slots, USB4 and 5GbE networking make it a good fit for builders who want fast storage and connectivity. It has eight 4-pin PWM fan headers and RGB Fusion support, plus HDMI and USB4 DisplayPort outputs when a CPU with integrated graphics is used. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: GigaByte
• Model: X870 AORUS STEALTH ICE
• MPN: X870 A STEALTH ICE
• EAN: 4719331873097
• Socket: AMD AM5
• Chipset: AMD X870
• Form factor: ATX (244 x 305 mm)
• Memory: 4x DDR5 DIMM, dual-channel, max 256 GB
• Supported memory speeds: DDR5-4400 to DDR5-8000 (OC)
• M.2 slots: 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0)
• SATA ports: 2x SATA III
• Expansion slots: 1x PCIe x16 (5.0), 1x PCIe x16 (4.0, x4 lanes)
• LAN: Realtek 5GbE (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless: Qualcomm Wi-Fi 7 (QCNCM865), Bluetooth 5.4

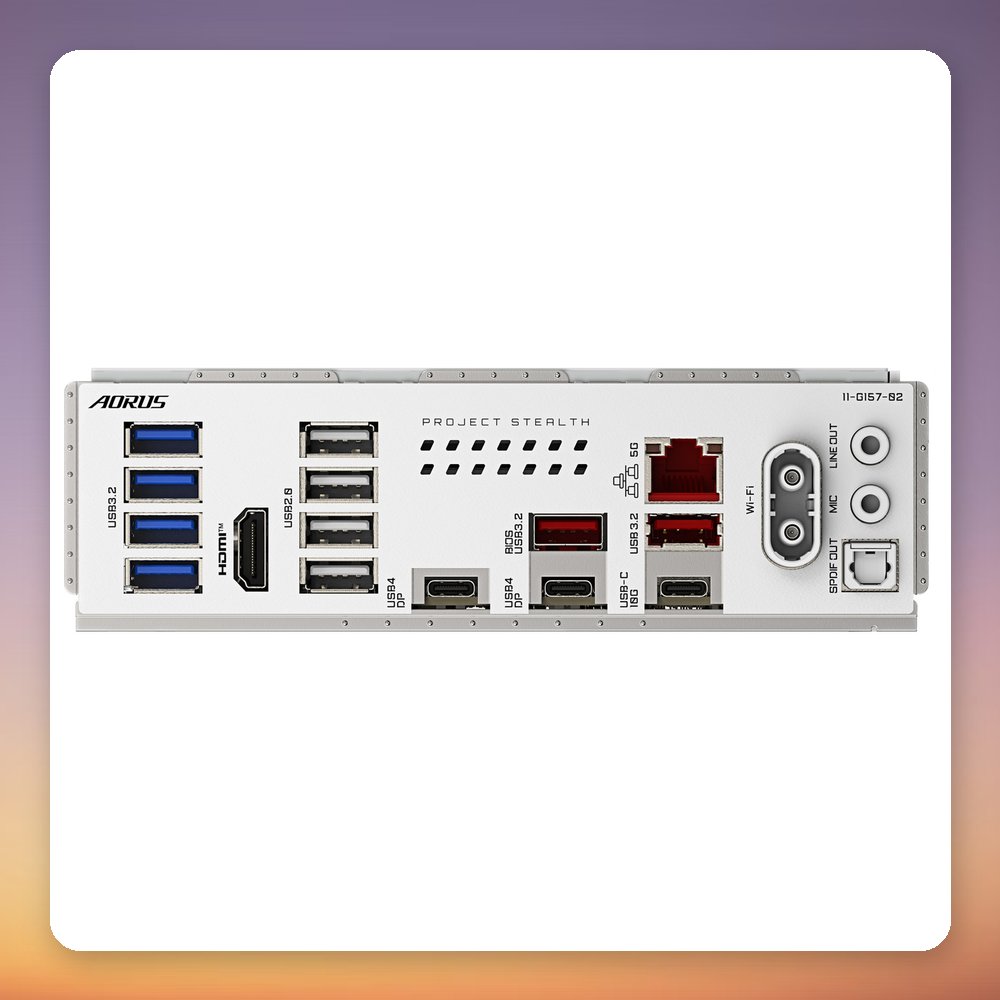

• Rear USB: 2x USB4, 1x USB-C 10 Gbps, 2x USB-A 10 Gbps, 4x USB-A 5 Gbps, 4x USB 2.0
• Video output: 1x HDMI, 2x USB4 DisplayPort
• Audio: Realtek ALC1220 codec, optical S/PDIF out
• Fan headers: 8x 4-pin PWM
• RGB headers: 3x addressable RGB, 1x RGB (RGB Fusion)
• Colour: Silver / White
