Product Overview

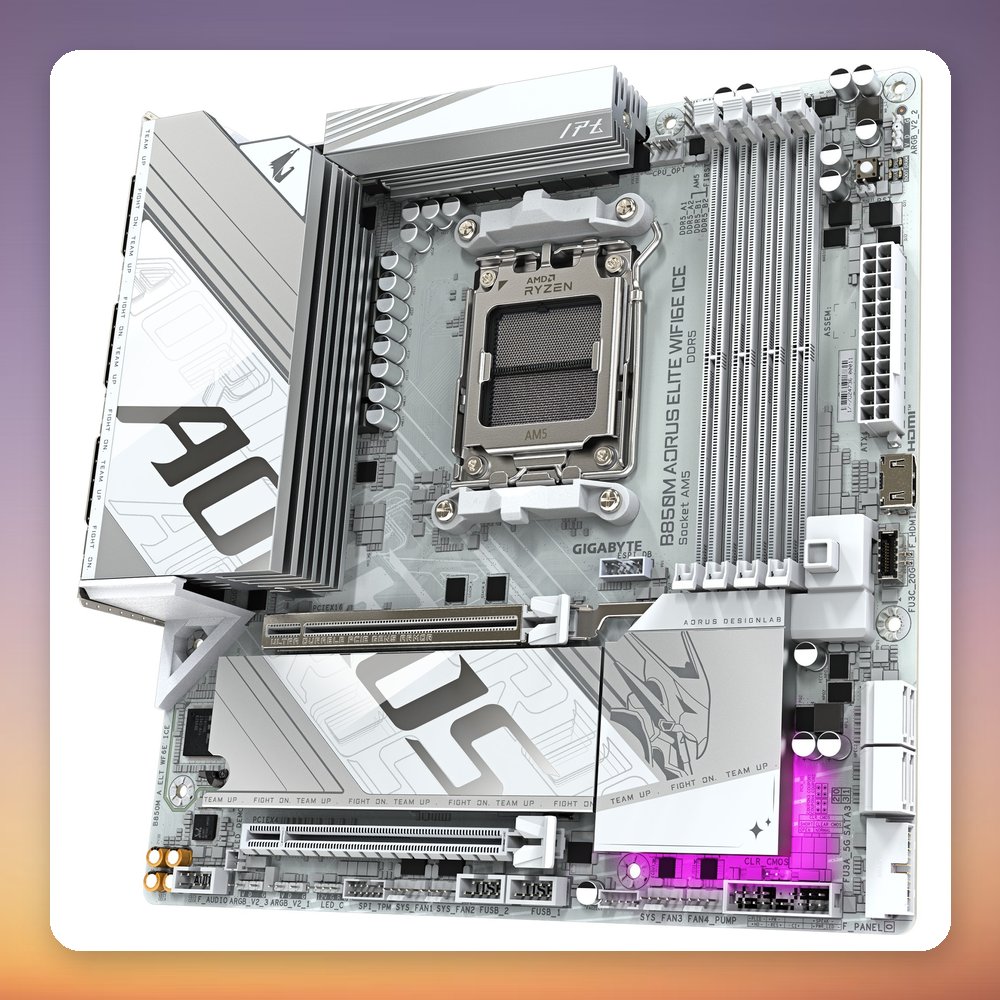

The GIGABYTE B850M AORUS ELITE WIFI6E ICE is a micro ATX motherboard for Socket AM5, built on the AMD B850 chipset in a silver/white finish. It combines a PCIe 5.0 x16 slot with two M.2 slots (the first running at PCIe 5.0, the second at PCIe 4.0), four DDR5 slots supporting up to 256 GB at speeds up to 8200 MT/s (O.C.), and onboard Wi-Fi 6E with Bluetooth 5.3 plus 2.5 Gigabit LAN.

It suits compact or mid-sized AM5 builds where you want a white-themed board without losing modern connectivity. Ryzen 7000, 8000 and 9000 series processors are supported, including X3D models, though a BIOS update may be needed for the newest CPUs. Rear I/O includes one USB-C and three USB-A ports at 10 Gbit/s, HDMI and two DisplayPort outputs (used with a CPU that has integrated graphics), and the board offers RGB Fusion with three addressable RGB headers and six 4-pin PWM fan headers.

Specification

• Manufacturer: GigaByte
• Model: B850M AORUS ELITE WIFI6E ICE
• MPN: B850M A ELT WF6E ICE
• EAN: 4719331866082
• Socket: AMD AM5
• Chipset: AMD B850
• Form factor: micro ATX (244 x 244 mm)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: Up to DDR5-8200 (O.C.), non-ECC
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 lanes)
• M.2 slots: 2x M.2 (M key): slot 1 PCIe 5.0, slot 2 PCIe 4.0
• SATA: 4x SATA III, RAID 0, 1, 10
• LAN: Realtek RTL8125 2.5 Gigabit Ethernet
• Wireless: Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 10 Gbit/s, 3x USB-A 10 Gbit/s, 5x USB-A 5 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI, 2x DisplayPort (requires CPU with integrated graphics)
• Audio: Realtek ALC897, 7.1 channels
• RGB: RGB Fusion; 1x RGB header, 3x addressable RGB headers
• Fan headers: 6x 4-pin PWM
• Power connectors: ATX 24-pin + 8-pin EPS
• Colour: Silver/White
