Product Overview

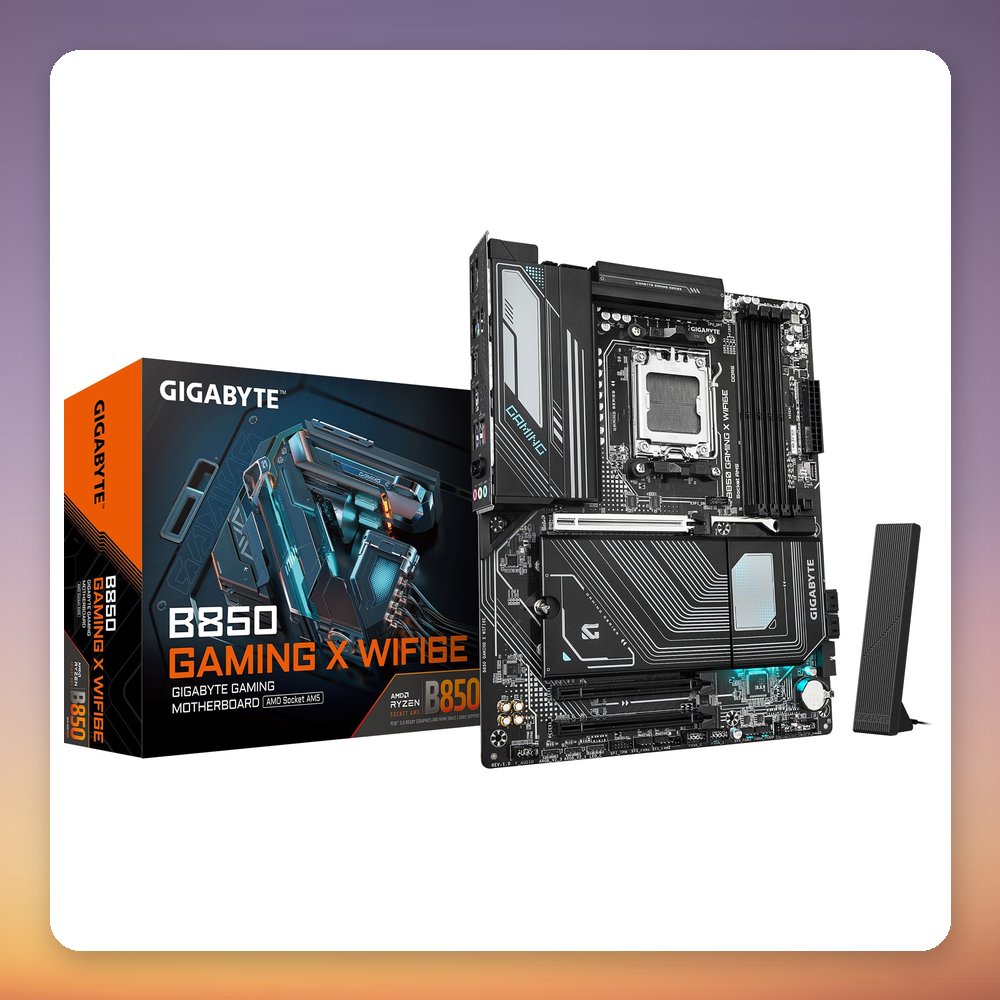

The GigaByte B850 Gaming X WiFi 6E is an ATX motherboard for Socket AM5, built on the AMD B850 chipset. It supports Ryzen 7000, 8000 and 9000 series processors, has four DDR5 slots for up to 256 GB of memory and offers DDR5 speeds up to 8200 MT/s (overclocked). Storage options include a PCIe 5.0 M.2 slot alongside two PCIe 4.0 M.2 slots, plus four SATA ports.

Connectivity is covered by Wi-Fi 6E, Bluetooth 5.3 and 2.5 Gigabit LAN, so it suits a modern AM5 gaming build without extra network cards. The rear I/O includes a USB-C 3.2 Gen 2 port, HDMI and DisplayPort for CPUs with integrated graphics, and there are six 4-pin PWM fan headers and RGB Fusion headers for cooling and lighting. Depending on the processor, a BIOS update may be needed for the newest CPUs.

Specification

• Manufacturer: GigaByte
• Model: B850 Gaming X WiFi 6E
• MPN: B850 GAMING X WIFI6E
• EAN: 4719331866457
• Socket: AMD AM5
• Chipset: AMD B850
• Form factor: ATX
• Memory slots: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: Up to DDR5-8200 (O.C.), 4400 MT/s and up
• M.2 slots: 3x M.2 (M key): 1x PCIe 5.0, 2x PCIe 4.0
• SATA: 4x SATA III, RAID 0/1/10
• Expansion slots: 1x PCIe 5.0 x16, 2x PCIe x1
• Networking: 2.5 Gigabit LAN (Realtek RTL8125), Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 3x USB-A 3.2 Gen 1, 3x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Audio: Realtek ALC897, 7.1 channels
• Fan and RGB headers: 6x 4-pin PWM fan, 3x addressable RGB, 1x RGB
• Power connectors: 24-pin + 8-pin + 4-pin ATX12V
• BIOS: 256 Mbit AMI UEFI
• Dimensions (W x H): 244 x 305 mm
