Product Overview

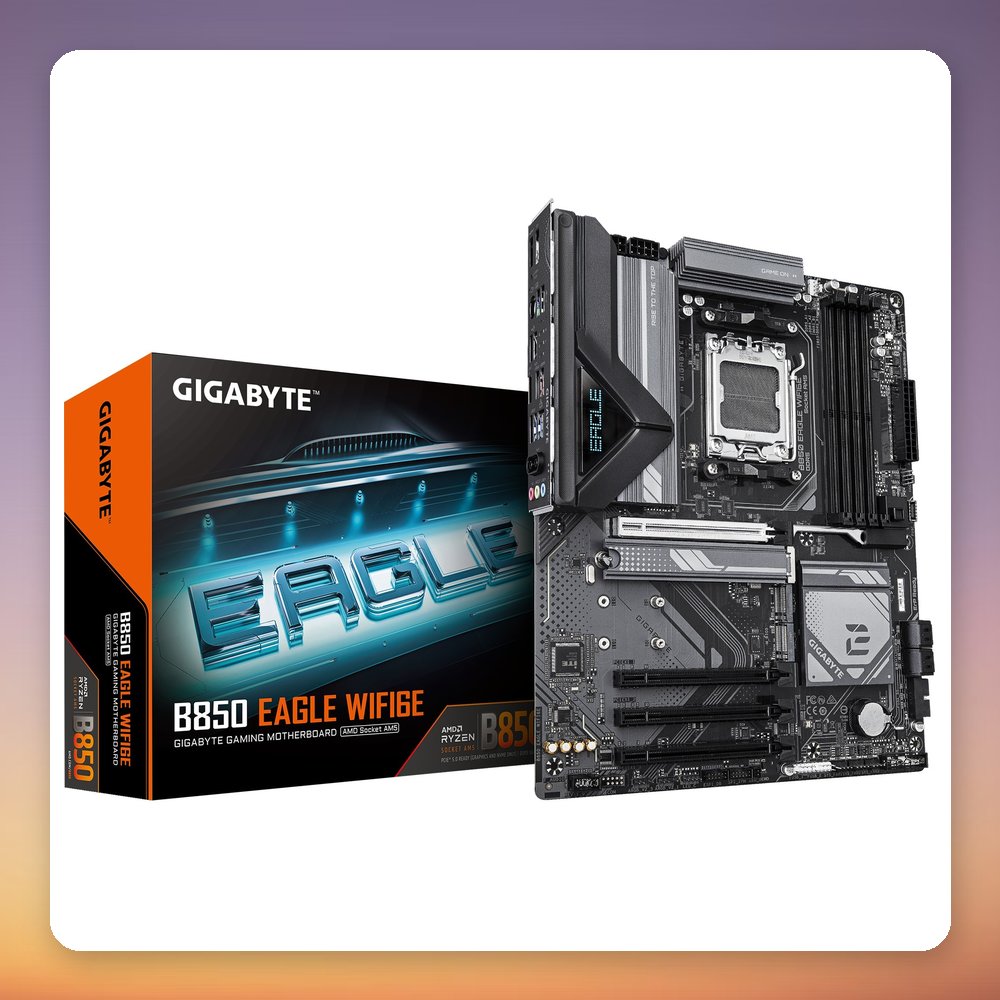

The GigaByte B850 EAGLE WIFI6E is an ATX motherboard for Socket AM5, built on the AMD B850 chipset. It offers four DDR5 slots for up to 256 GB of memory, with supported speeds up to 8200 MT/s (O.C.), plus three M.2 slots, the first running at PCIe 5.0 and the other two at PCIe 4.0. Wi-Fi 6E and Bluetooth 5.3 are already onboard, so no extra network card is needed.

This board suits an AM5 gaming or general-purpose PC based on a Ryzen 7000, 8000 or 9000 series processor, including X3D models. Along with one PCIe 5.0 x16 slot, it provides four SATA III ports with RAID 0, 1 and 10, Gigabit LAN and a rear panel with USB-C 10 Gbit/s, HDMI and DisplayPort. Note that some newer processors may need a BIOS update before they will work.

Specification

• Manufacturer: GigaByte
• Model: B850 EAGLE WIFI6E
• MPN: B850 EAGLE WIFI6E
• EAN: 4719331866587
• Socket: AMD AM5
• Chipset: AMD B850
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB (non-ECC)
• Max. memory speed: 8200 MT/s (O.C.)
• M.2 slots: 3x M.2 (key M): slot 1 PCIe 5.0, slots 2 and 3 PCIe 4.0
• SATA: 4x SATA III, RAID 0/1/10
• Expansion slots: 1x PCIe 5.0 x16, 3x PCIe x1
• Wireless: Wi-Fi 6E, Bluetooth 5.3
• LAN: Gigabit Ethernet (Realtek RTL8111H)
• Audio: Realtek ALC897, 7.1 channels
• Rear USB: 1x USB-C 10 Gbit/s, 3x USB-A 10 Gbit/s, 2x USB-A 5 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 2.1 (requires CPU with integrated graphics)
• Power connectors: 24-pin ATX + 8-pin EPS
• Dimensions (W x H): 244 x 305 mm
