Name: Gigabyte B840M D3HP Micro ATX Motherboard, AM5, DDR5, 2x PCIe 4.0 M.2, 1GbE
Brand: GigaByte
SKU: 100180917
Price: 131.68 EUR
Availability: InStock

Gigabyte B840M D3HP Micro ATX Motherboard, AM5, DDR5, 2x PCIe 4.0 M.2, 1GbE

€131.68

Delivery: 7-12 business days
Gigabyte B840M D3HP Micro ATX Motherboard, AM5, DDR5, 2x PCIe 4.0 M.2, 1GbE

Supports Ryzen 7000, 8000 and 9000 series on AM5
Two PCIe 4.0 M.2 slots plus four SATA III
Four DDR5 slots, up to 256 GB and 8200 MT/s (O.C.)
HDMI 2.1 and two DisplayPort 1.4 outputs

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100180917 Category: AMD Motherboards Tags: B840M, D3HP, GigaByte,, Intel,, motherboard, Brand: GigaByte

Description
Additional information

✅

Product Overview

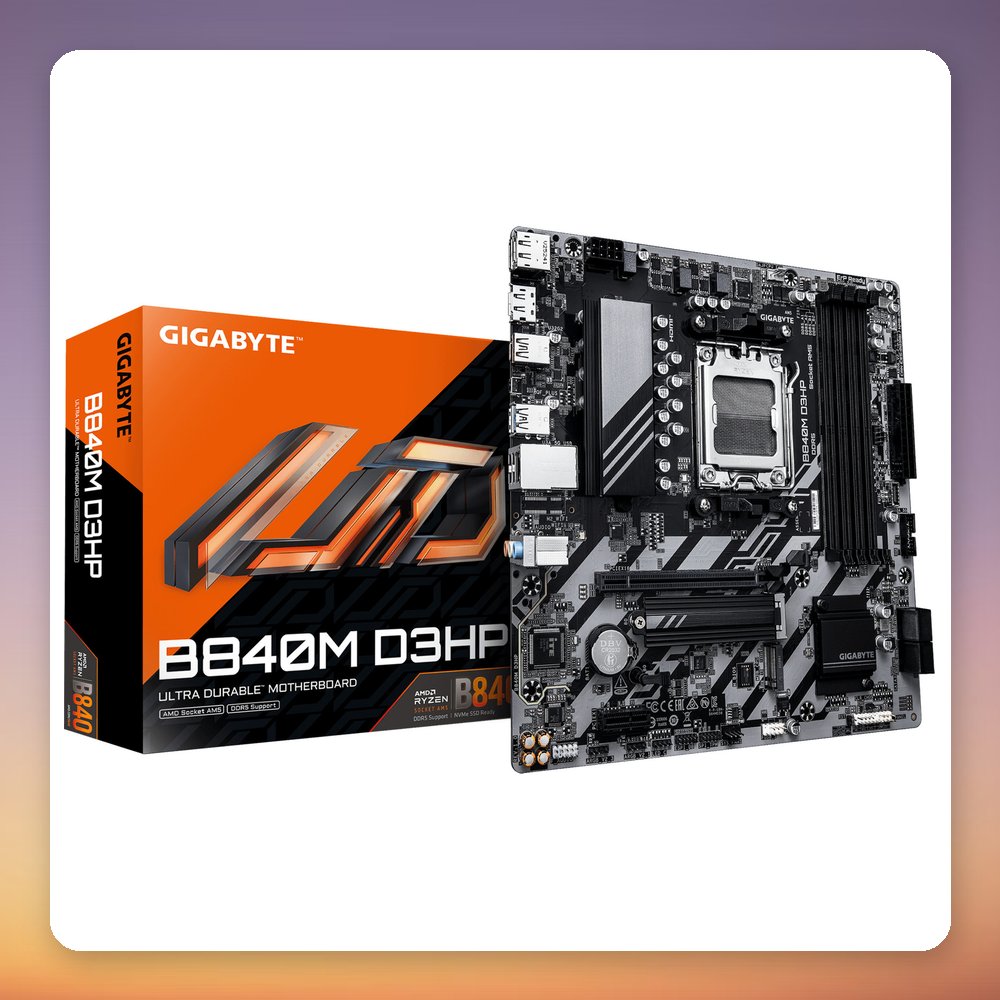

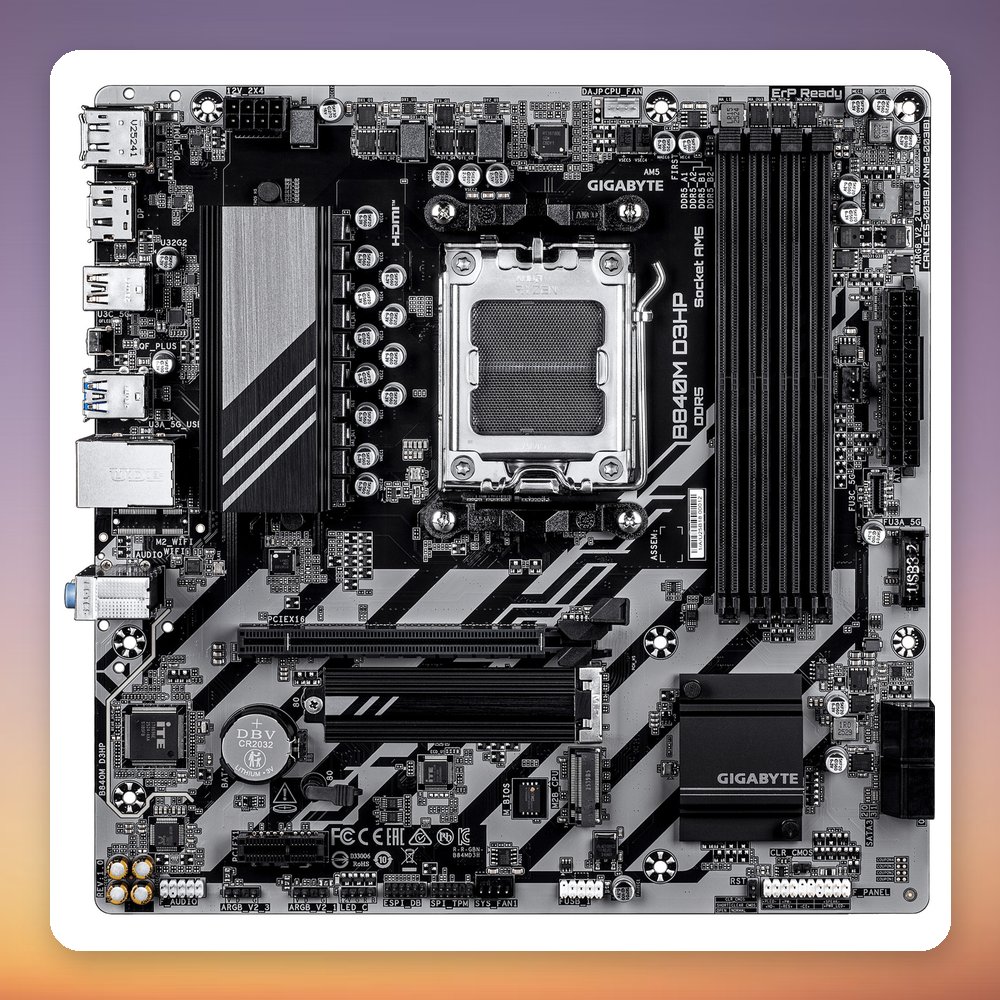

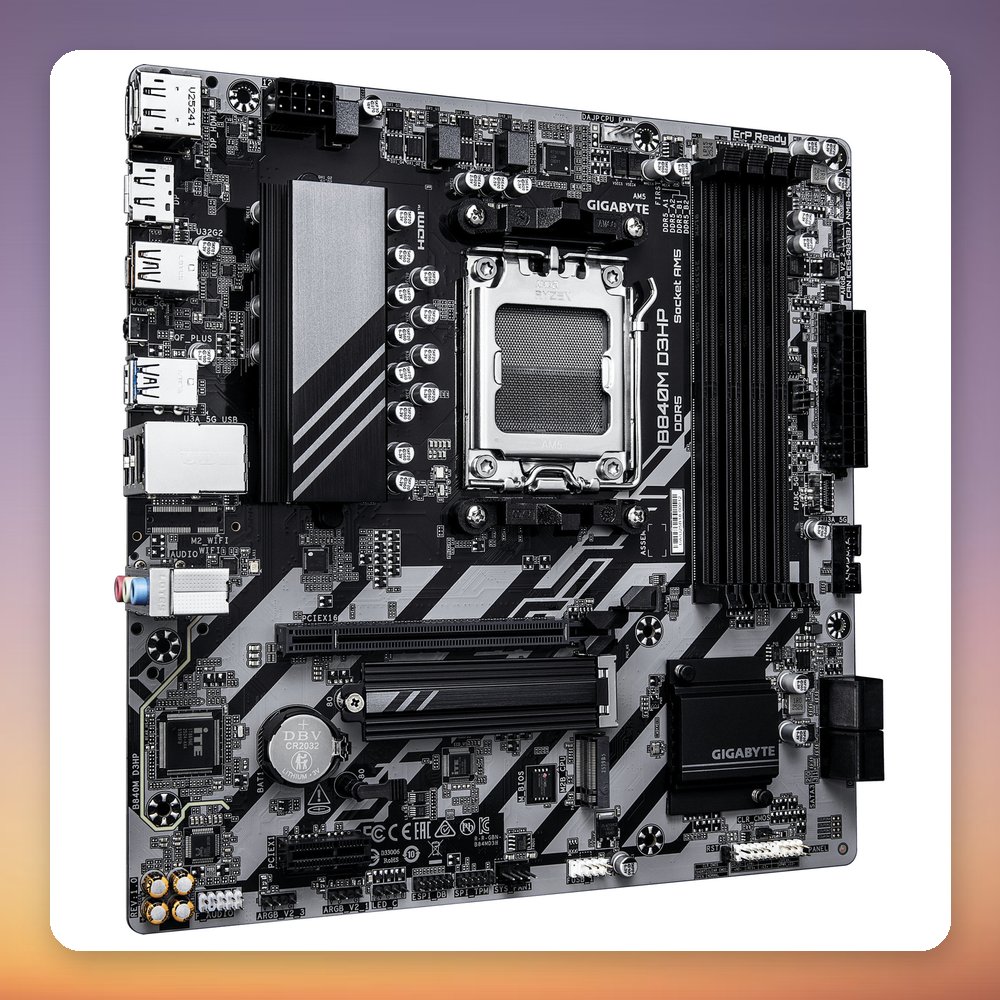

The Gigabyte B840M D3HP is a micro ATX AM5 motherboard built on the AMD B840 chipset, supporting Ryzen 7000, 8000 and 9000 series processors. It has four DDR5 slots with support for up to 256 GB and speeds up to 8200 MT/s (O.C.), plus two M.2 slots running at PCIe 4.0 and four SATA III ports. The 8+2+2 phase VRM is listed for Ryzen 9000 CPUs.

This board suits a compact, budget-conscious AM5 gaming or home PC where you want current DDR5 memory and fast NVMe storage without paying for a larger board. Video outputs (HDMI 2.1 and two DisplayPort 1.4) work with Ryzen CPUs that have integrated graphics, while a single PCIe 4.0 x16 slot takes a dedicated graphics card. Connectivity includes Gigabit LAN, a USB 3.2 Gen 2 port and a USB-C port. Note that a BIOS update may be required for the newest processors.

Specification

Manufacturer: GigaByte
Model: B840M D3HP
MPN: B840M D3HP
EAN: 4719331879761
Socket: AMD AM5
Chipset: AMD B840
Form factor: Micro ATX (244 x 244 mm)
Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB (64 GB per slot), non-ECC
Memory speed: Up to DDR5-8200 (O.C.)
Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
M.2 slots: 2x M.2 (M key), PCIe 4.0
SATA: 4x SATA III, RAID 0/1/5/10

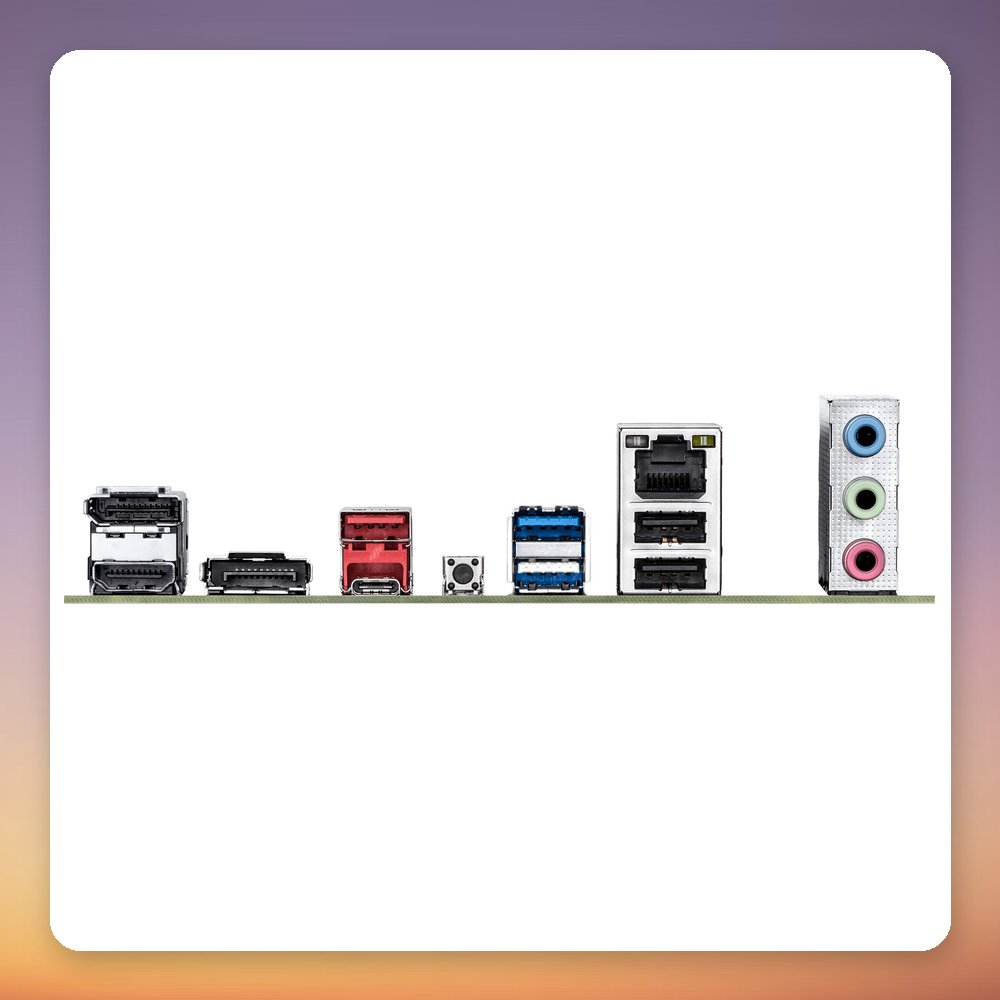

Rear USB: 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1 Type-A, 3x USB 2.0
Video outputs: 1x HDMI 2.1, 2x DisplayPort 1.4
Networking: Gigabit Ethernet (Realtek RTL8111H), no Wi-Fi
Audio: Realtek ALC897, 7.1 channel
Power connectors: 24-pin ATX, 8-pin EPS
BIOS: 256 Mbit UEFI AMI

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.2 kg

Sergio Miranda Tsunematsu

Excellent seller and a great price for the Ryzen 7 9800X3D. Since the product is shipped from Poland, delivery takes a little longer compared to local stores, but my order arrived within the estimated timeframe. Everything was as expected. Highly recommended!

victor de castro

All the process of building the config designed for my needs was handled very smoothly and rapidly by Jola. The desktop came with one day of delay due to DHL issues, not their fault. The computer came very well packed however, the cooler fan was loose inside the case. I managed to fix watching some youtube videos, not a big deal. In general, I am very happy with the purchase and all the customer service.

Paul Byrne

Ordered a pc, came with no issue set up was super easy, very smooth transaction would recommend

Eugene Slabbert

Very happy with my order. PC is working great and arrived in time and well packed. Definitely worth the purchase. Nowadays it's difficult for most people to spend a lot of money on one item, so I was pleased when I noticed they offered purchase options through Humm.

Mike Halpin

Great product, very helpful and friendly service.

vinicius tanganelli

Great service !

Brian “Bri” O'Donnell

Found Jola very helpful and gave good advice. Went out of his way to help choose the right PC for my needs. Xcellent PC have good products and very good quality prices, went out of their way. Good straight talking which is rear these days. plus could pay through humm . would highly recommend and would buy from again.

Nei Fidelis

Irish online stores in general have a common practice of selling something they don't have - claiming they do - and then ordering from their source, leading to long shipping times and frustated customers. That was not the case here! I've asked them to let me know when they had the graphics card I wanted back in stock as it was out of stock. On the next day I had a positive from them and in about a week the card was installed on my pc ! On top of that they work with Humm so I could split the payments. Great customer service, they will be my guys for all my pc things!

Ovidiu Cimpoeru

Brilliant! No issues, the GPU arrived in about a weeks time

Verified by Trustindex

Trustindex verified badge is the Universal Symbol of Trust. Only the greatest companies can get the verified badge who has a review score above 4.5, based on customer reviews over the past 12 months. Read more

Gigabyte B840M D3HP Micro ATX Motherboard, AM5, DDR5, 2x PCIe 4.0 M.2, 1GbE

✅

Product Overview

Specification

delivery time 7-12 business days

Related products

MSI MPG X870E Carbon WiFi AM5 ATX Motherboard, DDR5, Wi-Fi 7, 5 GbE

Asus ROG Crosshair X870E Hero AMD X870E Socket AM5 ATX Motherboard, Wi-Fi 7

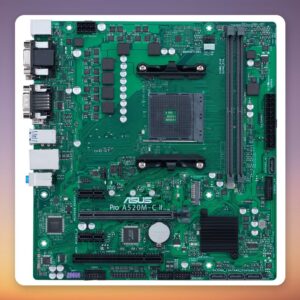

Asus PRO A520M-C II/CSM AM4 Micro ATX Motherboard, AMD A520, DDR4, M.2
