Product Overview

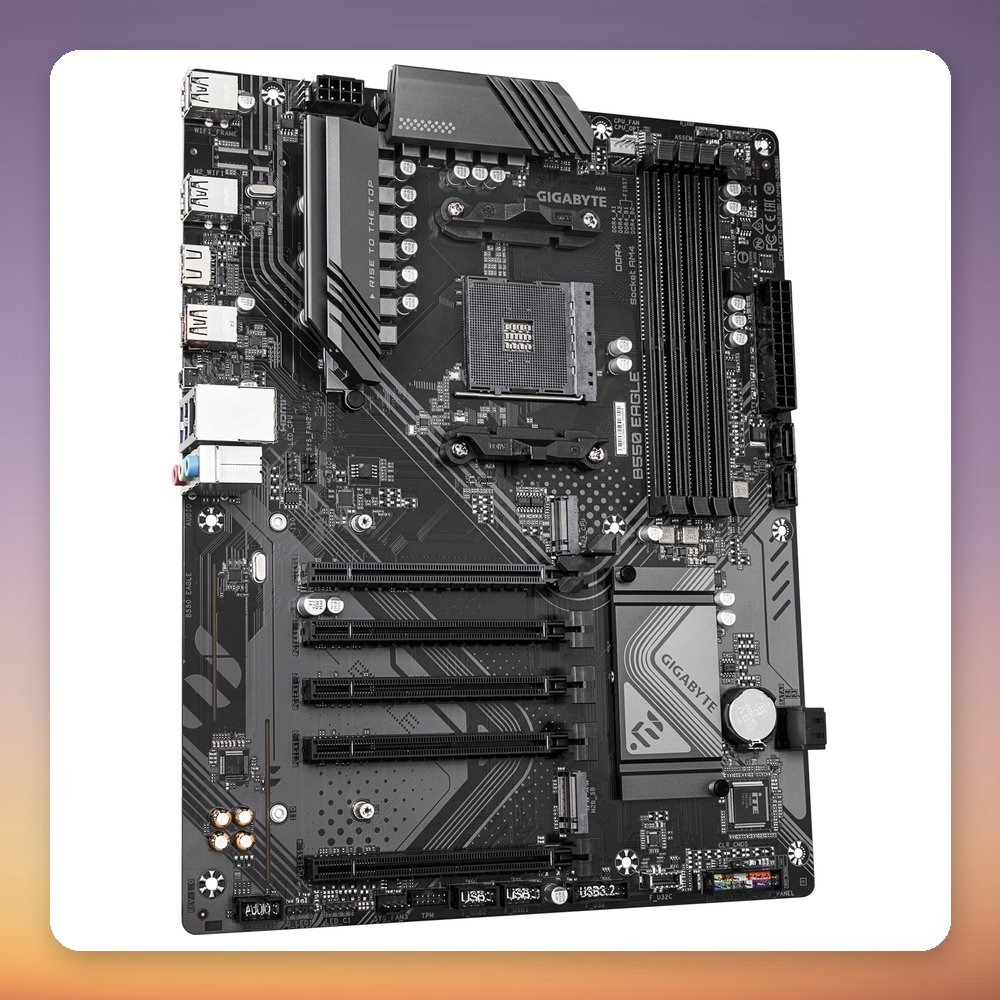

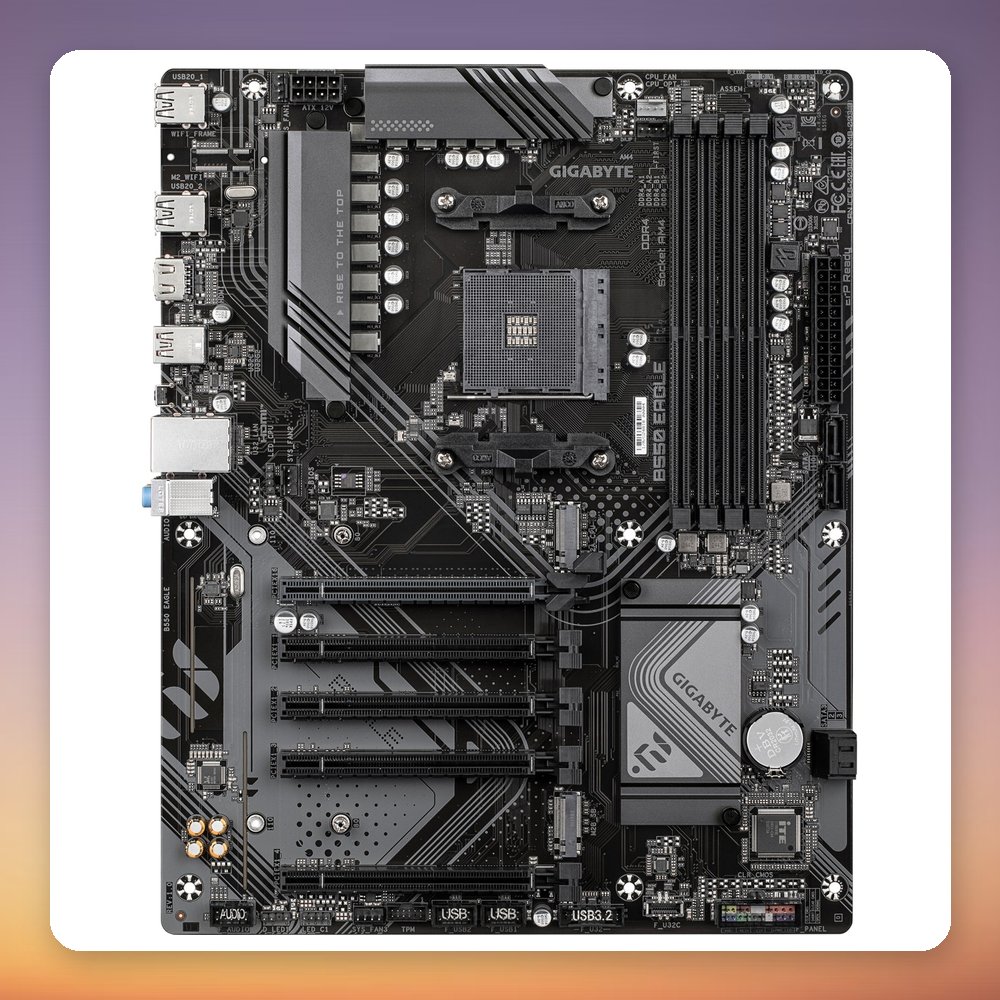

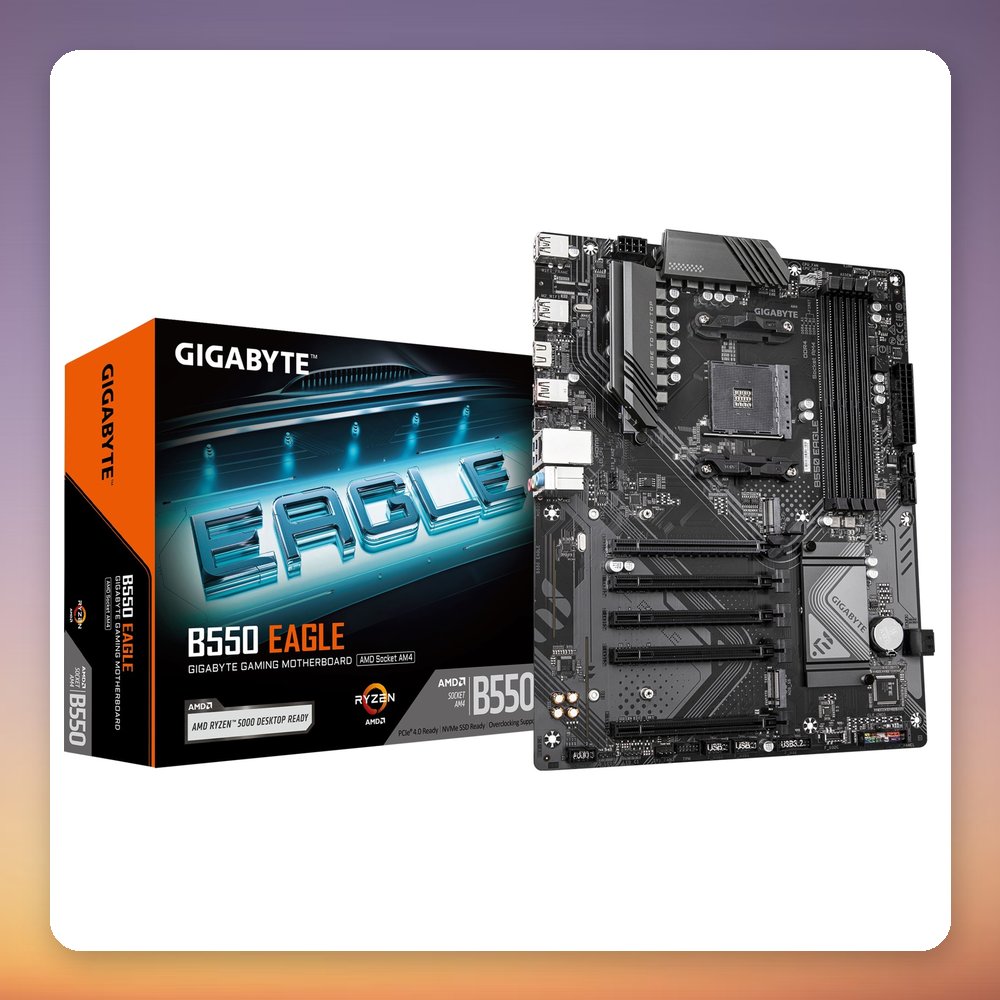

The Gigabyte B550 EAGLE is an ATX motherboard built on the AMD B550 chipset for Socket AM4 processors, supporting AMD Ryzen 3000, 4000 and 5000 Series CPUs. It offers four DDR4 slots for up to 128 GB of dual-channel memory, a PCIe 4.0 x16 slot and two M.2 slots, the first running at PCIe 4.0 and the second at PCIe 3.0.

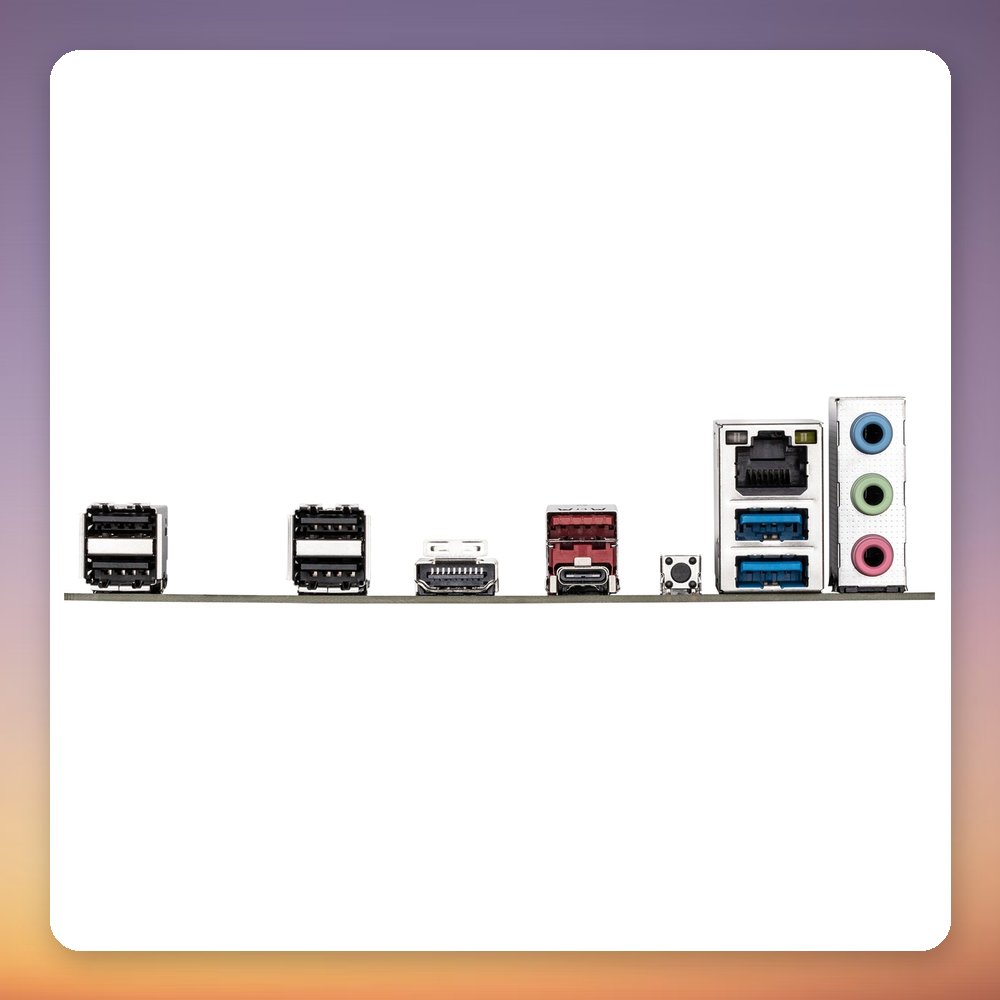

This board suits mid-range AM4 gaming and general-purpose builds that need solid storage and cooling connectivity. You get four SATA III ports, RAID 0, 1 and 10, five 4-pin PWM fan headers, and RGB plus addressable RGB headers for lighting. Rear I/O includes HDMI, Gigabit LAN and a USB-C 3.2 Gen 1 port. Wi-Fi is not included, and a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: GigaByte
• Model: B550 EAGLE
• MPN: B550 EAGLE
• EAN: 47193318682080
• Socket: AMD AM4
• Chipset: AMD B550
• Form factor: ATX (305 x 244 mm)
• Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB, ECC and non-ECC
• Memory speed: DDR4-2133 to 3200 MHz, up to 5200 MHz overclocked
• Expansion slots: 1x PCIe 4.0 x16, 4x PCIe 3.0 x1
• M.2 slots: 2x M.2 (M key, up to 22110), 1st PCIe 4.0, 2nd PCIe 3.0
• SATA: 4x SATA III, RAID 0/1/10
• Rear USB: 1x USB-C 3.2 Gen 1, 1x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Video output: 1x HDMI 2.1 (needs a CPU with integrated graphics)
• Networking: Realtek Gigabit LAN, no Wi-Fi
• Audio: Realtek ALC897, 7.1 channel
• Fan and RGB headers: 5x 4-pin PWM fan, 2x RGB, 2x addressable RGB (RGB Fusion)
• Weight: 1.7 kg
