Product Overview

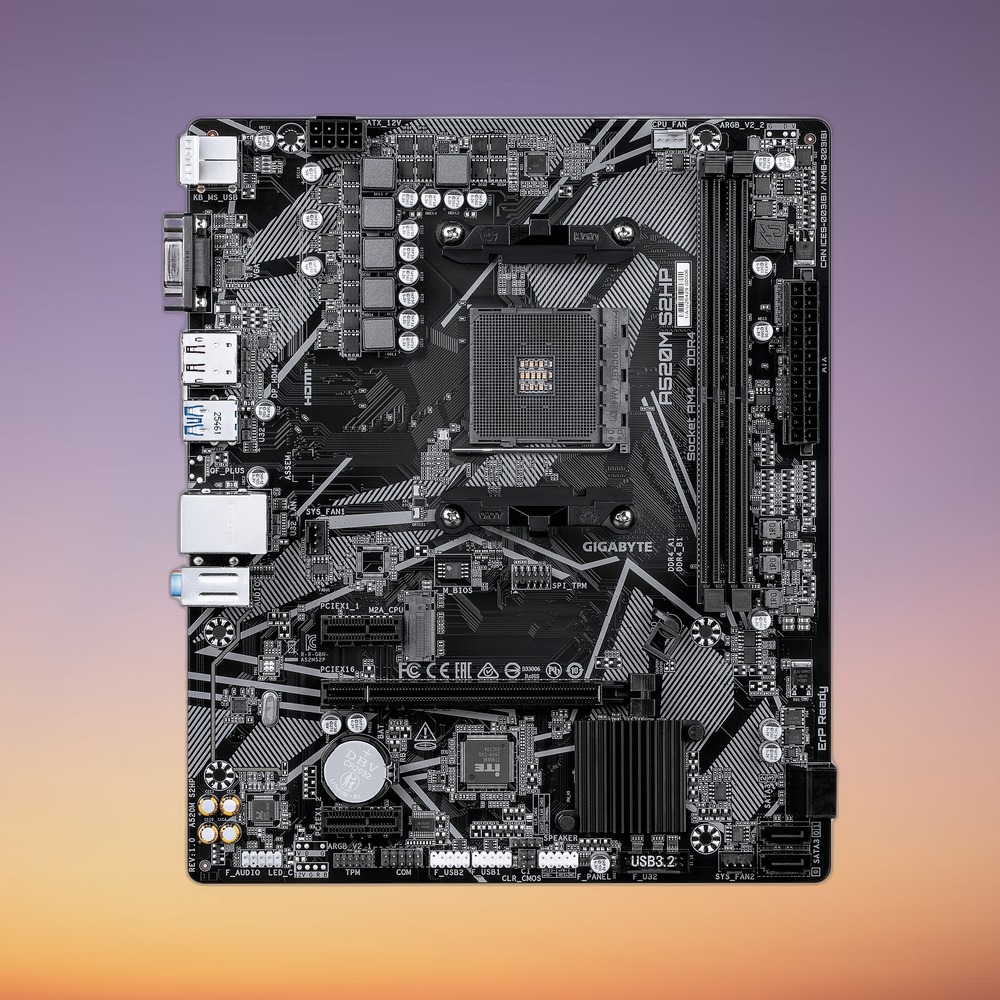

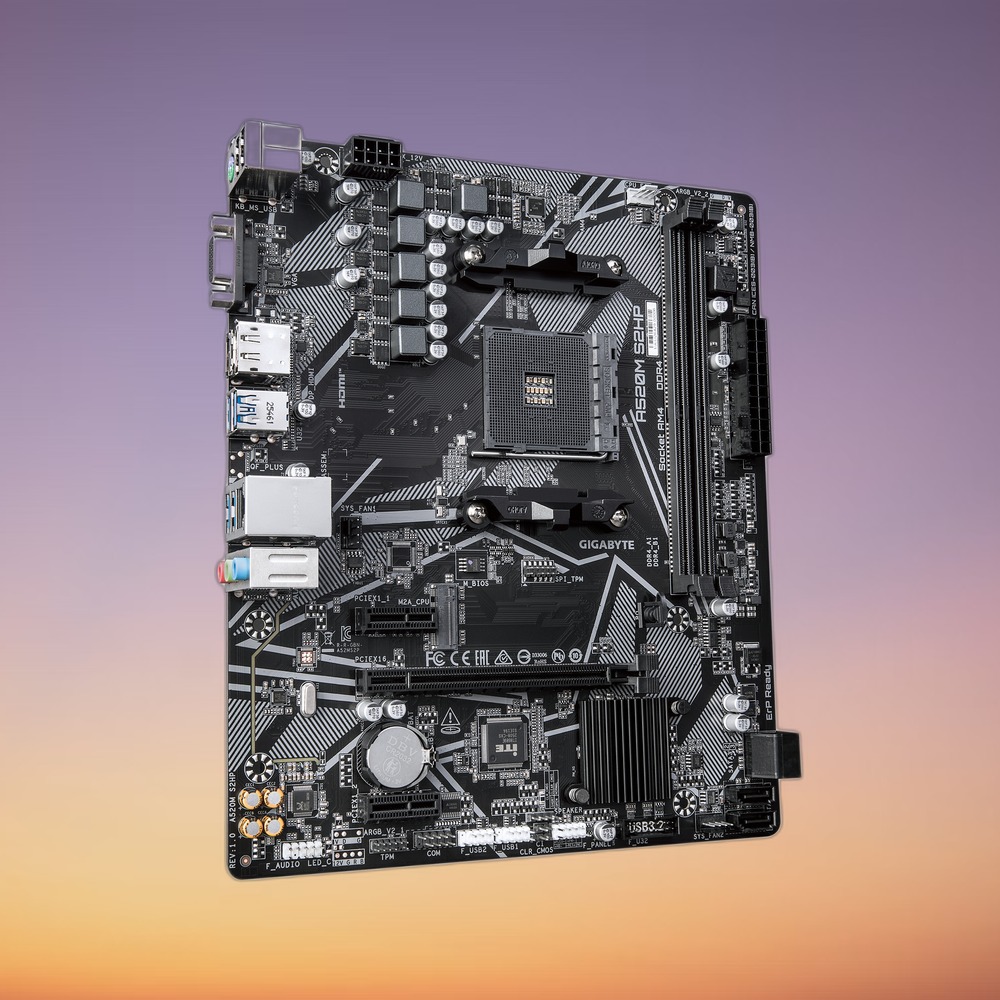

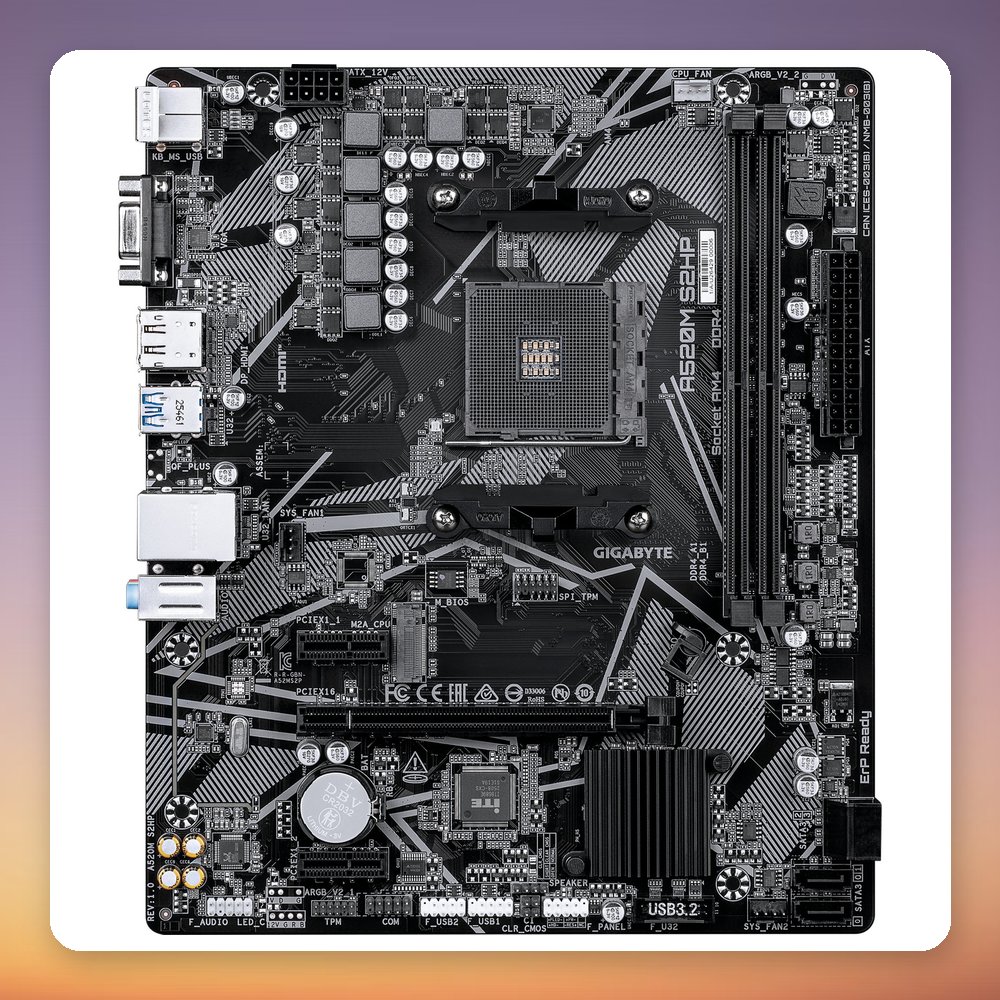

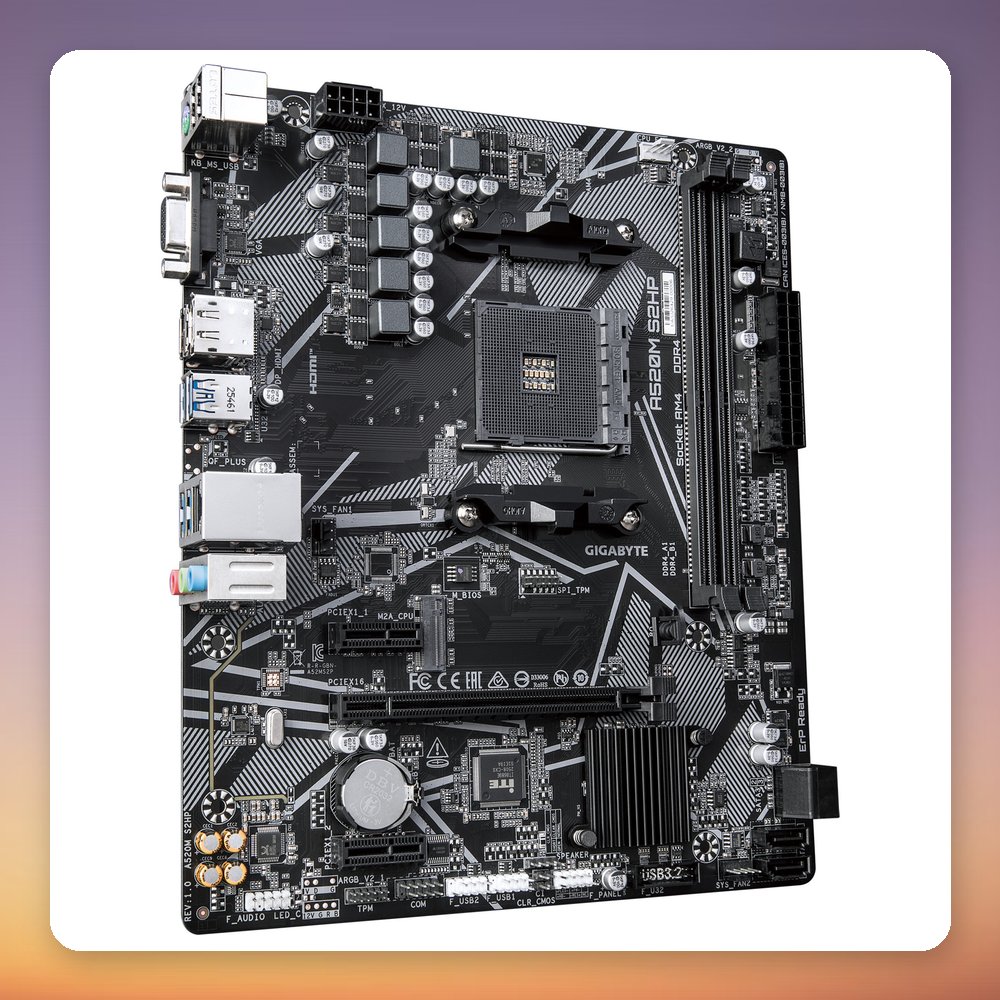

The GigaByte A520M S2HP Motherboard is a micro ATX board built on the AMD A520 chipset for Socket AM4 processors. It has two DDR4 DIMM slots supporting up to 64 GB in dual-channel, one PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots and one M.2 slot supporting both SATA and PCIe drives, with four SATA III ports for additional storage.

This board suits compact, budget-friendly AM4 builds using Ryzen processors, particularly with an integrated-graphics CPU, since the VGA, DVI-D and HDMI outputs only work with those chips. Connectivity includes Realtek Gigabit LAN, 7.1-channel audio, four USB 3.2 Gen 1 and two USB 2.0 ports on the rear panel, plus RGB and addressable RGB headers. A BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: GigaByte
• Model: A520M S2HP
• MPN: A520M S2HP
• EAN: 4719331882457
• Socket: AMD AM4
• Chipset: AMD A520
• Form factor: Micro ATX
• Memory: 2x DDR4 DIMM, dual-channel, up to 64 GB
• Memory speed: Up to DDR4-3200 (higher speeds with overclocking)
• Expansion slots: 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
• Storage: 1x M.2 (SATA/PCIe Gen 3.0), 4x SATA III, RAID 0/1/10

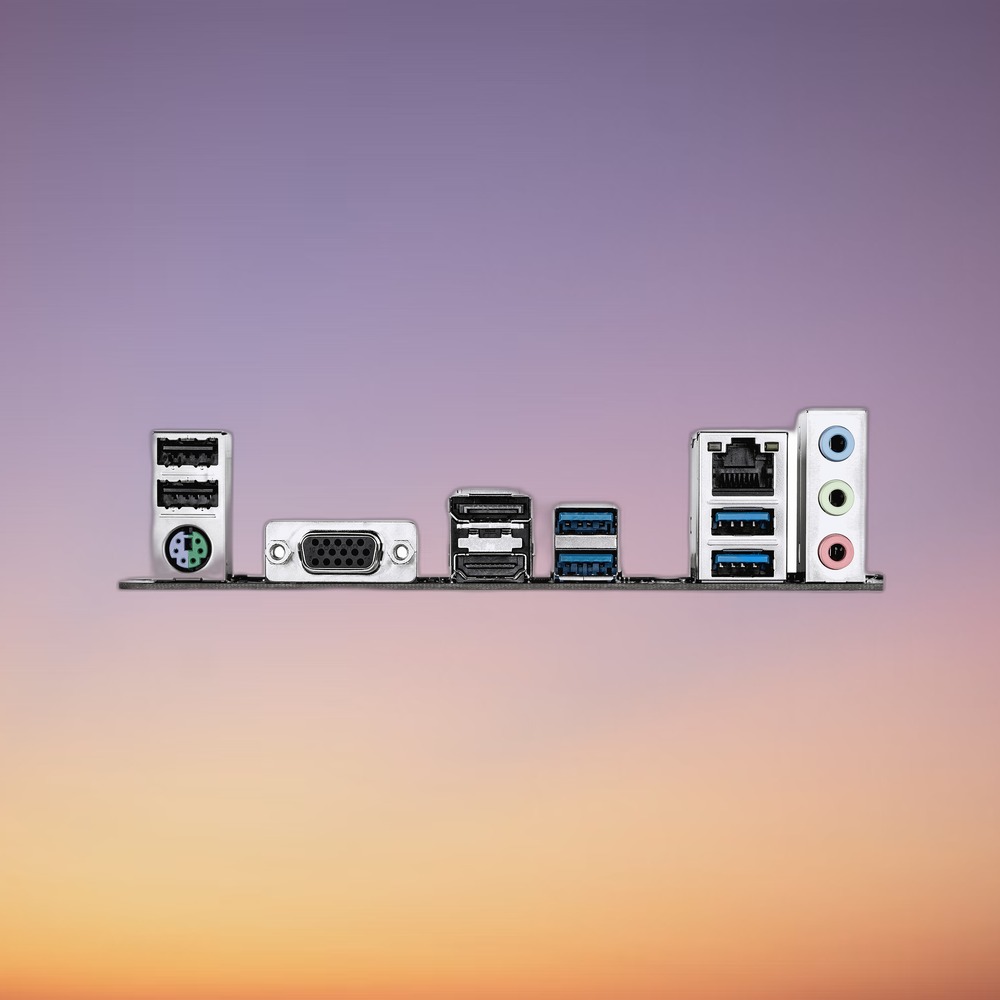

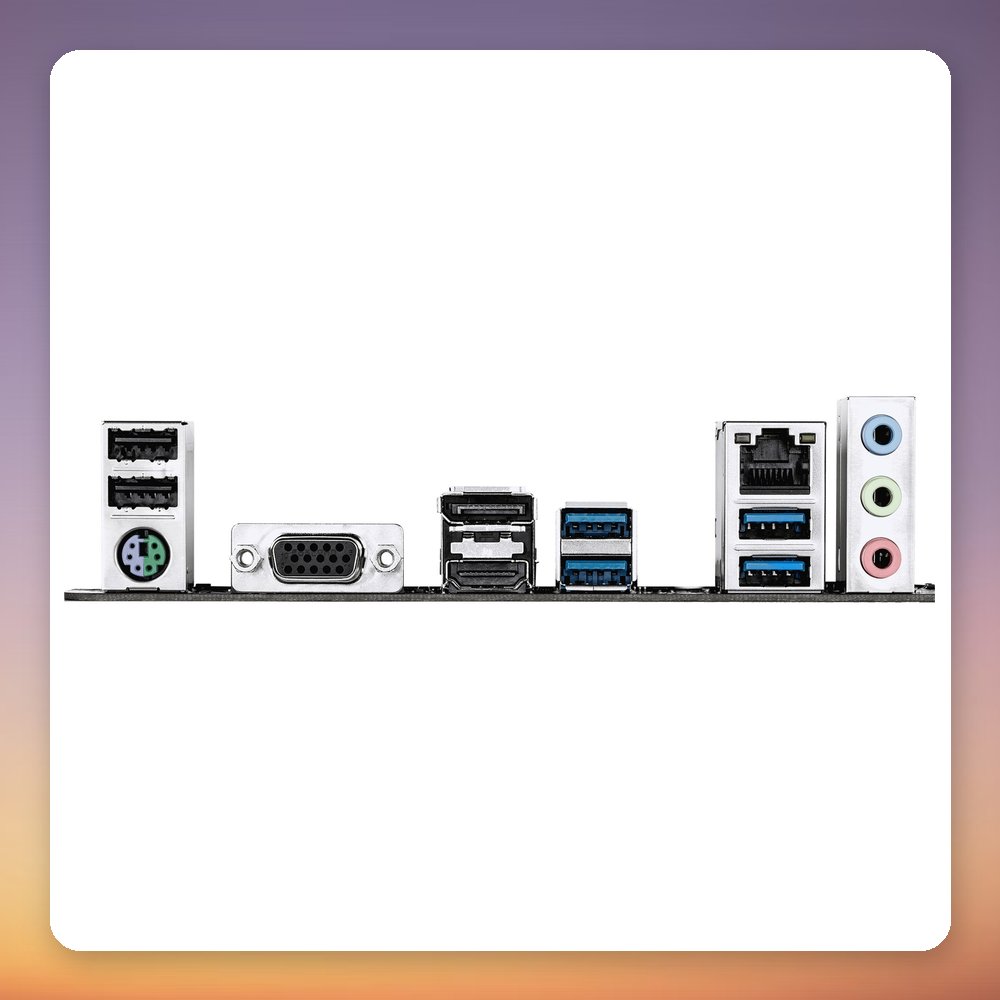

• Rear USB: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0
• Video outputs: HDMI, DVI-D, VGA (CPU with integrated graphics required)
• LAN: Realtek Gigabit Ethernet
• Audio: Realtek codec, 7.1 channels
• Fan headers: 3x 4-pin PWM
• RGB: 1x RGB header, 1x addressable RGB header (RGB Fusion)
• Colour: Black/grey
• Dimensions (W x H x D): 205 x 244 mm
• Weight: 800 g
• Manufacturer warranty: 3 years
