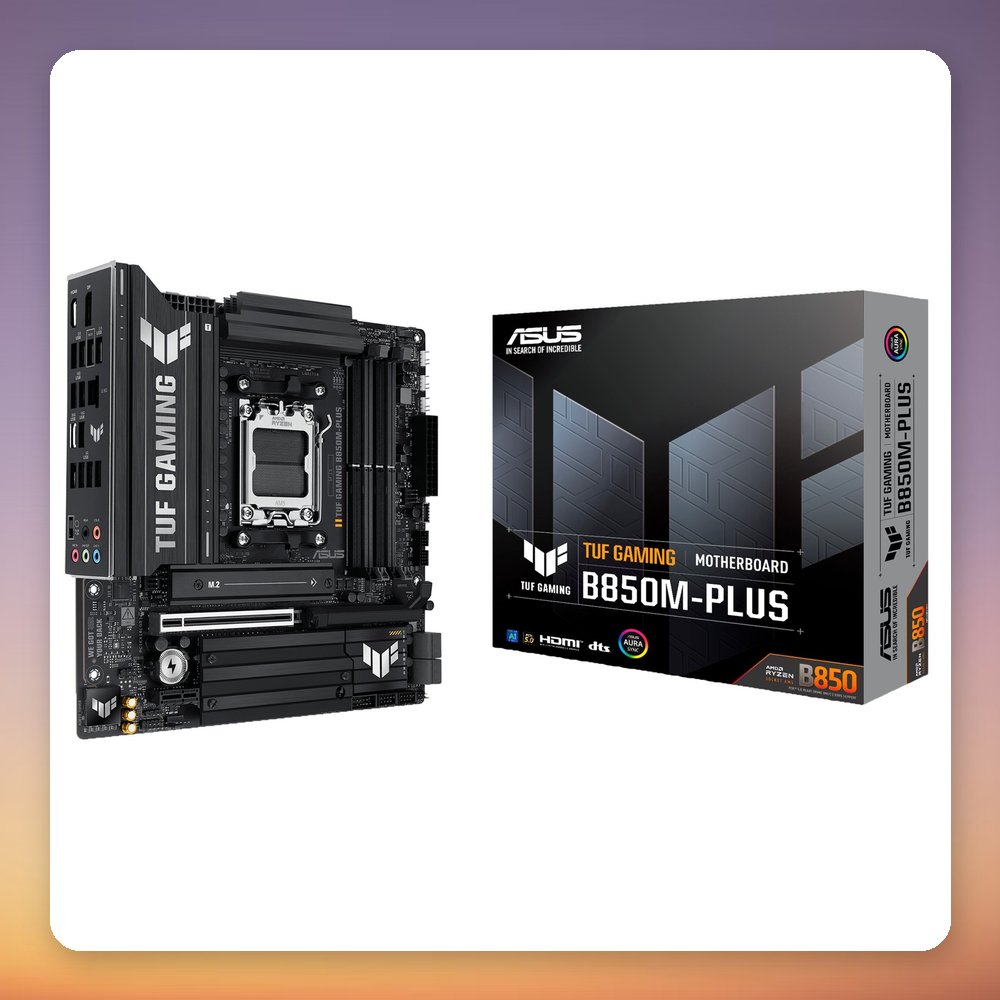

Name: Asus TUF Gaming B850M-Plus AMD B850 AM5 micro ATX Motherboard, DDR5, 2.5GbE
Brand: Asus
SKU: 100102601
Price: 271.93 EUR
Availability: InStock

Asus TUF Gaming B850M-Plus AMD B850 AM5 micro ATX Motherboard, DDR5, 2.5GbE

€271.93

Delivery: 7-12 business days
Asus TUF Gaming B850M-Plus AMD B850 AM5 micro ATX Motherboard, DDR5, 2.5GbE

PCIe 5.0 x16 slot plus first M.2 slot at PCIe 5.0
Three M.2 2280 slots and four SATA III ports
USB 3.2 Gen 2×2 Type-C (20 Gbit/s) on the rear I/O
2.5 Gigabit Ethernet; six PWM fan headers

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100102601 Category: AMD Motherboards Tags: Asus,, gaming, gaming,, motherboard,, TUF Brand: Asus

Description
Additional information

✅

Product Overview

The Asus TUF Gaming B850M-Plus is a micro ATX motherboard for Socket AM5 built on the AMD B850 chipset. It supports AMD Ryzen 7000, 8000 and 9000 series processors, has four DDR5 DIMM slots, three M.2 slots (the first running at PCIe 5.0) and a PCIe 5.0 x16 slot for the graphics card. Network connectivity comes from 2.5 Gigabit Ethernet.

This board suits a compact AM5 gaming or general-purpose PC where you want current-generation storage and memory support without moving up to a full ATX board. Rear I/O includes a USB 3.2 Gen 2×2 Type-C port, HDMI and DisplayPort for CPUs with integrated graphics, and six 4-pin PWM fan headers help with cooling. The board has no onboard Wi-Fi, and a BIOS update may be needed for the newest processors.

Specification

Manufacturer: Asus
Model: TUF Gaming B850M-Plus
MPN: 90MB1IX0-M0EAY0
EAN: 47113877751720
Socket: AMD AM5
Chipset: AMD B850
Form factor: micro ATX
Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-8000+ (OC)
Maximum memory: 256 GB (Asus specification)
ECC support: ECC & non-ECC
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe x1
M.2 slots: 3x M.2 (2280), first slot PCIe 5.0, others PCIe 4.0
SATA: 4x SATA III, RAID 0/1/5/10
Rear USB: 1x USB-C 3.2 Gen 2×2, 3x USB-A 3.2 Gen 2, 4x USB-A 3.2 Gen 1, 4x USB-A 2.0
Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
Networking: Realtek 2.5 Gigabit Ethernet, no Wi-Fi
Audio: Realtek ALC1220P 7.1 channel
Fan headers: 6x 4-pin PWM
RGB headers: 3x addressable RGB
Dimensions (W x D): 244 x 244 mm
Weight: 1.19 kg
