Name: Asus B850M MAX GAMING WIFI AM5 mATX Motherboard, AMD B850, DDR5, Wi-Fi 6
Brand: Asus
SKU: 100142952
Price: 204.27 EUR
Availability: InStock

Asus B850M MAX GAMING WIFI AM5 mATX Motherboard, AMD B850, DDR5, Wi-Fi 6

€204.27

Delivery: 7-12 business days
Asus B850M MAX GAMING WIFI AM5 mATX Motherboard, AMD B850, DDR5, Wi-Fi 6

Supports Ryzen 7000, 8000 and 9000 series
Three M.2 slots, first at PCIe 5.0
Wi-Fi 6 and Bluetooth 5.4 onboard
Four DDR5 slots, up to 256 GB at DDR5-8000

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100142952 Category: AMD Motherboards Tags: Asus,, B850M, gaming,, motherboard, Brand: Asus

Description
Additional information

✅

Product Overview

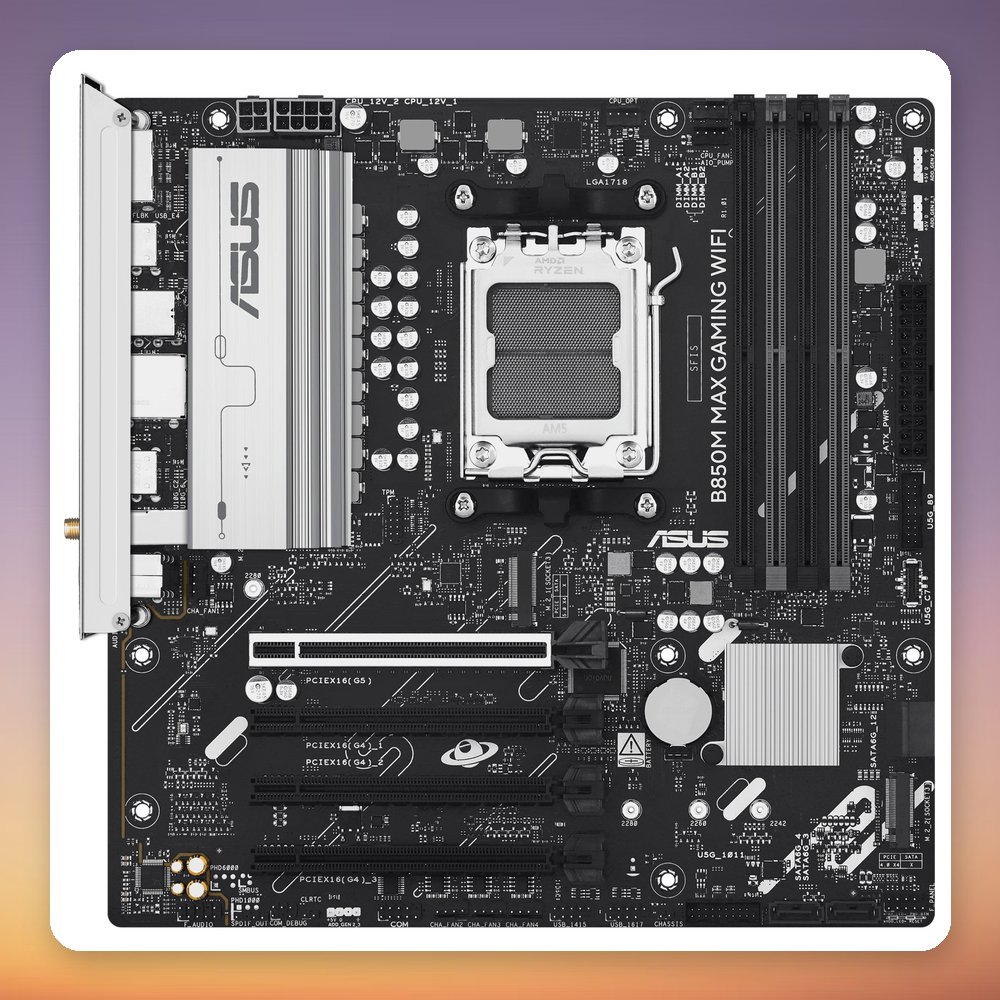

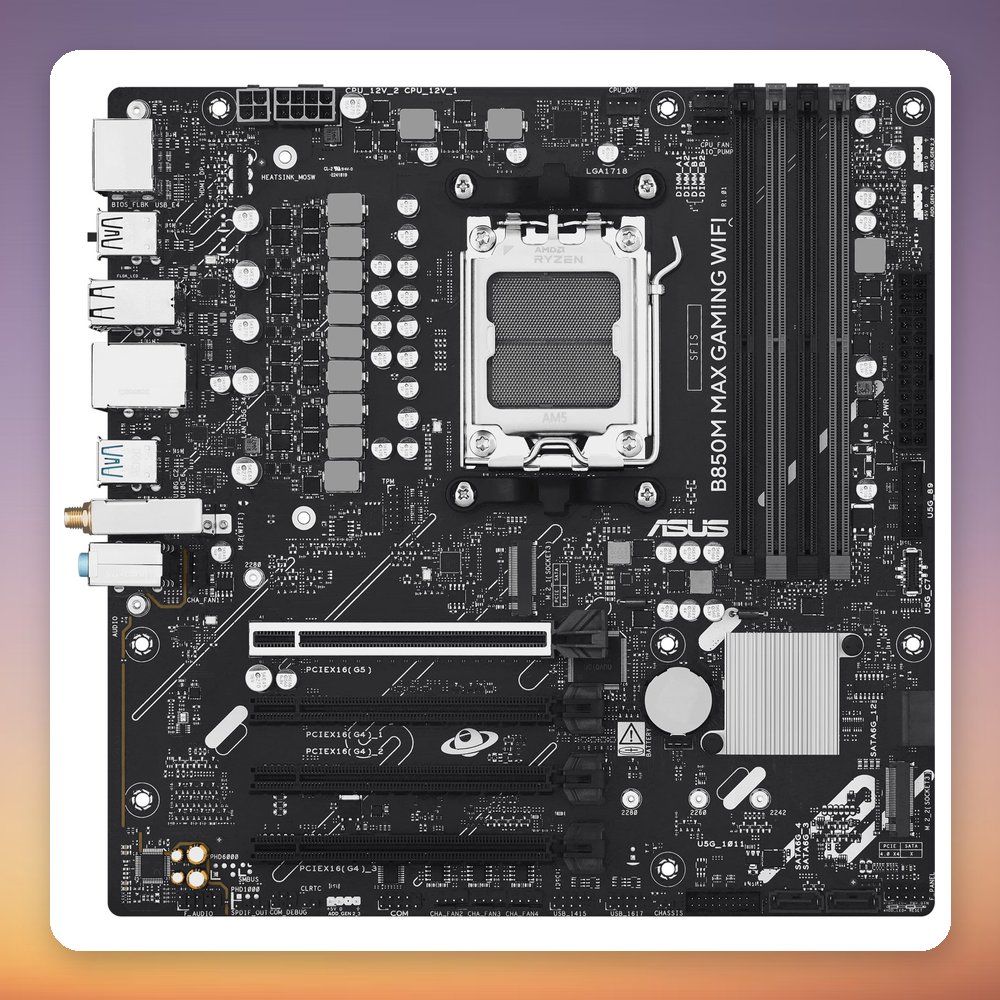

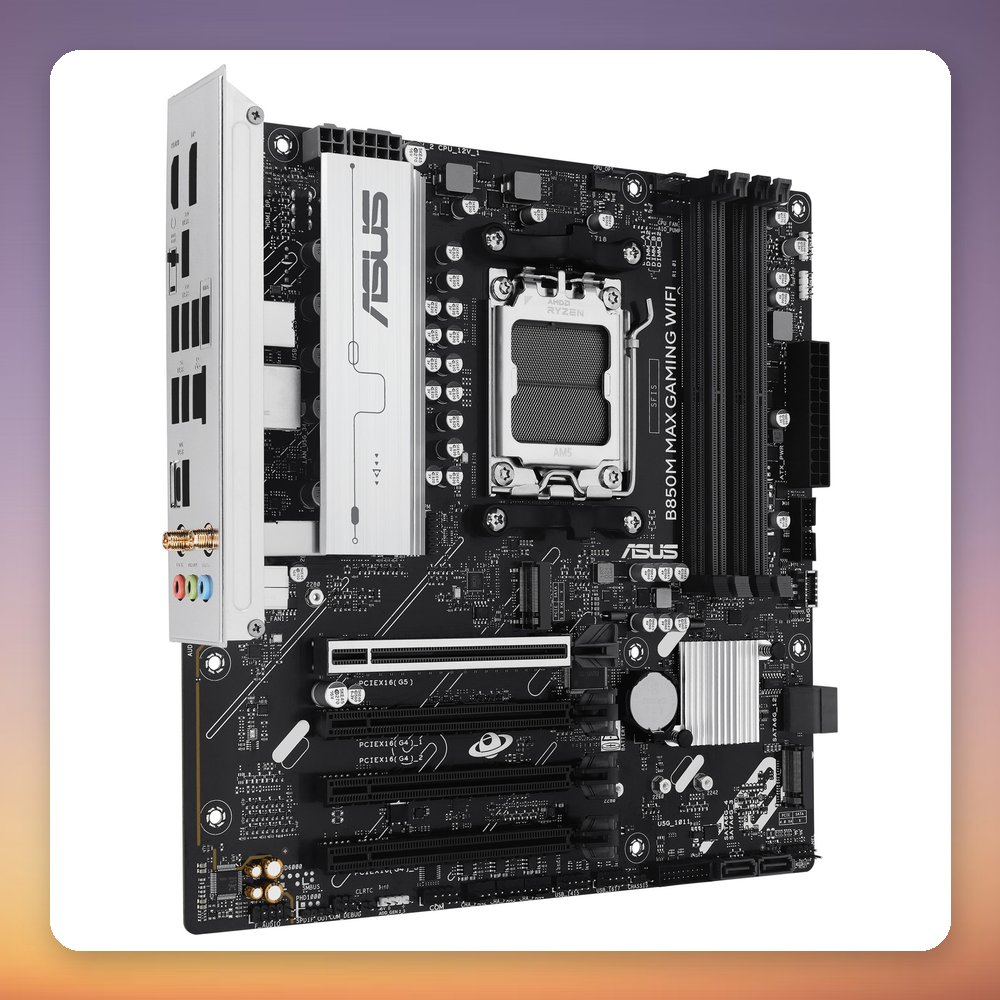

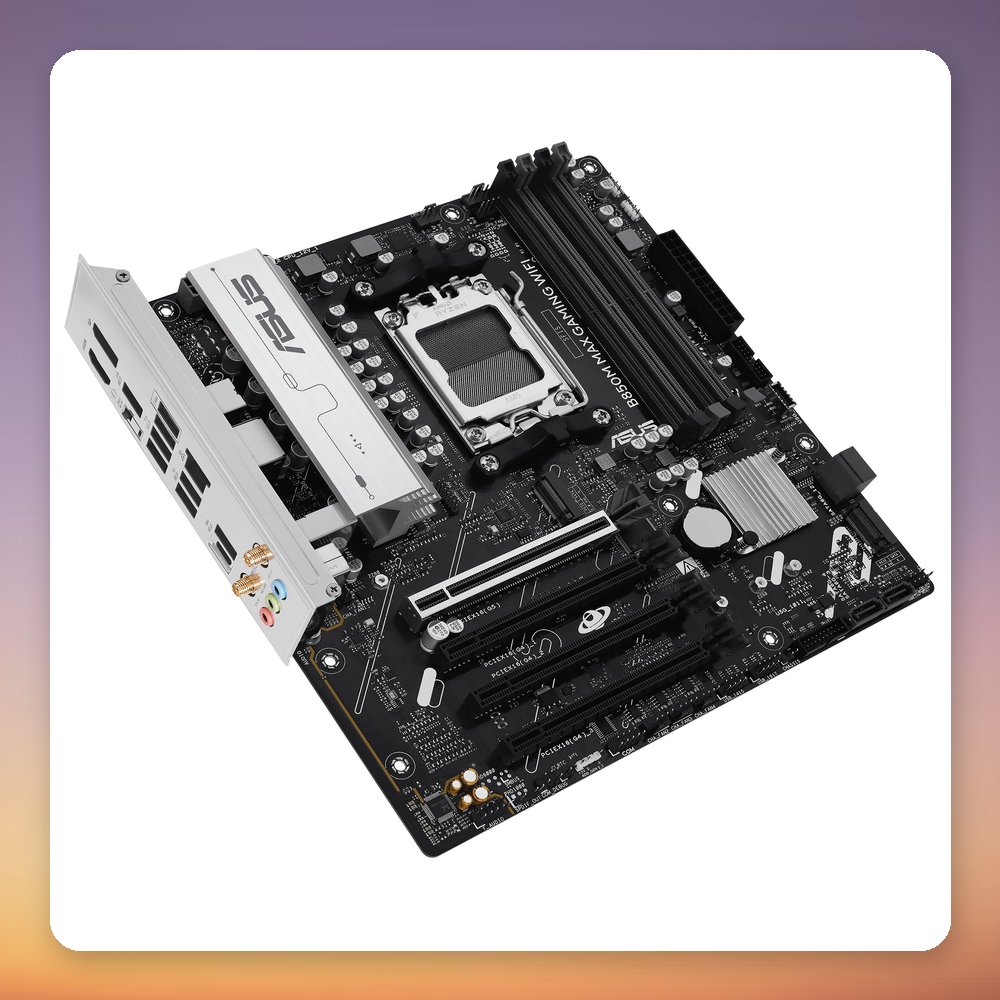

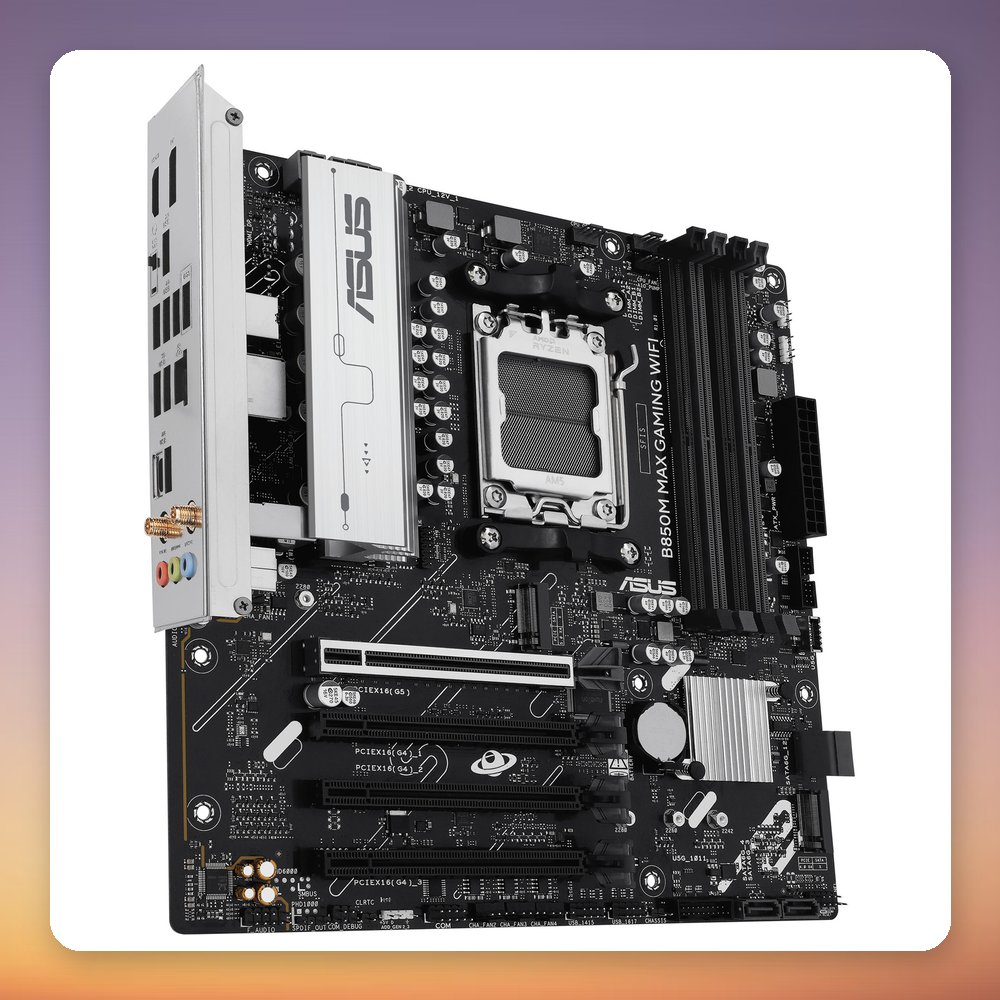

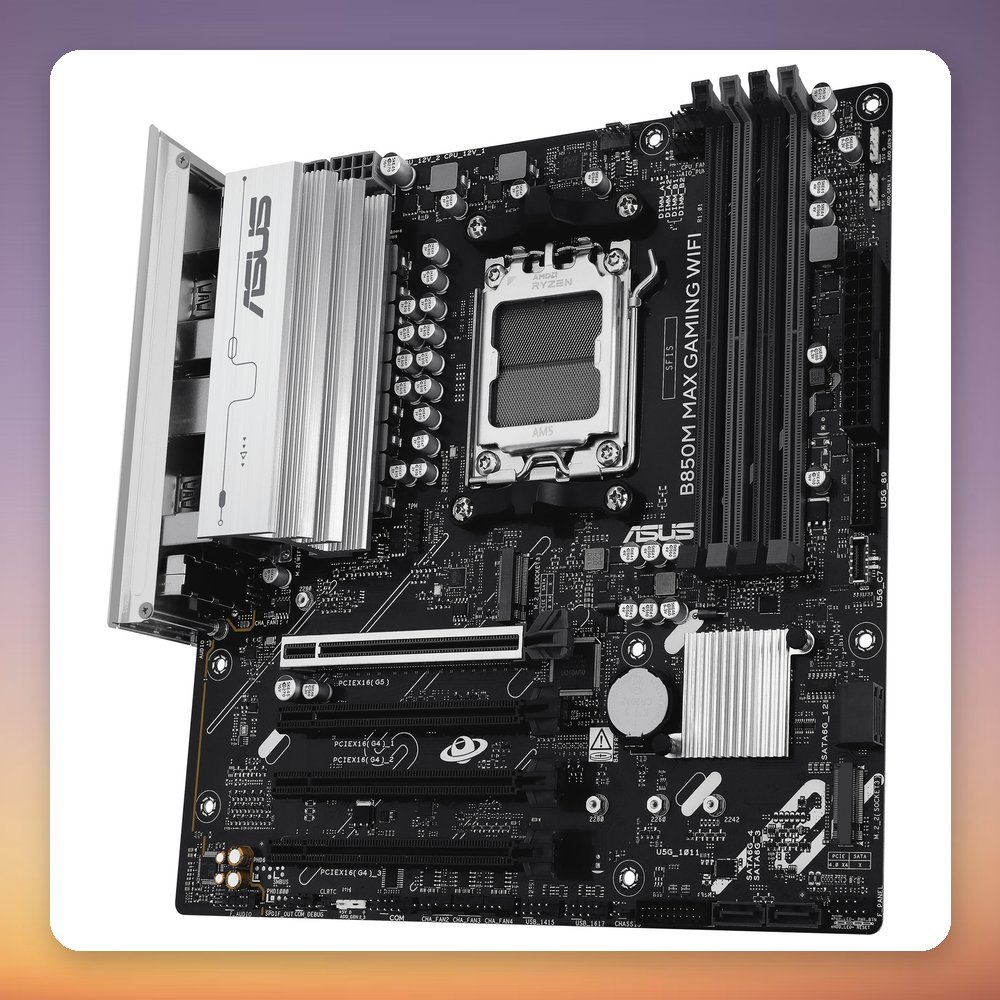

The Asus B850M MAX GAMING WIFI is a micro ATX AM5 motherboard built on the AMD B850 chipset, supporting Ryzen 7000, 8000 and 9000 series processors. It has four DDR5 slots for up to 256 GB of memory (up to DDR5-8000), three M.2 slots with the first running at PCIe 5.0, and a PCIe 5.0 x16 slot for the graphics card.

This board suits compact and mid-size AM5 gaming builds that still need solid connectivity. Wi-Fi 6, Bluetooth 5.4 and Gigabit LAN are onboard, along with HDMI and DisplayPort for CPUs with integrated graphics. It has four SATA ports, seven 4-pin PWM fan headers and three addressable RGB headers. A BIOS update may be needed for the newest processors.

Specification

Manufacturer: Asus
Model: B850M MAX GAMING WIFI
MPN: 90MB1LL0-M0EAY0
EAN: 4711636062343
Socket: AMD AM5
Chipset: AMD B850
Form factor: micro ATX
Memory: 4x DDR5 DIMM, dual-channel, up to DDR5-8000
Maximum memory: 256 GB (ECC and non-ECC supported)
M.2 slots: 3x M.2 (M key), 1st PCIe 5.0, 2nd PCIe 4.0, 3rd PCIe 3.0
SATA: 4x SATA III (RAID 0, 1, 5, 10)
Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x1 lanes)
Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.4
LAN: Realtek Gigabit Ethernet
Rear USB: 1x USB-C 10 Gbit/s, 1x USB-A 10 Gbit/s, 2x USB-A 5 Gbit/s, 5x USB 2.0
Video outputs: 1x HDMI, 1x DisplayPort
Audio: Realtek ALC1220P 7.1 channel
Fan and RGB headers: 7x 4-pin PWM fan, 3x addressable RGB
Weight: 859 g
Dimensions (W x D): 244 x 244 mm
