Name: ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard, AMD B850, DDR5
Brand: Asrock
SKU: 100137085
Price: 134.22 EUR
Availability: InStock

ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard, AMD B850, DDR5

€134.22

Delivery: 7-12 business days
ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard, AMD B850, DDR5

AMD B850 chipset for Socket AM5 Ryzen 7000/8000/9000
Two DDR5 slots, up to 128 GB, DDR5-8200+
2.5 Gigabit LAN plus Wi-Fi 6E and Bluetooth
Two M.2 sockets, four SATA ports, six PWM fan headers

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100137085 Category: AMD Motherboards Tags: Asrock,, Intel,, motherboard,, WiFi Brand: Asrock

Description
Additional information

✅

Product Overview

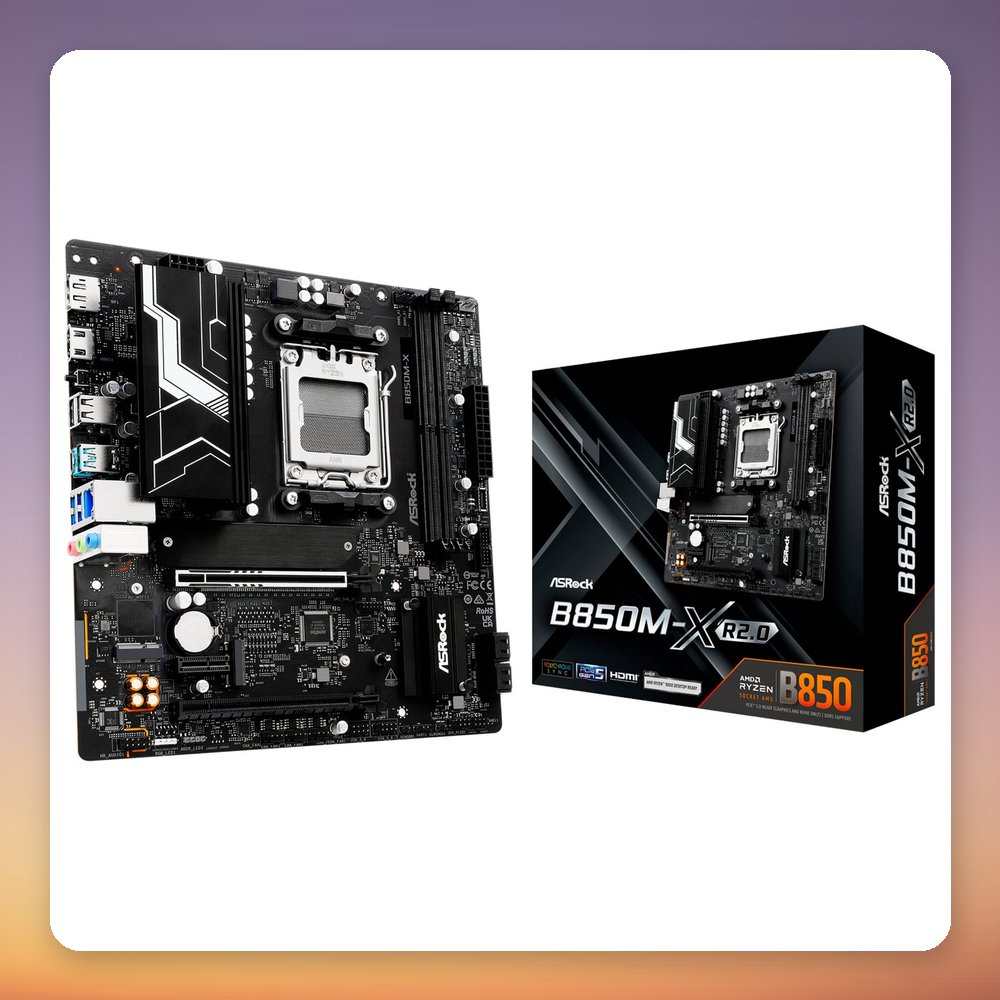

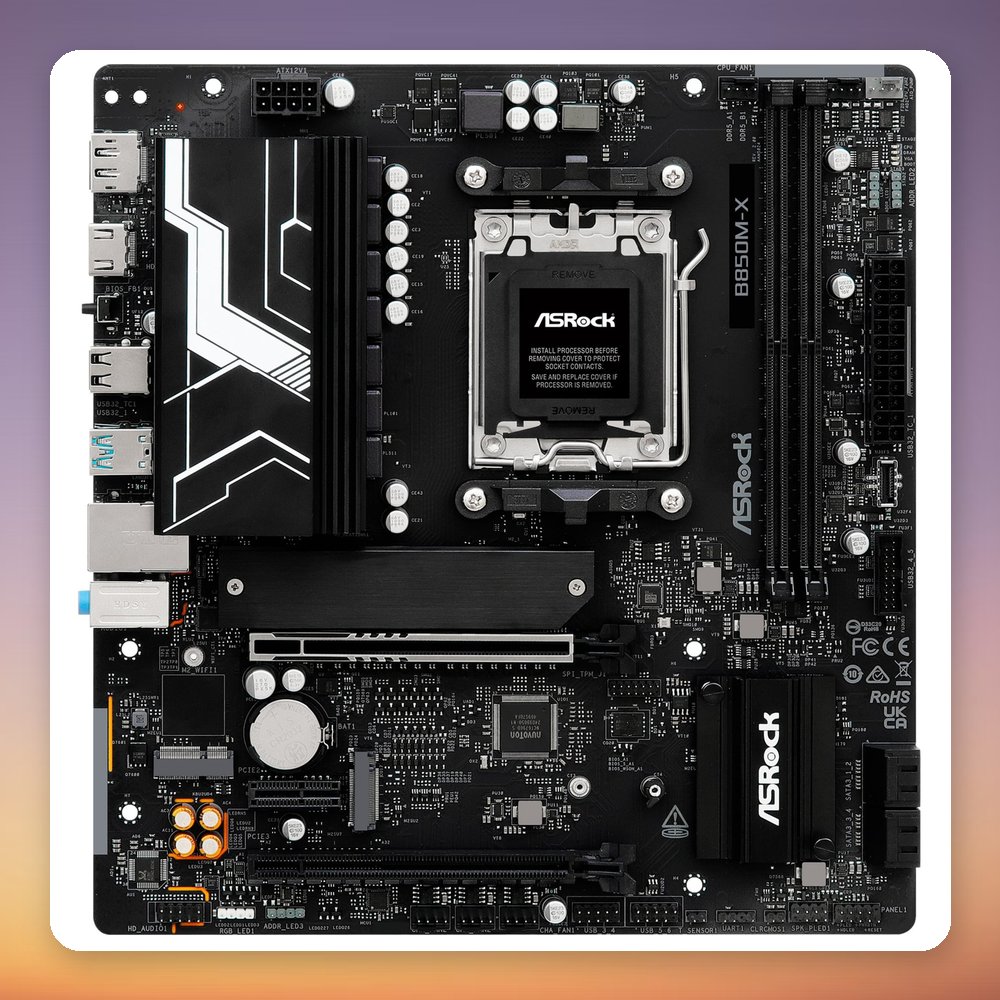

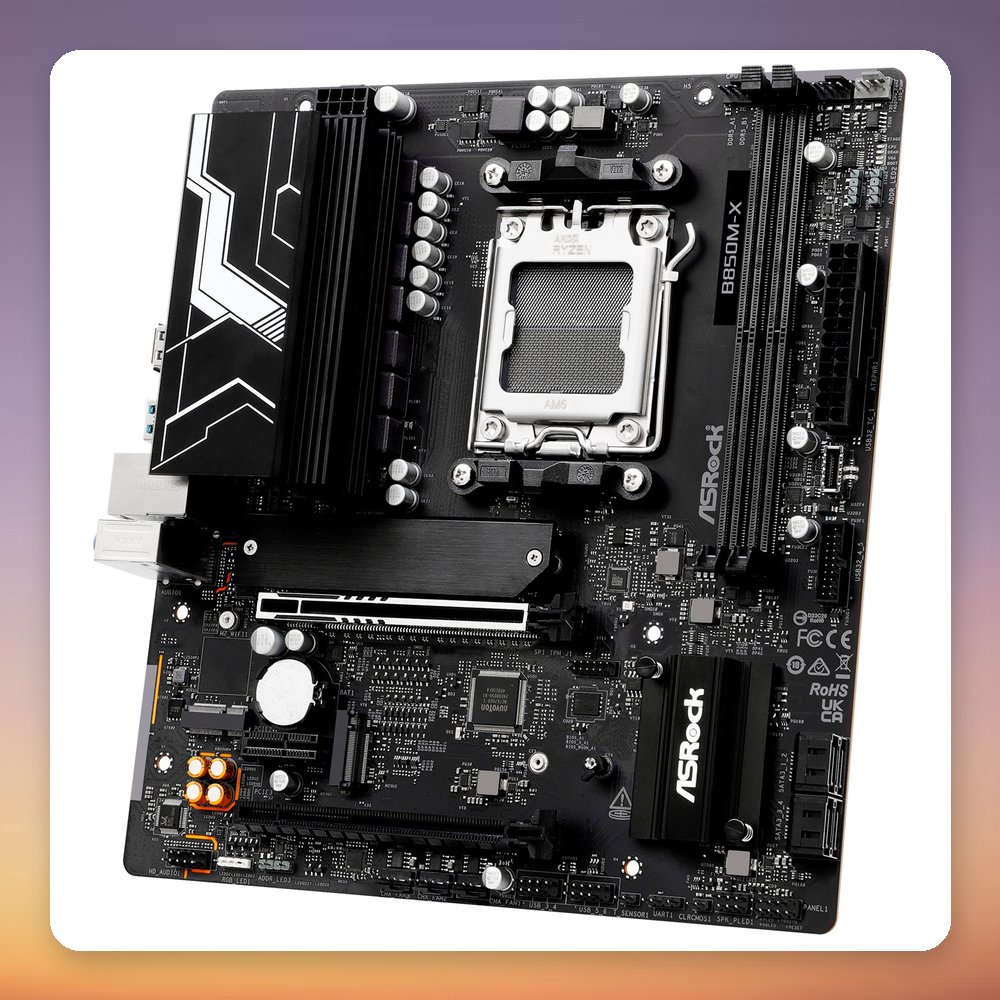

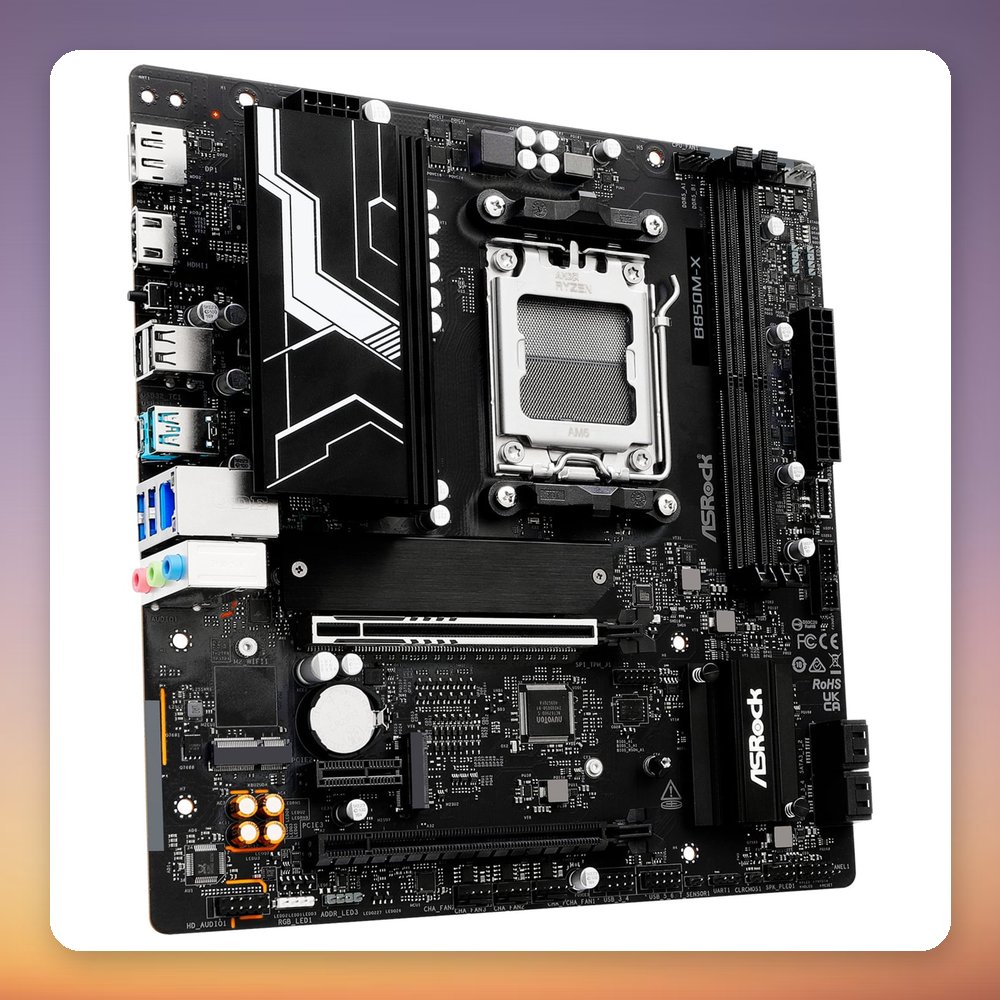

The ASRock B850M-X WiFi R2.0 is a Micro-ATX motherboard for AMD Socket AM5, built on the AMD B850 chipset. It has two DDR5 slots supporting up to 128 GB at speeds up to DDR5-8200+, two M.2 sockets and four SATA ports. Networking is covered by 2.5 Gigabit LAN (Dragon RTL8125BG) plus Wi-Fi 6E and Bluetooth, so a PC built on it needs no extra network cards.

This board suits compact AM5 builds around Ryzen 7000, 8000 and 9000 series processors, including X3D models. Video outputs (HDMI and DisplayPort) work only with a CPU that has integrated graphics. It offers one RGB header, three addressable RGB headers and six 4-pin PWM fan headers, with USB-C and USB-A ports on the rear panel. The manufacturer notes that a BIOS update may be required to support the newest processors.

Specification

Manufacturer: Asrock
Model: B850M-X WiFi R2.0
MPN: 90-MXBSH0-A0UAYZ
EAN: 4711581490765
Socket: AMD AM5
Chipset: AMD B850
Form factor: Micro-ATX (µATX)
Memory: 2x DDR5 DIMM, dual channel, up to 128 GB, up to DDR5-8200+
ECC memory: Supported
Expansion slots: 1x PCIe x16, 1x PCIe x4 (x16 form factor), 1x PCIe x1
M.2 slots: 2x M.2 (Key M, PCIe, 60-80 mm) plus 1x M.2 for WLAN
SATA ports: 4x SATA 6 Gb/s, RAID 0/1/10
LAN: 2.5 Gigabit (Dragon RTL8125BG)
Wireless: Wi-Fi 6E, Bluetooth
Audio: Realtek ALC897

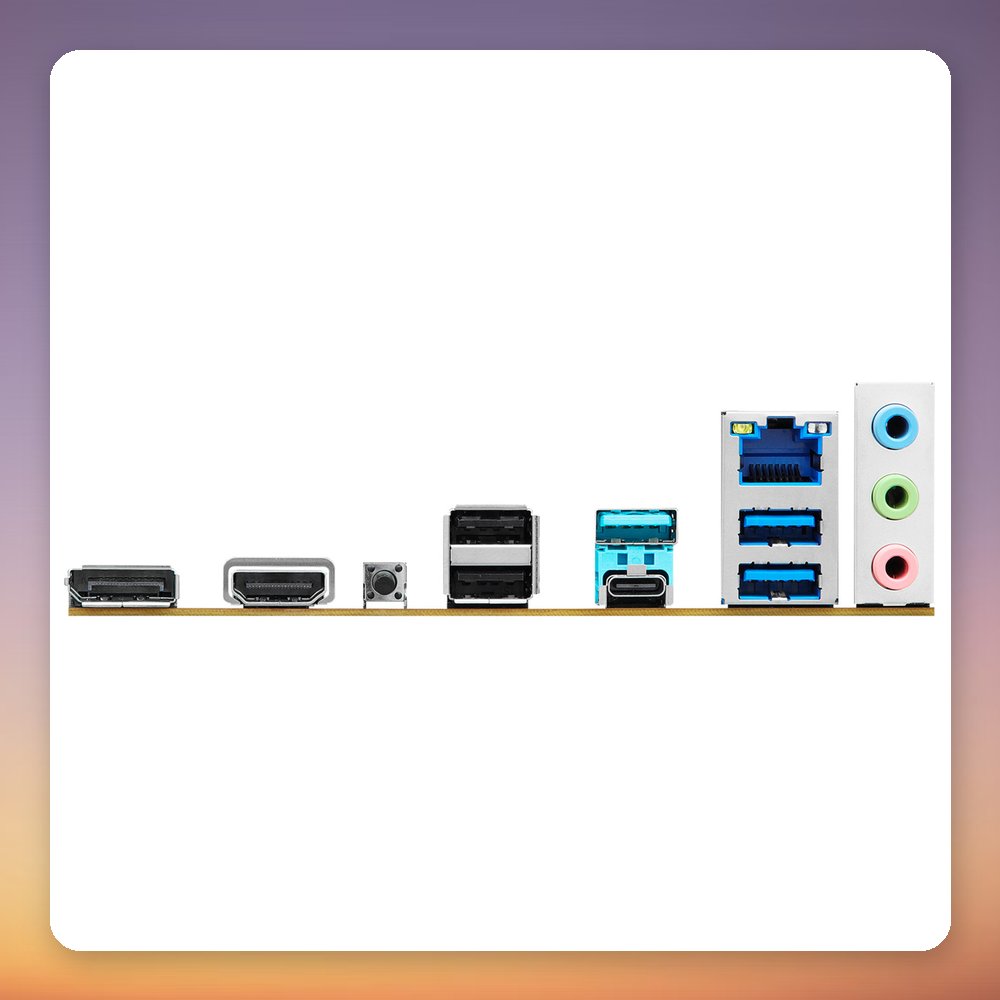

Rear USB: 1x USB-C 3.2 Gen 1, 3x USB-A 3.2 Gen 1, 2x USB-A 2.0
Video outputs: 1x HDMI, 1x DisplayPort (requires CPU with integrated graphics)
Fan and RGB headers: 6x 4-pin PWM fan, 3x addressable RGB, 1x RGB
Power connectors: 24-pin + 8-pin ATX12V
BIOS: 256 Mb AMI UEFI
Dimensions (W x H): 244 x 226 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight	1.2 kg
