Overview

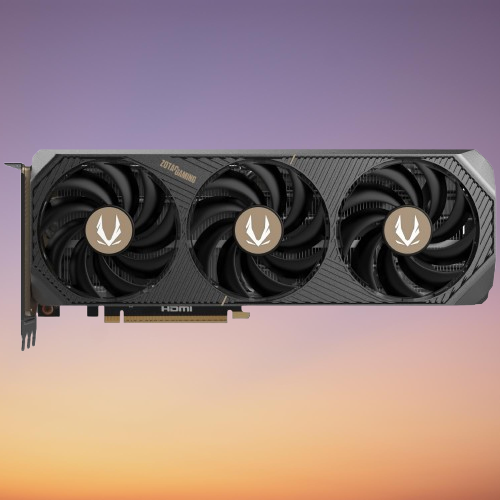

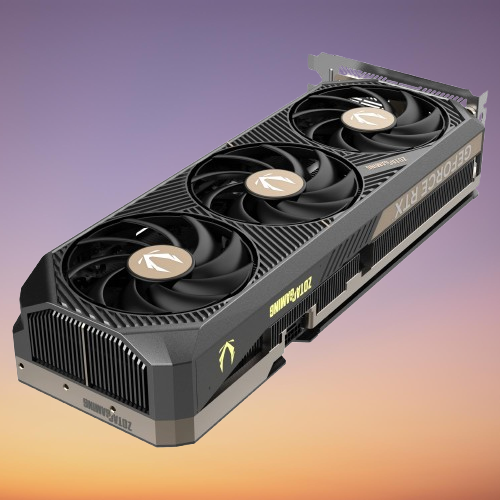

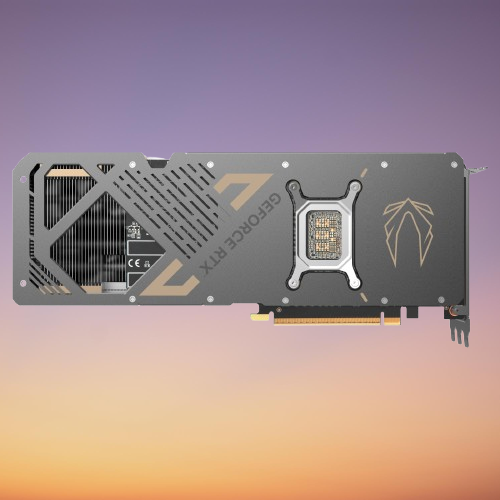

The ZOTAC GeForce RTX 5080 SOLID CORE OC is a cutting-edge graphics card designed for top-tier performance and advanced gaming experiences. Built on NVIDIA’s Blackwell architecture, it offers exceptional gaming realism, improved speed, and enhanced power efficiency. Key features include real-time ray tracing, ray reconstruction, and AI-powered capabilities like frame generation. It supports NVIDIA DLSS 4 for superior image quality and performance, along with tools like NVIDIA Ansel for capturing stunning in-game screenshots.

With 10,752 CUDA cores and 16 GB of GDDR7 memory on a 256-bit memory interface, the card is engineered for high-resolution gaming and demanding creative tasks. Additional features include NVIDIA G-SYNC and G-SYNC HDR for smooth visuals, ShadowPlay for gameplay recording, Highlights for capturing key moments, and NVENC Gen 9 with AV1 encoding/decoding support. This makes the ZOTAC GeForce RTX 5080 SOLID CORE OC a powerful choice for gamers and content creators alike.

Technical Specification

• Type – graphics card
• EAN – 8886307700568
• Manufacturer number – ZT-B50800J2-10P
• Slot – PCIe x16 version 5.0
• Occupied slots – 3.5
• GPU:
  Designation – NVIDIA GeForce RTX 5080
  GPU class – NVIDIA GeForce RTX Gaming
  Clock frequency – 2300 MHz
  GPU Boost clock – 2640 MHz
  Stream processors – 10752
  Support – DirectX 12 Ultimate, OpenGL 4.6
• Memory:
  Capacity – 16 GB (GDDR7)
  Connection – 256 bits
  Effective clock – 30 GHz

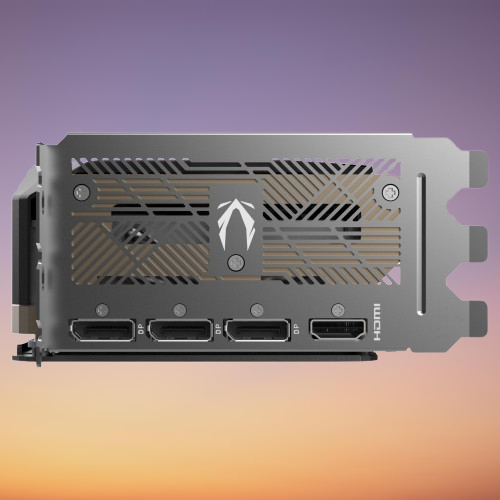

• Connections – 1 x HDMI version 2.1b / 3 x Displayport version 2.1a
• Power supply:
  Average consumption – 360 W
  Connections – 1 x 16-pin (12VHPWR) power connector
  Required power supply – min. 850 W
• Cooling – cooling with fan
• Operating systems Supports – Windows 11, Windows 10
• Feature – NVIDIA DLSS 4, Reflex 2, RTX Video, RTX Remix, NVIDIA Broadcast, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, NVIDIA App, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Encoder: Gen 9, NVENC Decoder: Gen 6, AV1 Encoder and Decoder, Raytracing Cores: Gen 4, TensorCores (AI): Gen 5
• More information – Max. resolution: 4K at 480Hz or 8K at 120Hz with DSC
• Notice – For the power supply, a power supply with a native 16-pin connector or a power supply with 3x 8-pin PCIe for the included adapter is required
• Dimensions – Width: 115.8 mm x Height: 55.7 mm x Depth/Length: 303.5 mm
• Accesories – Power adapter, SPECTRA LINK cable, GPU support stand


  ---
