Overview

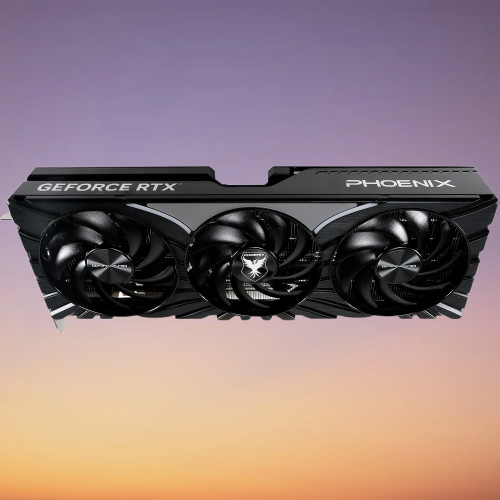

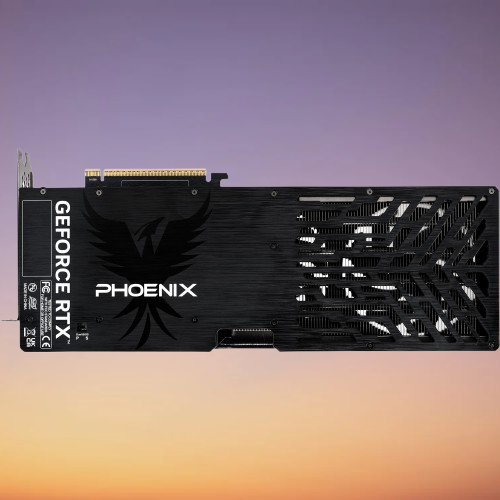

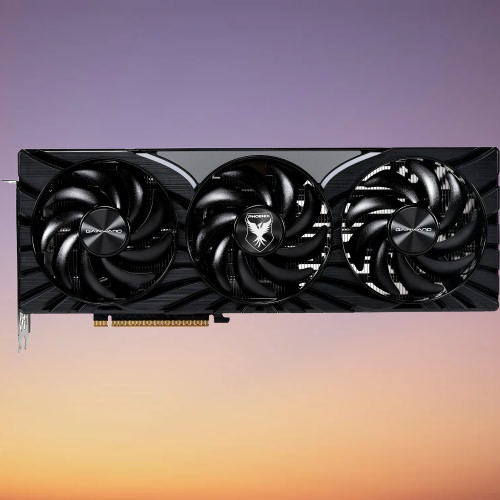

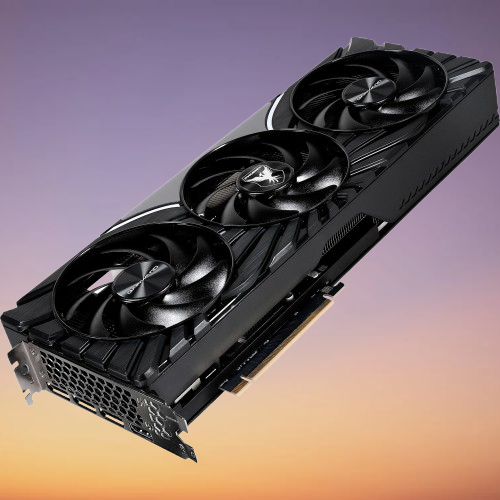

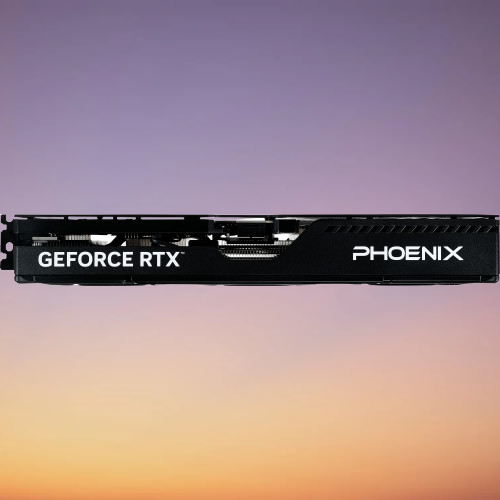

The Gainward GeForce RTX 5070 Ti Phoenix-S is a top-tier graphics card designed for exceptional performance in gaming and advanced computing tasks. Powered by NVIDIA’s cutting-edge Blackwell architecture, it delivers remarkable gaming realism, enhanced speed, and energy efficiency. It supports advanced AI features such as frame generation, multi-frame generation, and lifelike VR experiences.Key highlights include real-time ray tracing with ray reconstruction for immersive visuals, NVIDIA Ansel for capturing stunning in-game screenshots, and NVIDIA G-SYNC with HDR support for smooth gameplay. The card also features NVIDIA DLSS 4 for superior upscaling, ShadowPlay for recording gameplay, Highlights to capture key moments, and NVENC Gen 9 along with AV1 encoding/decoding for seamless video processing.The Gainward GeForce RTX 5070 Ti Phoenix-S is equipped with 8960 CUDA cores and 16 GB of GDDR7 memory with a 256-bit memory interface, making it a powerhouse for both gaming and professional applications.

Technical Specification

• Type – graphics card
• EAN – 4710562245547
• Manufacturer number – NE7507T019T2-GB2031K
• Slot – PCIe x16 version 5.0
• Occupied slots – 3
• GPU:
  Designation – NVIDIA GeForce RTX 5070 Ti
  GPU class – NVIDIA GeForce RTX Gaming
  Clock frequency – 2300 MHz
  GPU Boost clock – 2452 MHz
  Stream processors – 8960
  Support – DirectX 12 Ultimate, OpenGL 4.6
• Memory:
  Capacity – 16 GB (GDDR7)
  Connection – 256 bits
  Effective clock – 28 GHz

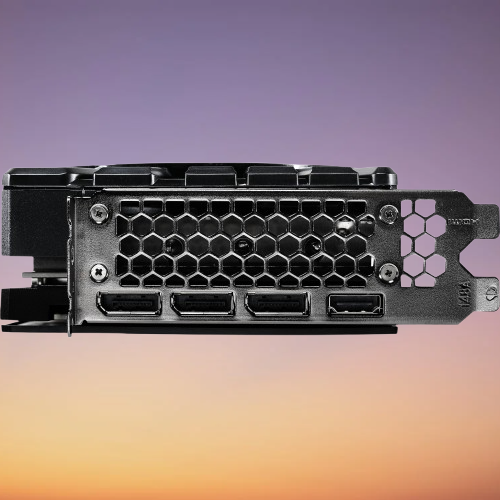

• Connections – 1 x HDMI version 2.1b / 3 x Displayport version 2.1b
• Power supply:
  Average consumption – 300 W
  Connections – 1x 16-pin (12VHPWR) power connector
  Required power supply – min. 750 W
• Cooling – cooling with fan
• Operating systems Supports – Windows 11, Windows 10
• Feature – NVIDIA DLSS 4, Reflex 2, RTX Video, RTX Remix, NVIDIA Broadcast, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, NVIDIA App, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Encoder: Gen 9, NVENC Decoder: Gen 6, AV1 Encoder and Decoder, Raytracing Cores: Gen 4, TensorCores (AI): Gen 5
• More information – Max. resolution: 4K at 480Hz or 8K at 120Hz with DSC
• Notice – For the power supply, a power supply with a native 16-pin connector or a power supply with 2x 8-pin PCIe for the included adapter is required
• Dimensions – Width: 133.1 mm x Height: 60 mm x Depth/Length: 331.9 mm
• Accesories – Power adapter


  ---
