Product Overview

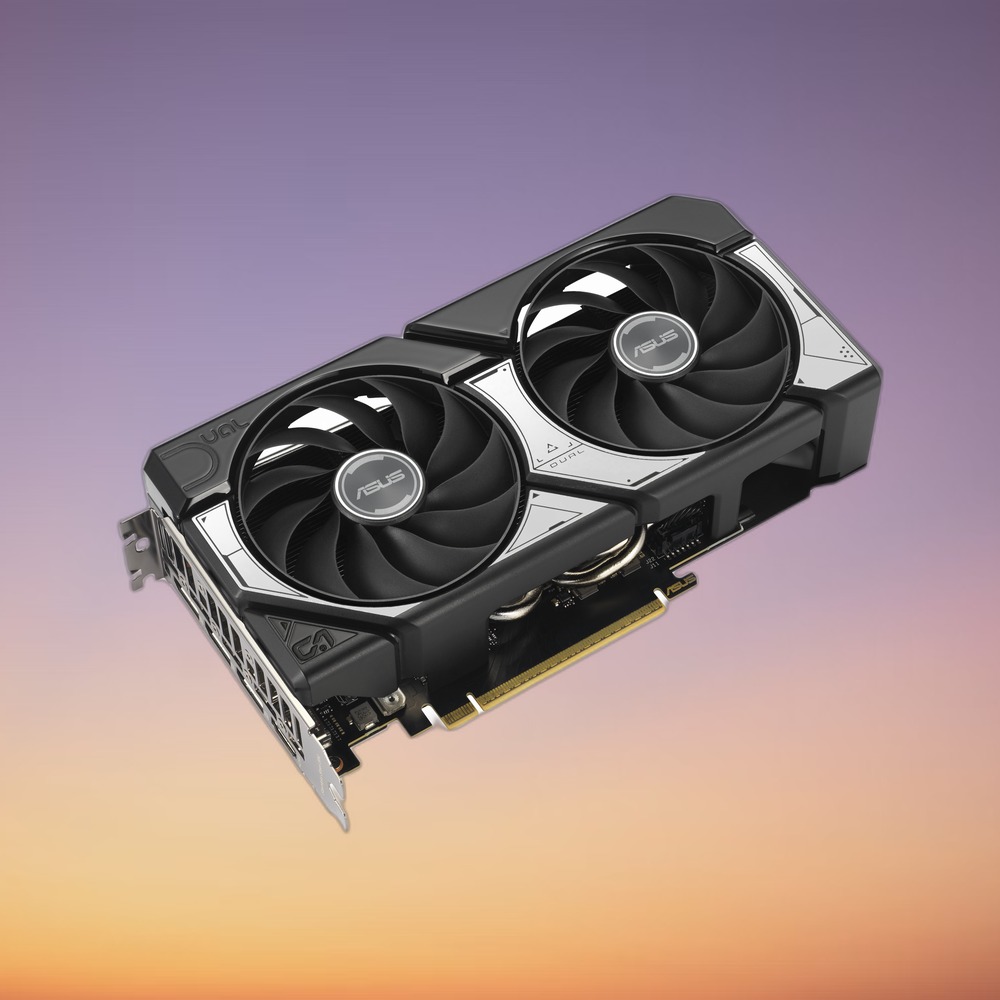

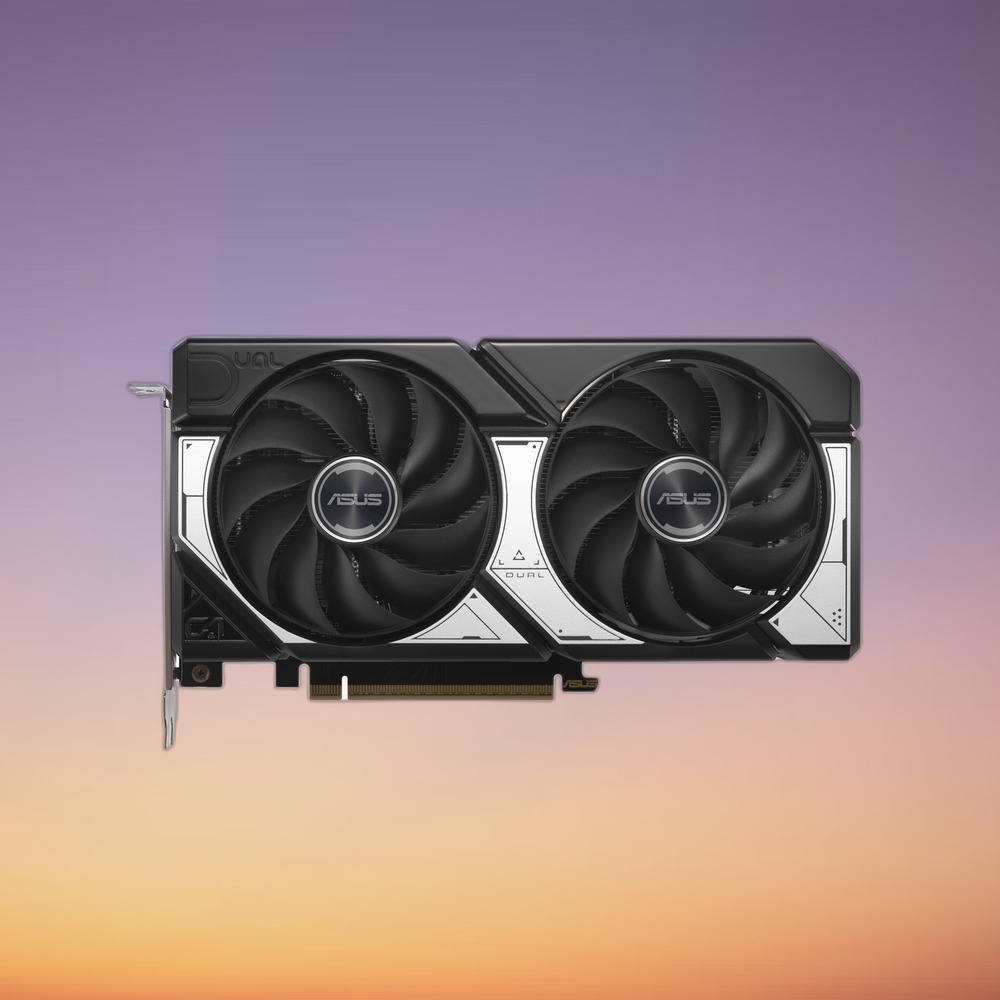

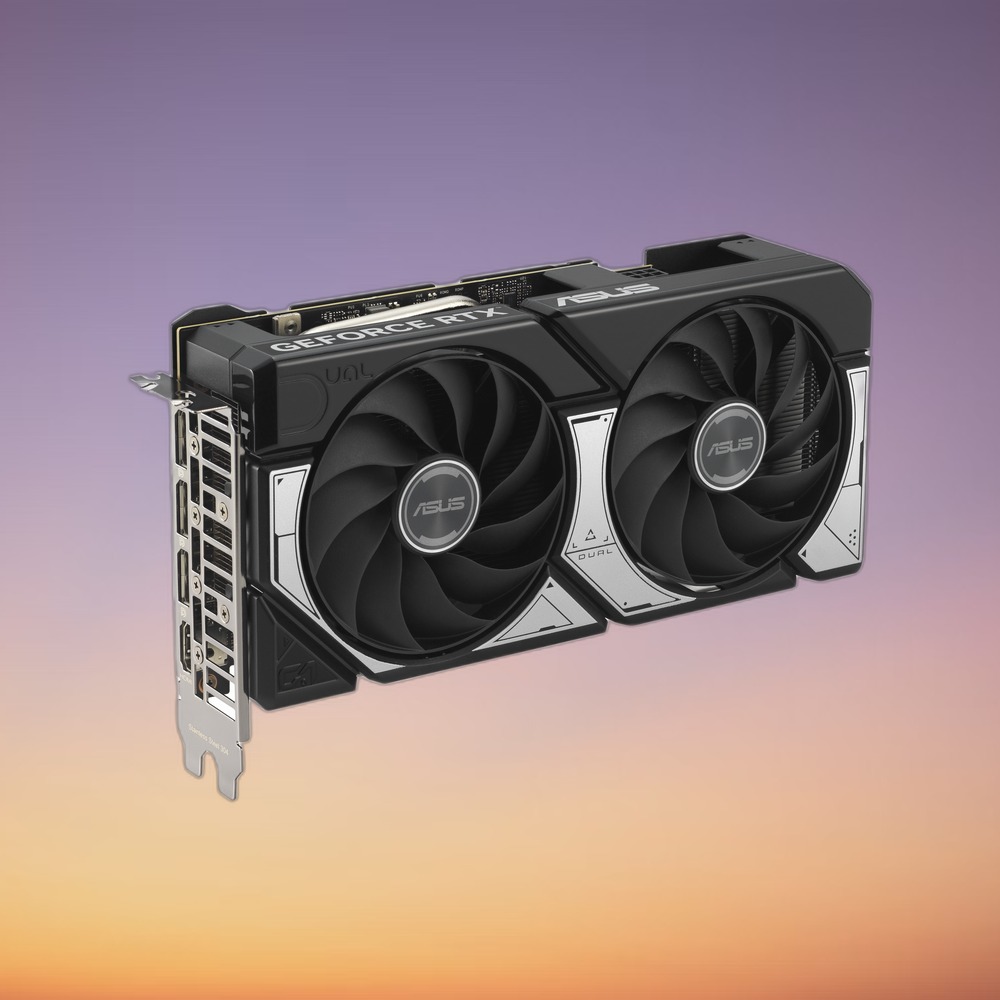

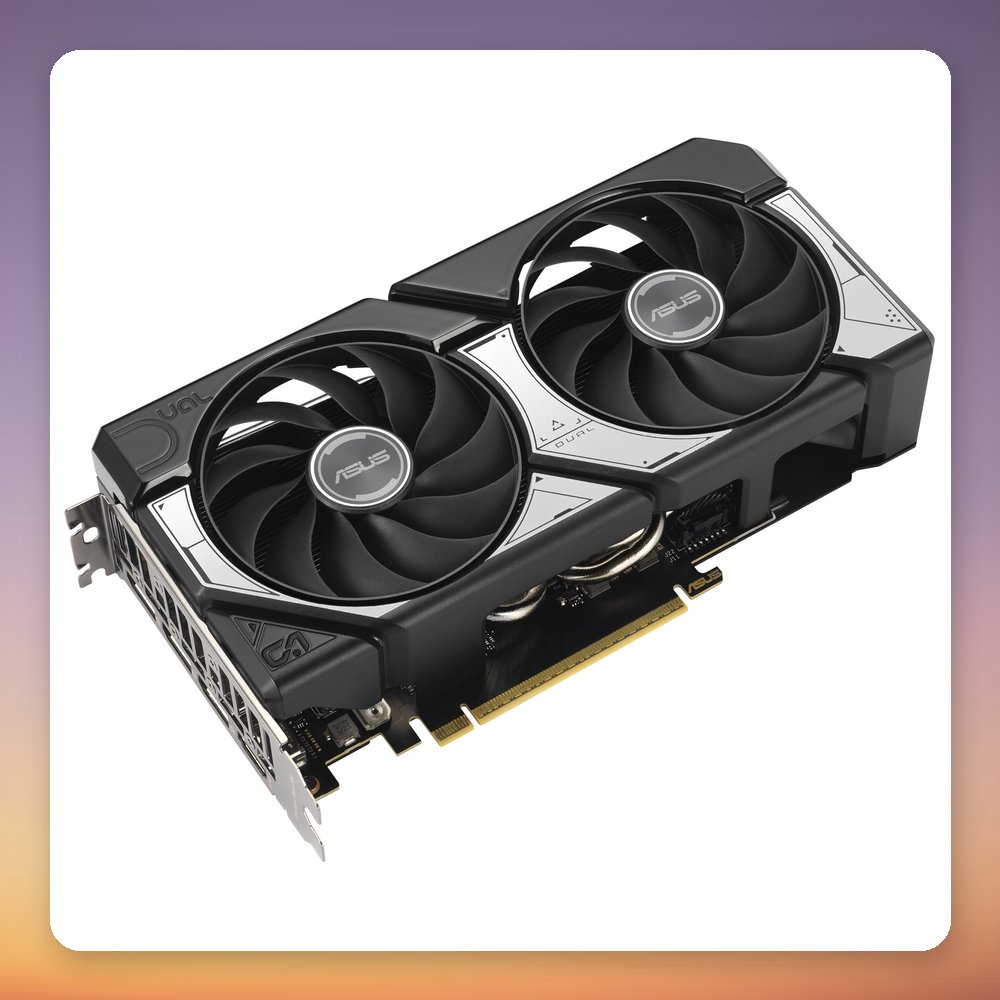

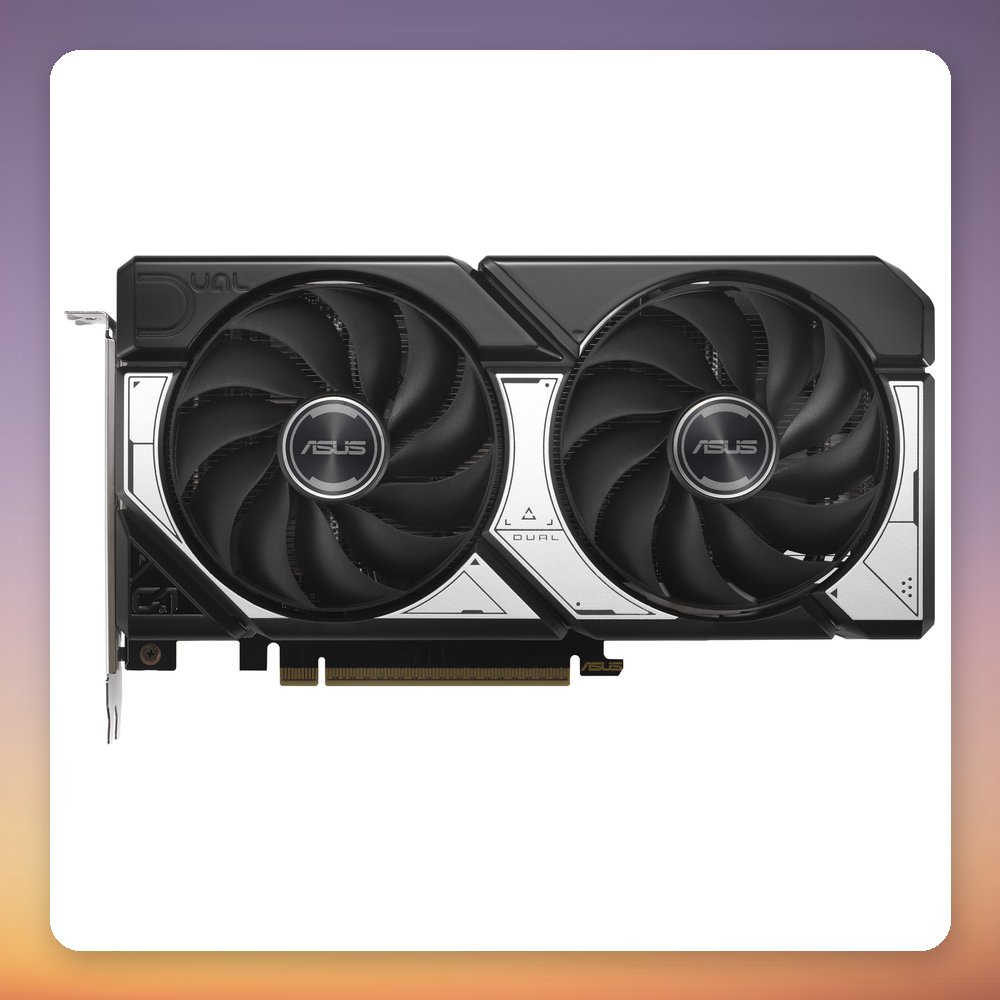

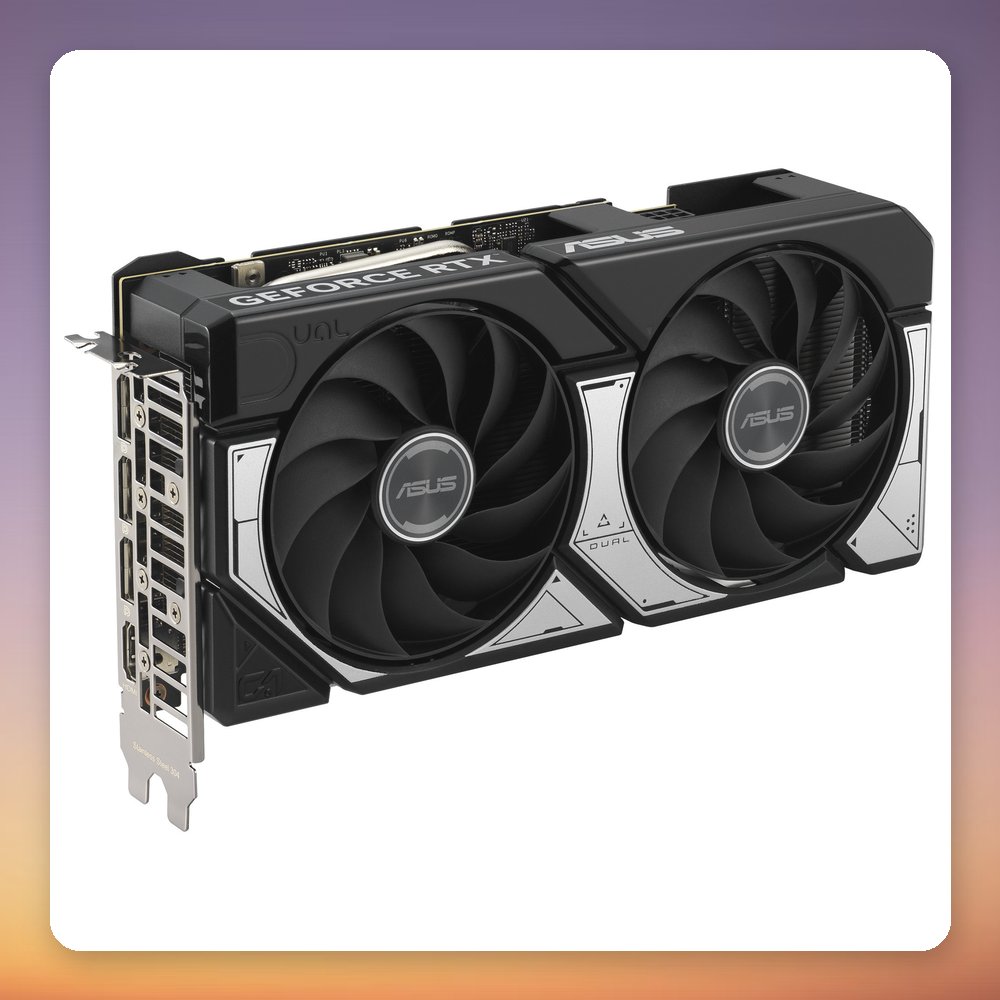

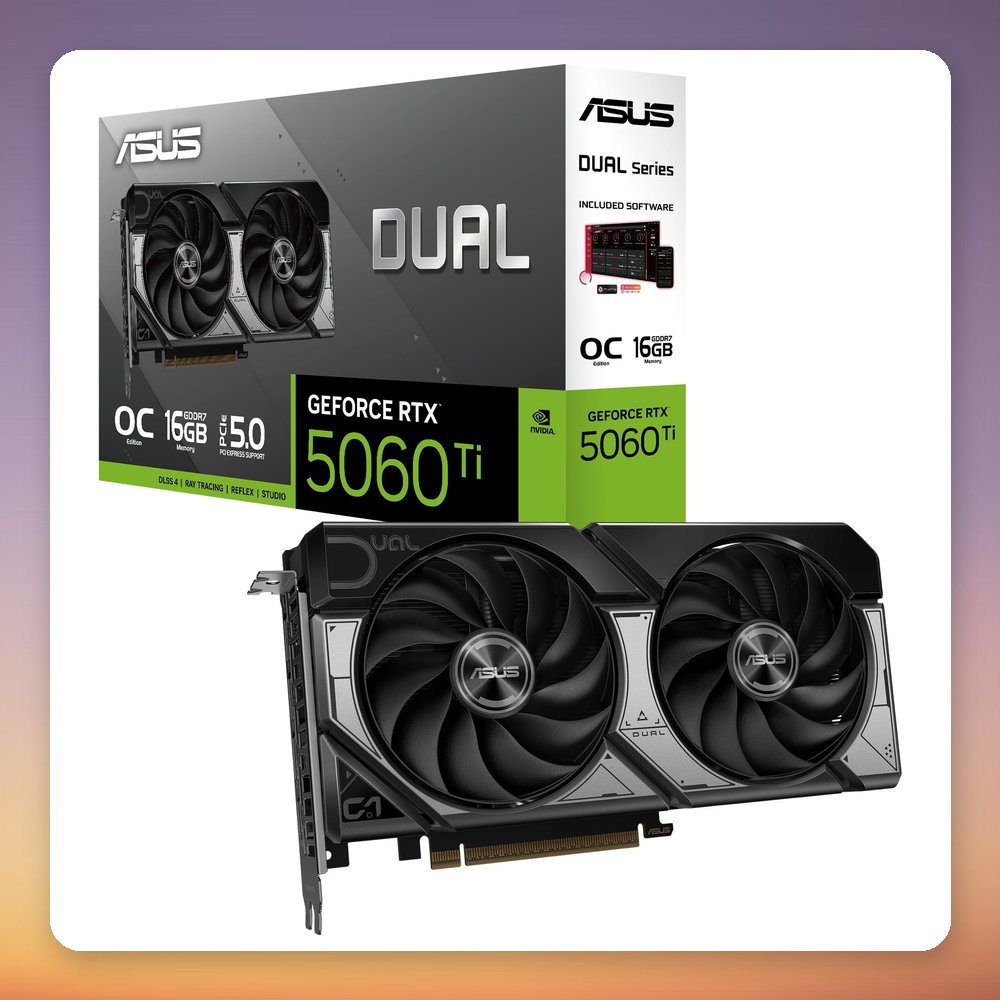

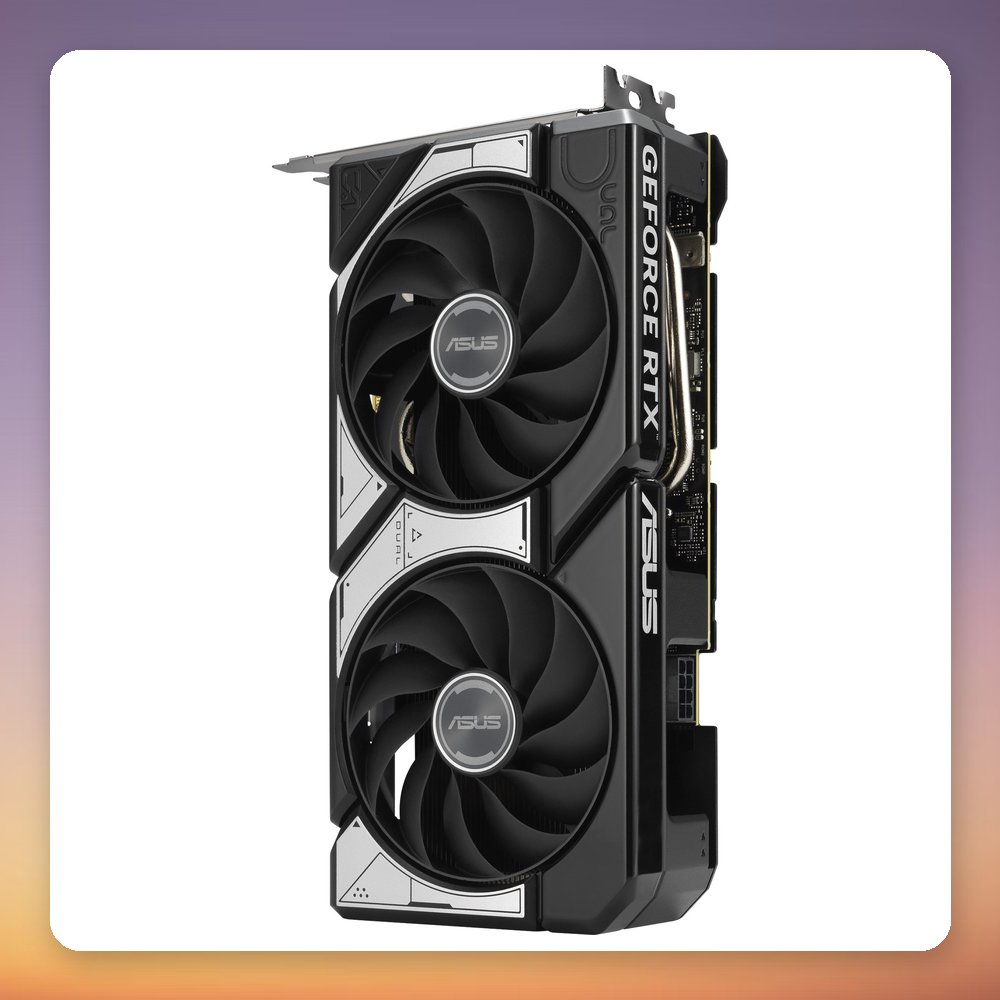

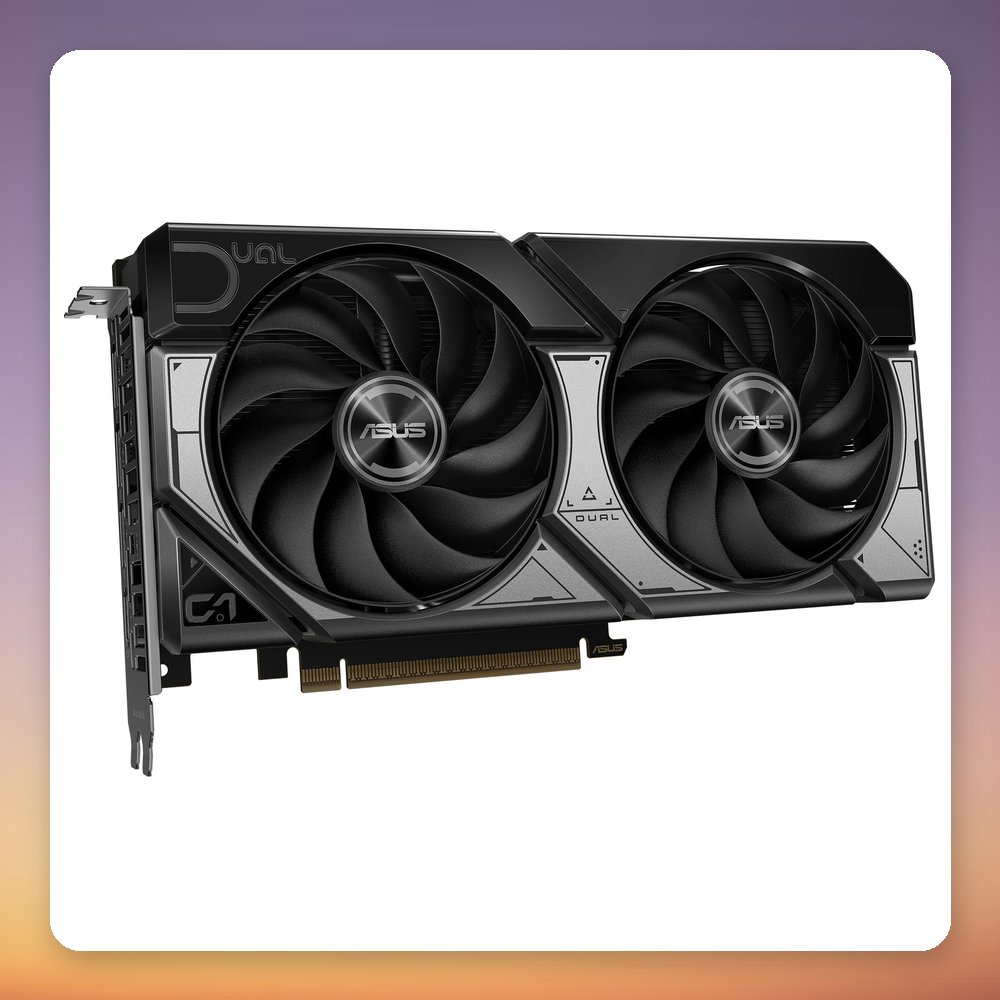

The Asus Dual GeForce RTX 5060 Ti OC 16 GB is a graphics card built on the NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores and 16 GB of GDDR7 memory on a 128-bit bus. Its OC mode raises the boost clock to 2632 MHz, up from the 2602 MHz reference boost. At 229 mm long and 2.5 slots thick, it is compact and listed as SFF-Ready.

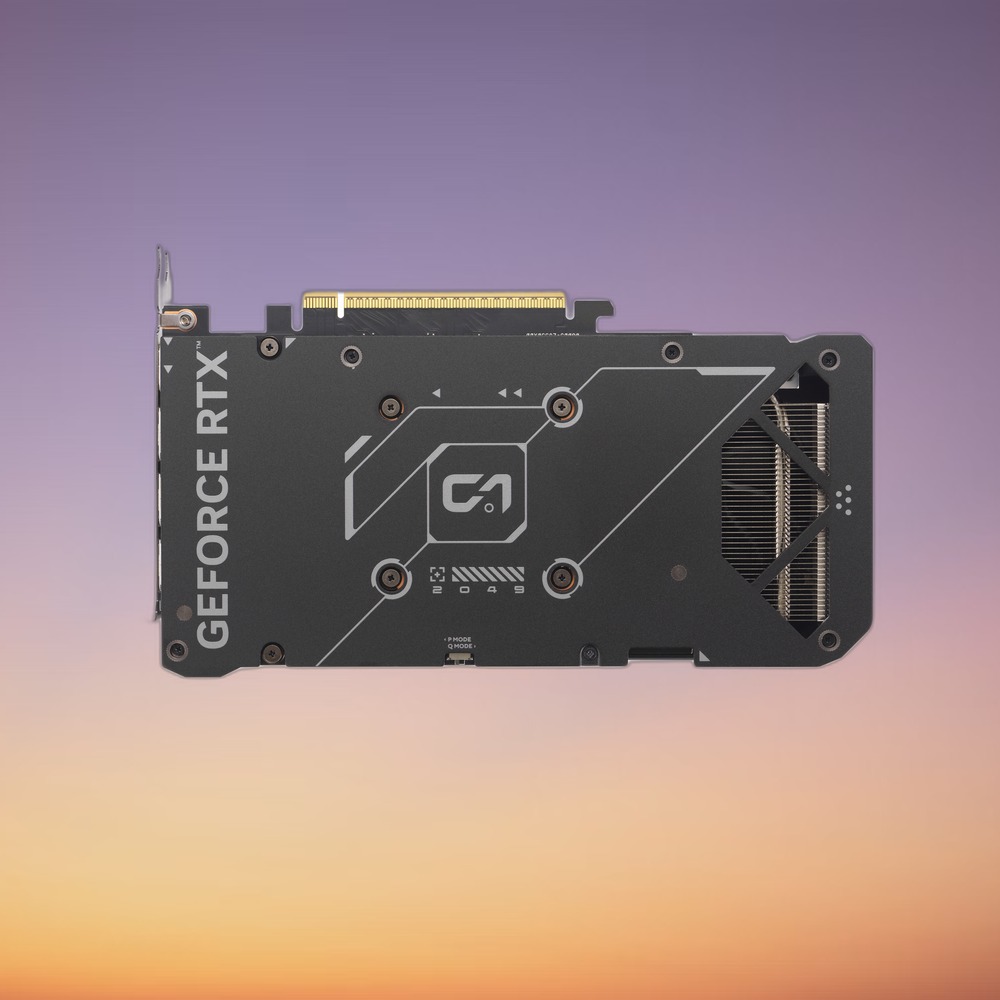

This card suits compact and mid-size gaming builds that still need 16 GB of VRAM and current NVIDIA features such as DLSS, Reflex 2 and Gen 4 ray tracing cores. Cooling comes from two Axial-tech fans with dual ball bearings, a vented backplate and a 0dB mode that stops the fans below 50 degrees. It uses a single 8-pin power connector and needs a power supply of at least 550 W.

Specification

• Manufacturer: Asus
• Model: Dual GeForce RTX 5060 Ti OC
• MPN: 90YV0MH0-M0NA00
• EAN: 4711387994306
• GPU: NVIDIA GeForce RTX 5060 Ti
• CUDA cores: 4608
• Memory: 16 GB GDDR7, 128-bit, 28 Gbit/s
• Boost clock: 2602 MHz (2632 MHz in OC mode)
• Interface: PCI Express 5.0 x16

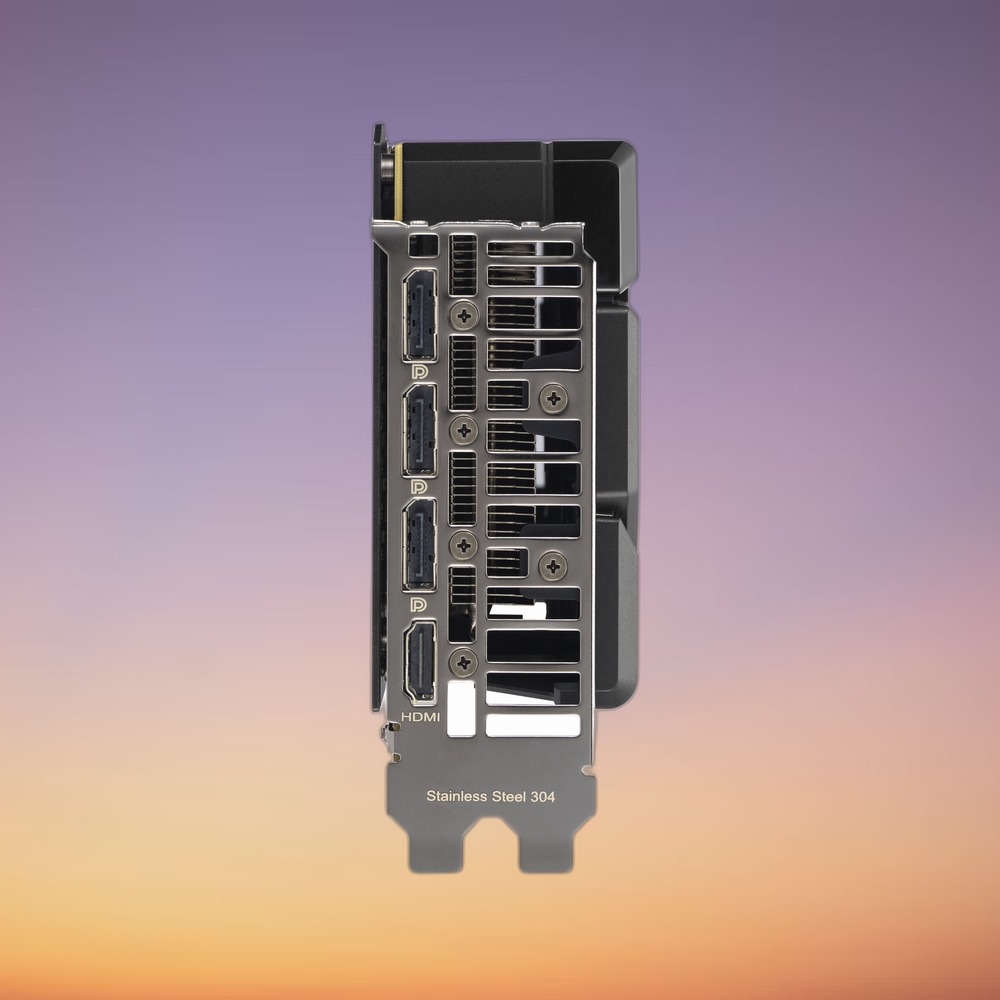

• Video outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Cooling: 2x Axial-tech fans, dual ball bearings, 0dB mode

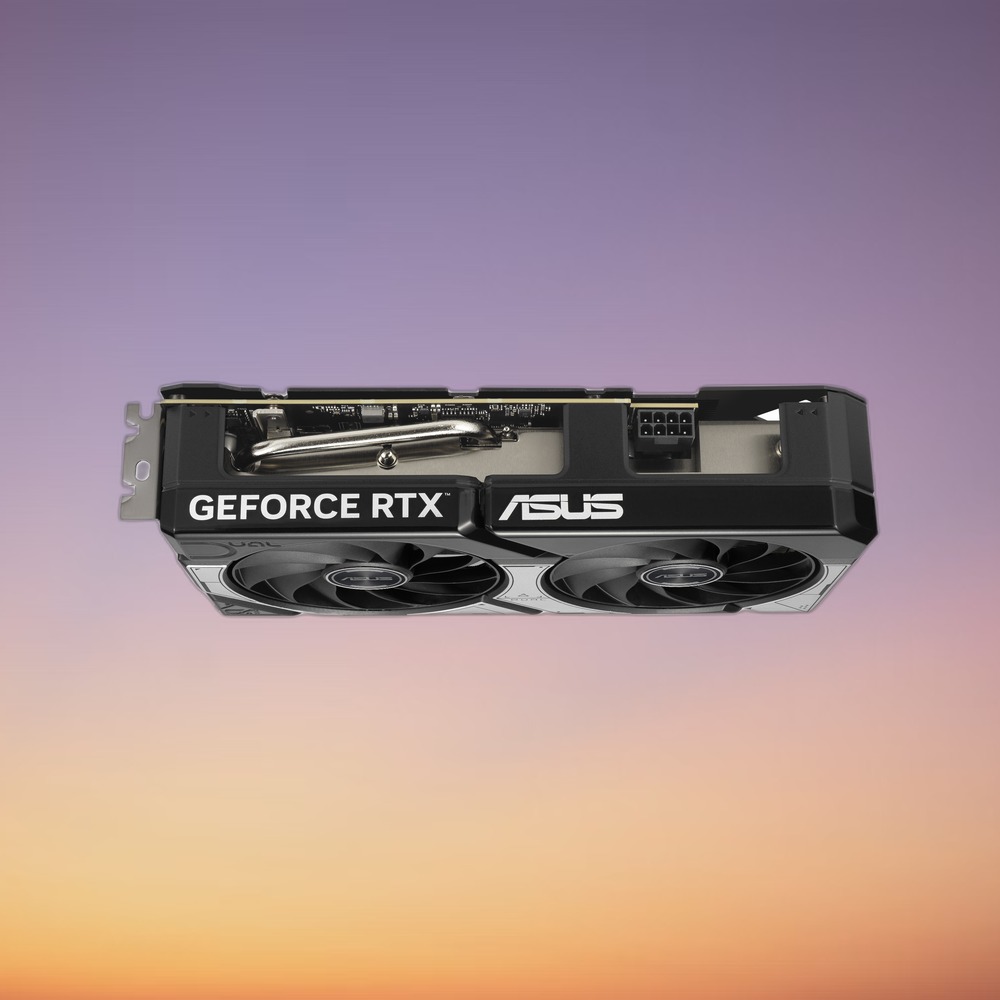

• Power connector: 1x 8-pin
• Minimum PSU: 550 W
• Slot width: 2.5 slots
• Dimensions (W x H x D): 120 x 50 x 229 mm
• Weight: 656 g
• Colour: Black
• Maximum resolution: 7680 x 4320 pixels
