Name: Asus PRO WS WRX90E-SAGE SE sTR5 EEB Workstation Motherboard, 8x DDR5 ECC, 7x PCIe 5.0 x16
Brand: Asus
SKU: 100042953
Price: 1536.28 EUR
Availability: InStock

Asus PRO WS WRX90E-SAGE SE sTR5 EEB Workstation Motherboard, 8x DDR5 ECC, 7x PCIe 5.0 x16

€1,536.28

Delivery: 7-12 business days
Asus PRO WS WRX90E-SAGE SE sTR5 EEB Workstation Motherboard, 8x DDR5 ECC, 7x PCIe 5.0 x16

8x DDR5 slots, up to 2 TB ECC/registered memory
7x PCIe 5.0 x16 slots for multi-GPU builds
4x PCIe 5.0 M.2 slots plus 2x SlimSAS
Dual Intel 10 Gb LAN and dedicated 1 Gb management port

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100042953 Category: AMD CPUs Tags: Asus,, motherboard,, Threadripper, workstation, Brand: Asus

Description
Additional information

✅

Product Overview

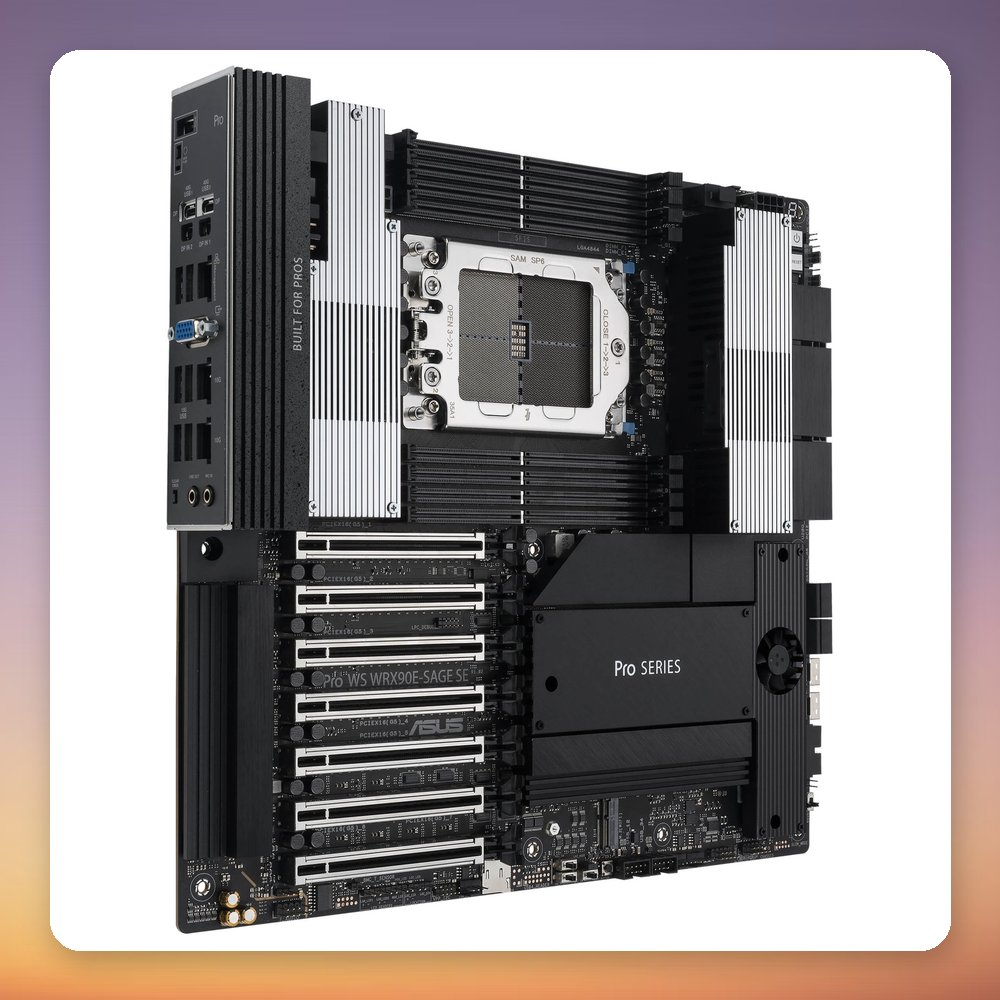

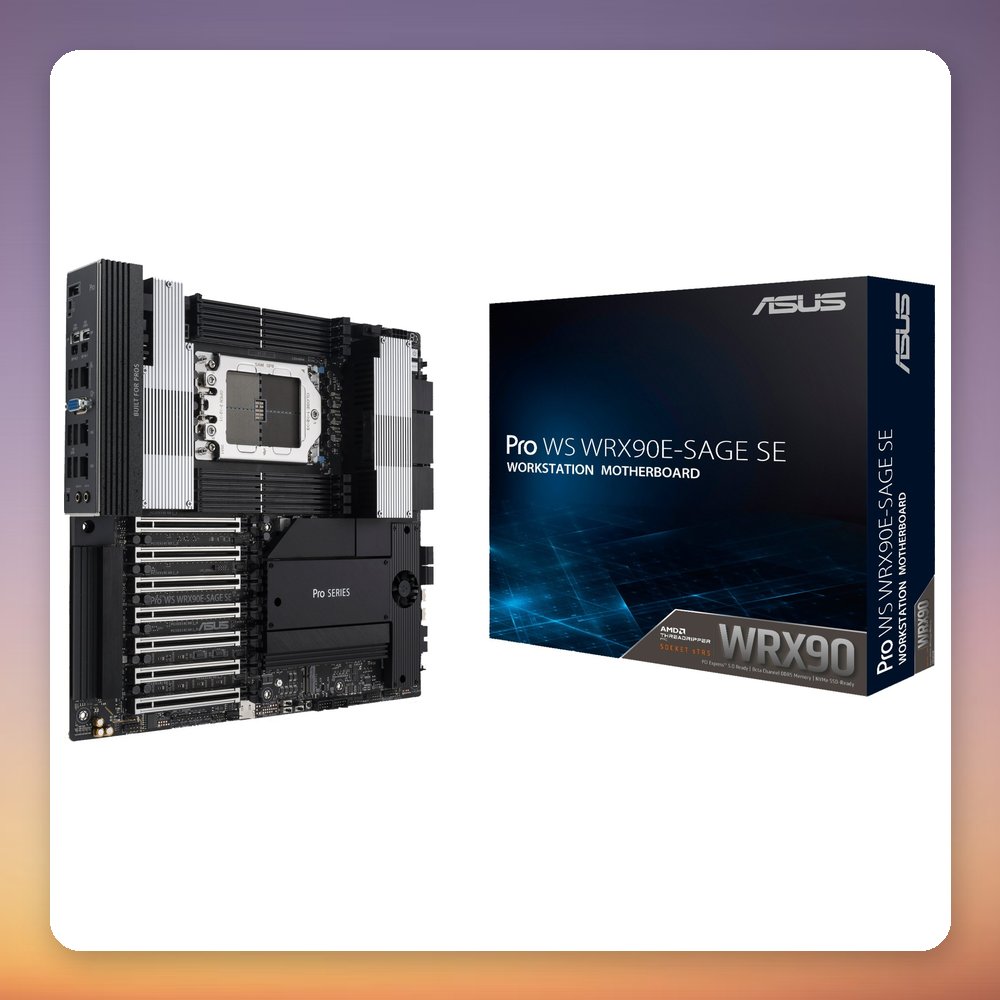

The Asus PRO WS WRX90E-SAGE SE is an EEB workstation motherboard for Socket sTR5, built on the AMD WRX90 chipset for Ryzen Threadripper PRO 7000 WX-Series processors. It offers eight DDR5 DIMM slots in octa-channel configuration with support for up to 2 TB of ECC and registered memory, seven PCIe 5.0 x16 slots for multi-GPU setups, four PCIe 5.0 M.2 slots and two SlimSAS ports.

This board suits professional workstation builds such as modelling, simulation and rendering, where multiple graphics cards, large memory capacity and fast storage matter. Networking includes dual Intel 10 Gb Ethernet plus a dedicated 1 Gb management LAN for the onboard AST2600 controller, and the rear panel has two USB4 ports and six USB 3.2 Gen 2 Type-A ports. A BIOS update may be needed to support the newest processors.

Specification

Manufacturer: Asus
Model: PRO WS WRX90E-SAGE SE
MPN: 90MB1FW0-M0EAY0
EAN: 47113874411450
CPU socket: AMD Socket sTR5
Chipset: AMD WRX90
Supported processors: AMD Ryzen Threadripper PRO 7000 WX-Series
Form factor: SSI-EEB
Memory slots: 8x DDR5 DIMM, octa-channel
Maximum memory: 2048 GB (2 TB)
Memory support: DDR5-6000 / 5600 / 4800, ECC and registered supported
PCIe slots: 7x PCIe 5.0 x16 (one runs at x8)
M.2 slots: 4x M.2 (M key), PCIe Gen 5.0
Other storage connectors: 4x SATA III, 2x SlimSAS
RAID levels: 0, 1, 5, 10
LAN: Intel dual 10 Gb Ethernet, 1x Realtek 1 Gb (dedicated management LAN for AST2600)
Rear USB: 6x USB 3.2 Gen 2 Type-A, 2x USB4, 1x USB 2.0
Video outputs: 2x Mini DisplayPort out, 1x VGA
Audio: Realtek ALC1220P
Dimensions (W x D x H): 305 x 330 x 50 mm
Weight: 3.33 kg
