Product Overview

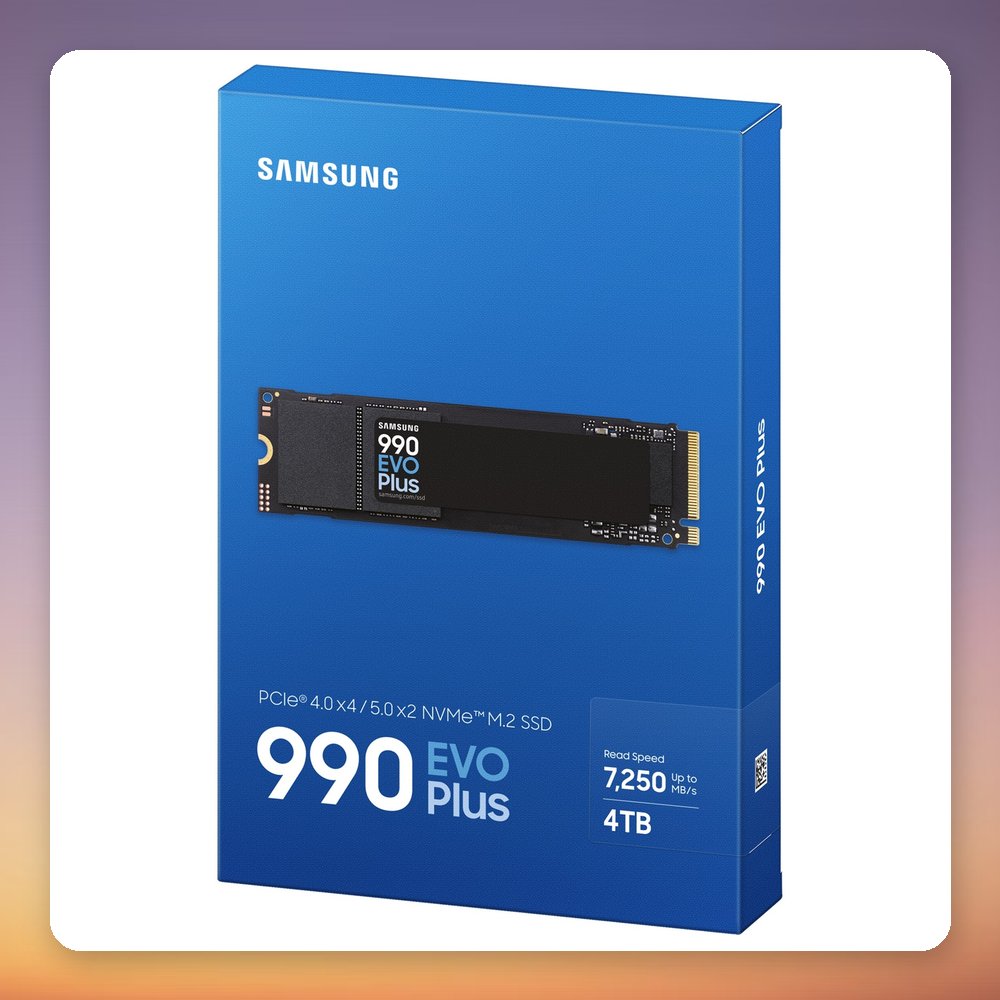

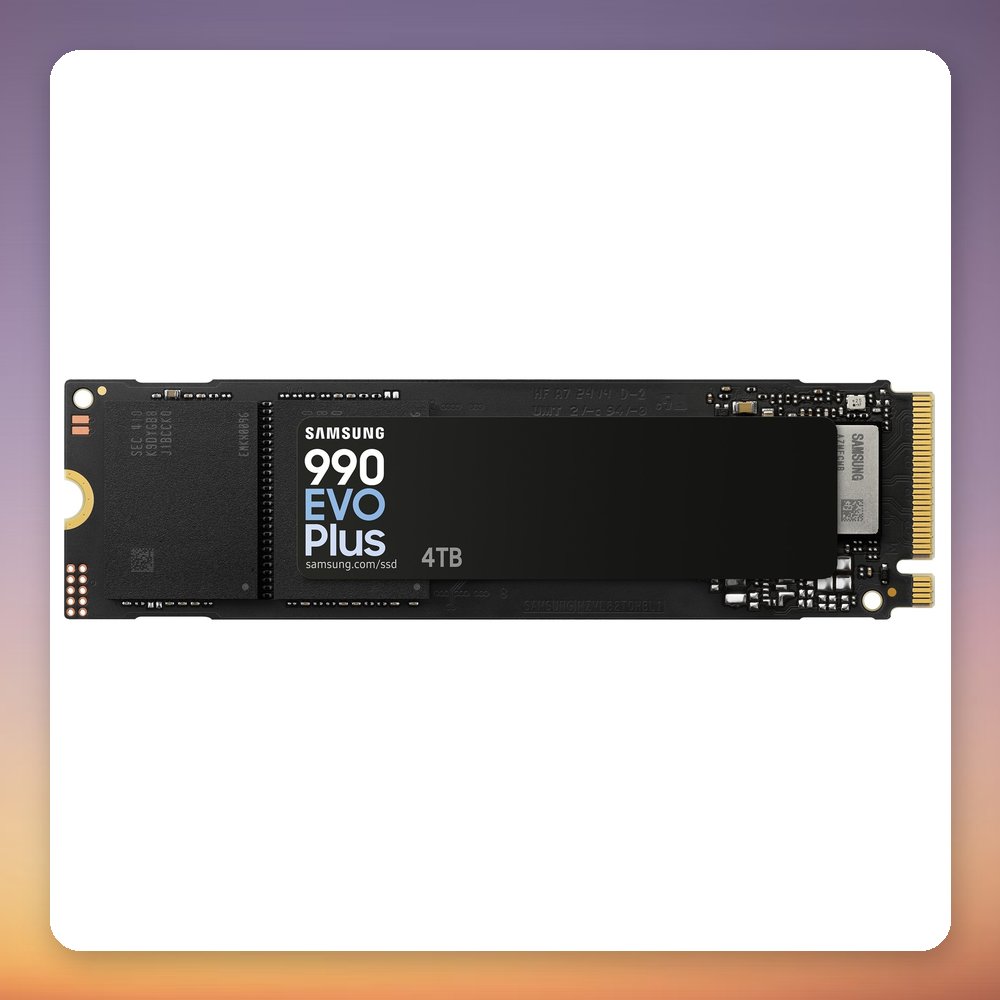

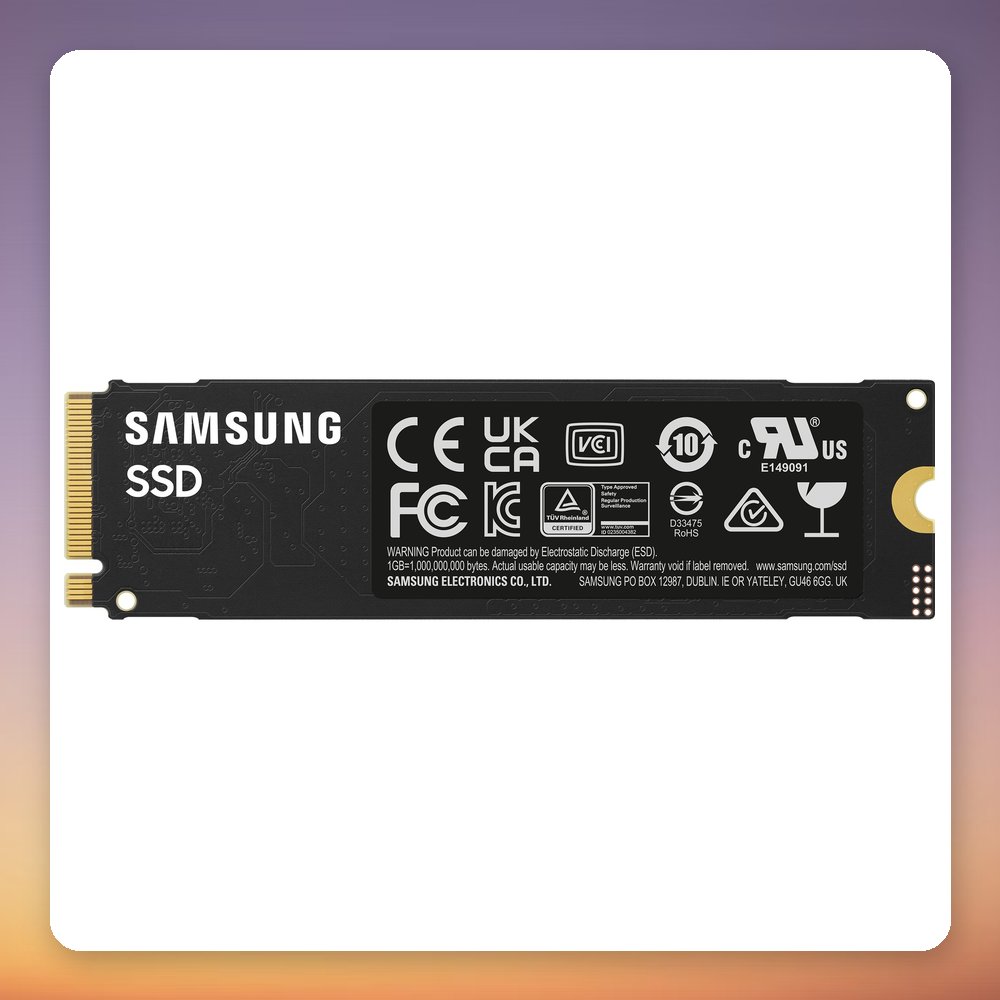

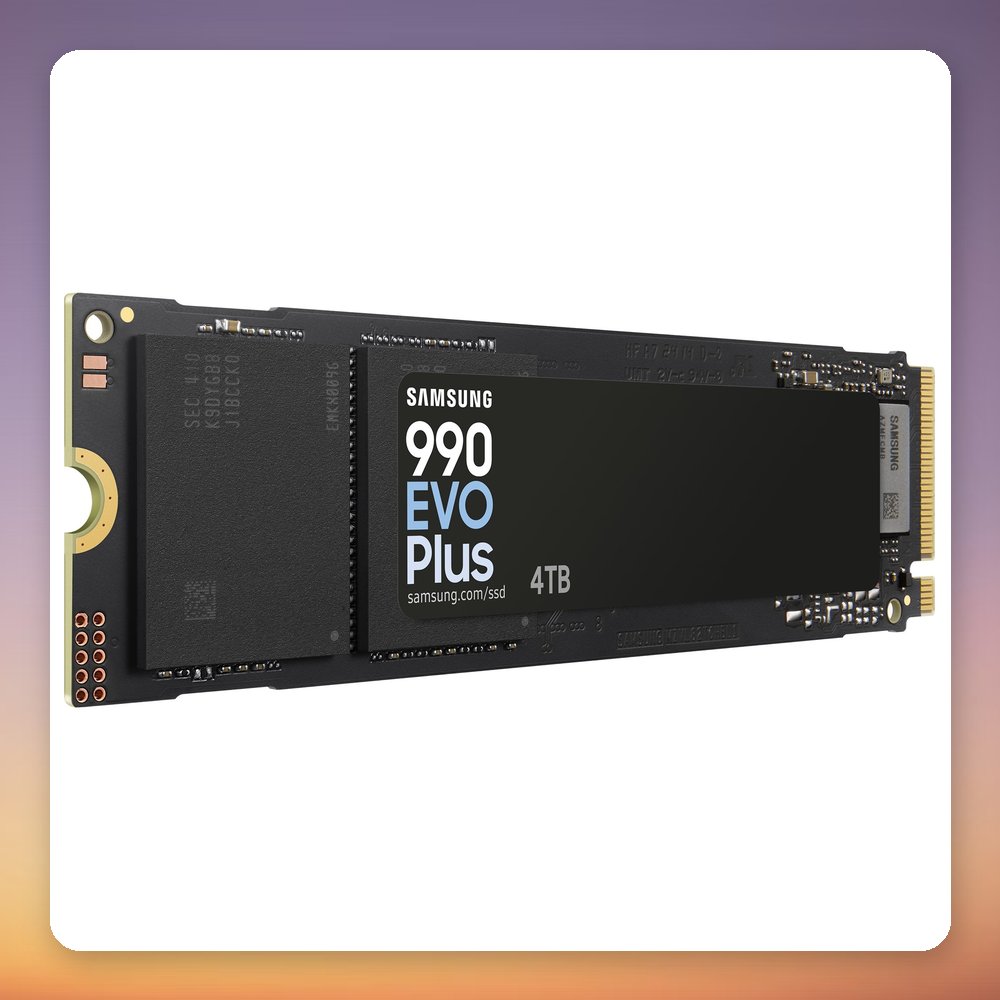

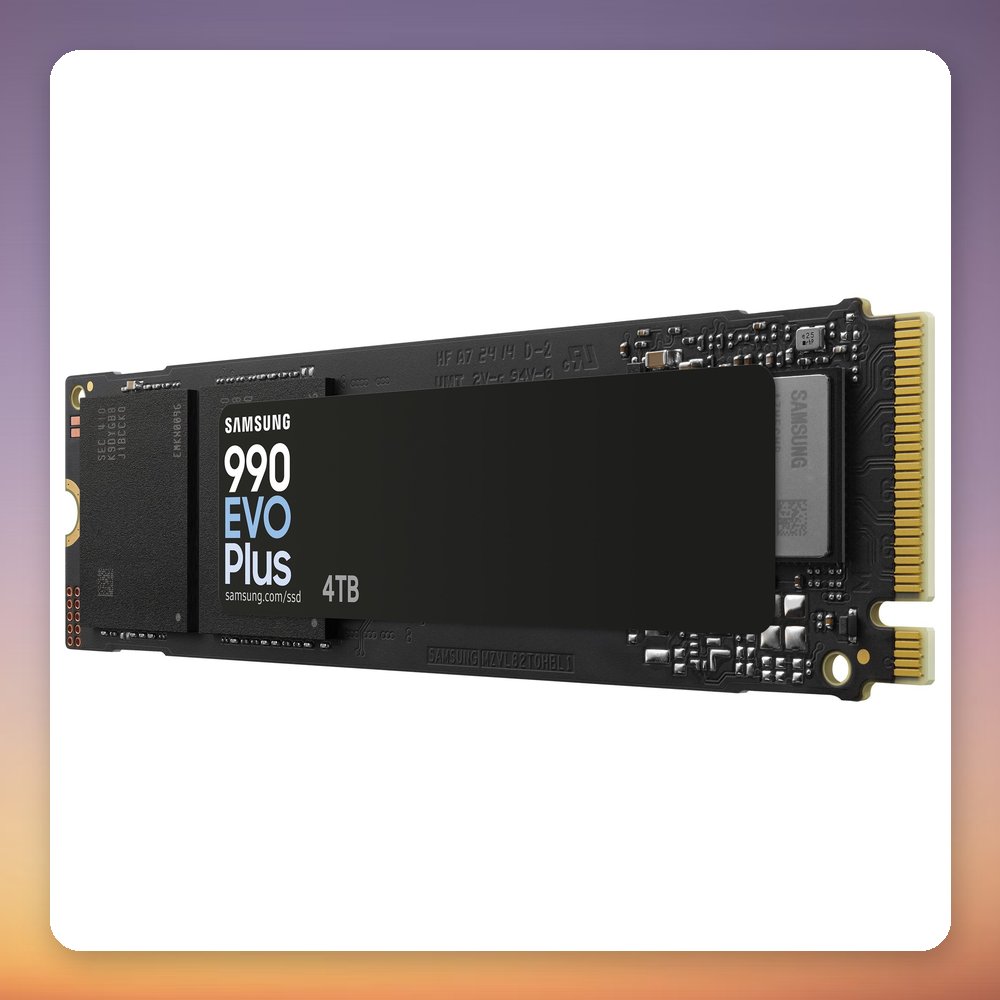

The Samsung 990 EVO Plus 4 TB NVMe SSD is an internal M.2 2280 drive that supports both PCIe 4.0 x4 and PCIe 5.0 x2 interfaces. It delivers sequential read speeds of up to 7,250 MB/s and write speeds of up to 6,300 MB/s, with random performance of up to 1,050,000 read and 1,400,000 write IOPS. It uses V-NAND TLC and is rated for 2,400 TBW.

This drive suits gaming PCs and general builds that need a large amount of fast storage in a single M.2 slot. Samsung says its nickel-coated controller improves power efficiency by 73% compared to the 990 EVO, with 5.5 W power consumption under read. It supports 256-bit AES hardware encryption, S.M.A.R.T., TRIM and DevSlp, and works with Samsung Magician software for drive health monitoring and firmware updates.

Specification

• Manufacturer: Samsung
• Model: 990 EVO Plus
• MPN: MZ-V9S4T0BW
• EAN: 0887276843698
• Capacity: 4 TB
• Form factor: M.2 2280 (22 x 80 mm)
• Interface: PCIe 4.0 x4 / PCIe 5.0 x2, NVMe 2.0
• Sequential read: Up to 7,250 MB/s
• Sequential write: Up to 6,300 MB/s
• Random read (4KB): Up to 1,050,000 IOPS
• Random write (4KB): Up to 1,400,000 IOPS
• NAND type: V-NAND TLC
• Endurance (TBW): 2,400 TB
• MTBF: 1,500,000 hours
• Power consumption: 5.5 W (read), 4.8 W (write), 0.06 W (idle)
• Encryption: 256-bit AES hardware encryption
• Operating temperature: 0 – 70 °C
• Weight: 9 g
