Product Overview

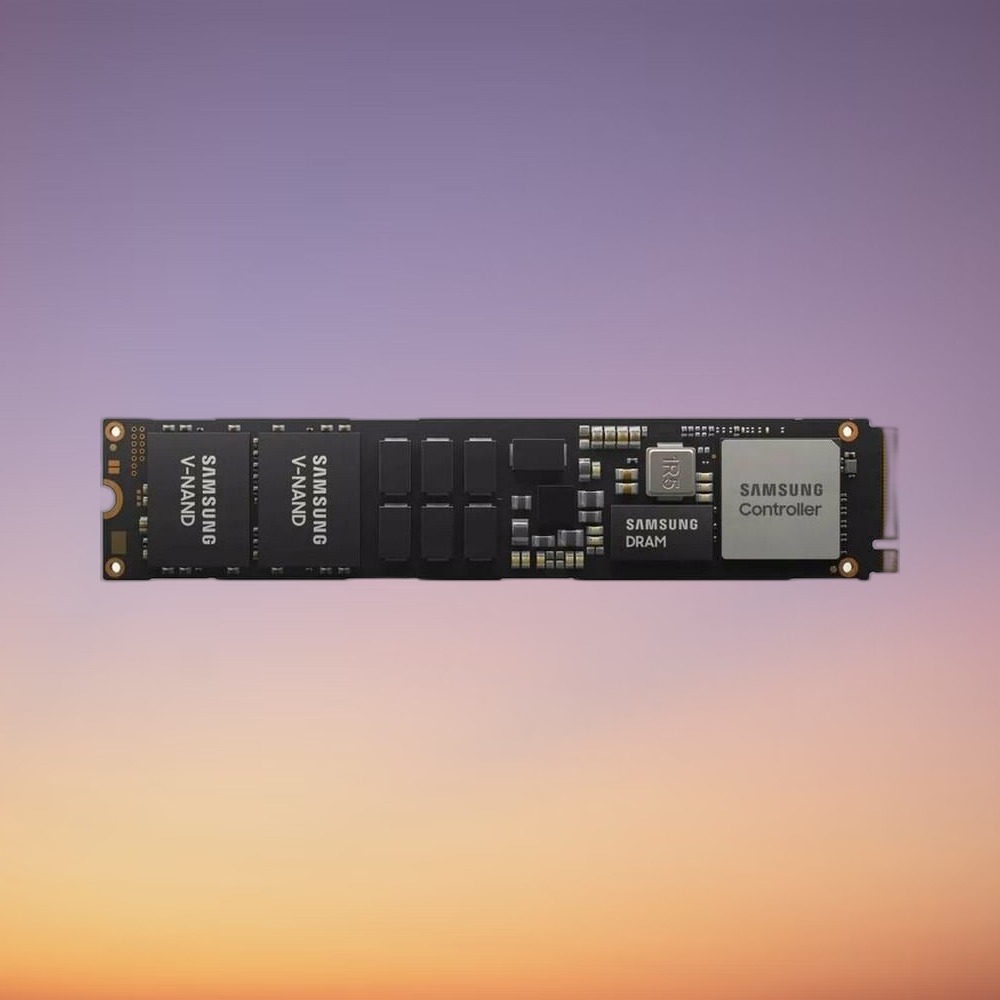

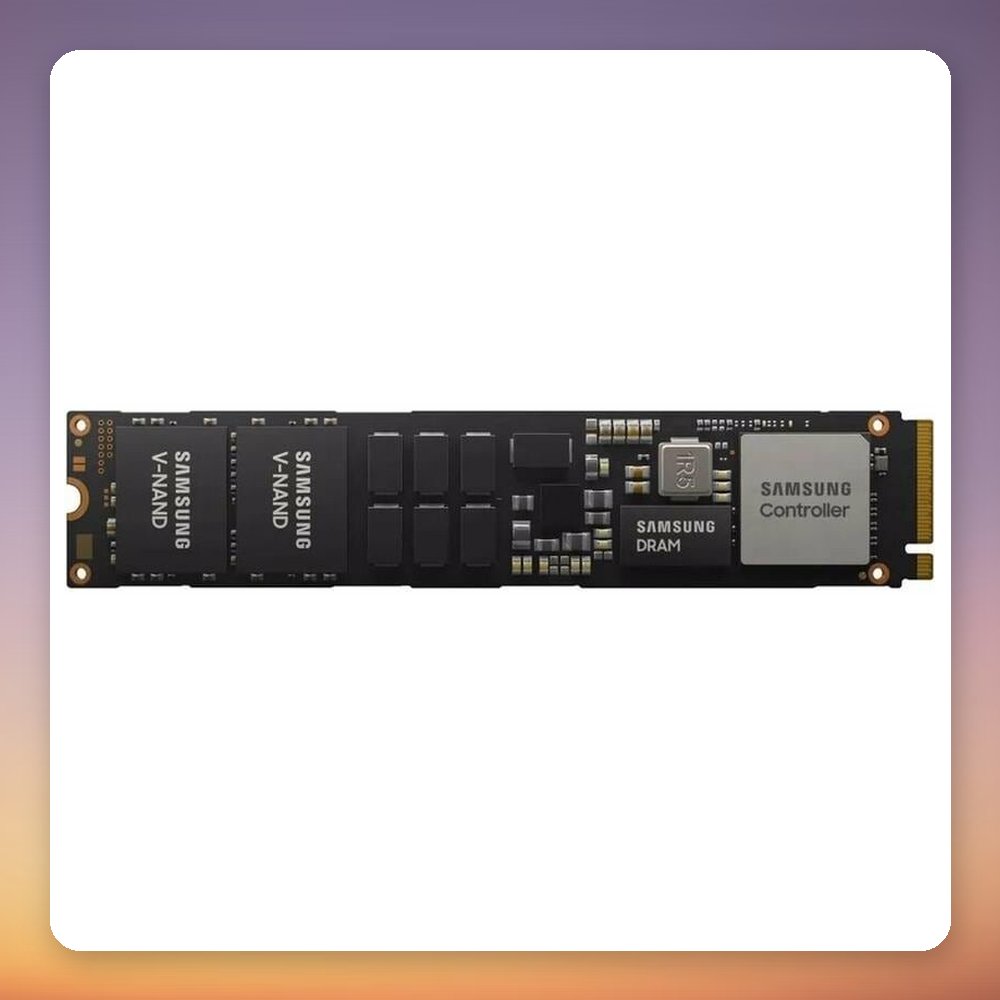

The Samsung PM9A3 960 GB M.2 22110 SSD is a datacentre-class NVMe drive using PCIe 4.0 x4 and Samsung V-NAND. Sequential speeds reach 5,000 MB/s read (5,500 MB/s per Icecat) and 1,400 MB/s write, while random performance is rated at 550,000 IOPS read and 60,000 IOPS write. It is built on the Samsung Elpis controller with a 1,370 TB TBW rating and a 2,000,000-hour MTBF.

Unlike typical consumer M.2 2280 drives, this SSD uses the longer M.2 22110 form factor (110 mm) and adds Power-Loss Protection, AES 256-bit encryption and TCG Opal support, so check that your motherboard or server has a 22110-length M.2 slot before buying. It suits servers, workstations and enterprise builds where endurance and data protection matter more than peak write speed. Power draw is 7.5 W in operation and 2.5 W at idle.

Specification

• Manufacturer: Samsung
• Model: PM9A3
• MPN: MZ1L2960HCJR-00A07
• EAN: 4260580377473
• Capacity: 960 GB
• Interface: PCIe 4.0 x4, NVMe 1.4
• Form factor: M.2 22110 (M-Key)
• Sequential read: Up to 5,000 MB/s
• Sequential write: Up to 1,400 MB/s
• Random read (4KB): 550,000 IOPS
• Random write (4KB): 60,000 IOPS
• NAND type: TLC V-NAND
• Controller: Samsung Elpis
• Endurance (TBW): 1,370 TB
• MTBF: 2,000,000 hours
• Power consumption: 7.5 W operating, 2.5 W idle
• Security: AES 256-bit encryption, TCG Opal
• Data protection: Power-Loss Protection
• Dimensions (W x H x D): 20 x 3.8 x 110 mm
• Weight: 20 g
