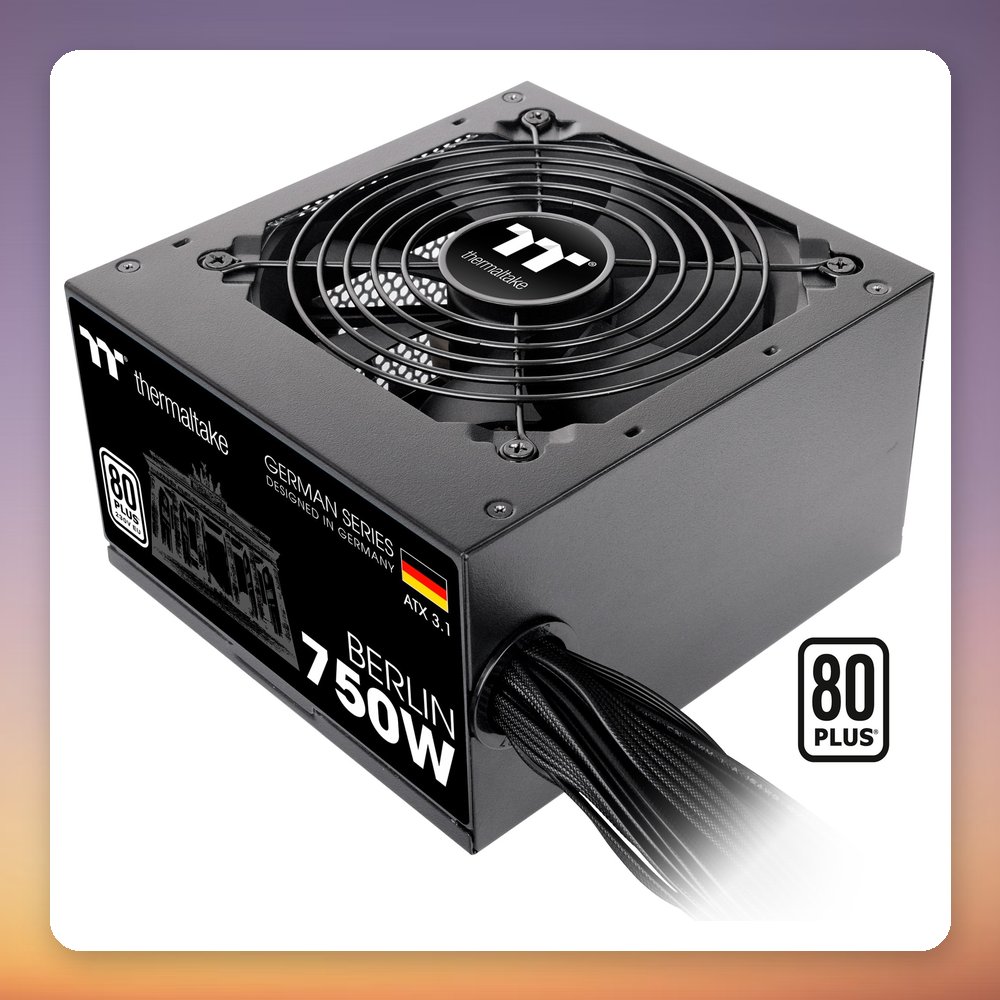

Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2x6
Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2x6 – image 2
Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2x6 – image 3
Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2x6 – image 4
Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2x6 – image 5
Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2x6 – image 6

Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2×6

€78.74

Delivery: 7-12 business days
Thermaltake BERLIN 750W ATX 3.1 80 PLUS 230V EU PSU, Black, 12V-2×6

  • Native 12V-2×6 (12+4 pin) connector for modern GPUs
  • ATX 3.1 compliant, supports power excursions up to 200%
  • 80 PLUS 230V EU certified, 750 W with 62.5 A on +12V
  • Only 26 dB(A) at full load, 17 dB(A) at 20% load

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100099451 Category: Tags: , , , , Brand:

✅

Product Overview

The Thermaltake BERLIN 750W ATX 3.1 is a 750 W ATX power supply with a native PCIe 12V-2×6 (12+4 pin) connector, so it can power current high-end graphics cards without an adapter. It meets the ATX 3.1 specification, supports power excursions of up to 200% and is certified 80 PLUS 230V EU, with a single 62.5 A +12V rail.

Two 6+2-pin PCIe connectors sit alongside the 12V-2×6 cable, giving it enough GPU options for a mid-range to high-end gaming build. A temperature-controlled 120 mm fan keeps noise at 17 dB(A) at 20% load and 26 dB(A) at full load. Active PFC and a full set of protections (OCP, OVP, UVP, OLP/OPP, SCP, OTP) are included. It is a 230 V unit with a 200-240 V input range, and measures 150 x 86 x 140 mm.

Specification

  • Manufacturer: Thermaltake
  • Model: BERLIN 750W ATX3.1
  • MPN: W0750RE
  • EAN: 4711475648302
  • Power output: 750 W
  • Standard: ATX12V 3.1, EPS12V 2.9x
  • Efficiency certification: 80 PLUS 230V EU
  • Form factor: ATX
  • +12V output: 750 W (62.5 A, single rail)
  • GPU connectors: 1x 12+4 pin (12V-2×6), 2x 6+2 pin PCIe
  • Other connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 4x 15-pin SATA, 4x 4-pin Molex
  • Cooling: 1x 120 mm fan, temperature-controlled
  • Noise level: 17 dB(A) at 20% load, 26 dB(A) at 100% load
  • Input voltage: 200-240 V (6 A at 230 V / 50 Hz)
  • Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
  • Power factor correction: Active PFC
  • Colour: Black
  • Dimensions (W x H x D): 150 x 86 x 140 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 2.5 kg
