Product Overview

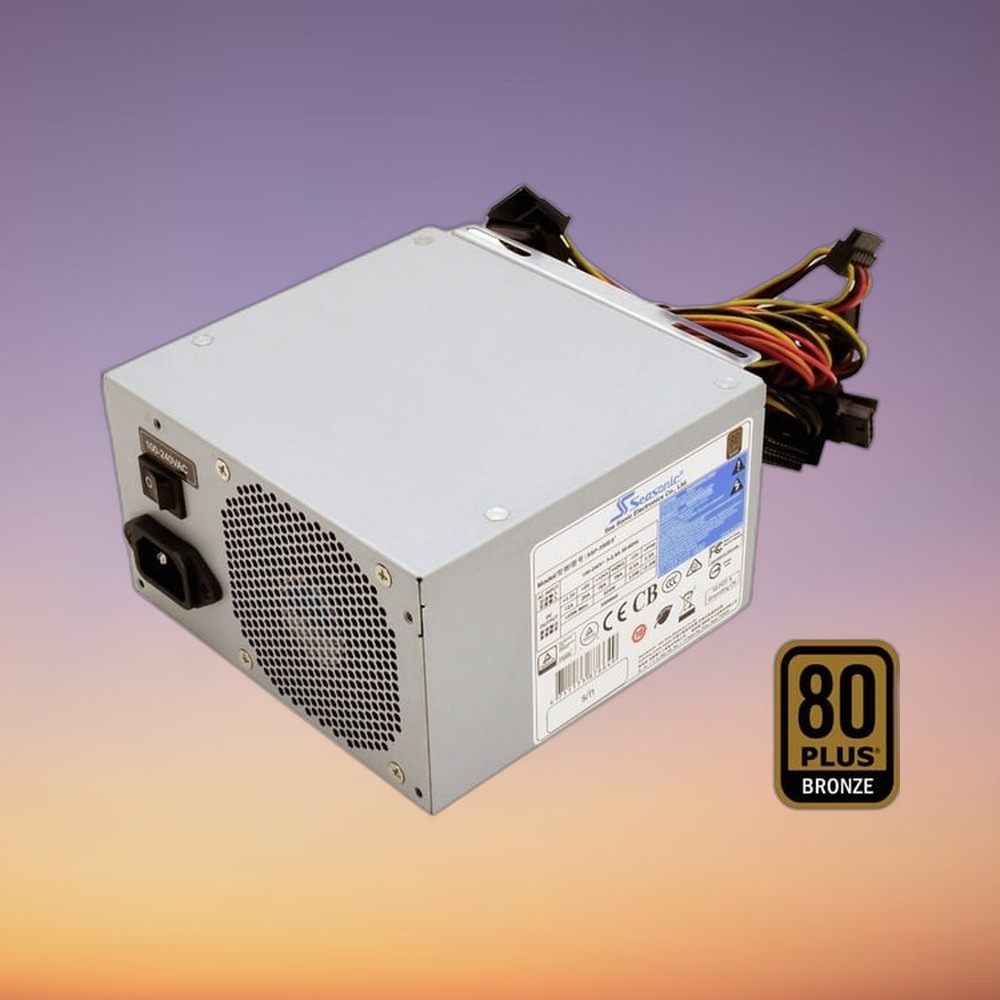

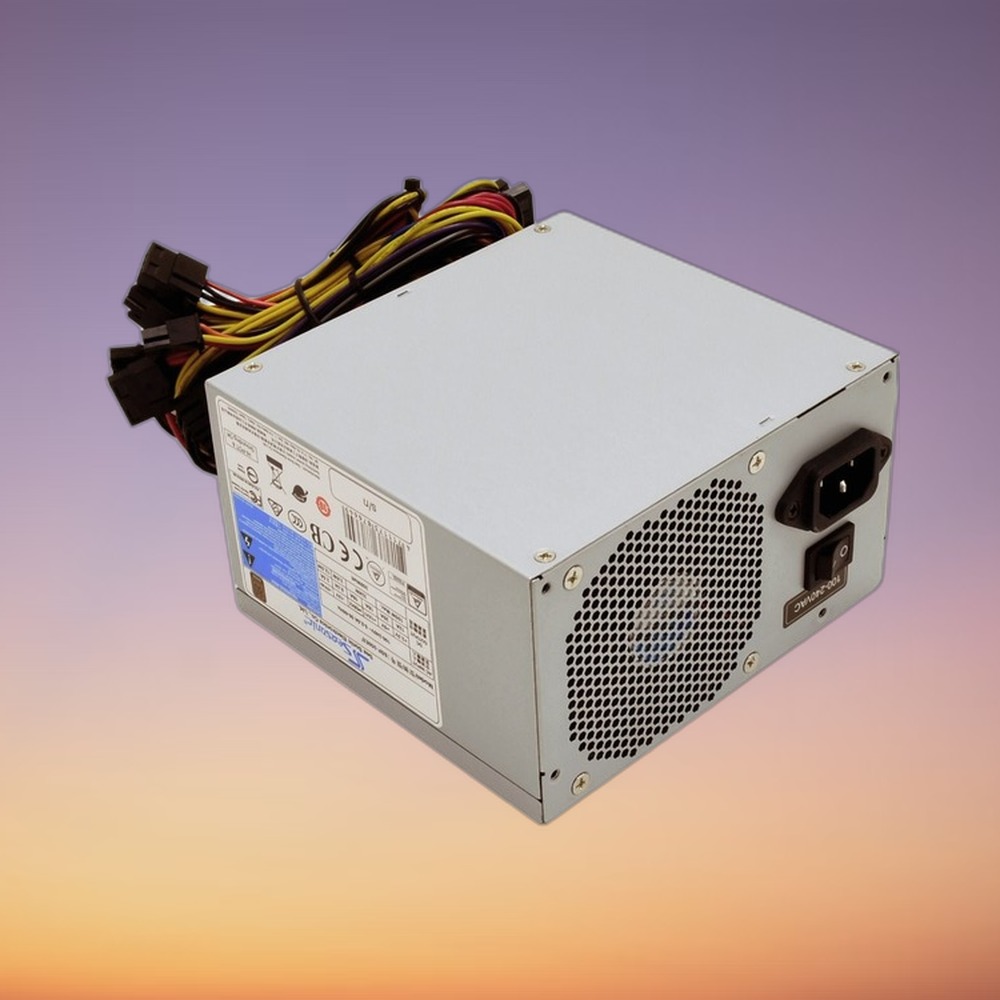

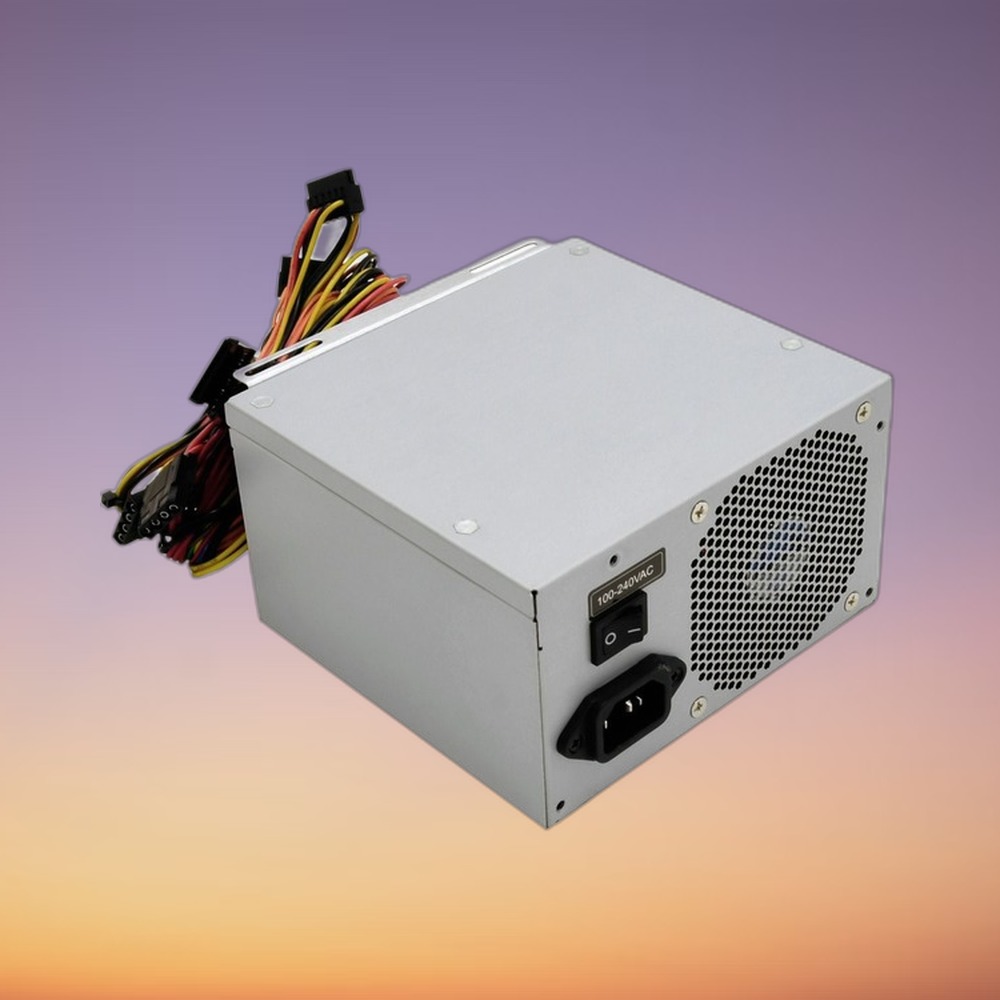

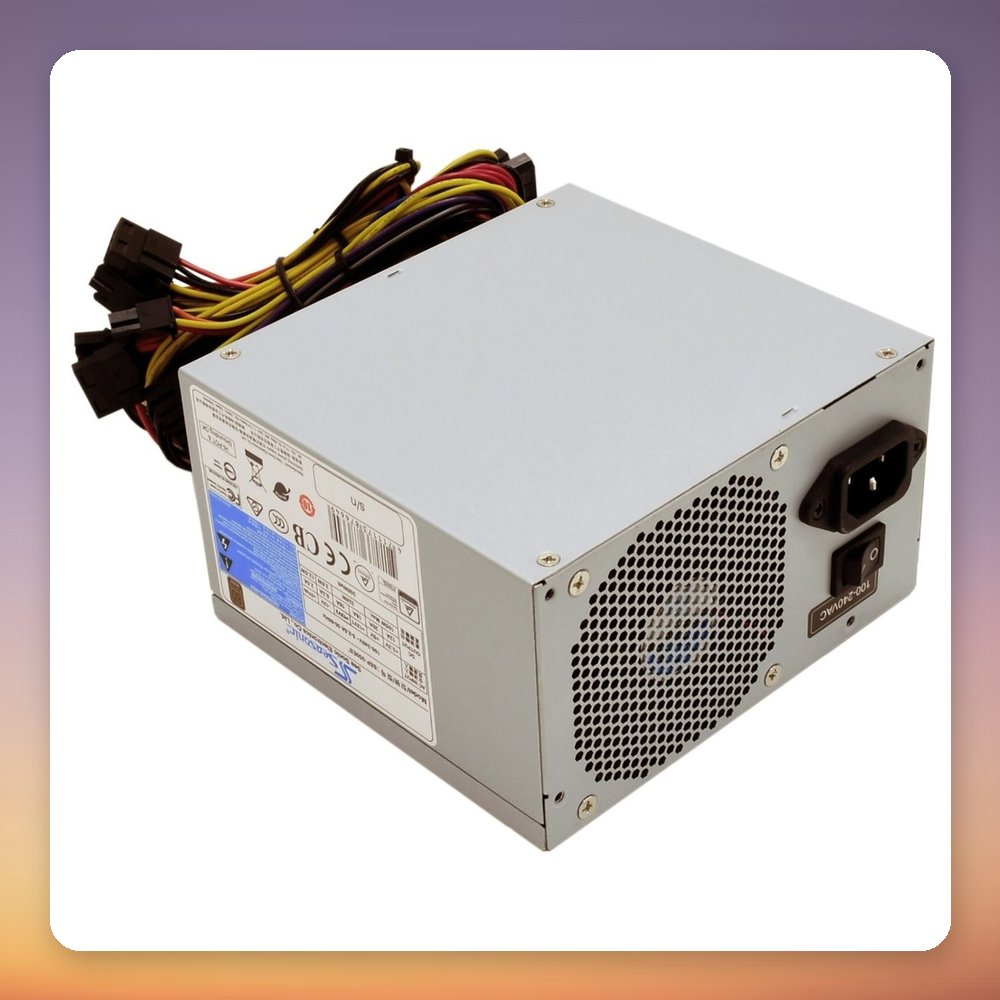

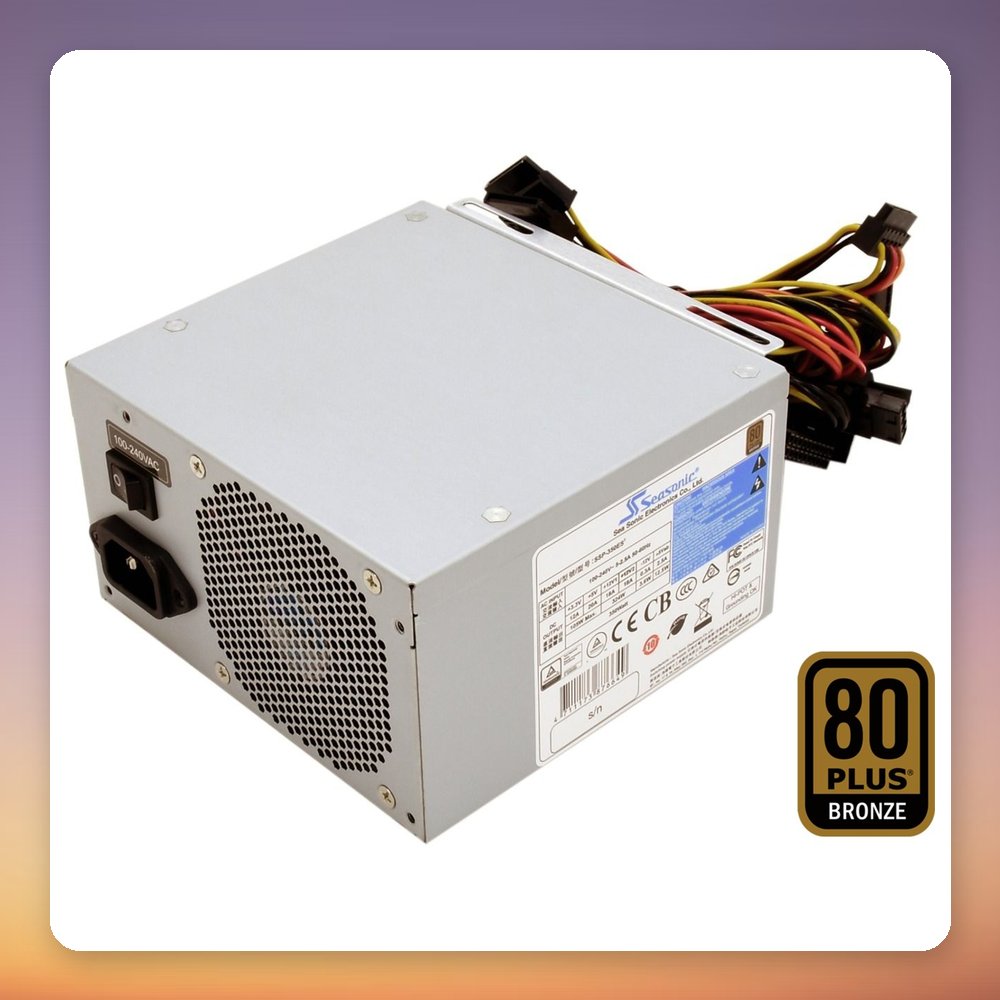

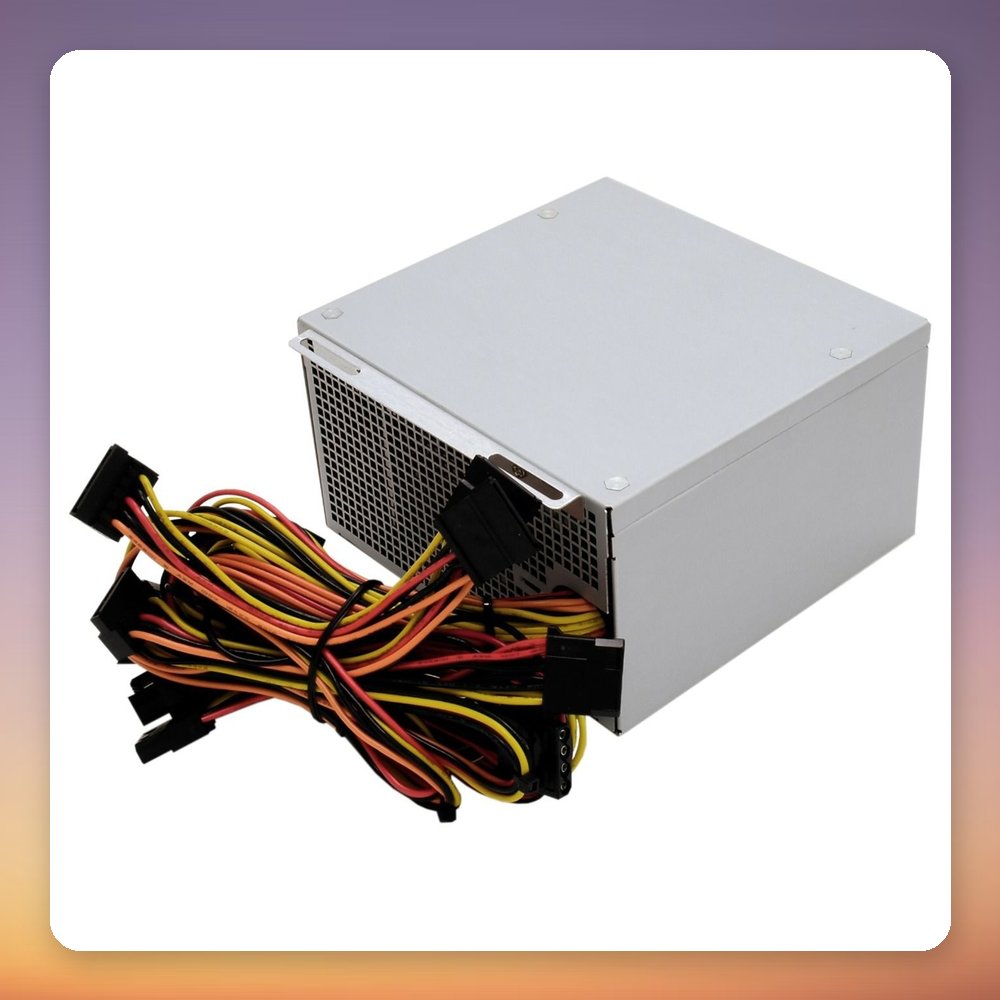

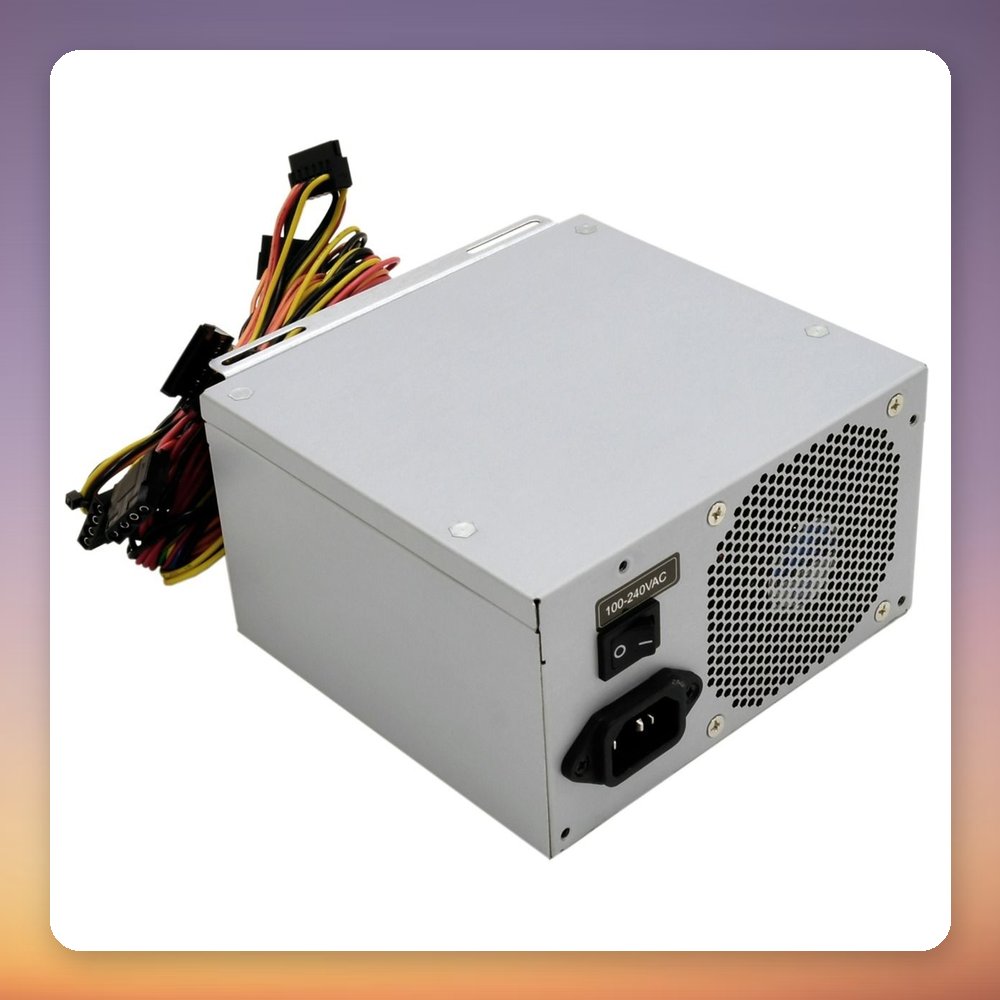

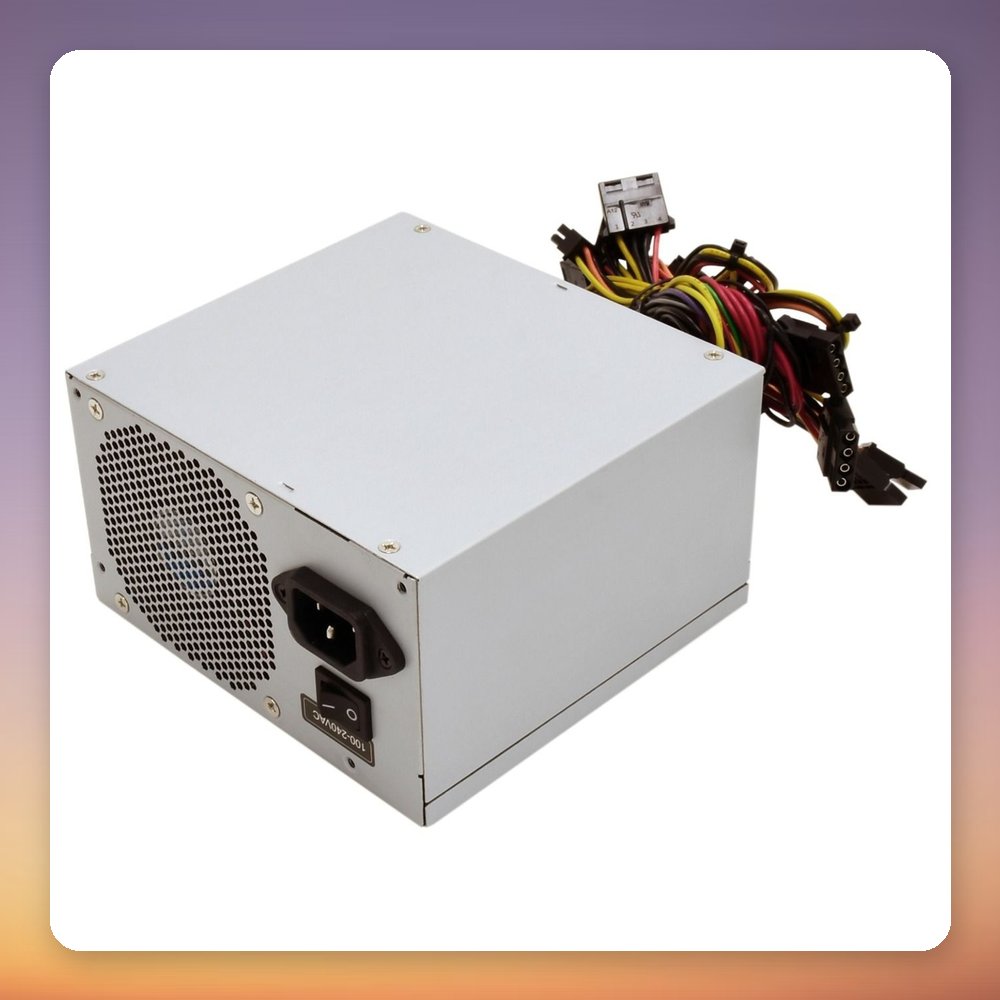

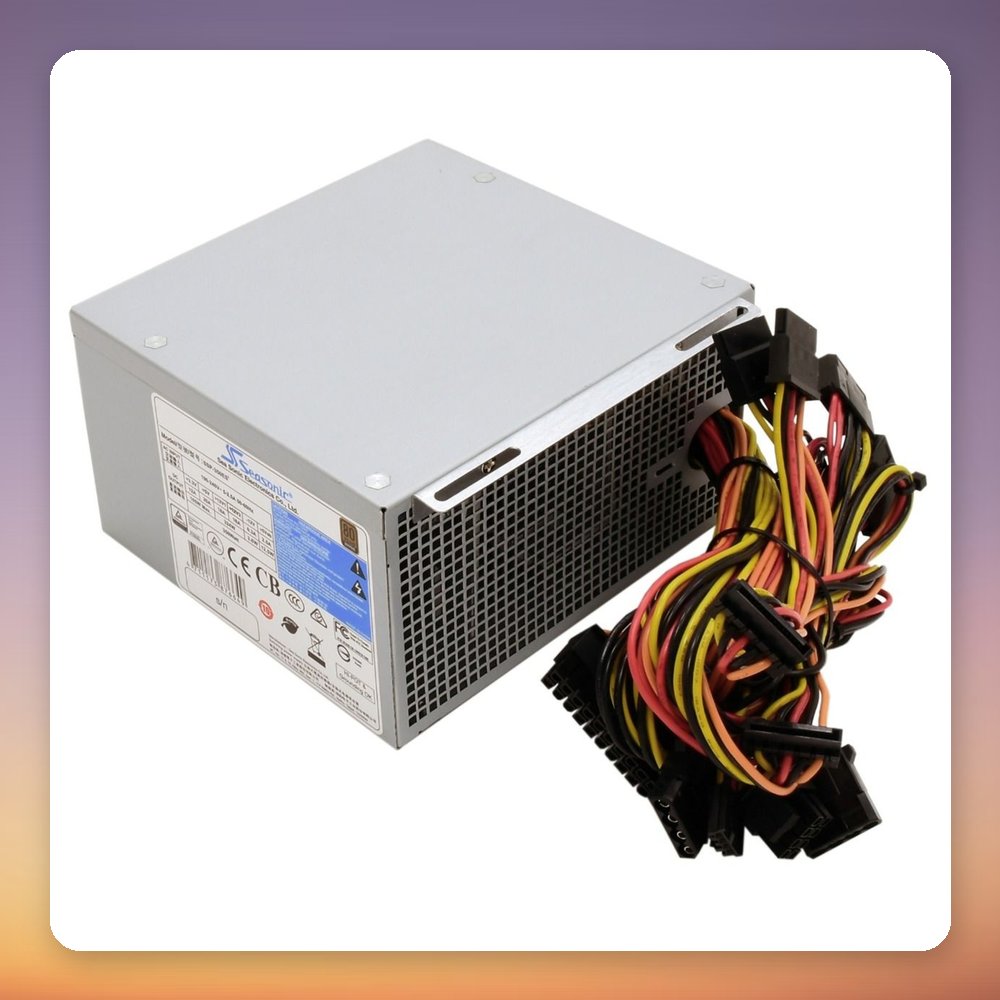

The Seasonic SSP-350ES2 is a 350W ATX power supply built to the ATX12V 2.3 standard and certified 80 PLUS Bronze. It supplies up to 324W on the +12V rails (two 18A outputs), with active PFC and a full-range 100-240V input. This is the bulk (OEM-style) version, so the product is supplied without retail packaging.

With its 150 x 86 x 140 mm ATX body, the Seasonic SSP-350ES2 fits any standard ATX case and suits low-power office, home or entry-level builds and PSU replacements. Seasonic describes it as PCIe- and SATA-ready, with very quiet fan control from a temperature-controlled 80 mm fan. It includes over-voltage, over-power and short-circuit protection, plus a power switch on the unit.

Specification

• Manufacturer: Seasonic
• Model: SSP-350ES2
• MPN: SSP-350ES2
• EAN: 4711173876649
• Total power: 350 W
• Efficiency certification: 80 PLUS Bronze
• Form factor: ATX
• Standard: ATX12V 2.3
• +12V total power: 324 W
• +12V1 / +12V2: 18 A / 18 A
• +3.3V / +5V combined: 130 W
• +3.3V / +5V current: 12 A / 20 A
• +5Vsb / -12V current: 2.5 A / 0.3 A
• Input voltage: 100-240 V (full range)
• Power factor correction: Active PFC
• Cooling: 1x 80 mm fan, temperature-controlled
• Protections: OVP, OLP/OPP, SCP
• Colour: Grey
• Dimensions (W x H x D): 150 x 86 x 140 mm
