Product Overview

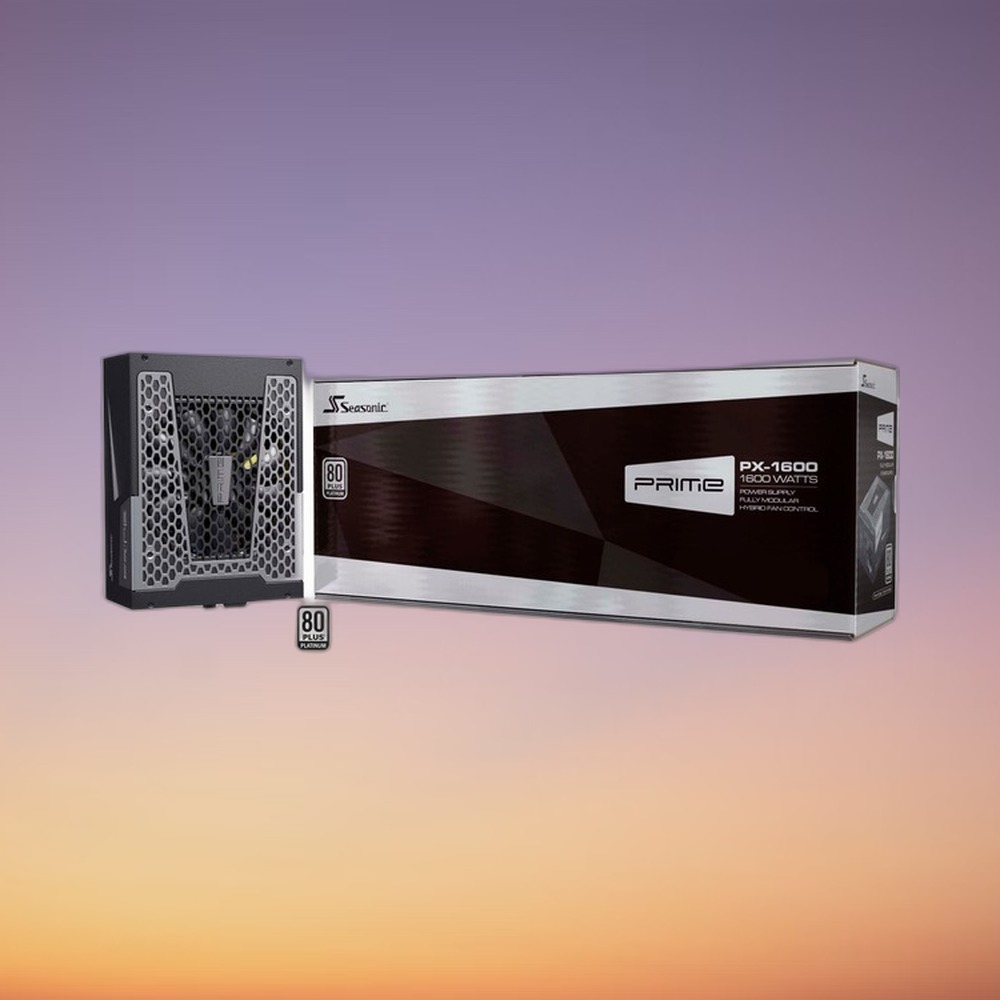

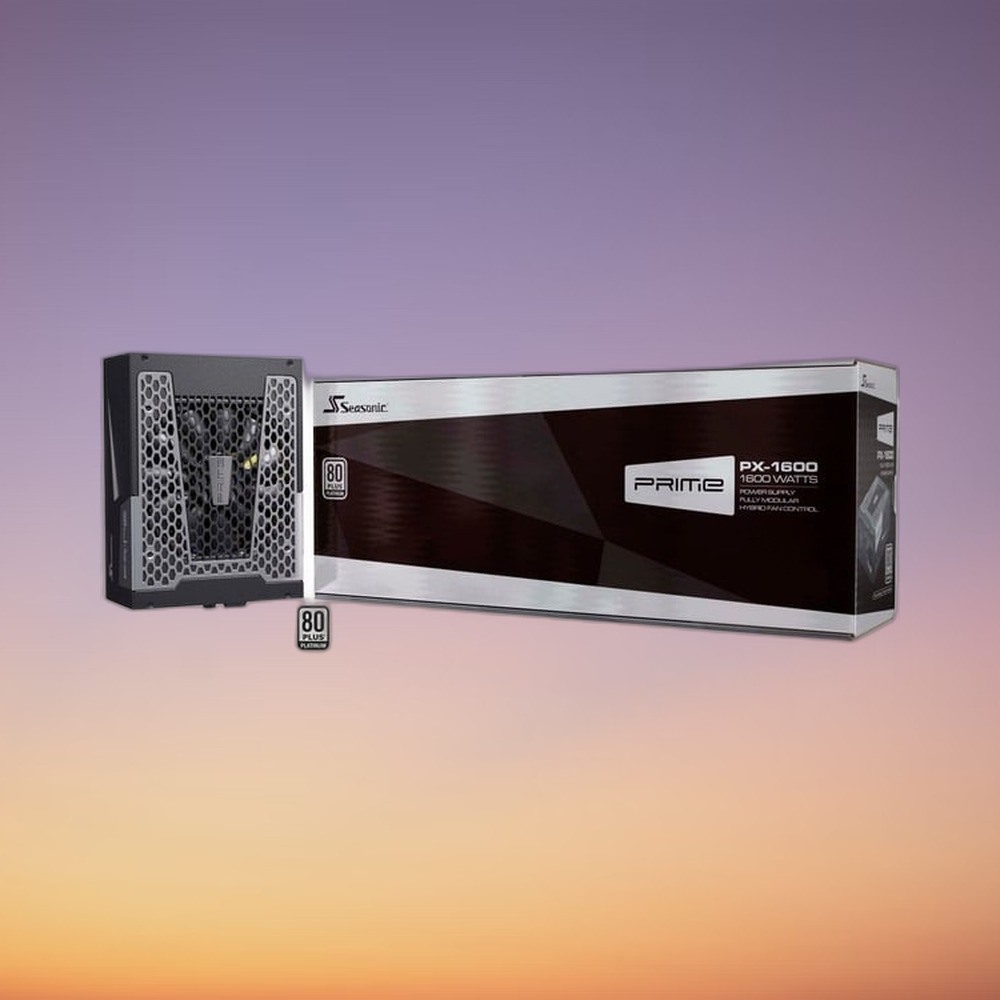

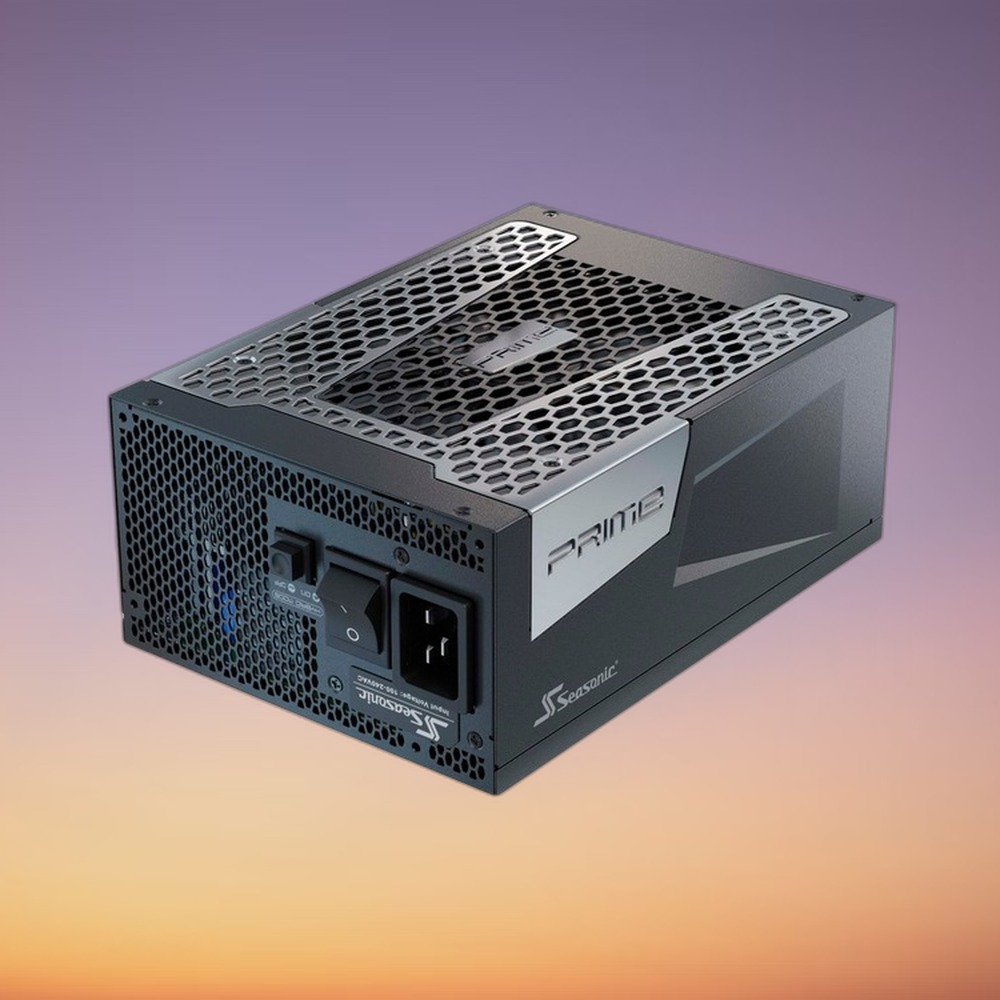

The Seasonic PRIME PX-1600 is a 1600 W ATX power supply with 80 PLUS Platinum certification and up to 92% efficiency. It follows the ATX12V 3.0 standard and offers two 12VHPWR (12+4 pin) connectors alongside eight 6+2-pin PCIe connectors, so it can power several high-end graphics cards. All 1600 W is delivered on the +12V rail (133.3 A), with 125 W combined on the +3.3 V and +5 V rails.

With a modular cable design, a single 135 mm temperature-controlled fan and a full set of protections (OCP, OVP, UVP, OPP, SCP, OTP), the PRIME PX-1600 suits high-wattage gaming and multi-GPU builds that need plenty of headroom. It is part of Seasonic’s third-generation PRIME range, and the Hybrid mode fan control lets users keep fan noise as low as possible. At 150 x 86 x 210 mm, it is a longer unit than a typical ATX PSU, so check case clearance before buying.

Specification

• Manufacturer: Seasonic
• Model: PRIME PX-1600
• MPN: PRIME-PX-1600-ATX30
• EAN: 4711173878032
• Power output: 1600 W
• 80 PLUS certification: Platinum (up to 92% efficiency)
• Standard: ATX12V 3.0
• Form factor: ATX

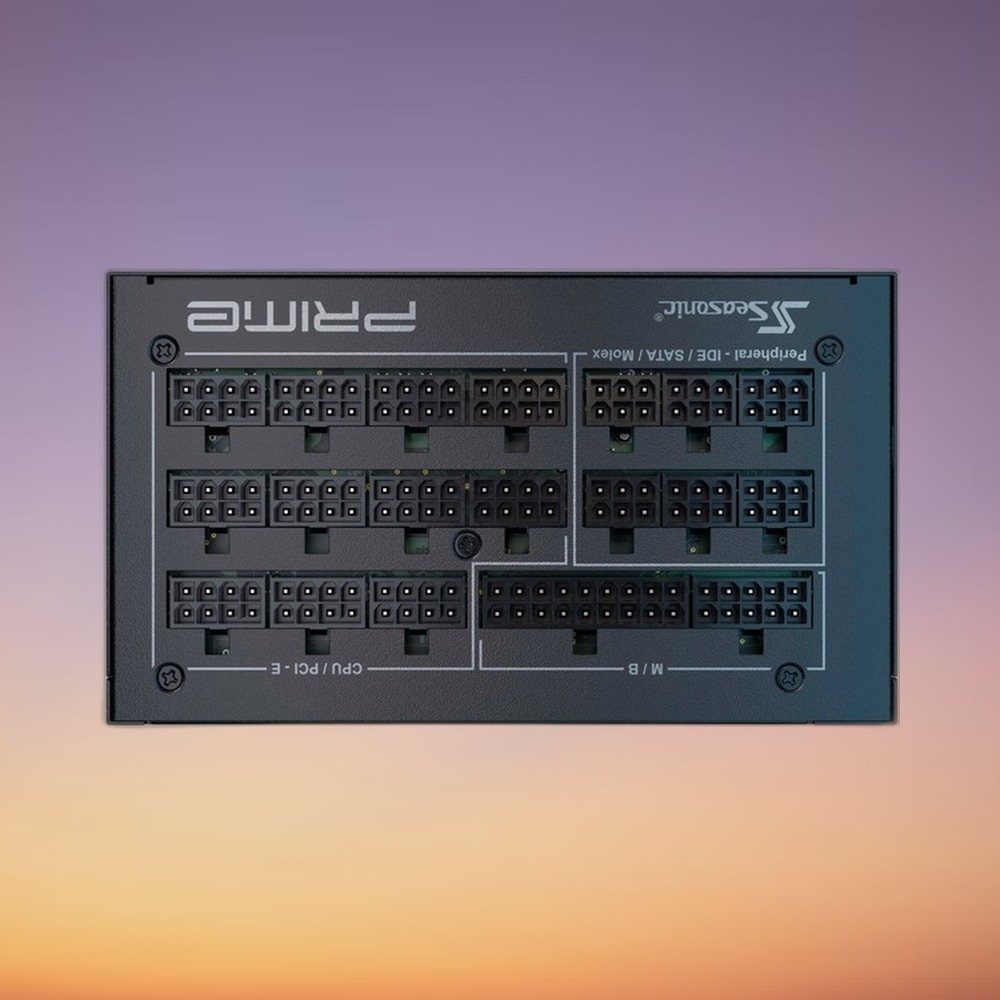

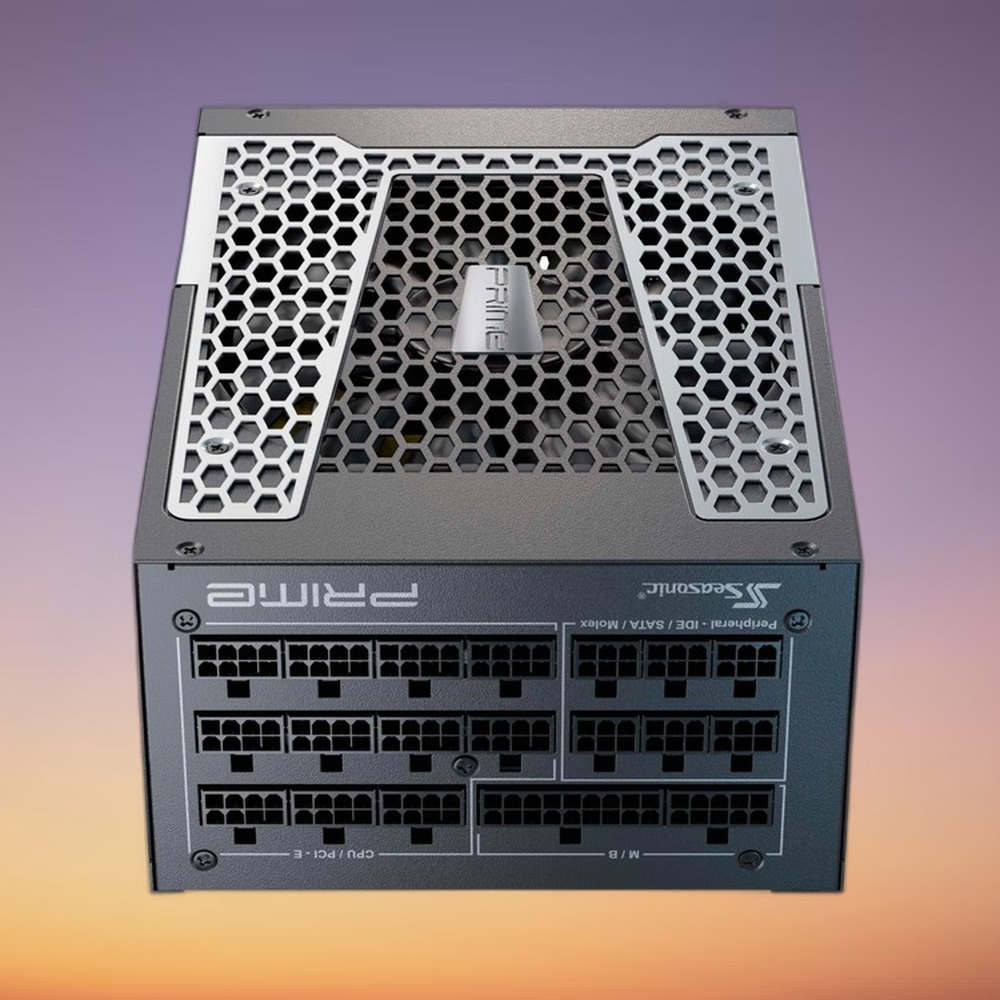

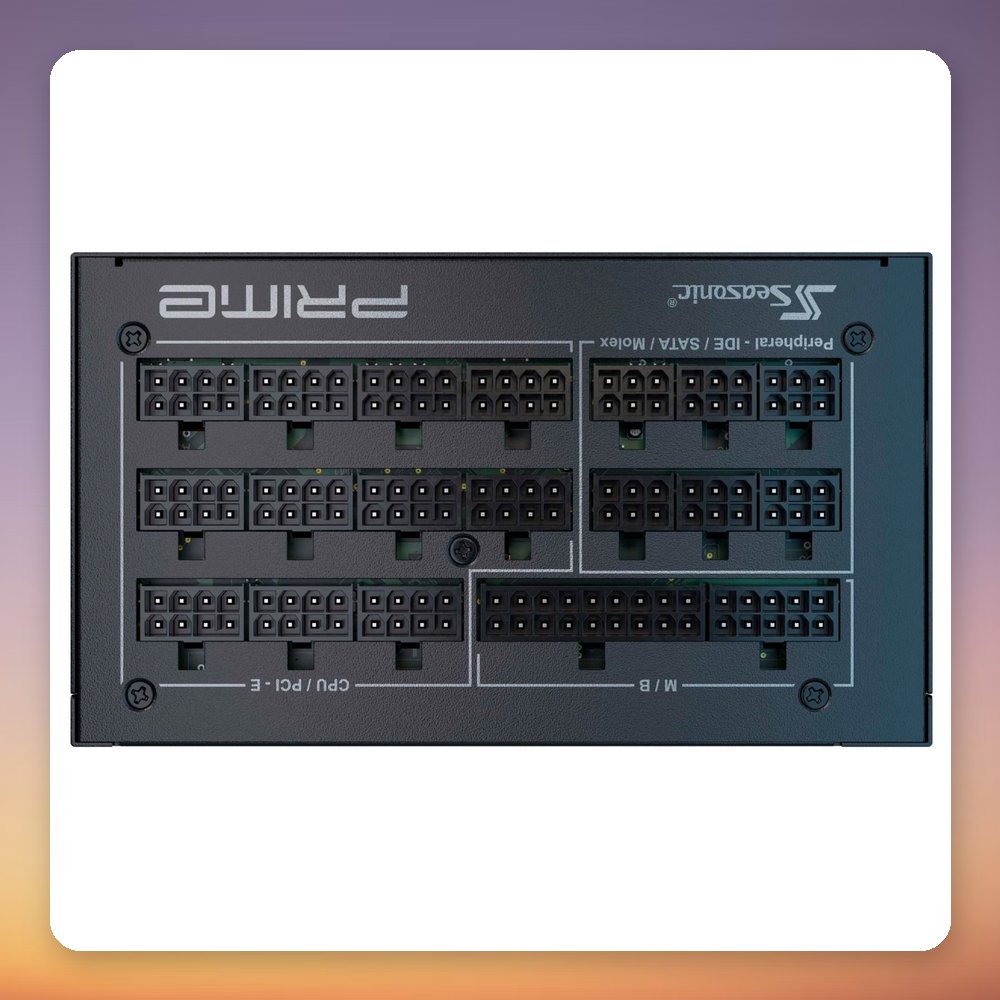

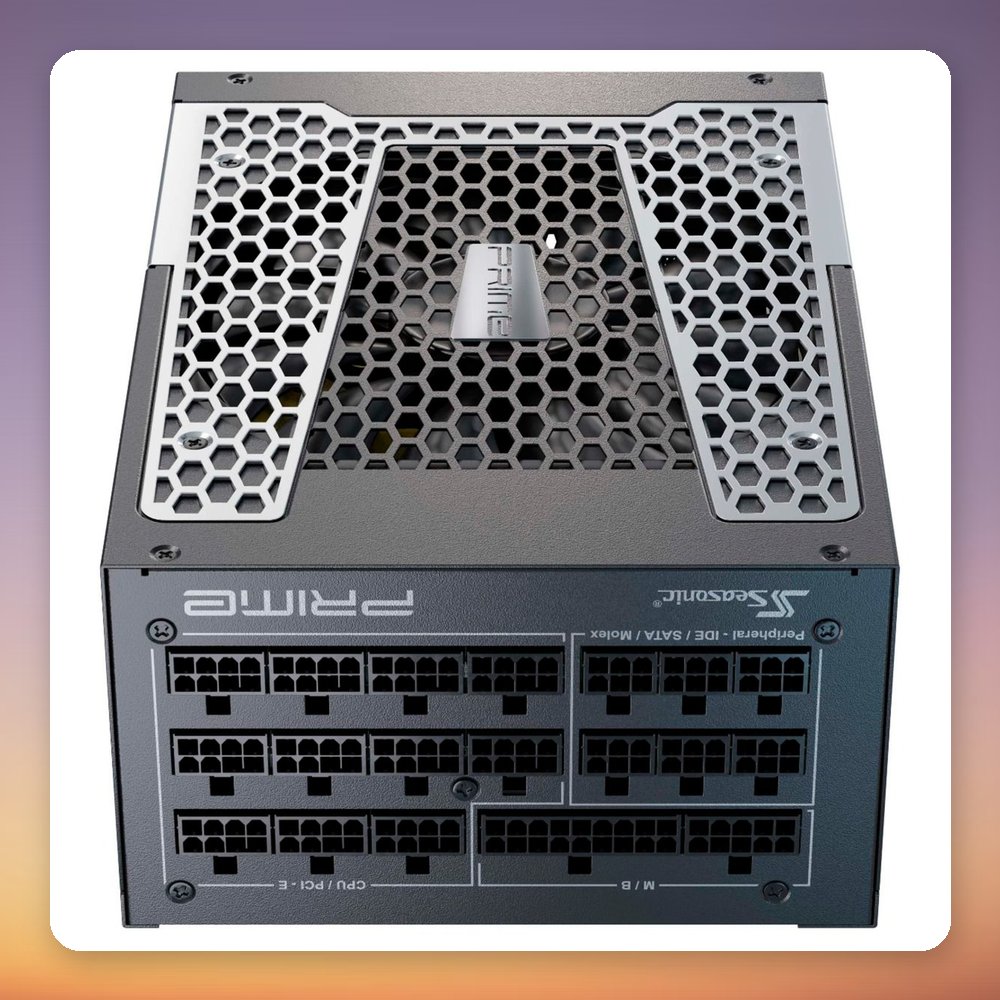

• Cable management: Modular
• +12V output: 1600 W (133.3 A)
• +3.3V/+5V combined: 125 W (25 A each)
• PCIe connectors: 8x 6+2-pin
• 12VHPWR connectors: 2x 12+4-pin
• Other connectors: 1x 24-pin ATX, 3x 4+4-pin CPU, 10x SATA, 3x 4-pin Molex

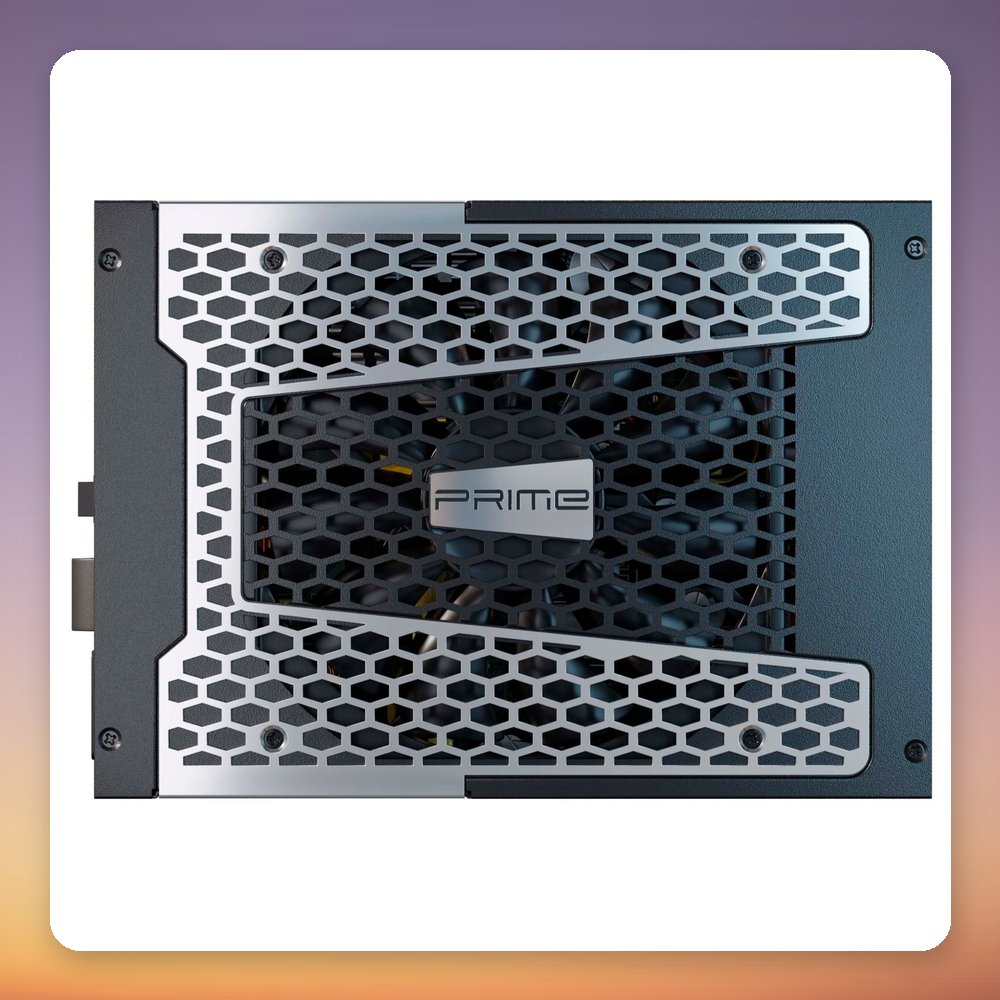

• Cooling: 1x 135 mm fan, temperature controlled
• Protections: OCP, OVP, UVP, OPP, SCP, OTP

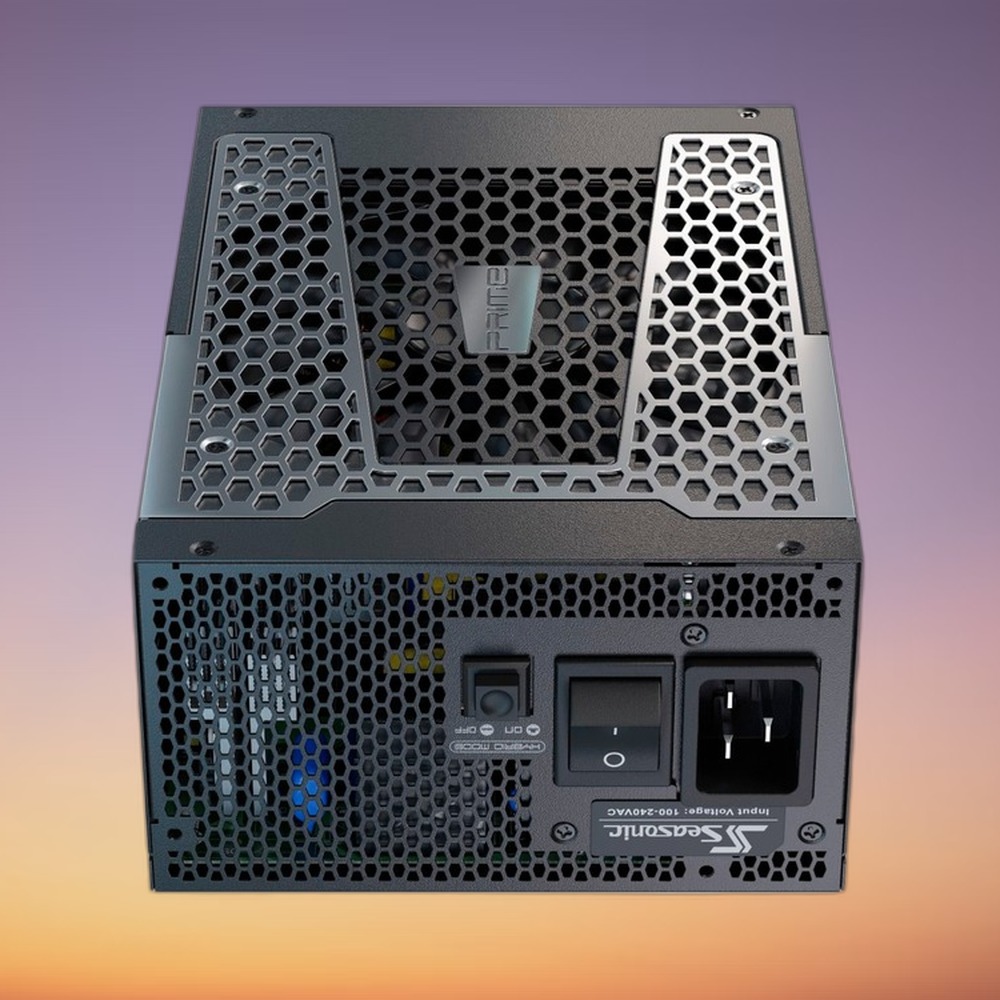

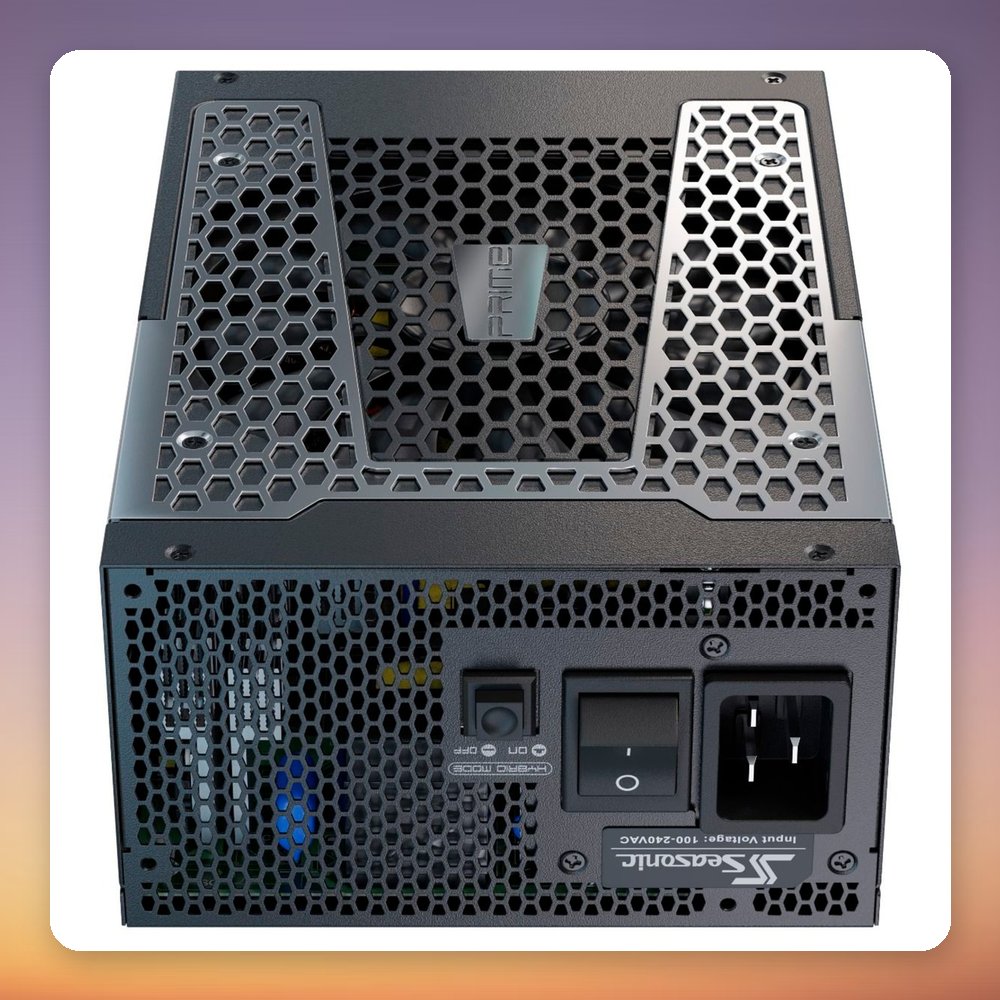

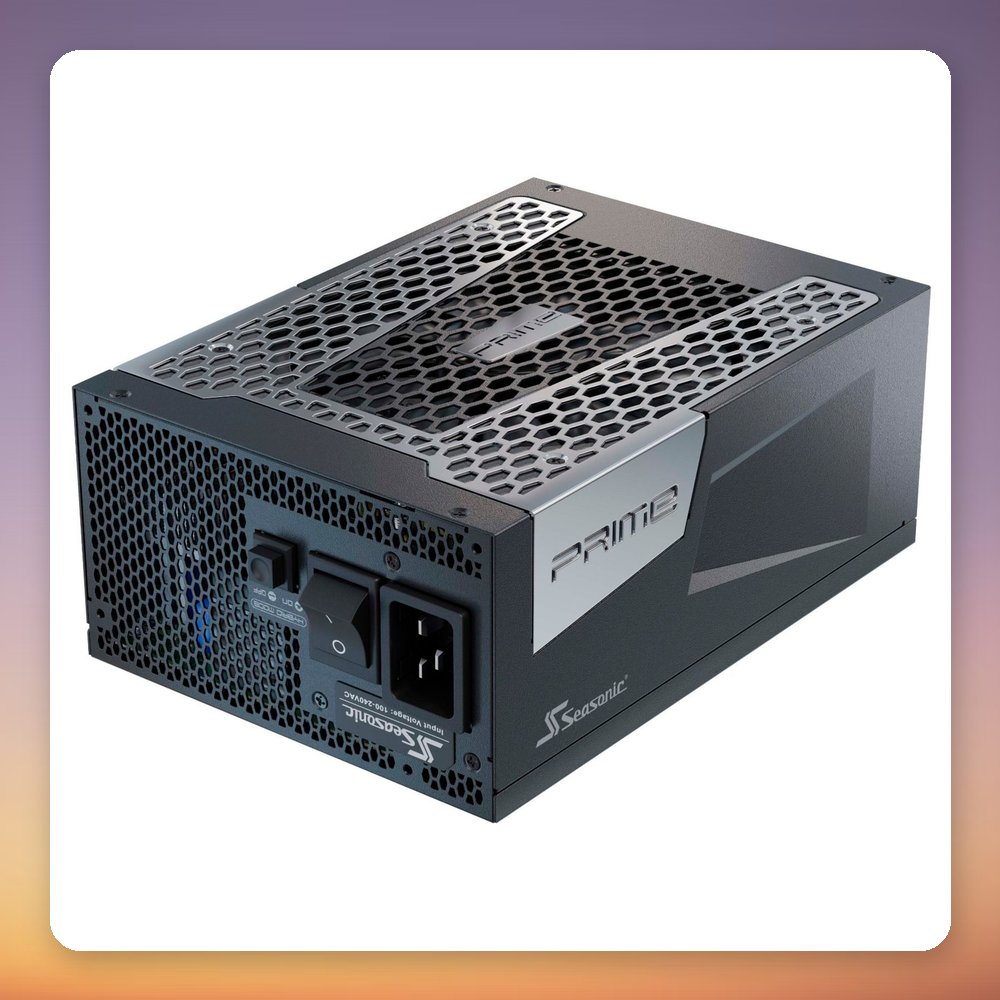

• Input voltage: 100-240 V, active PFC
• Dimensions (W x H x D): 150 x 86 x 210 mm
• Colour: Black
