Product Overview

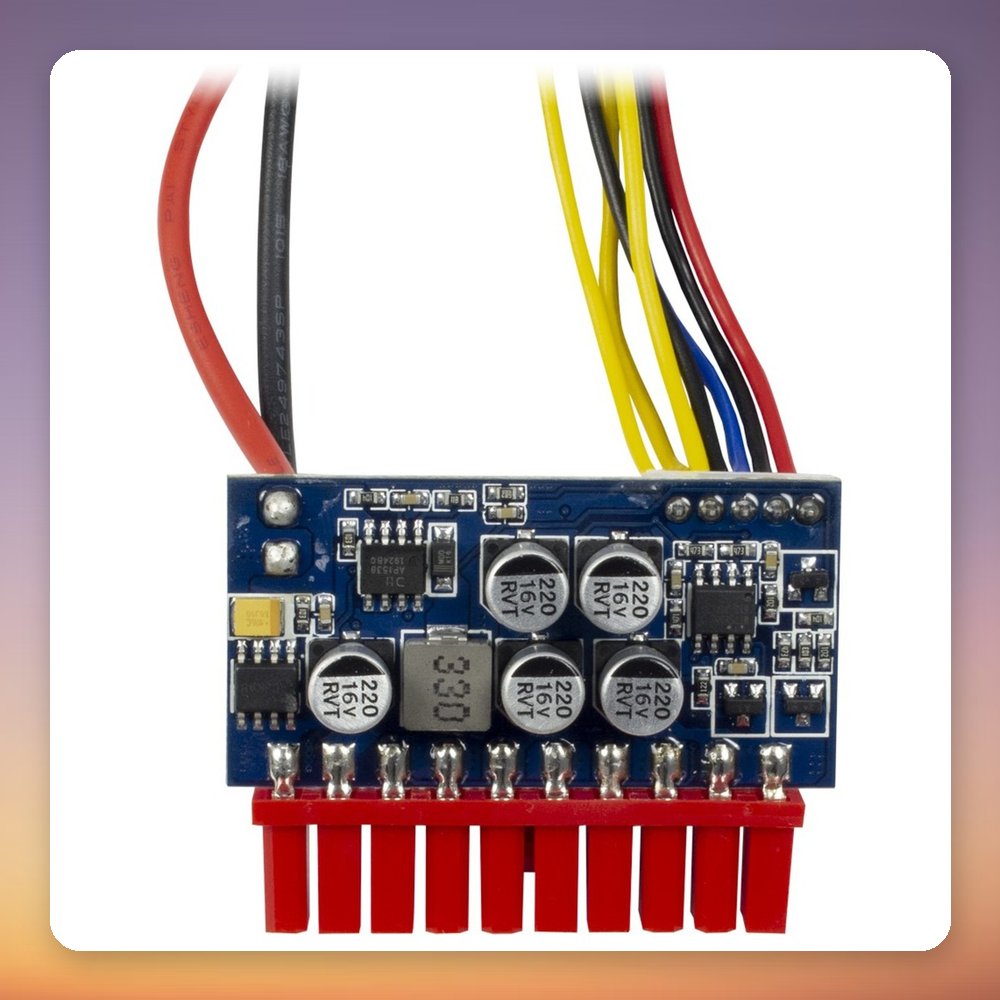

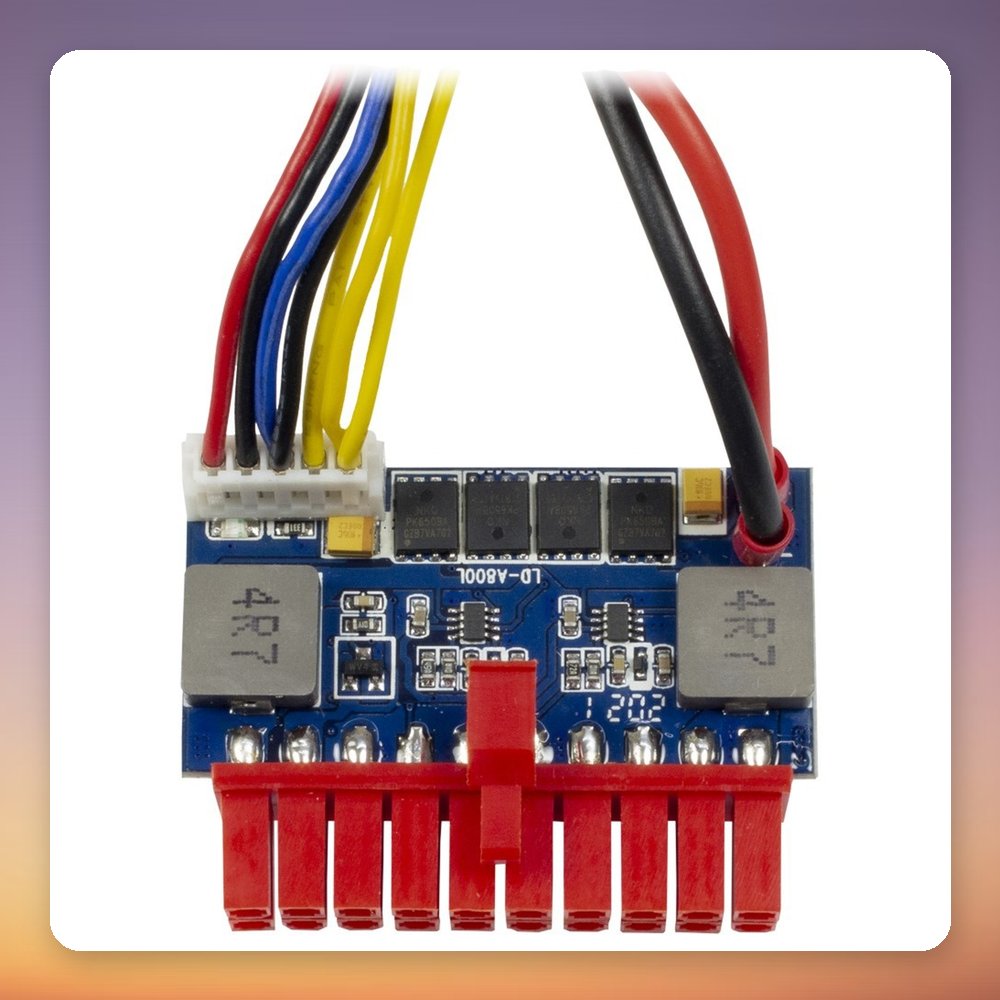

The Inter-Tech MINI-ITX PSU 120W REV. 2 is a compact power adapter board that converts the output of an external 12 V power supply of up to 120 W into the connections a Mini-ITX system needs. It measures just 35 x 47 x 18 mm and weighs 50 g, so it fits in very tight cases. Note that the external power supply is not included.

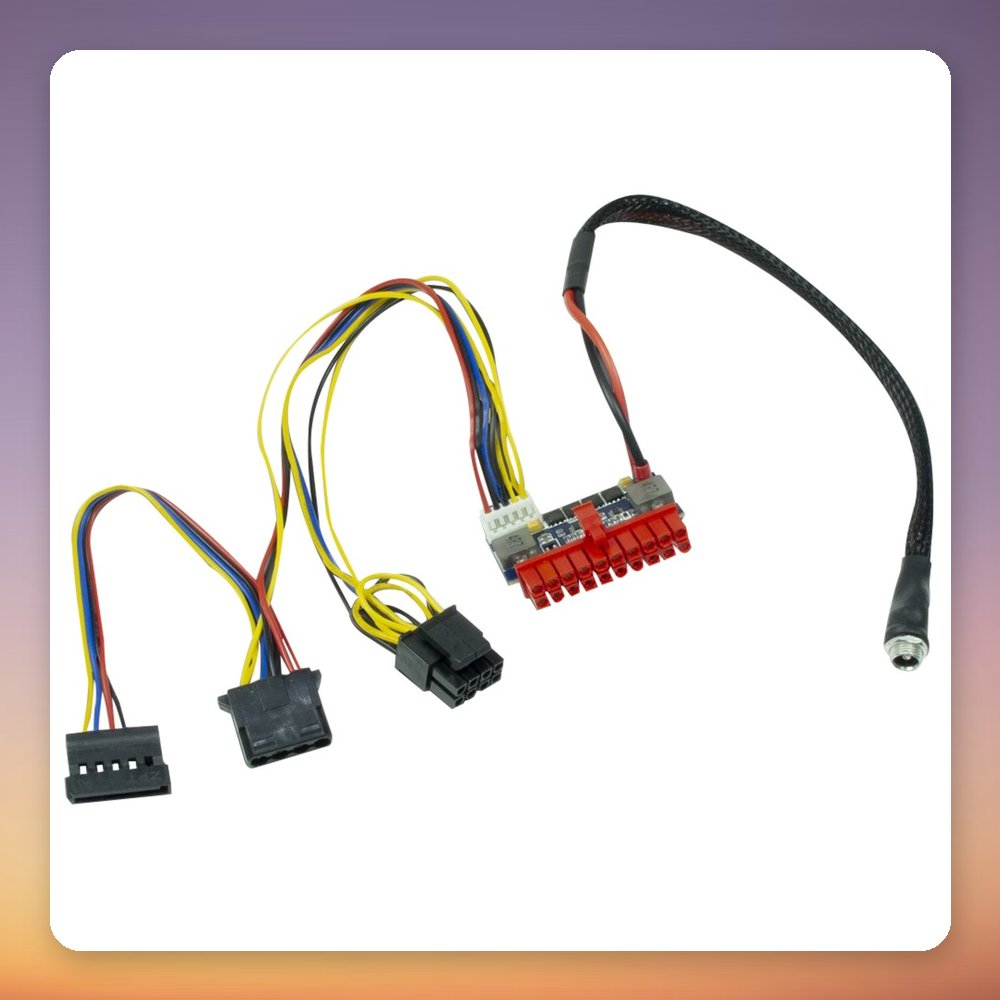

A cable with a socket and coupling nut is fitted to a suitable hole in the case wall and takes the plug of the external 12 V power supply. This suits small-form-factor Mini-ITX builds where a standard ATX PSU will not fit. The board provides a 20-pin ATX connector, a 4-pin 12 V connector, a 4-pin 5.25″ connector and a 15-pin SATA connector. Protection covers over-voltage, under-voltage and overload.

Specification

• Manufacturer: Inter-Tech
• Model: MINI-ITX PSU 120W REV. 2
• MPN: 88882193
• EAN: 4260455645515
• Type: Adapter (power supply board, PSU not included)
• Form factor: Mini ITX
• Supported external PSU: External 12 V power supply up to 120 W (required, not included)
• Connectors: 1x 20-pin ATX, 1x 4-pin 12 V, 1x 4-pin 5.25″, 1x 15-pin SATA
• Max. output +3.3 V: 5 A
• Max. output +5 V: 5 A
• Max. output +12 V: 5 A
• Max. output +5 VSB: 2 A
• Max. output -12 V: 0.1 A
• Protection: OVP, UVP, OLP/OPP
• Dimensions (W x H x D): 35 x 47 x 18 mm
• Weight: 50 g
