Product Overview

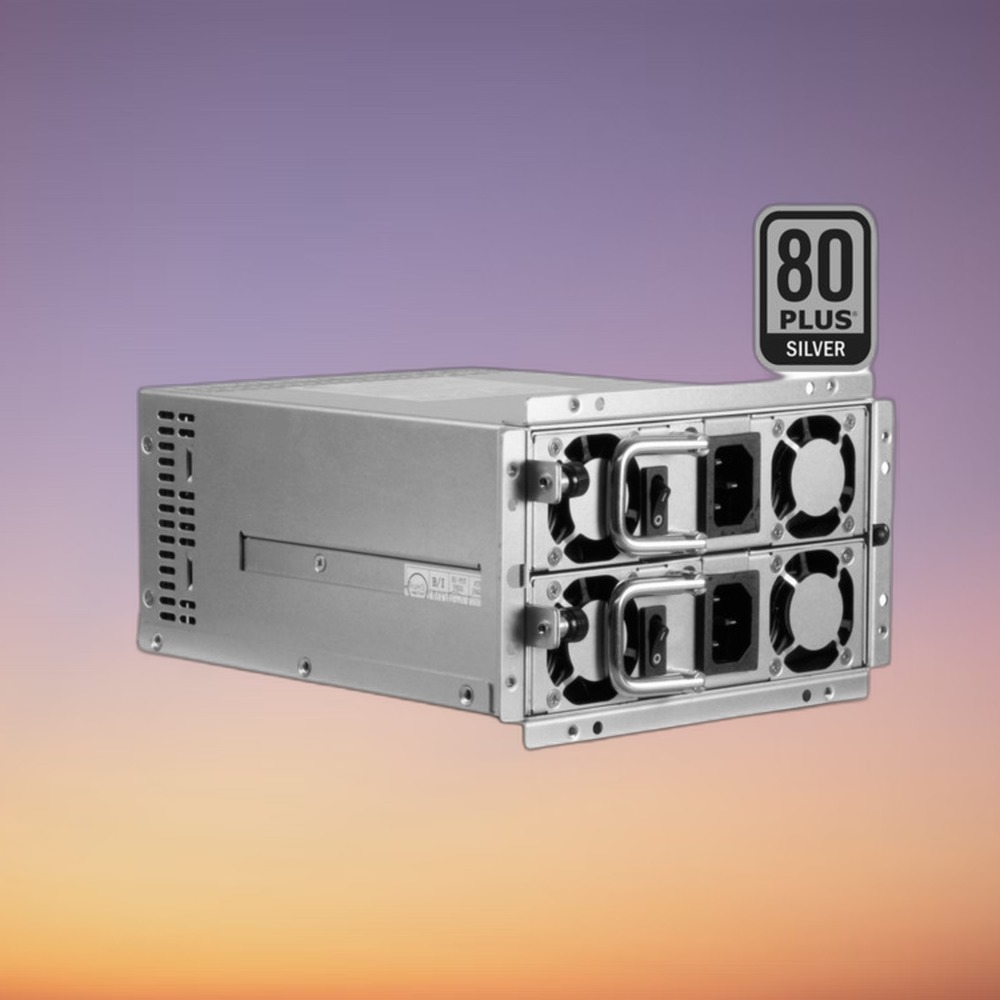

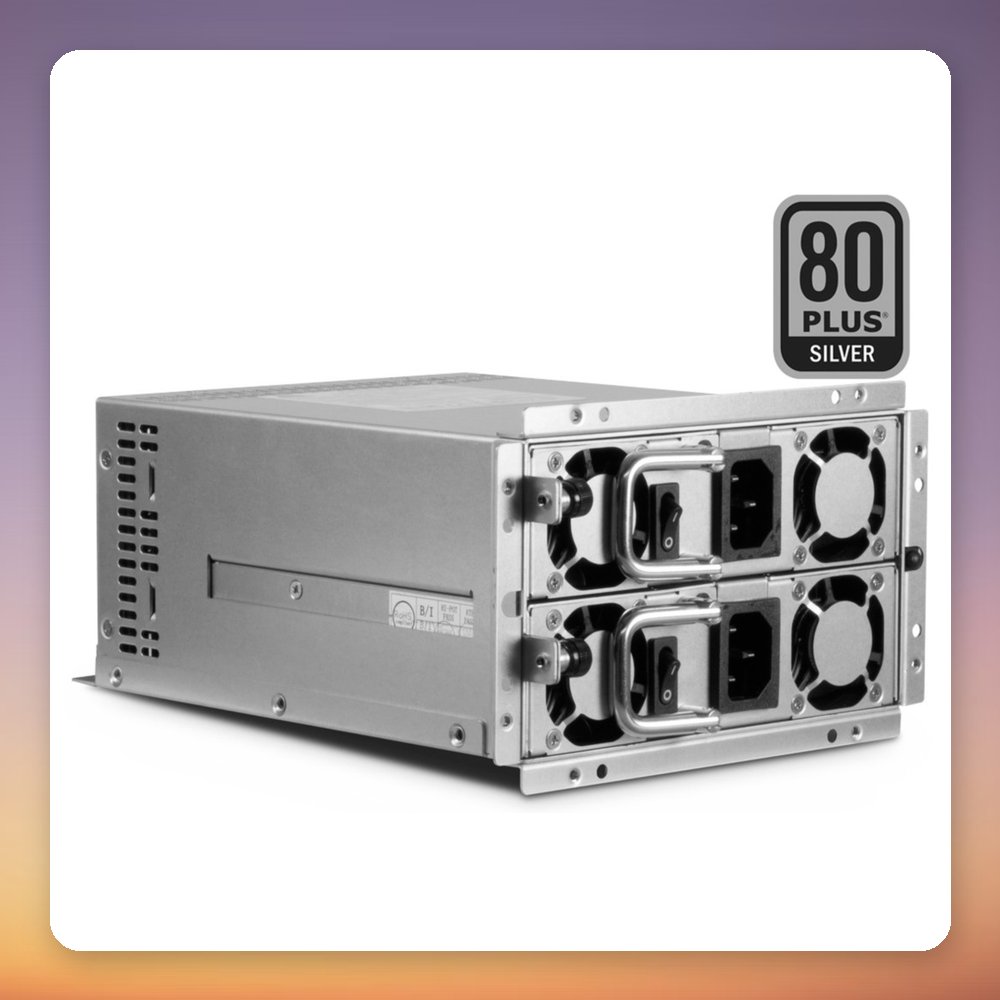

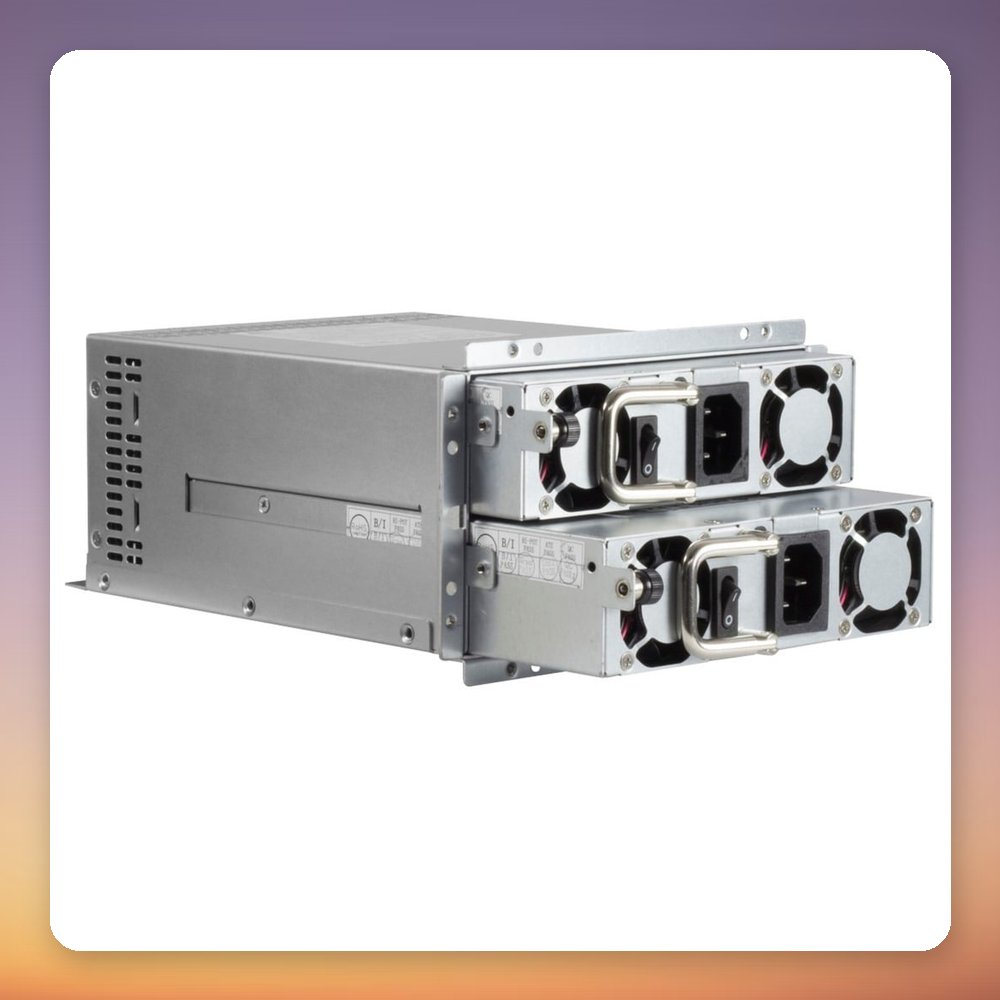

The Inter-Tech ASPOWER R2A-MV0700 700W redundant PSU is a server-grade power supply rated 80 PLUS Silver, with efficiency of up to 92%. Its redundant design is the main point of difference from a standard ATX power supply, and it delivers 700 W in total with a single 58 A +12 V rail. Cooling is handled by four 40 mm fans with temperature-controlled speed.

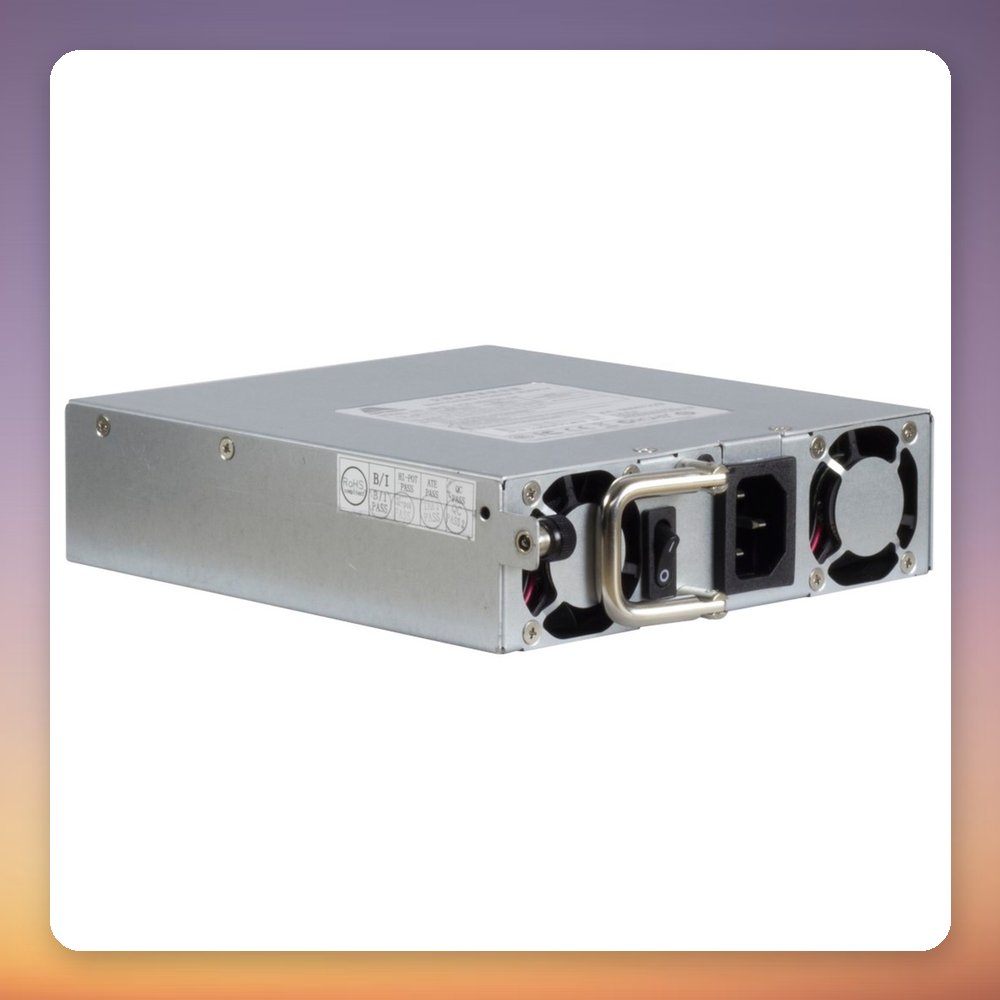

This unit suits server and workstation builds where a failed module must be flagged immediately. Each module has a dual-colour LED status indicator, and an audible and visual alarm sounds on a module or fan failure. A reset switch, an alarm LED cable and a TTL fault-signalling output for compatible backplanes or motherboards are also included. It accepts 100-240 V input and offers active PFC plus OCP, OVP, OLP/OPP, SCP and OTP protection.

Specification

• Manufacturer: Inter-Tech
• Model: ASPOWER R2A-MV0700
• MPN: 99997230
• EAN: 4260455642286
• Total Power: 700 W
• Efficiency Certification: 80 PLUS Silver (up to 92% efficiency)
• Redundancy: Redundant PSU
• +12 V Current: 58 A (+12 V1)
• +3.3 V / +5 V Combined Power: 200 W
• Rail Currents: +3.3 V: 30 A, +5 V: 30 A, +5 Vsb: 3 A, -12 V: 1 A
• Input Voltage Range: 100-240 V
• Power Factor Correction: Active PFC
• Cooling: 4x 40 mm fans, temperature-controlled
• Connectors: 1x 24-pin ATX12V 2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5″, 6x 4-pin 5.25″, 2x 15-pin SATA
• Protections: OCP, OVP, OLP/OPP, SCP, OTP
• Colour: Grey
• Dimensions (W x H x D): 150 x 84 x 190 mm
• Weight: 3.7 kg
