Product Overview

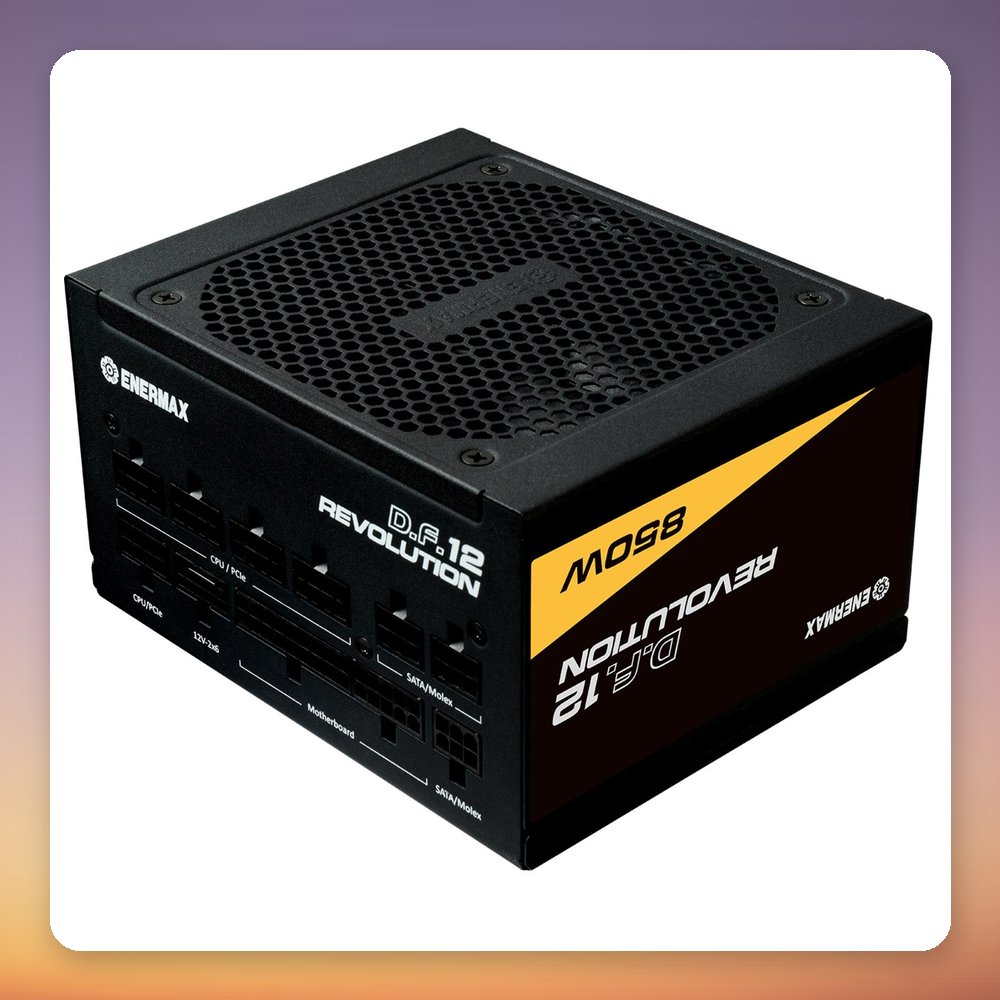

The Enermax Revolution D.F.12 850W is an ATX 3.1 power supply with 80 PLUS Gold certification and up to 90% efficiency at 50% load. It offers a native 12V-2×6 (12+4 pin) connector rated for up to 600W, so PCIe 5.0 graphics cards can be powered without an adapter. Of its 850W total output, 849.6W is available on the +12V rail (70.8A).

Built for modern gaming and high-performance PCs, the Revolution D.F.12 uses a 115 mm temperature-controlled fan with semi-passive cooling, and Japanese capacitors are used for quiet, long-lasting operation. The exclusive D.F.R. function cleans the fan automatically at start-up. With cable management, 3x 6-pin graphics connectors and 8x SATA connectors, it suits builds with a high-end GPU and several drives. It measures 150 x 86 x 122 mm in a black finish.

Specification

• Manufacturer: Enermax
• Model: Revolution D.F.12
• MPN: ETV850G
• EAN: 4713157727923
• Power output: 850 W
• +12V output: 849.6 W (70.8 A)
• Efficiency certification: 80 PLUS Gold (up to 90% efficiency)
• Standard: ATX12V 3.1
• Form factor: ATX
• Cable management: Yes (modular)
• GPU connectors: 1x 12+4 pin (12V-2×6), 3x 6-pin graphics
• Other connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 8x 15-pin SATA, 4x 4-pin 5.25″
• Cooling: 1x 115 mm fan, semi-passive, temperature-controlled
• Power factor correction: Active PFC
• Input voltage: 100-240 V
• Protections: OCP, OVP, UVP, OLP/OPP, SCP, OTP
• Colour: Black
• Dimensions (W x H x D): 150 x 86 x 122 mm
