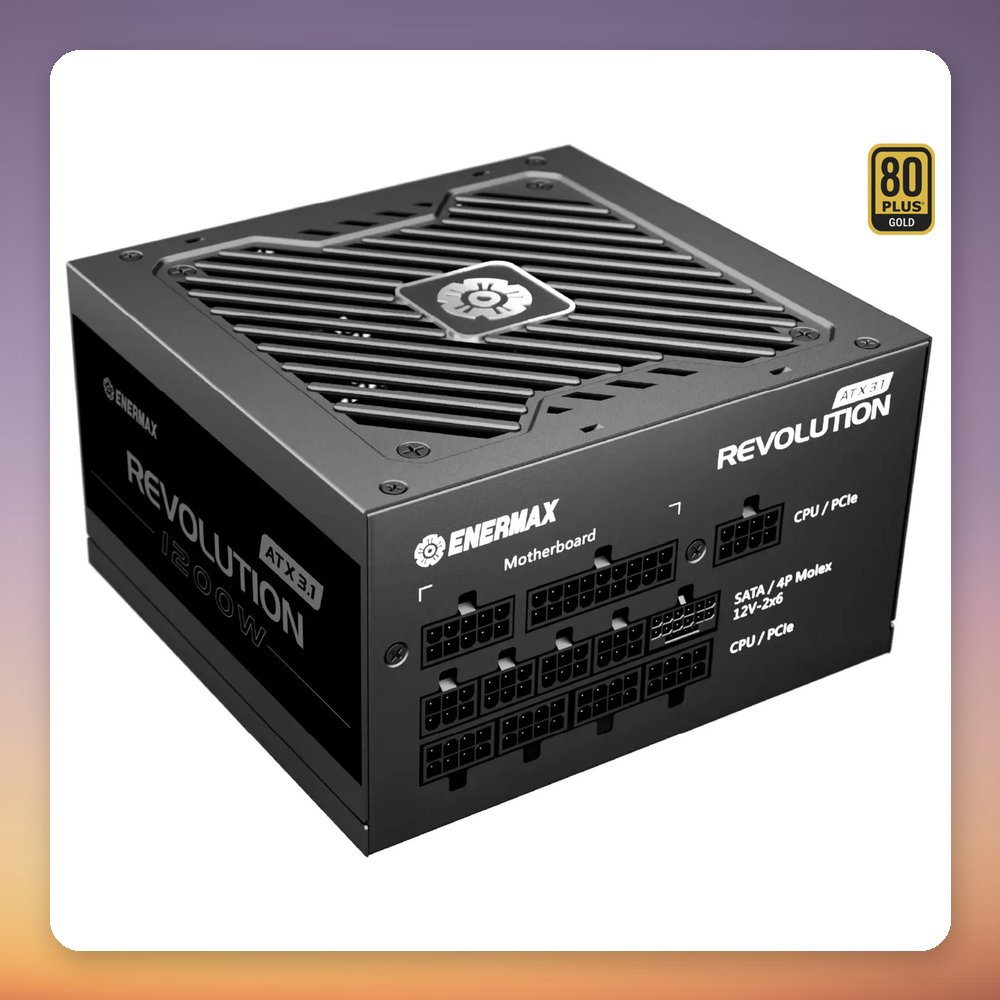

Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU

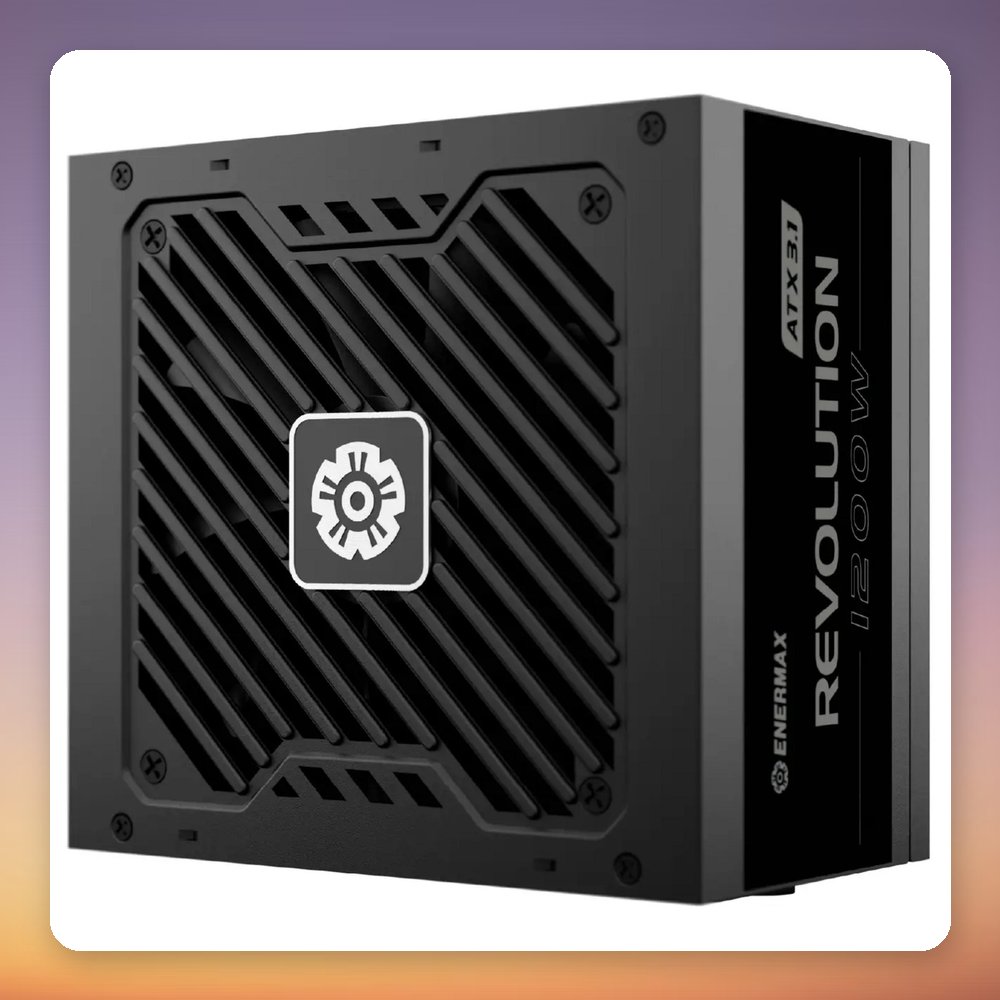

Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU – image 2

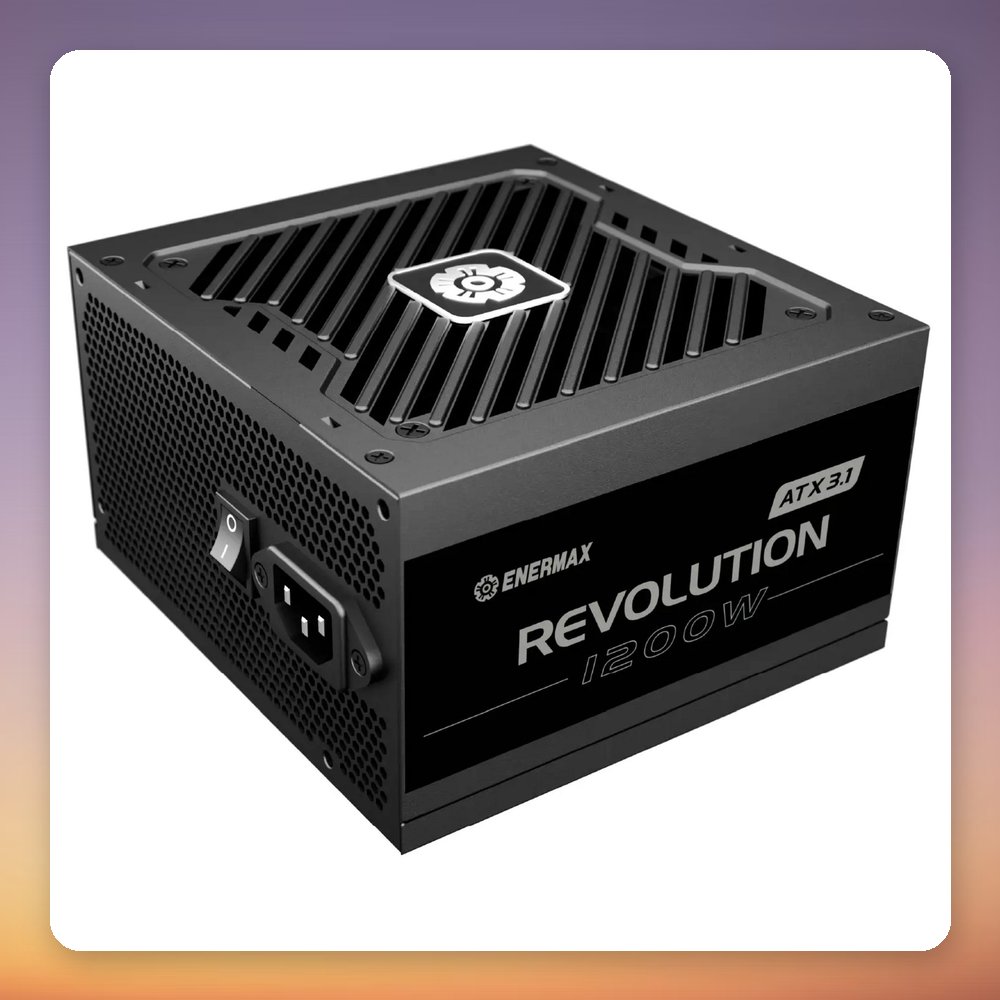

Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU – image 3

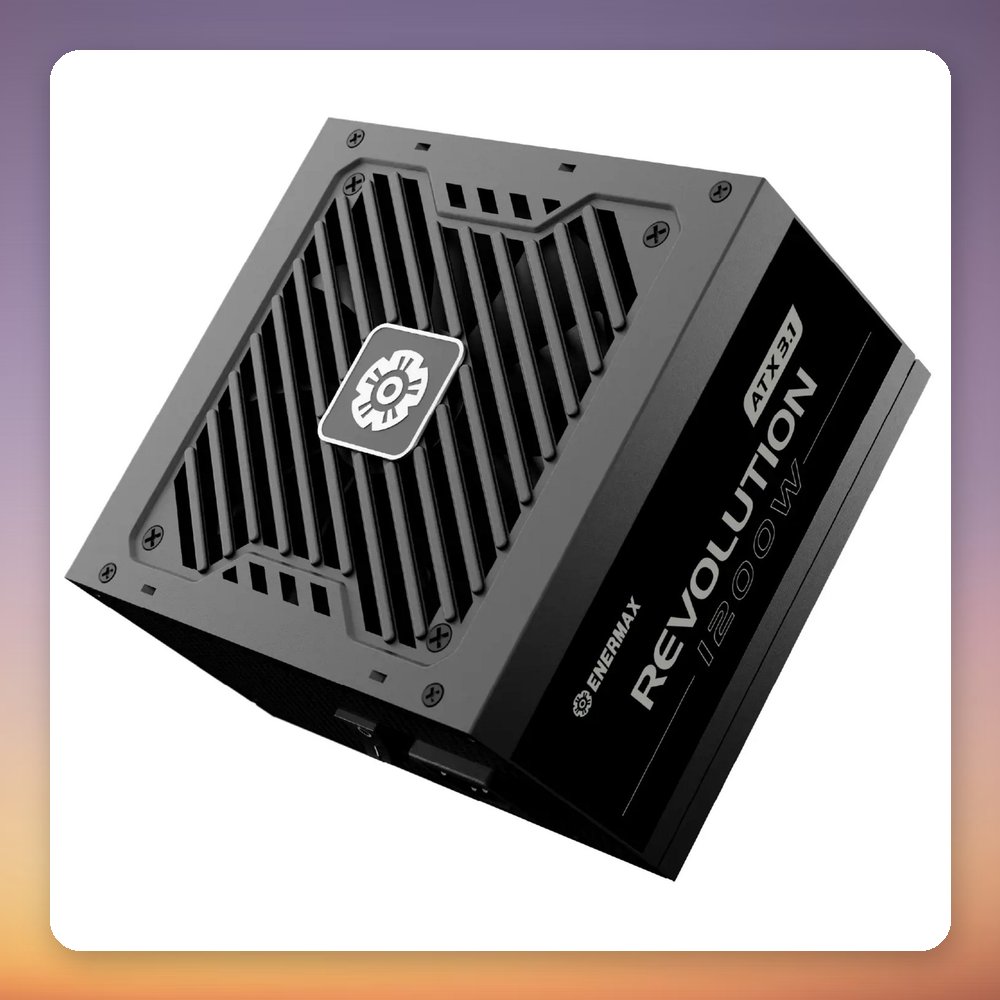

Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU – image 4
Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU – image 5

Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU

€172.25

Delivery: 7-12 business days
Enermax REVOLUTION ATX 3.1 1200W 80 PLUS Gold Fully Modular PSU

  • 1200 W with a native 12+4 pin (12V-2×6) connector
  • Fully modular, 80 PLUS Gold, up to 90% efficient
  • Semi-fanless: silent below 20% load, 28 dB(A) at full load
  • Compact 140 mm deep body with 8x SATA connectors

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100144973 Category: Tags: , , , , Brand:

✅

Product Overview

The Enermax REVOLUTION ATX 3.1 1200W is a fully modular 1200 W power supply certified 80 PLUS Gold, with efficiency of up to 90%. It is ATX 3.1 and PCIe 5.1 ready and includes a native 12+4 pin (12V-2×6) connector, so it can power current high-end graphics cards. Despite the high output, it keeps to a compact ATX body measuring 150 x 86 x 140 mm.

Aimed at gaming and enthusiast builds with power-hungry graphics cards, the REVOLUTION offers a single 100 A +12V rail, 3x 6+2 pin graphics connectors and 8 SATA connectors. According to Enermax it handles up to 200% power excursions for peak loads, and its semi-fanless design keeps the 120 mm fan silent below 20% load. Rated noise is 28 dB(A) at full load, and a full set of protections (OCP, OVP, UVP, OPP, SCP) is built in.

Specification

  • Manufacturer: Enermax
  • Model: REVOLUTION ATX 3.1
  • MPN: ERS1200EWT-V2
  • EAN: 4713157729422
  • Wattage: 1200 W
  • Efficiency Rating: 80 PLUS Gold (up to 90% efficiency)
  • Standard: ATX12V 3.1, PCIe 5.1
  • Modularity: Fully modular
  • 12V Rail: Single rail, 100 A (1200 W)
  • 3.3V/5V Combined Power: 130 W
  • Form Factor: ATX
  • Fan: 1x 120 mm, semi-fanless (silent below 20% load)
  • Noise Level: 28 dB(A) at 100% load
  • PCIe Connectors: 1x 12+4 pin (12V-2×6), 3x 6+2 pin
  • CPU Connectors: 2x 4+4 pin
  • SATA / Peripheral: 8x SATA, 3x 4-pin Molex
  • Protections: OCP, OVP, UVP, OPP/OLP, SCP
  • Dimensions (W x H x D): 150 x 86 x 140 mm
  • Colour: Black

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 2.5 kg
