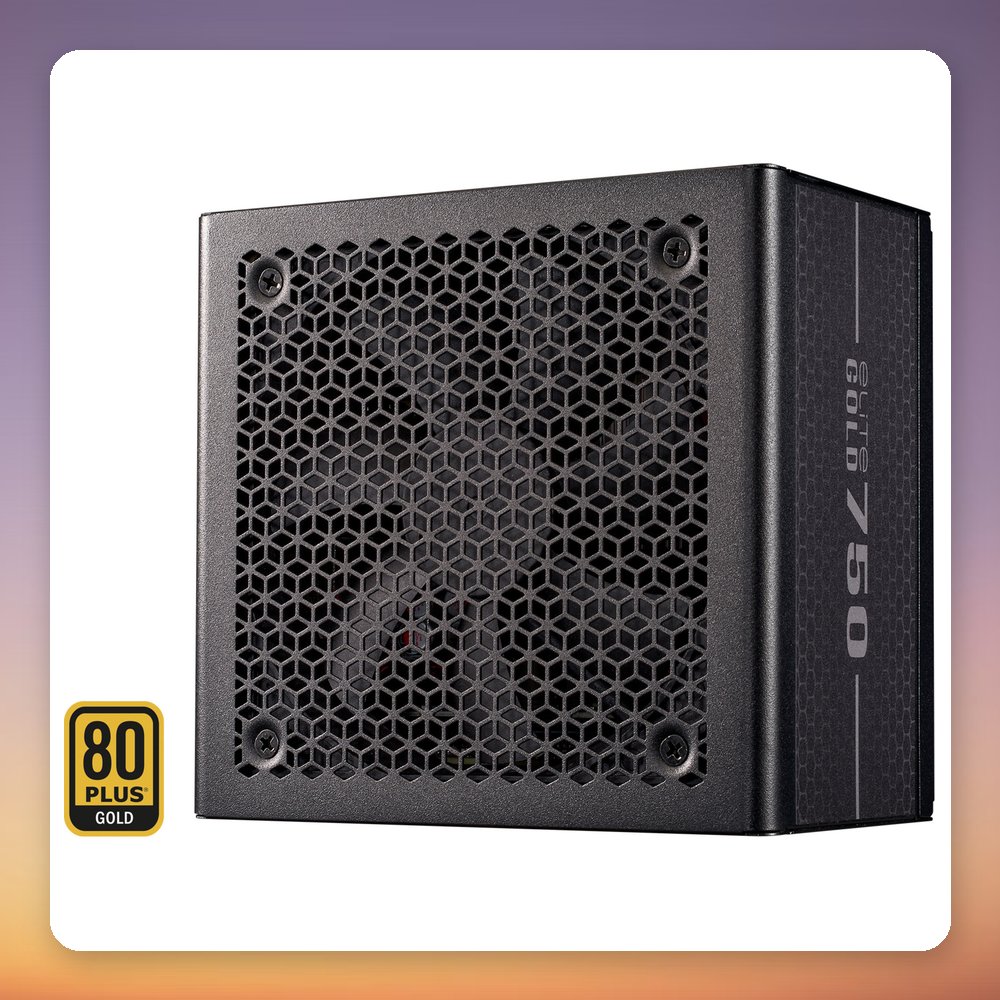

Product Overview

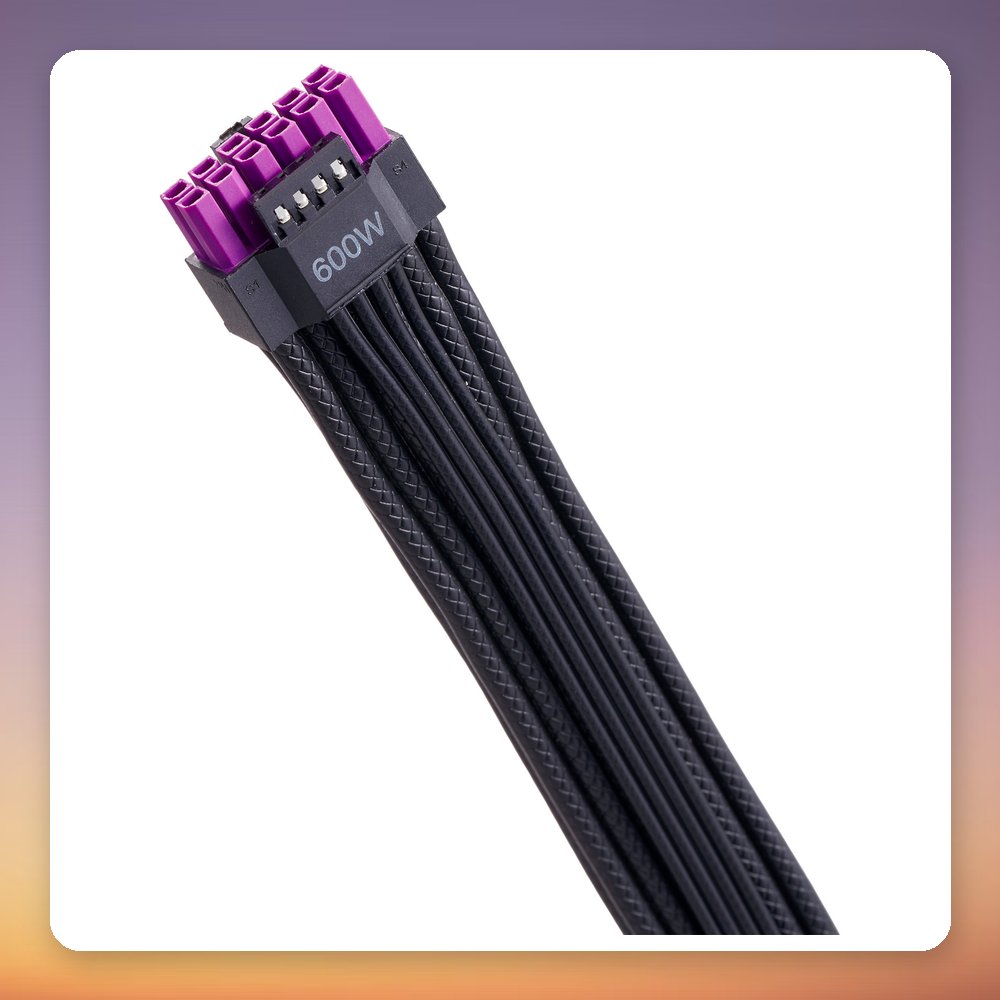

The Cooler Master Elite Gold 750 is a 750 W ATX power supply built to the ATX12V 3.1 standard with PCIe 5.1 support. It carries 80 PLUS Gold certification, delivers the full 750 W on the +12V rail (62.5 A) and includes a native 12+4 pin (12V-2×6) connector alongside two 6+2 pin PCIe cables for graphics cards.

With a 150 x 86 x 140 mm ATX body and a single 120 mm fan with rifle-bearing construction, it suits gaming PCs and general-purpose builds that need a modern PSU for current graphics cards. The cables are embossed for a tidier look and easier cable management, and the unit has OVP, UVP, OPP, SCP and OTP protection plus active PFC. It is finished in black.

Specification

• Manufacturer: Cooler Master
• Model: Elite Gold 750
• MPN: MPX-7505-AFAG-BEU
• EAN: 4719512162361
• Power output: 750 W
• Efficiency certification: 80 PLUS Gold (up to 90%)
• Standard: ATX12V 3.1, PCIe 5.1
• Form factor: ATX
• +12V output: 750 W (62.5 A)
• +3.3V/+5V combined: 100 W (20 A each)

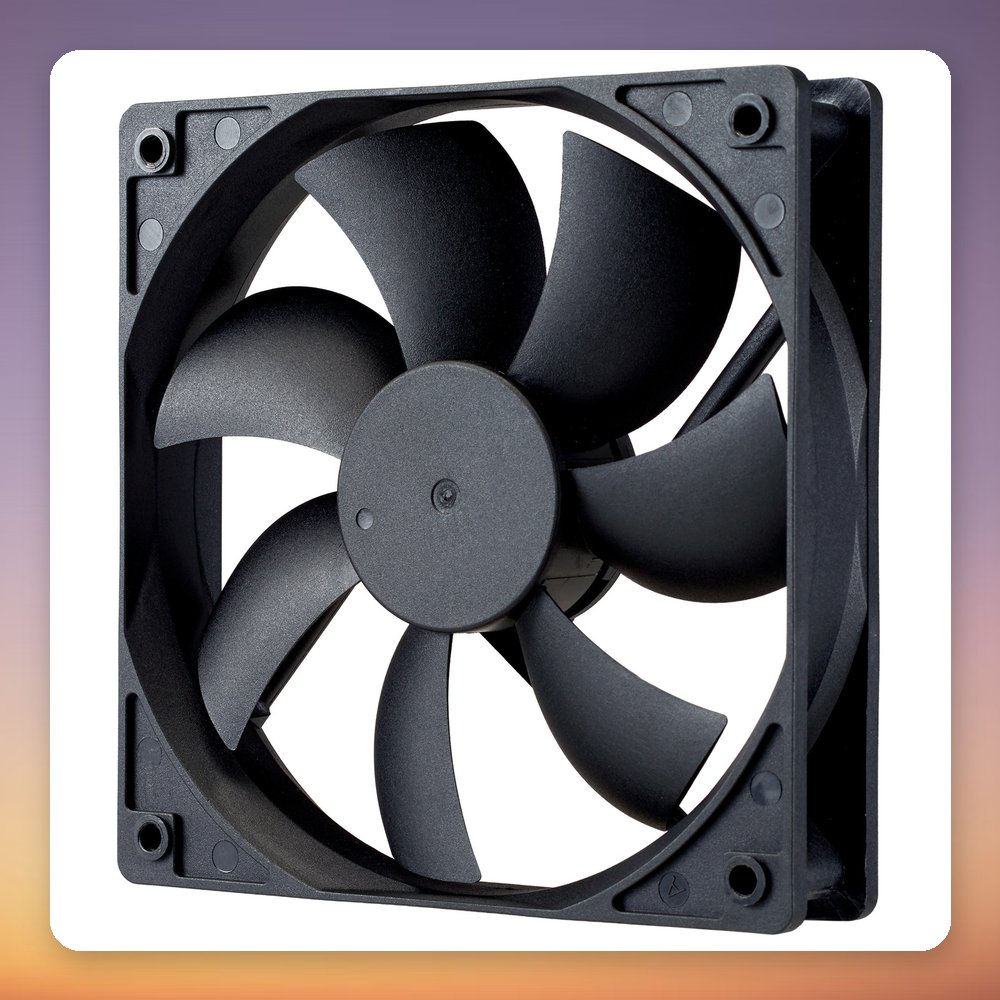

• Fan: 1x 120 mm

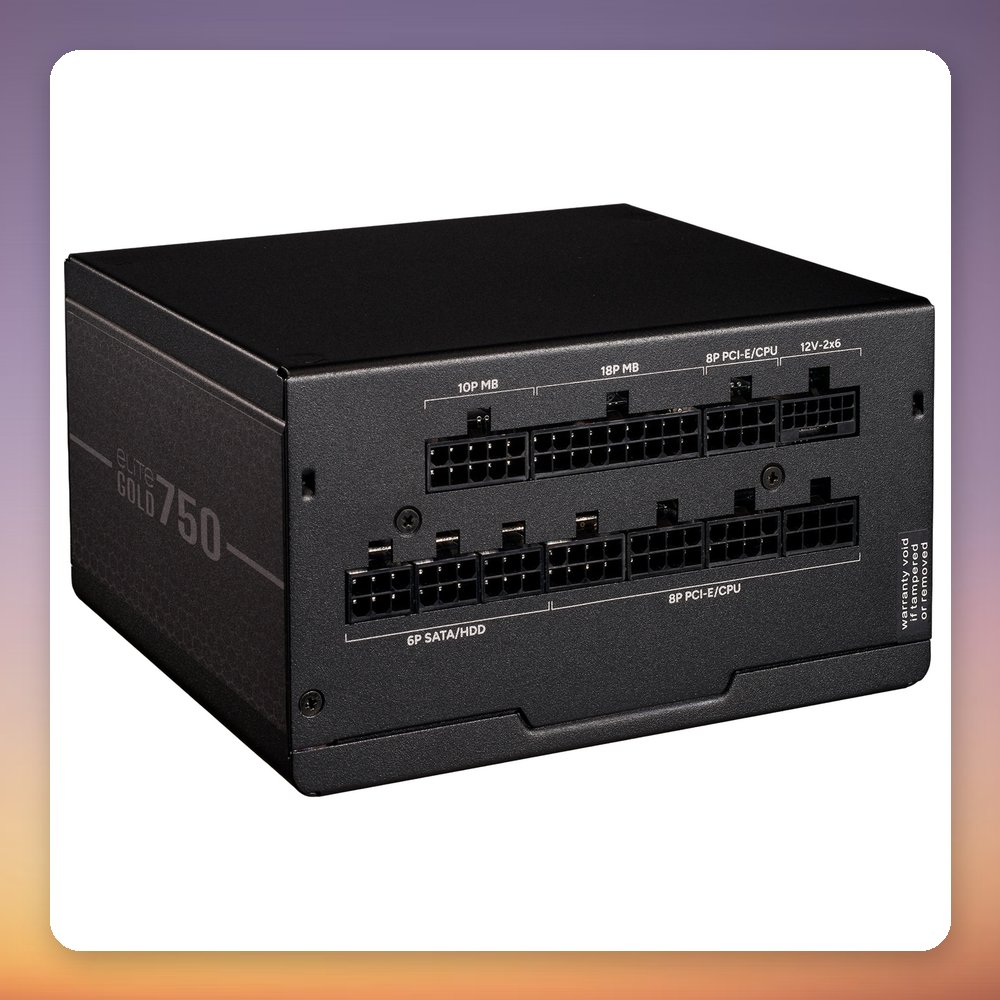

• Connectors: 1x 24-pin ATX, 2x 4+4-pin 12V, 1x 12+4 pin (12V-2×6), 2x 6+2-pin PCIe, 4x SATA, 2x 4-pin 5.25″
• Protections: OVP, UVP, OLP/OPP, SCP, OTP
• Power factor correction: Active PFC
• Input voltage: 100-240 V
• Colour: Black
• Dimensions (W x H x D): 150 x 86 x 140 mm
• Weight: 1.9 kg
