Product Overview

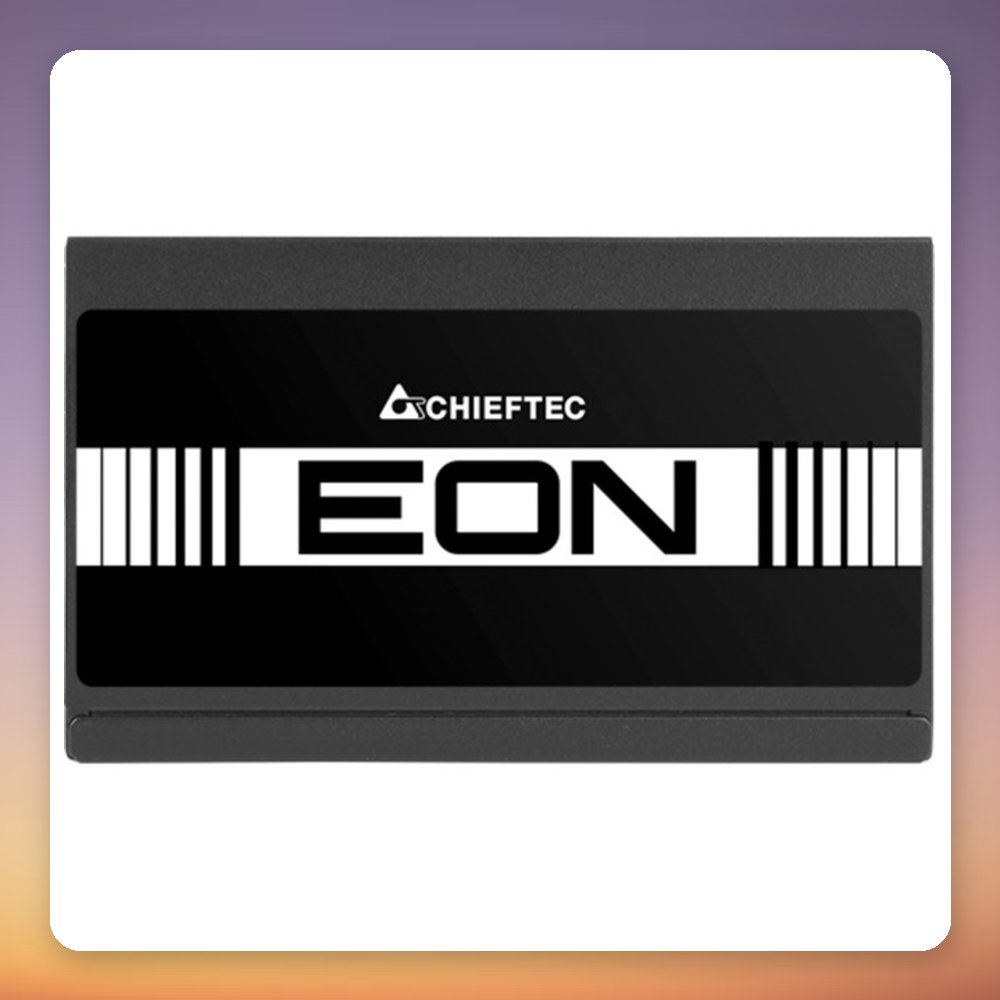

The Chieftec EON ZPU-400S is a 400 W ATX power supply built to the ATX12V 2.3 standard and certified 80 PLUS 230V EU. It delivers up to 30 A on a single +12V rail, uses active PFC and has a temperature-controlled 120 mm fan. The fully steel casing is finished in black, and the cables are native, so there are no adapters in the signal path.

With one 6+2-pin PCIe connector, four SATA power connectors, two 4-pin Molex plugs and a 4+4-pin CPU connector, this unit suits office PCs, home PCs and entry-level builds with a modest graphics card. Note the 200-240 V input range, which matches Irish mains. It is non-modular, 150 x 86 x 140 mm and weighs about 1.2 kg, and it carries OVP, UVP, OLP/OPP, SCP and SIP protection.

Specification

• Manufacturer: Chieftec
• Model: EON ZPU-400S
• MPN: ZPU-400S
• EAN: 0753263078605
• Total power: 400 W
• Standard: ATX12V 2.3
• Efficiency certification: 80 PLUS 230V EU
• Form factor: ATX
• Cabling: Non-modular
• +12V output: 30 A (single rail, 400 W)
• +3.3V / +5V output: 20 A / 20 A (100 W combined)
• Input voltage: 200-240 V, 50 Hz
• PFC: Active PFC
• Fan: 1x 120 mm, temperature-controlled
• Connectors: 1x 24-pin ATX, 1x 4+4-pin 12V, 1x 6+2-pin PCIe, 4x SATA, 2x 4-pin Molex
• Protections: OVP, UVP, OLP/OPP, SCP, SIP
• Dimensions (W x H x D): 150 x 86 x 140 mm
• Weight: 1.2 kg
• Manufacturer warranty: 2 years
