Product Overview

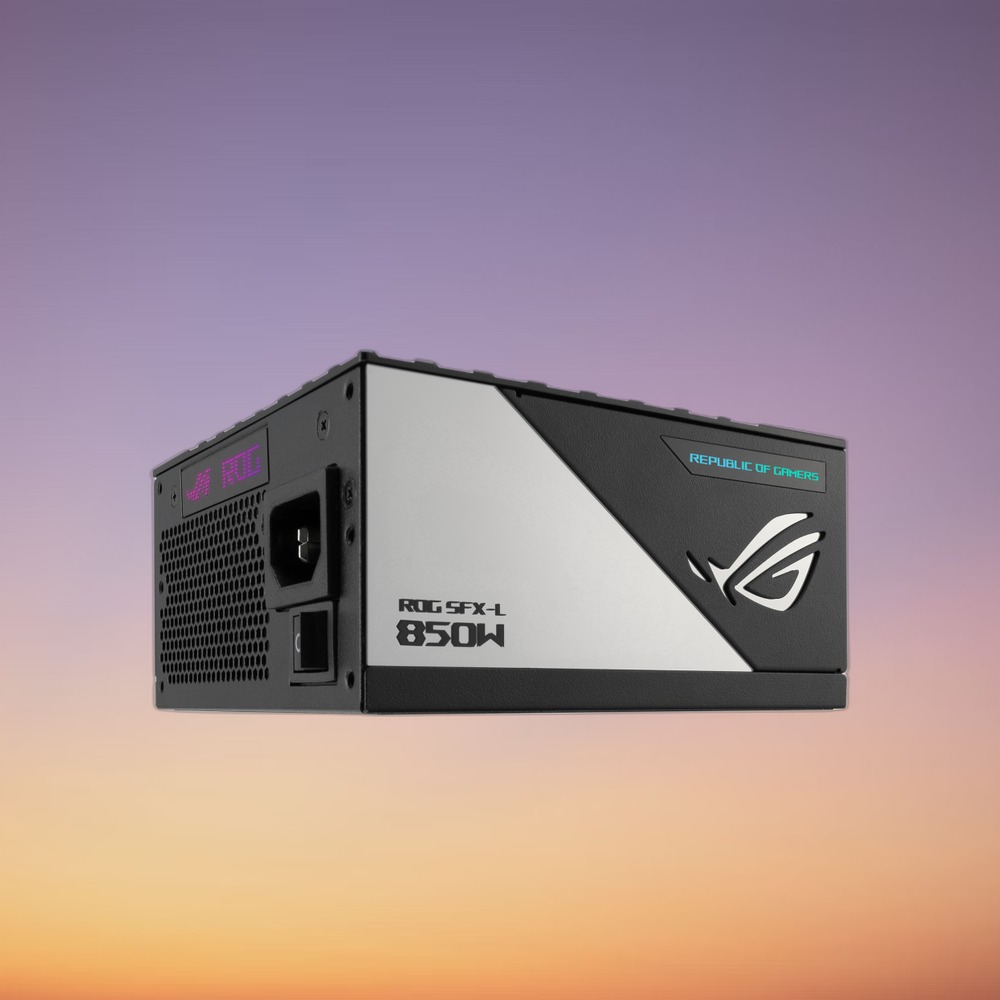

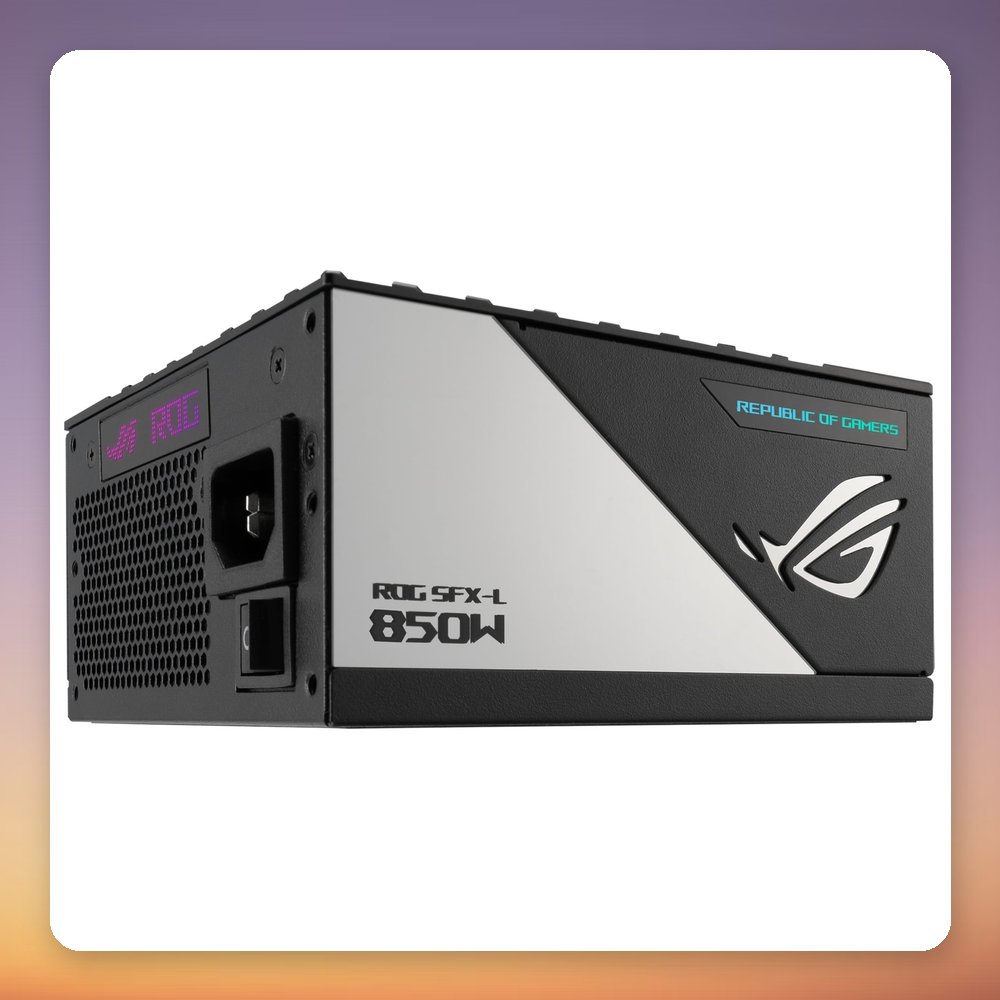

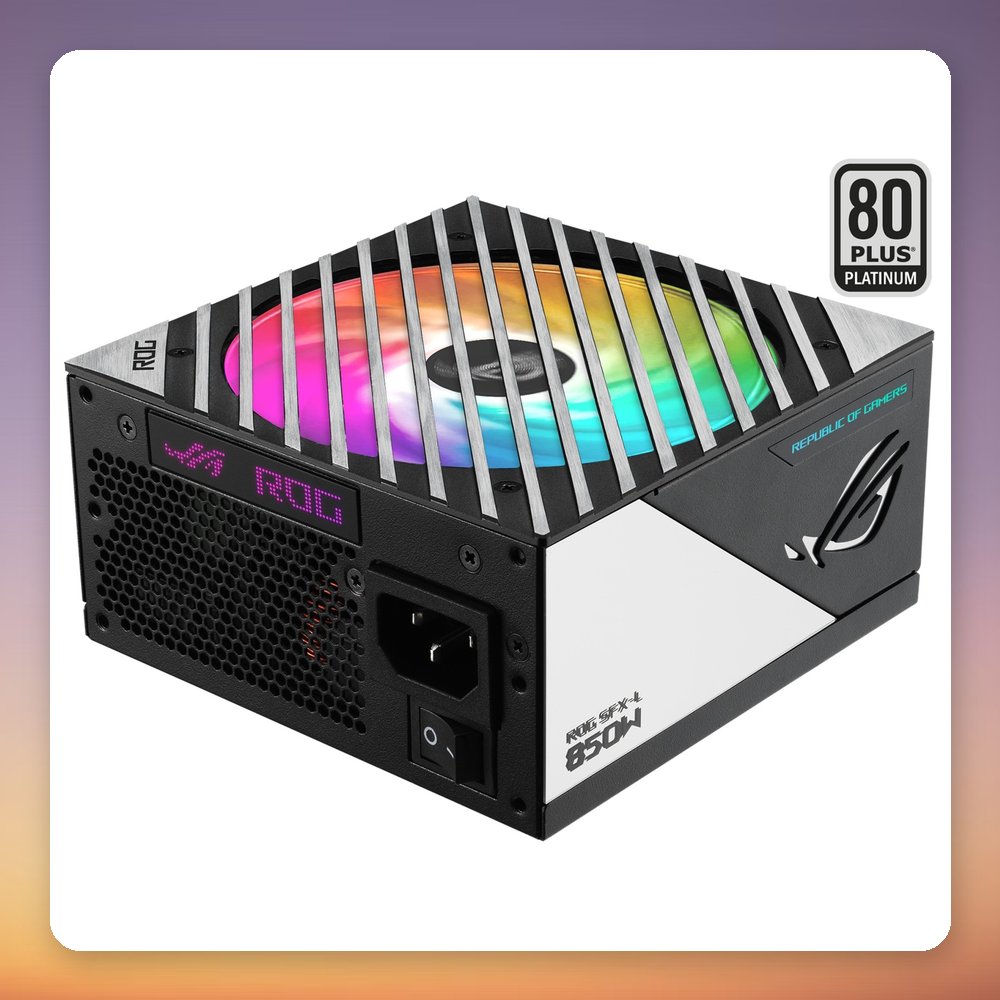

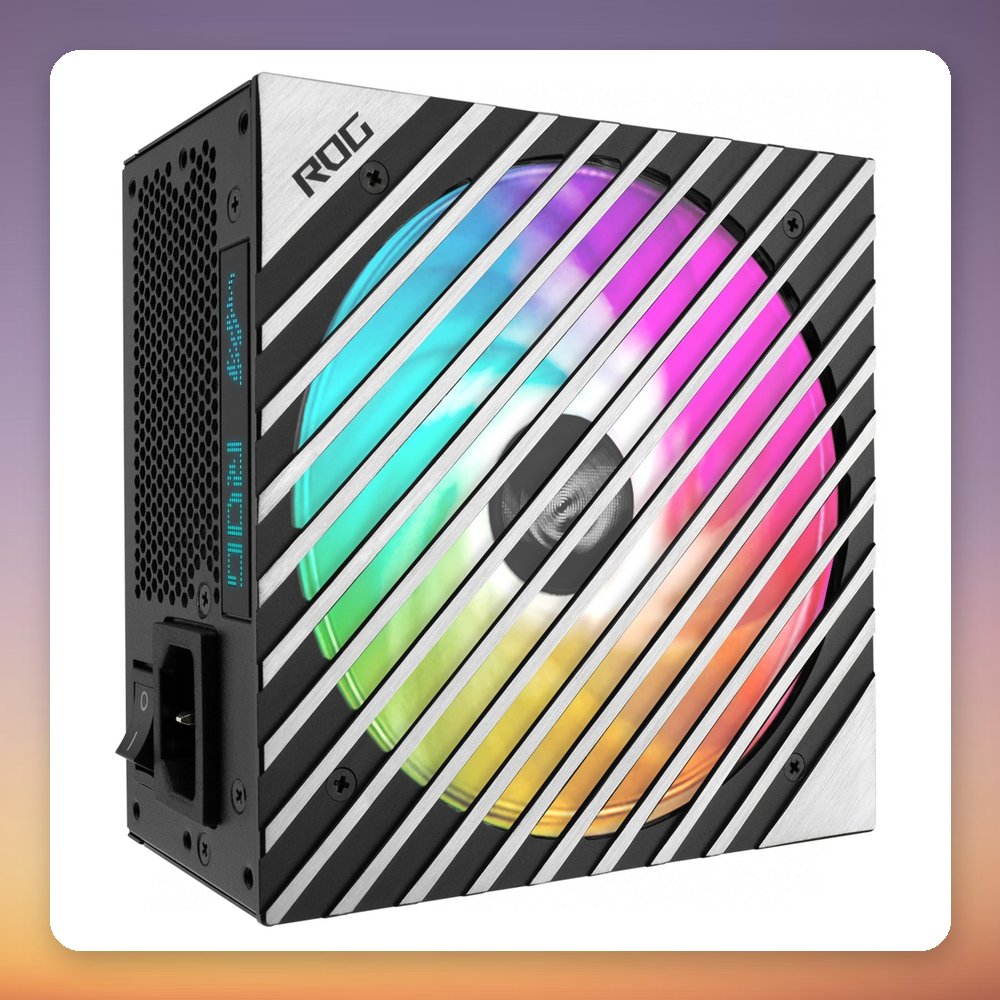

The Asus ROG Loki 850W Platinum is an SFX-L power supply that delivers 850 W, with 70.8 A on the +12V rail. It is 80 PLUS Platinum certified with efficiency of up to 92%, and is ATX 3.0 compliant and PCIe 5.0 ready. A 16-pin 12V-2×6 cable is included to feed up to 600 W to PCIe 5.0 graphics cards.

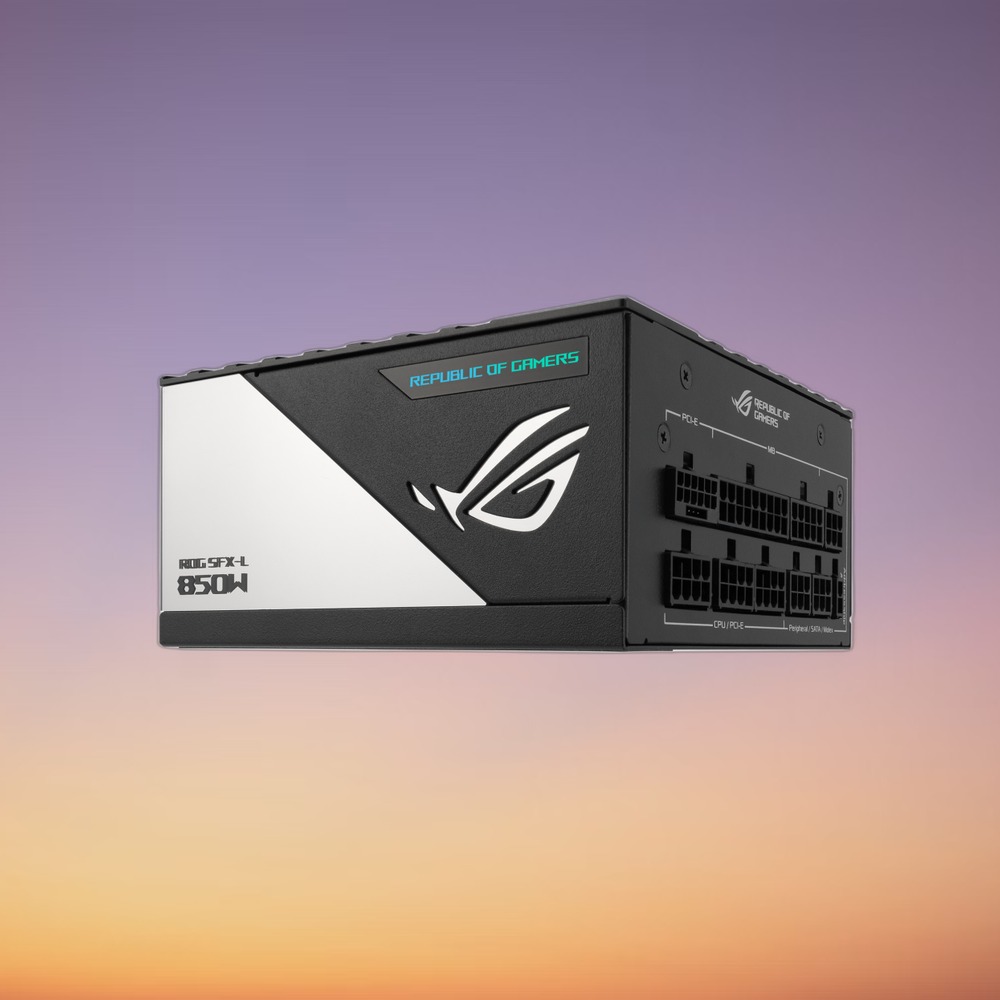

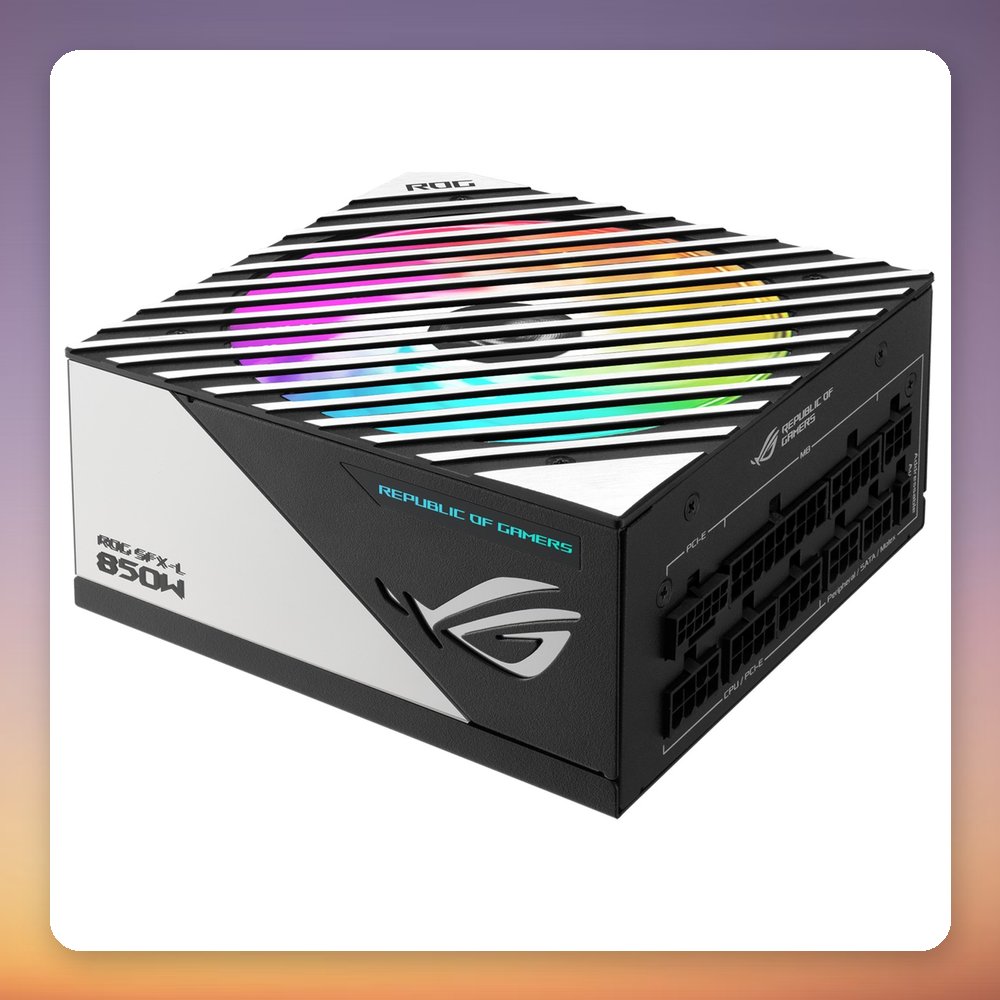

Asus built the ROG Loki around the SFX-L form factor, so it suits compact small form factor builds that still need a high-wattage supply. Cabling is fully modular, with three 6+2-pin PCIe connectors, six SATA connectors and four 4-pin Molex connectors. The 120 mm temperature-controlled fan runs semi-passively and has a 0dB button. Its eight addressable LEDs sync through Aura Sync. An ATX to SFX bracket adapter is included.

Specification

• Manufacturer: Asus
• Model: ROG Loki
• MPN: 90YE00N3-B0NA00
• EAN: 47110817225570
• Power output: 850 W
• Efficiency rating: 80 PLUS Platinum (up to 92%)
• Form factor: SFX-L
• Standard: ATX12V 3.0 / PCIe 5.0
• Cabling: Fully modular
• +12V output: 850 W (70.8 A)
• +3.3V / +5V combined: 110 W (20 A each)
• GPU connectors: 3x 6+2-pin PCIe, 1x 12+4-pin (12V-2×6)

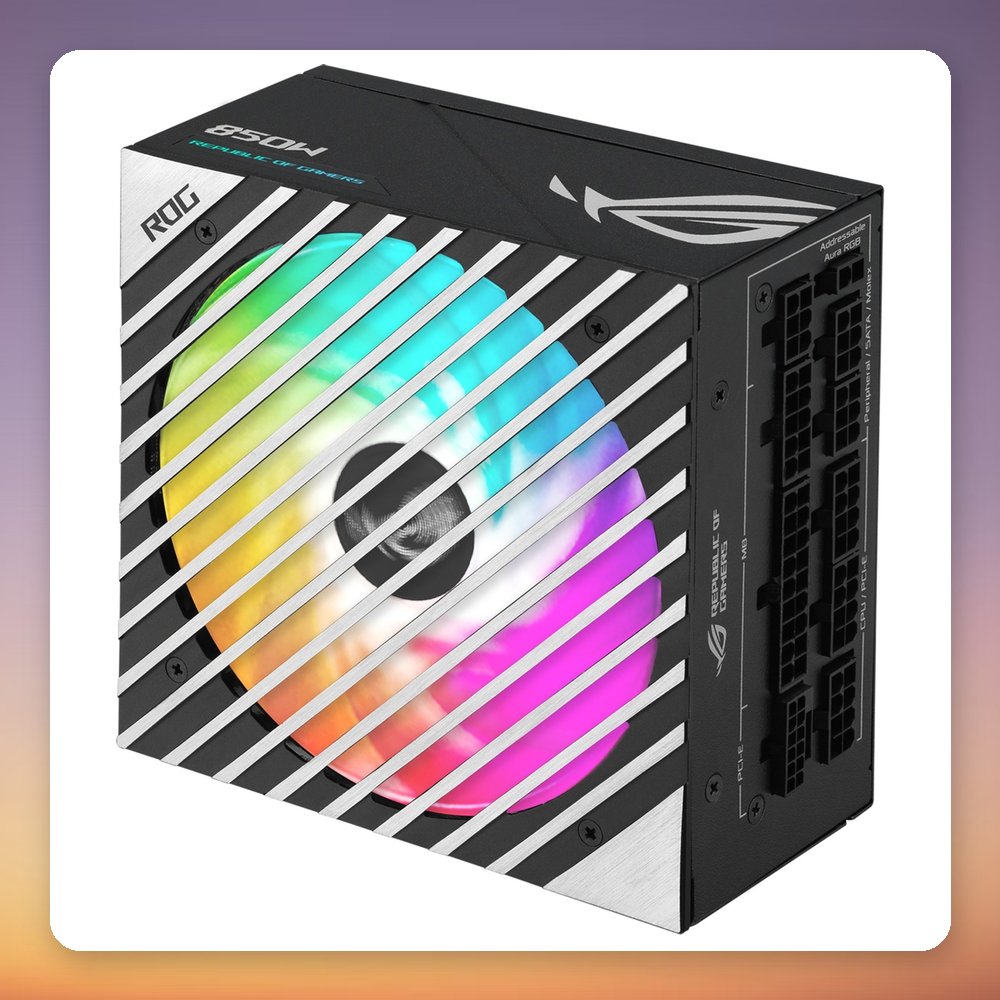

• Other connectors: 1x 24-pin ATX, 2x 4+4-pin CPU, 6x SATA, 4x 4-pin Molex

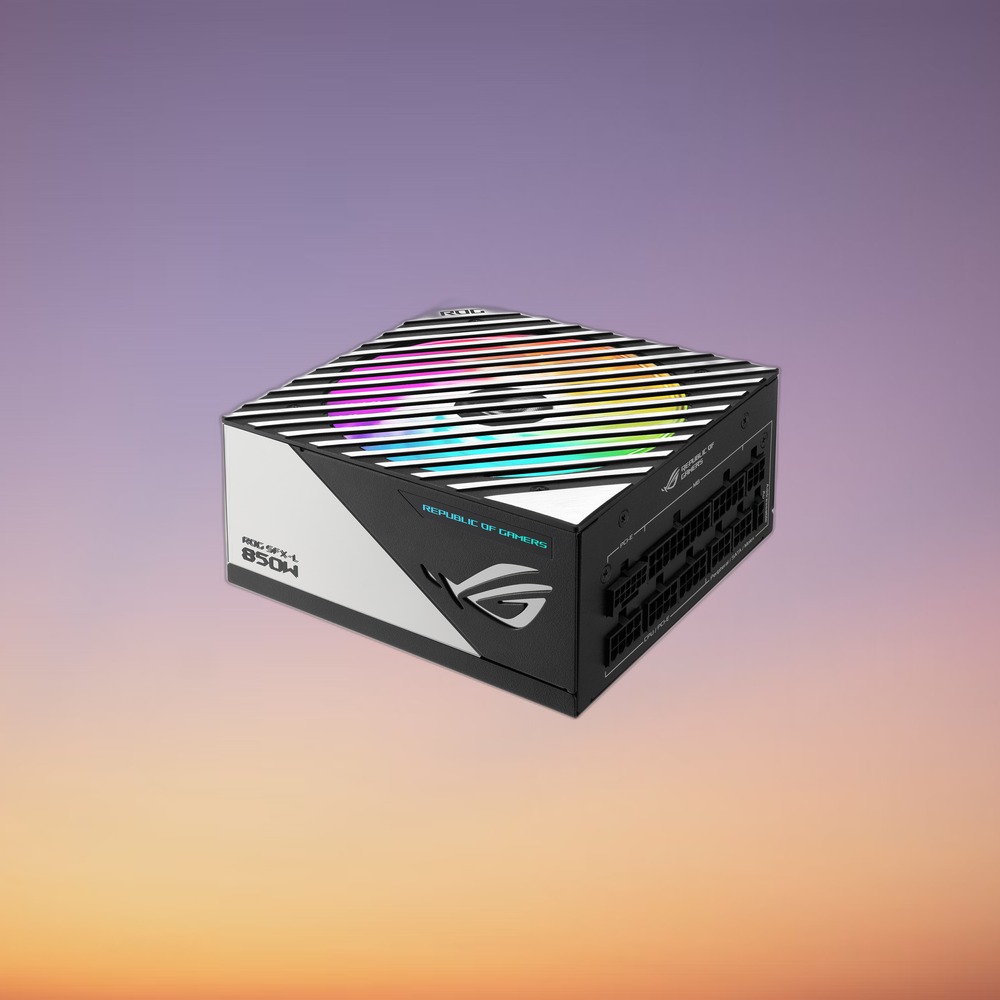

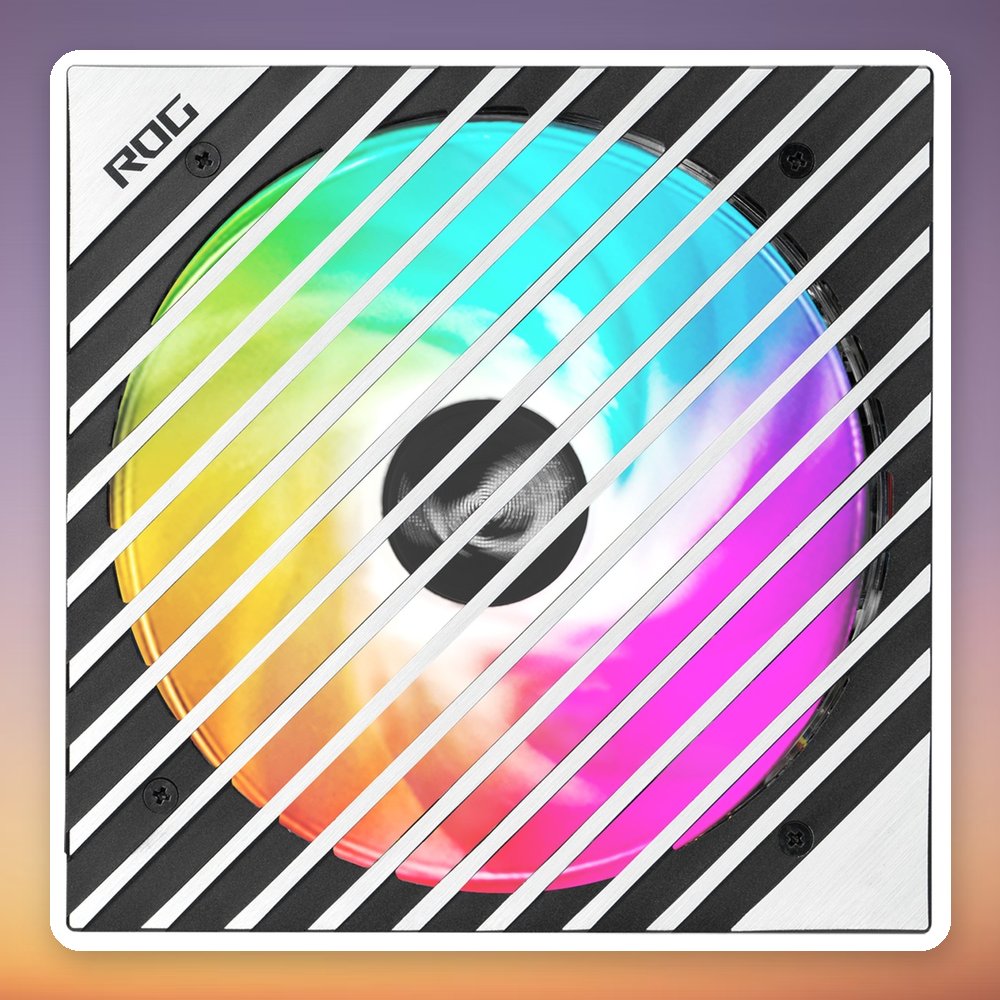

• Cooling: 1x 120 mm fan, semi-passive, temperature controlled, 0dB button

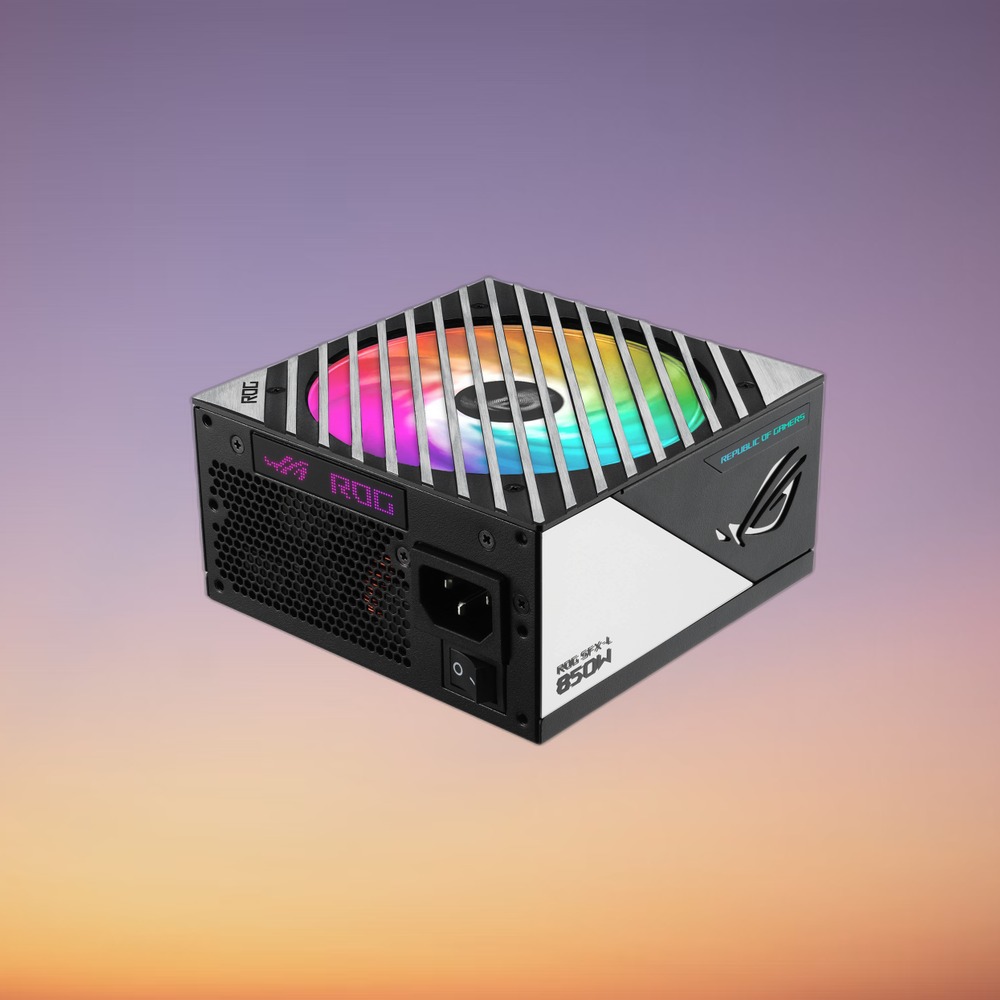

• Lighting: ARGB fan (8 addressable LEDs), Aura Sync
• Protections: OCP, OVP, UVP, OPP, SCP, OTP

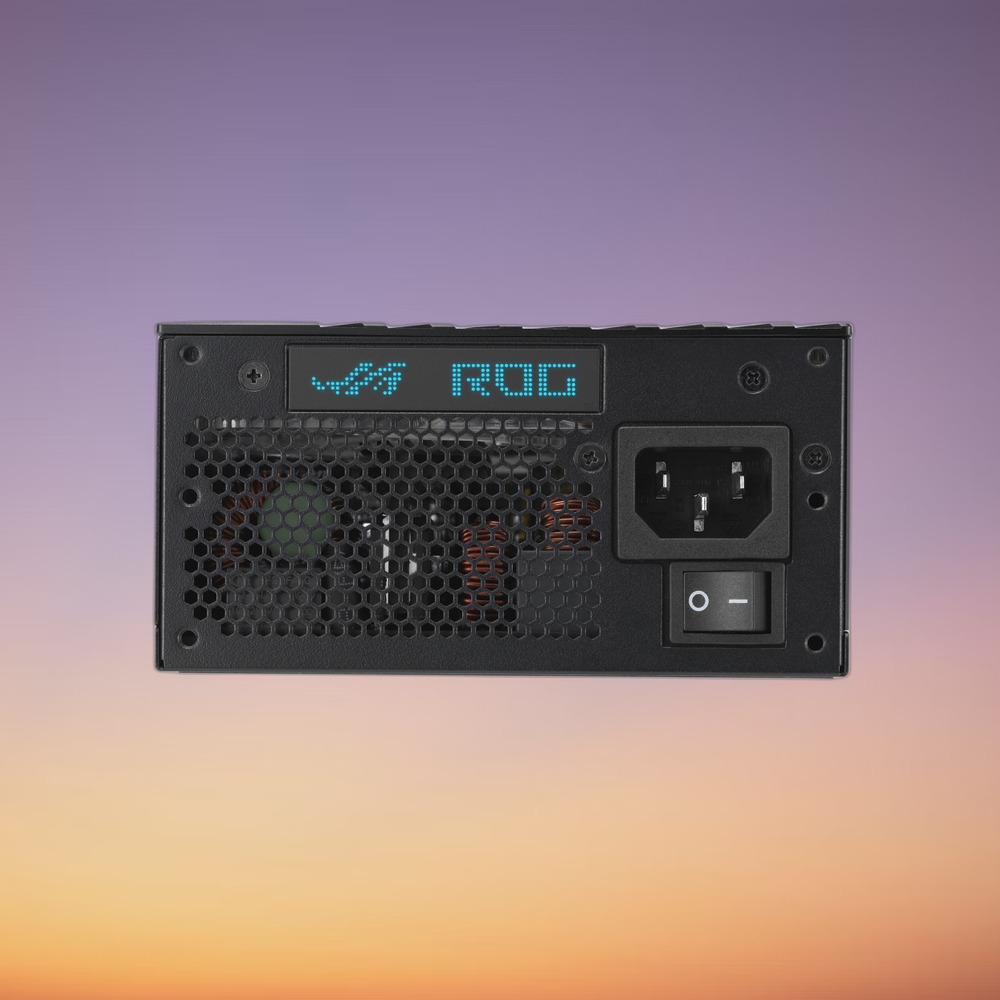

• Input voltage: 100-240 V, active PFC
• Dimensions (W x H x D): 125 x 63.5 x 125 mm
• Weight: 1.8 kg
