MSI PRO B860M-P WIFI6E Intel B860 LGA 1851 µATX Motherboard, DDR5, Wi-Fi 6E

€174.76

Delivery: 7-12 business days
MSI PRO B860M-P WIFI6E Intel B860 LGA 1851 µATX Motherboard, DDR5, Wi-Fi 6E

  • PCIe Gen 5.0 M.2 slot plus a second Gen 4.0 slot
  • Four DDR5 slots, up to 256 GB, O.C. to DDR5-8800+
  • Wi-Fi 6E, Bluetooth 5.3 and 2.5G LAN onboard
  • Supports Core Ultra 3, 5, 7 and 9 on LGA 1851

More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.

In stock

SKU: 100219528 Category: Brand:

✅

Product Overview

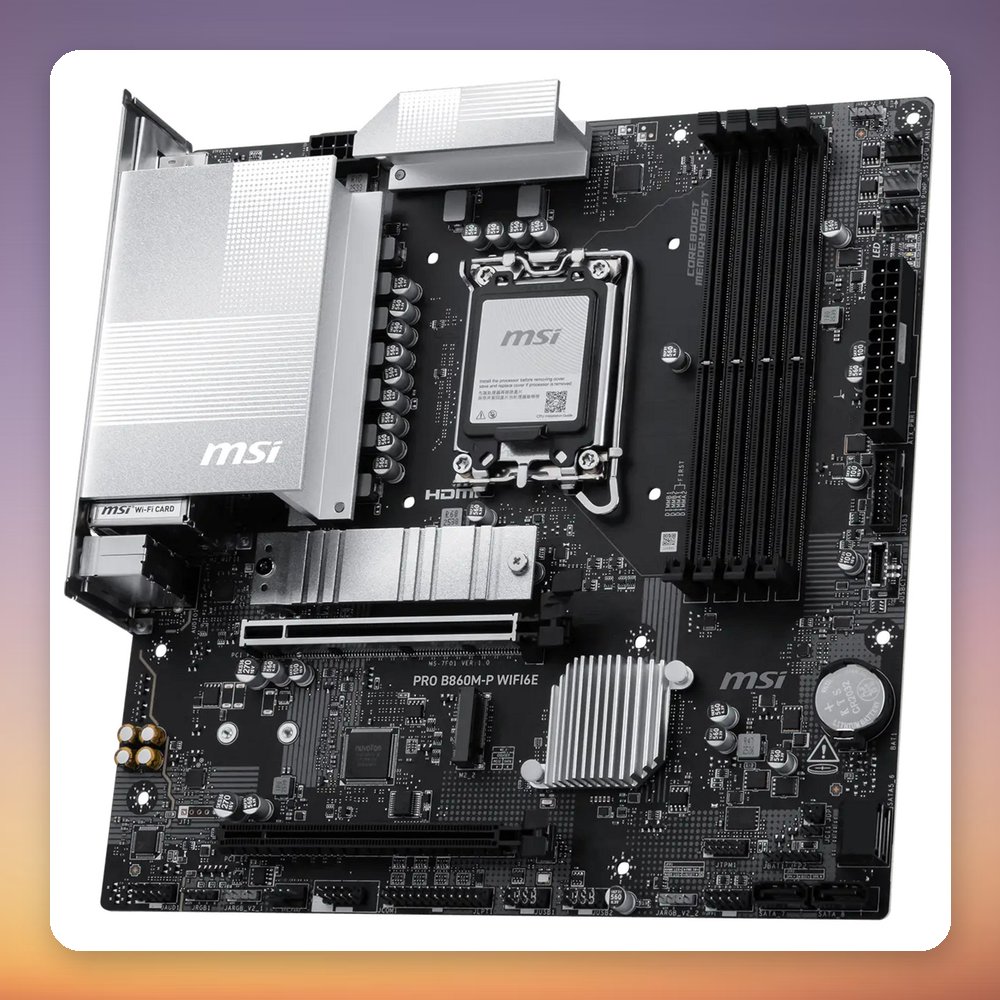

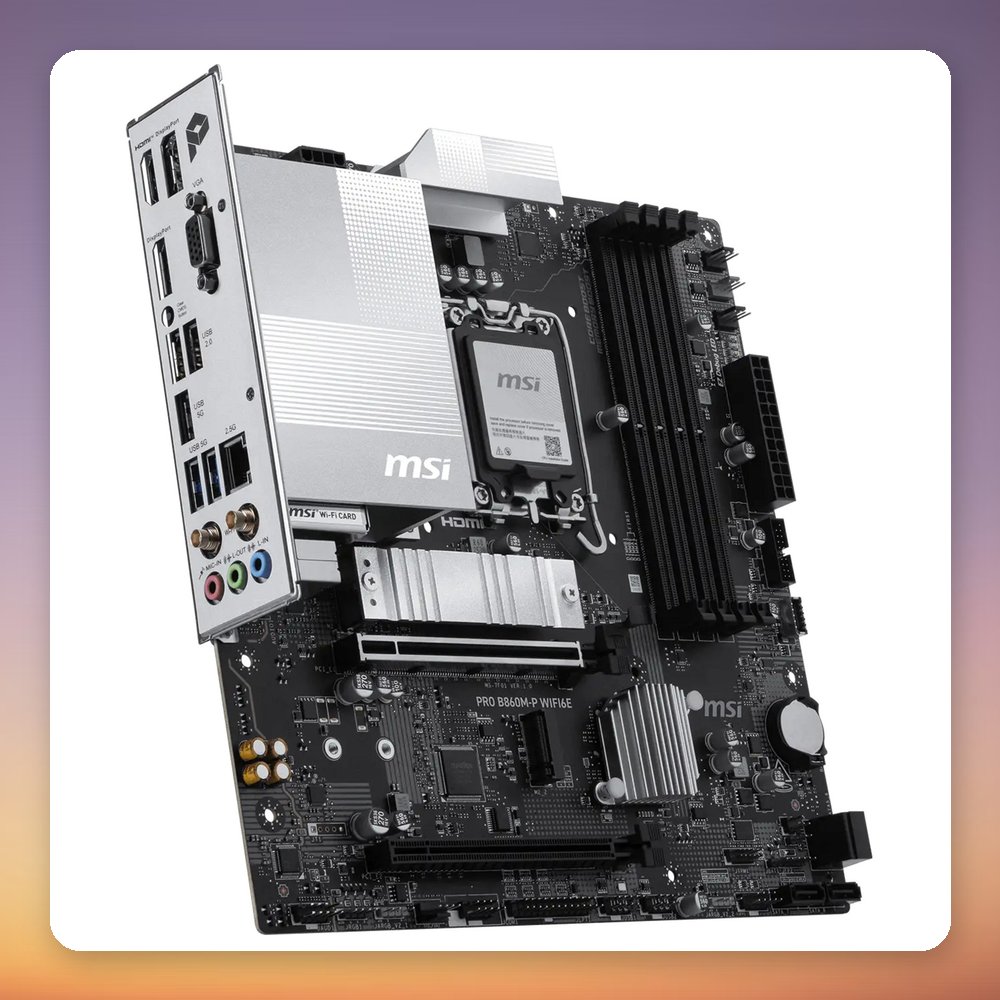

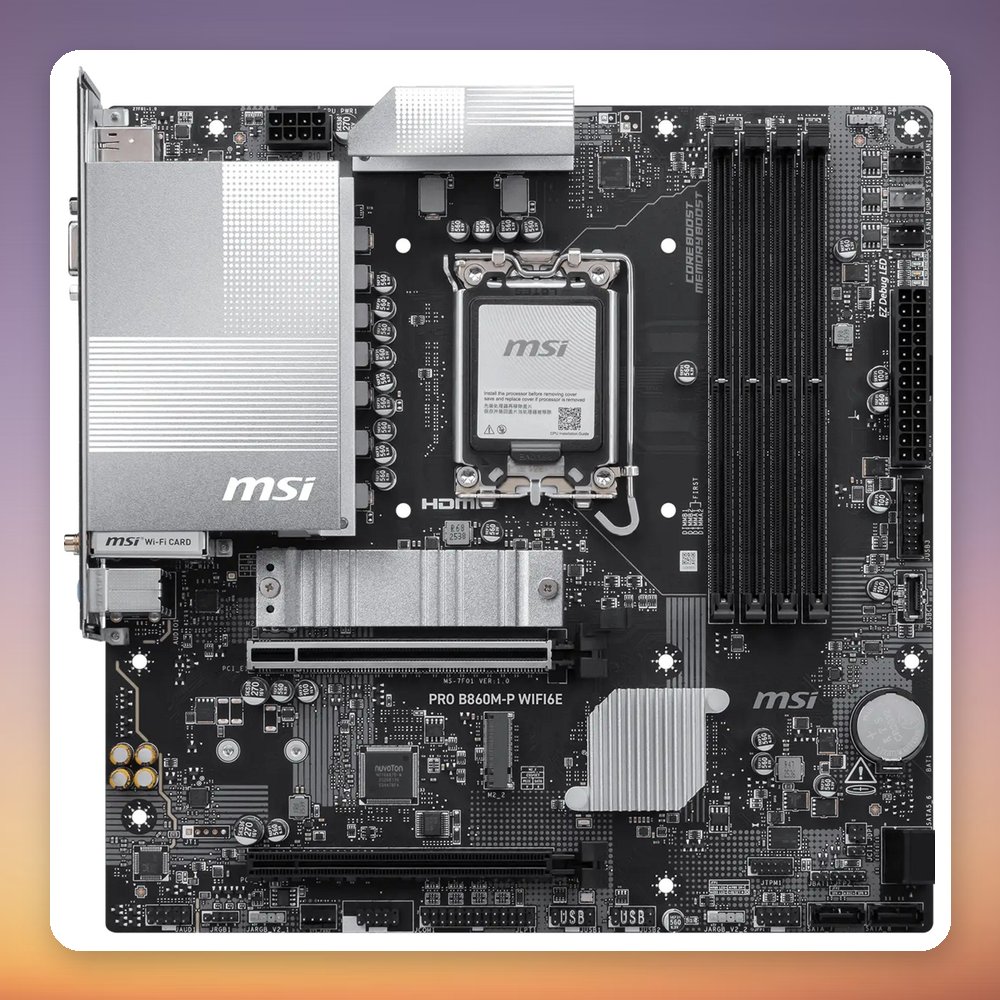

The MSI PRO B860M-P WIFI6E is a µATX motherboard built on the Intel B860 chipset for LGA 1851 Arrow Lake processors, covering Core Ultra 3, 5, 7 and 9 CPUs. It has four DDR5 slots supporting up to 256 GB, an M.2 slot running at PCIe Gen 5.0 and a second at Gen 4.0, plus Realtek 2.5G LAN and Wi-Fi 6E with Bluetooth 5.3 onboard.

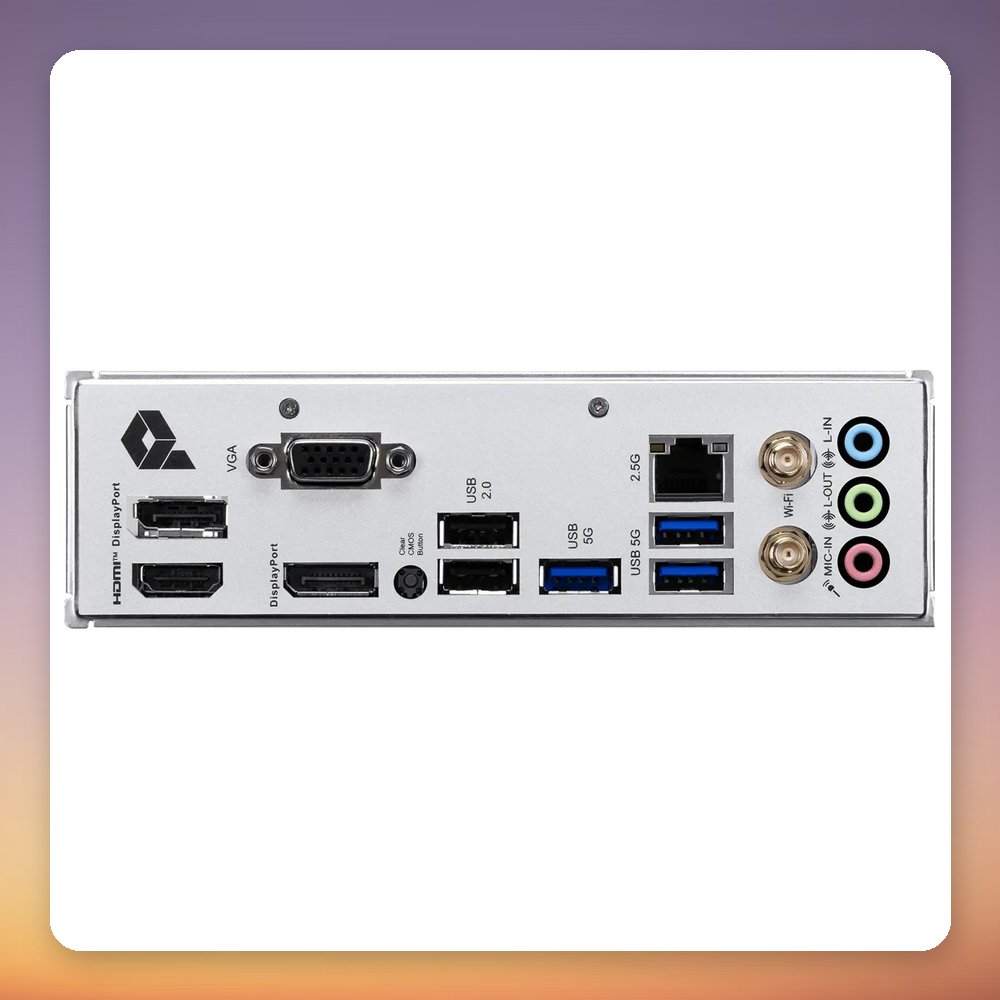

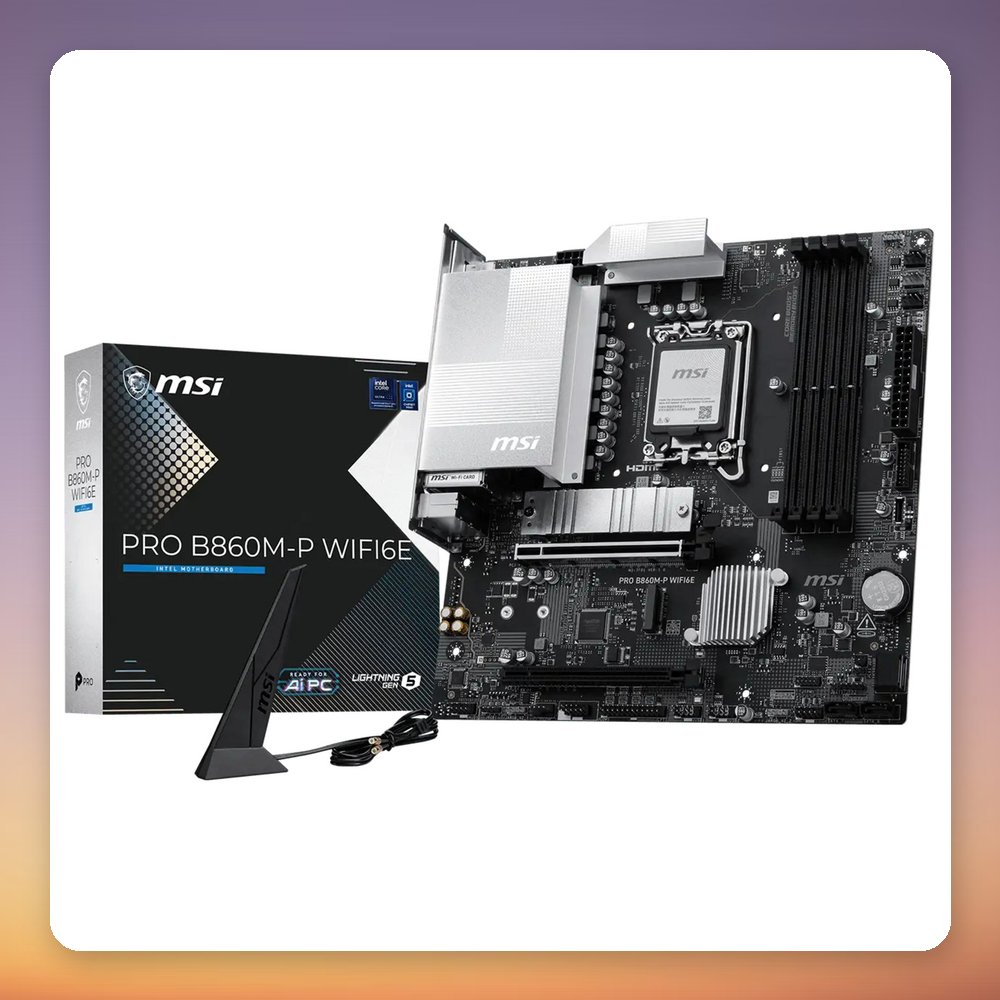

This board suits compact and mid-range Intel builds that still need modern connectivity. The PCIe x16 slot handles a graphics card, while the extra x4 slot, four SATA ports and two M.2 sockets give room for storage. Rear I/O includes HDMI, two DisplayPort outputs, VGA and USB-A ports up to 10 Gbit/s. The data notes a BIOS update may be needed for the newest processors. An EZ WiFi antenna, SATA cable and M.2 screws are included.

Specification

  • Manufacturer: MSI
  • Model: PRO B860M-P WIFI6E
  • MPN: 7F01-001R
  • EAN: 4711377432696
  • Socket: LGA 1851
  • Chipset: Intel B860
  • Form factor: µATX
  • Memory: 4x DDR5, up to 256 GB, dual channel
  • Memory speed: DDR5-8800+ (O.C.); 6400-4800 (JEDEC)
  • Expansion slots: 1x PCIe x16, 1x PCIe x4 (x16 size)
  • M.2 slots: 2x M.2 Key M (Slot 1 PCIe Gen 5.0, Slot 2 PCIe Gen 4.0), 60-80 mm
  • SATA: 4x SATA, RAID 0/1/5/10
  • LAN: Realtek 8125 2.5G
  • Wireless: Wi-Fi 6E, Bluetooth 5.3
  • Audio: Realtek ALC897
  • Video outputs: 1x HDMI, 2x DisplayPort, 1x VGA (CPU with integrated graphics required)
  • Rear USB: 1x USB-A 10 Gbit/s, 3x USB-A 5 Gbit/s, 2x USB 2.0
  • Power connectors: ATX 24-pin + 8-pin
  • Dimensions (W x H): 243.84 x 243.84 mm

return to the shop
see our fanpage

delivery time 7-12 business days

Weight 1.1 kg
