Product Overview

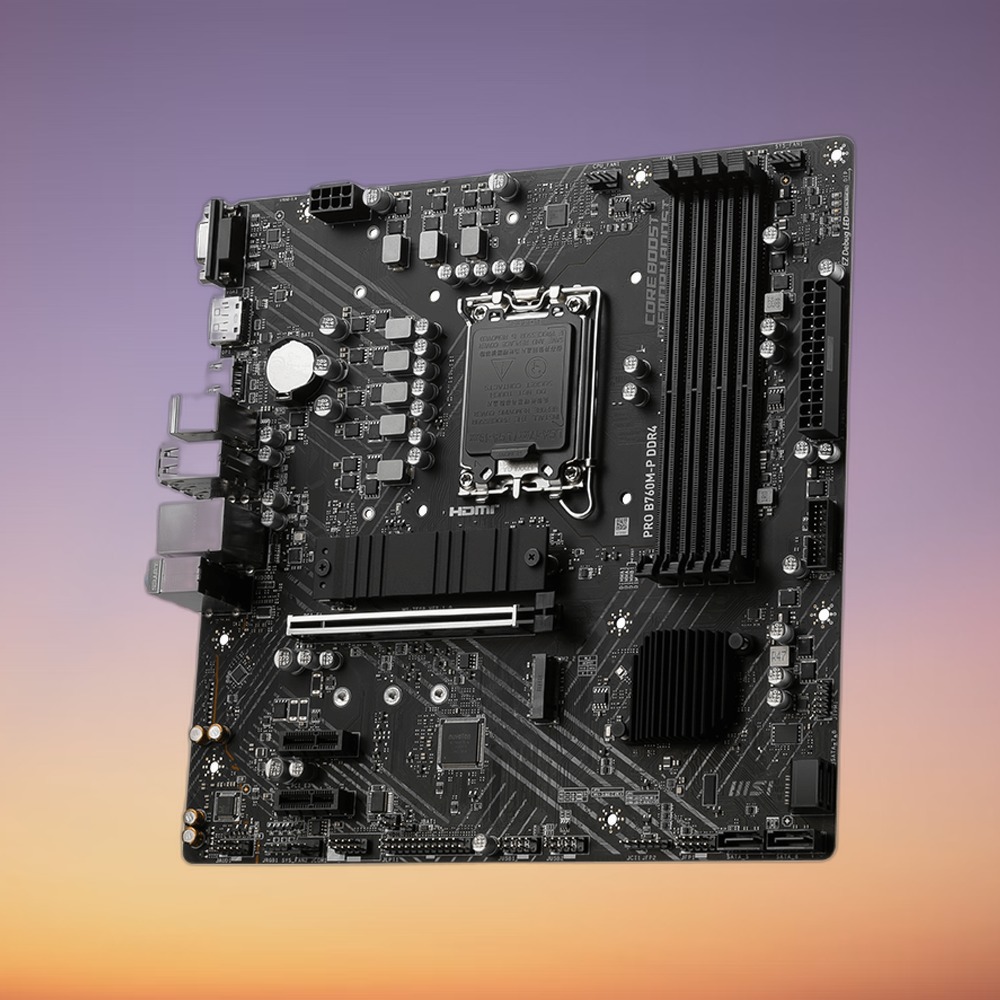

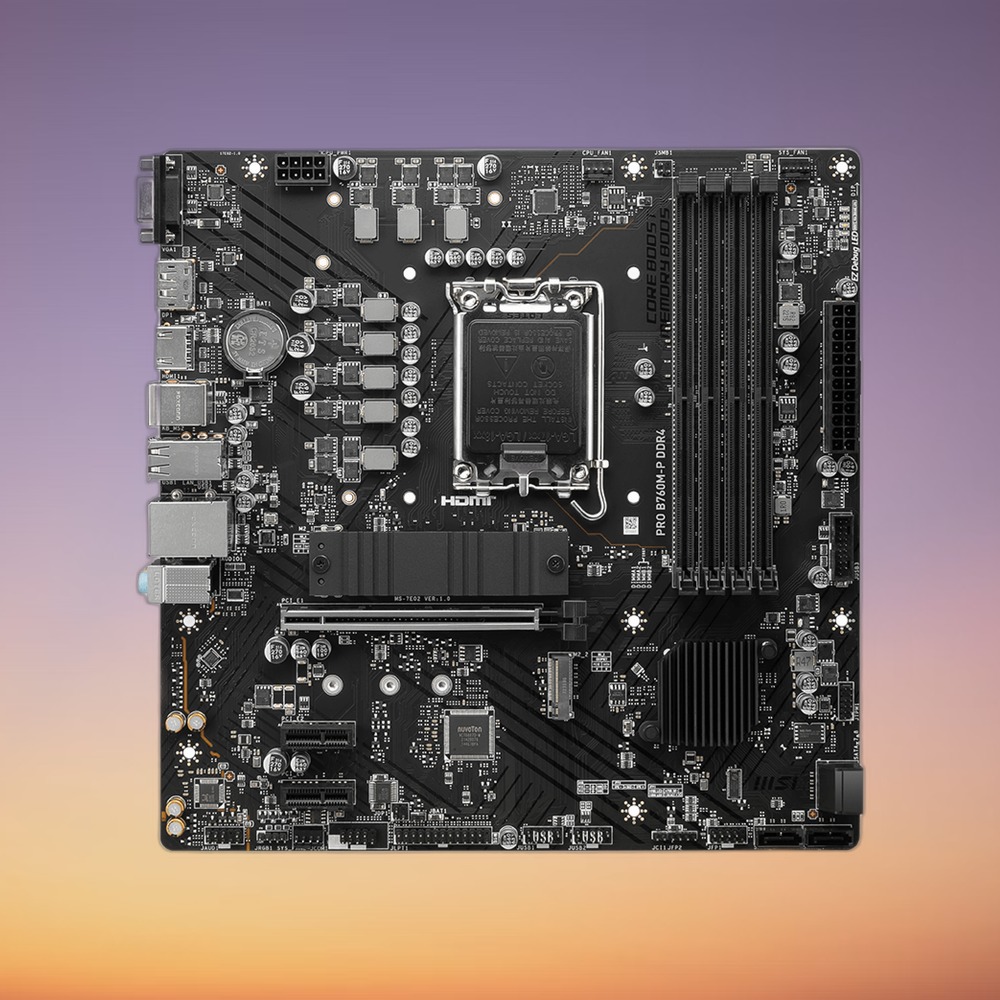

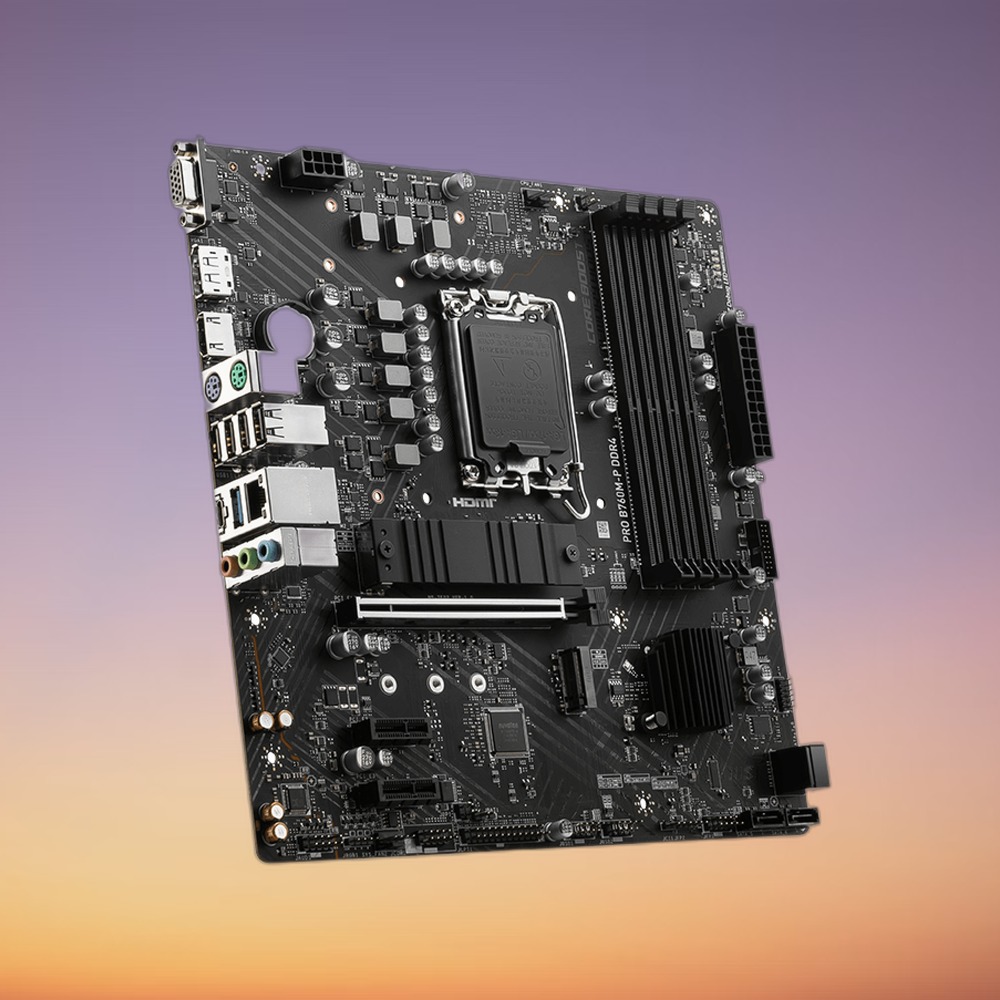

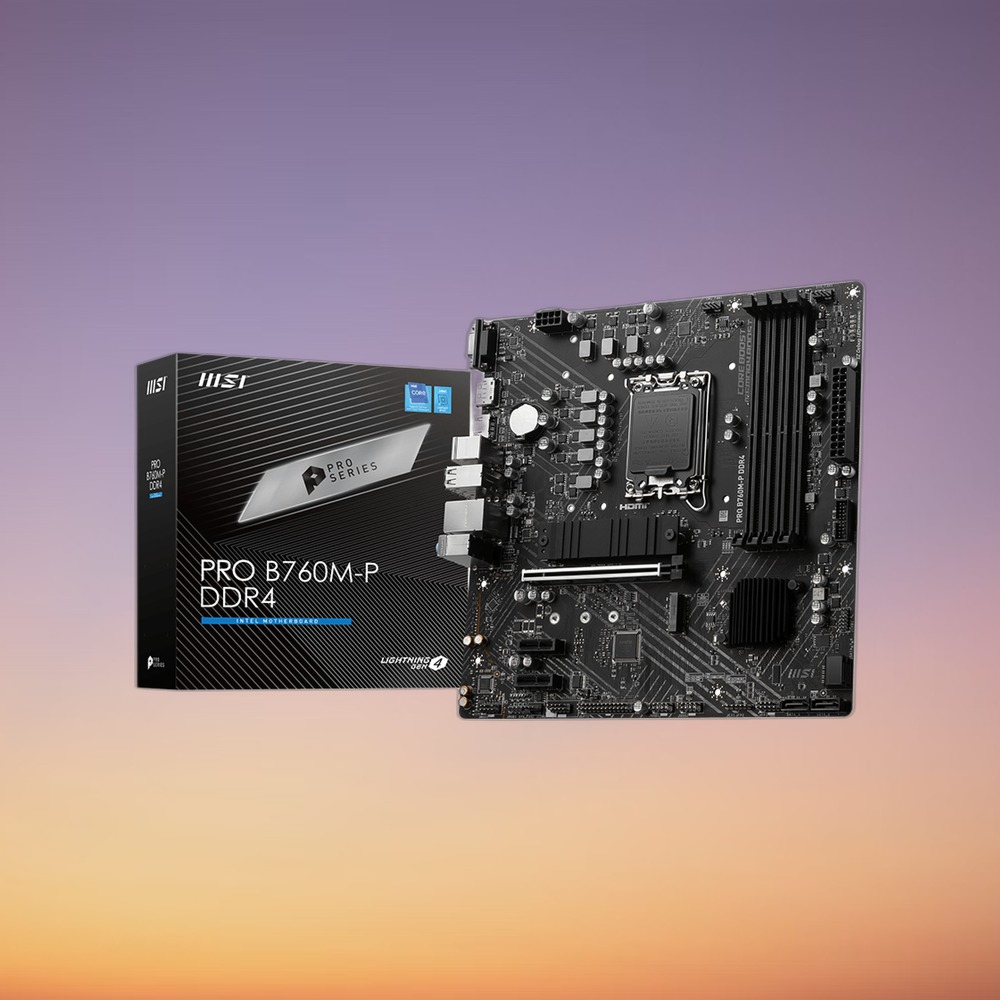

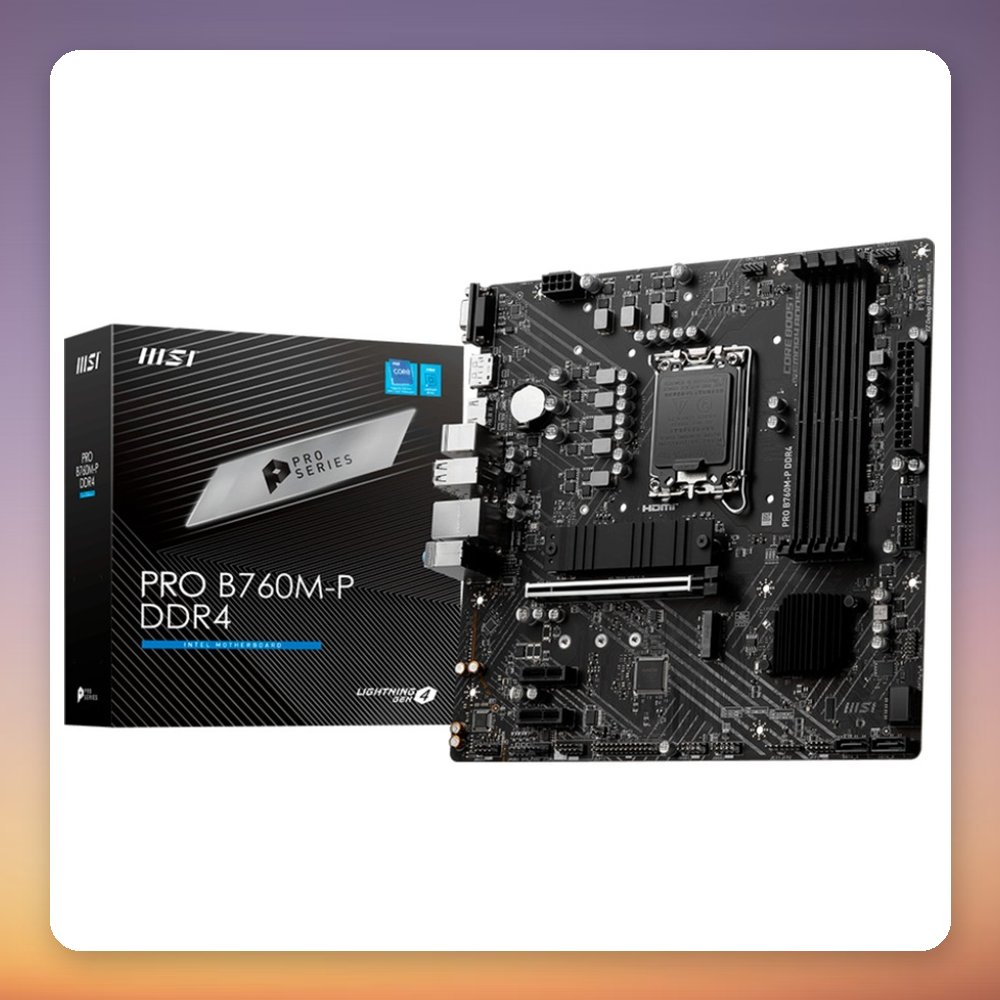

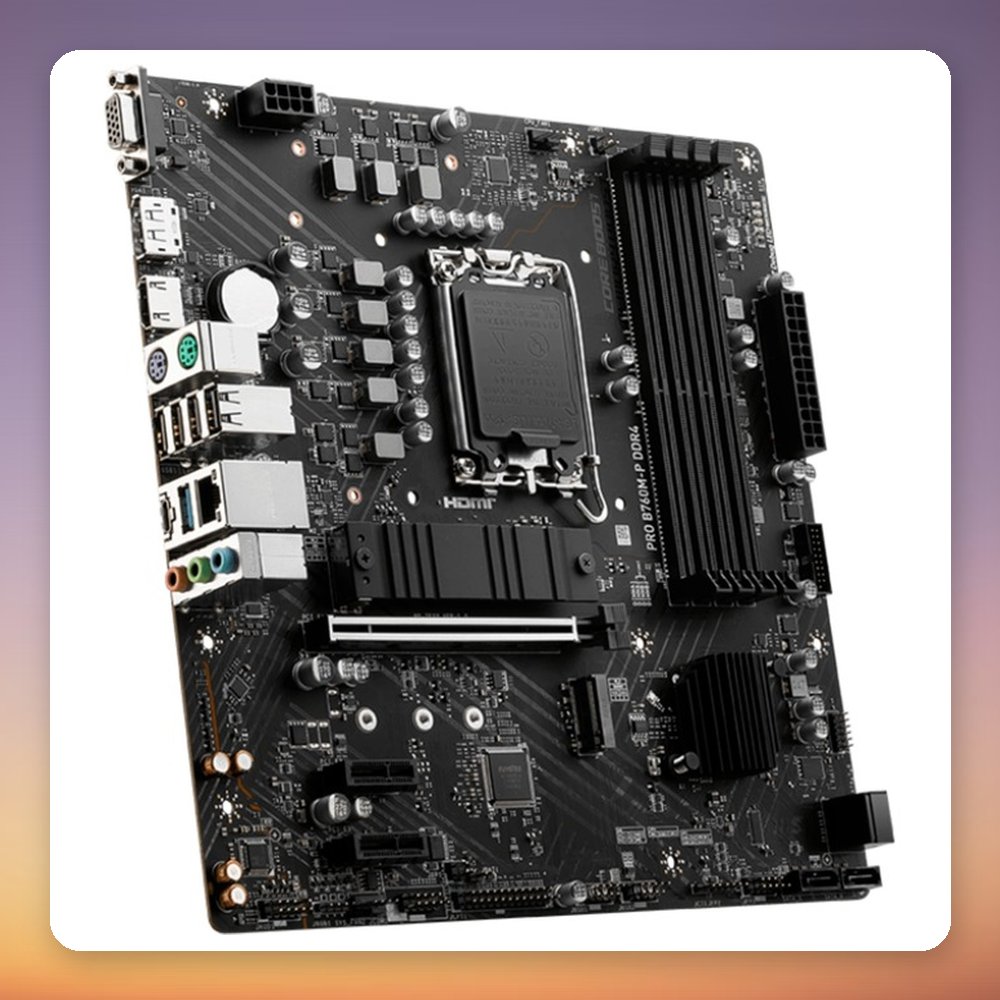

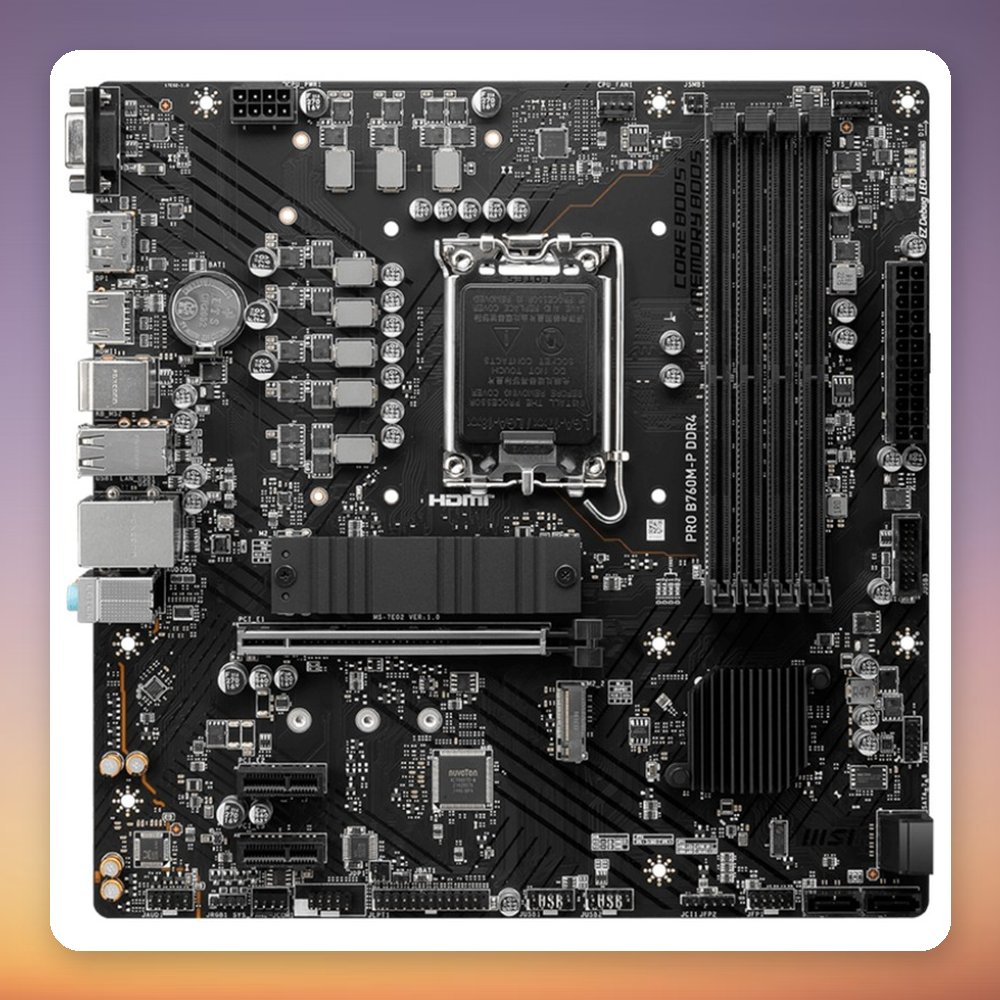

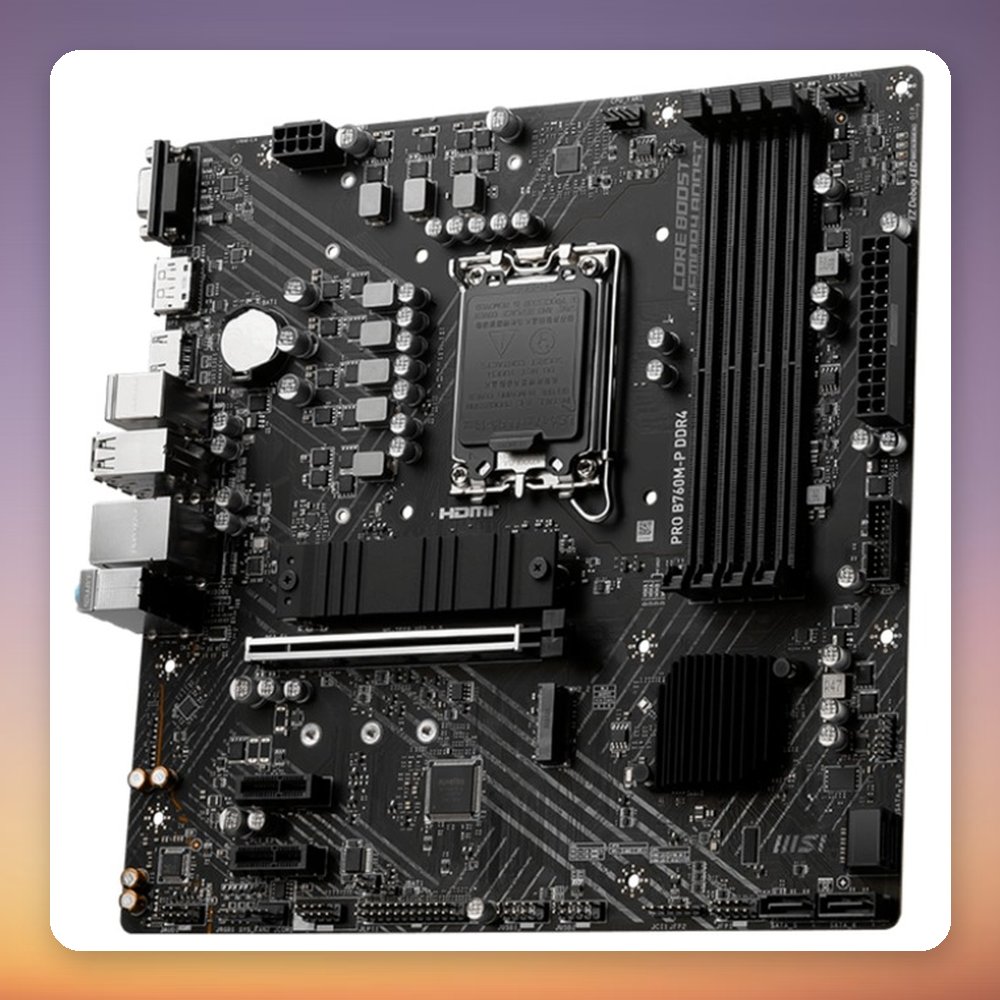

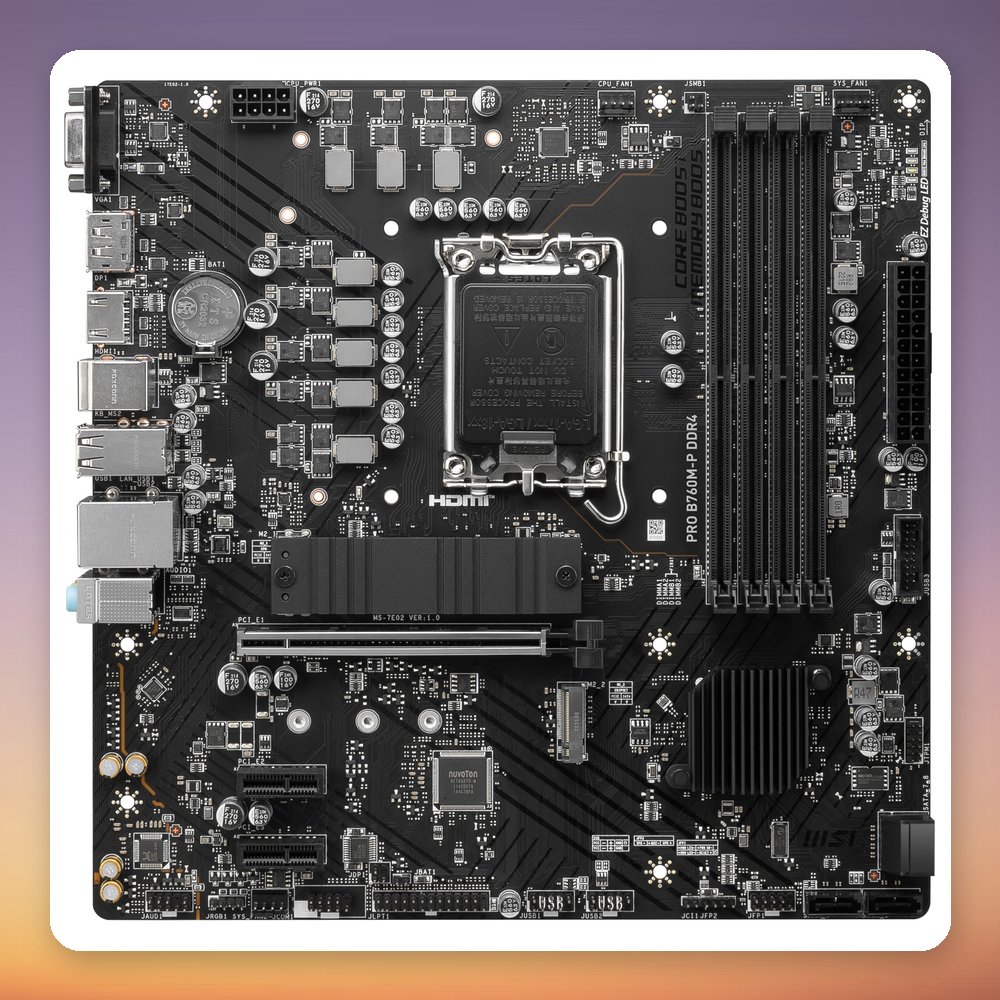

The MSI PRO B760M-P DDR4 is a micro ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It takes up to 128 GB of dual-channel DDR4 across four DIMM slots, with memory support listed up to DDR4-4800 (OC). Storage is well covered by two M.2 slots (PCIe Gen 4.0, 42 to 80 mm) and four SATA ports, with RAID 0, 1, 5 and 10 available.

This board suits a compact, cost-conscious Intel build where you want to keep using DDR4 memory. A single PCIe 4.0 x16 slot takes the graphics card, and two PCIe x1 slots handle add-in cards. Rear I/O includes a USB-C 3.2 Gen 2 port (10 Gbit/s), HDMI, DisplayPort, VGA and Gigabit LAN. Video outputs only work with a CPU that has integrated graphics, and a BIOS update may be needed for the newest processors.

Specification

• Manufacturer: MSI
• Model: PRO B760M-P DDR4
• MPN: 7E02-001R
• EAN: 4711377030991
• CPU socket: LGA 1700
• Chipset: Intel B760
• Form factor: micro ATX
• Memory type: 4x DDR4 DIMM, dual-channel, non-ECC
• Max. memory: 128 GB
• Memory speeds: DDR4-2133 to DDR4-4800 (OC); JEDEC up to DDR4-3200
• M.2 slots: 2x M-key, PCIe Gen 4.0, 42 to 80 mm (SATA and PCIe)
• SATA ports: 4x SATA III, RAID 0/1/5/10
• Expansion slots: 1x PCIe 4.0 x16, 2x PCIe x1

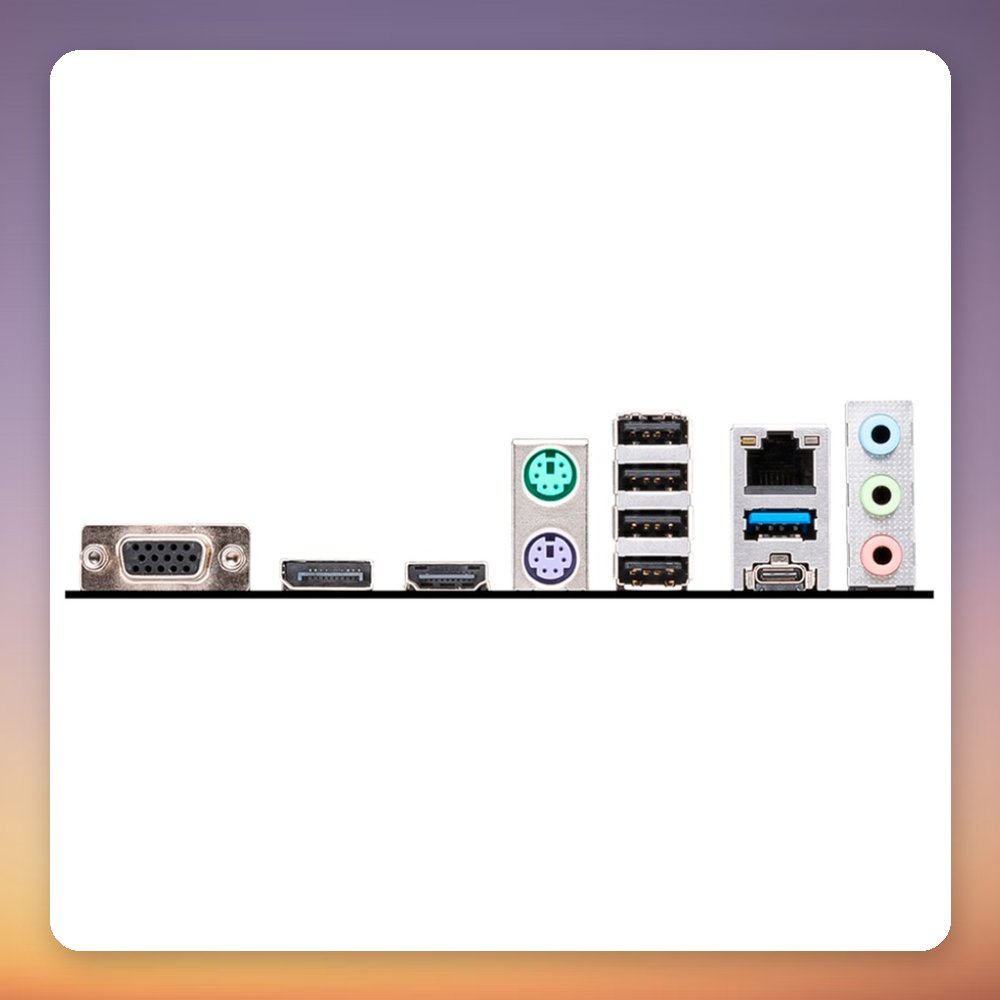

• Rear USB: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 1, 4x USB-A 2.0
• Video outputs: HDMI, DisplayPort, VGA (requires CPU with integrated graphics)
• LAN: Realtek RTL8111H Gigabit LAN
• Audio: Realtek ALC897, 7.1 channels
• Power connectors: 24-pin ATX + 8-pin ATX12V
• Dimensions (W x D): 244 x 244 mm
