Product Overview

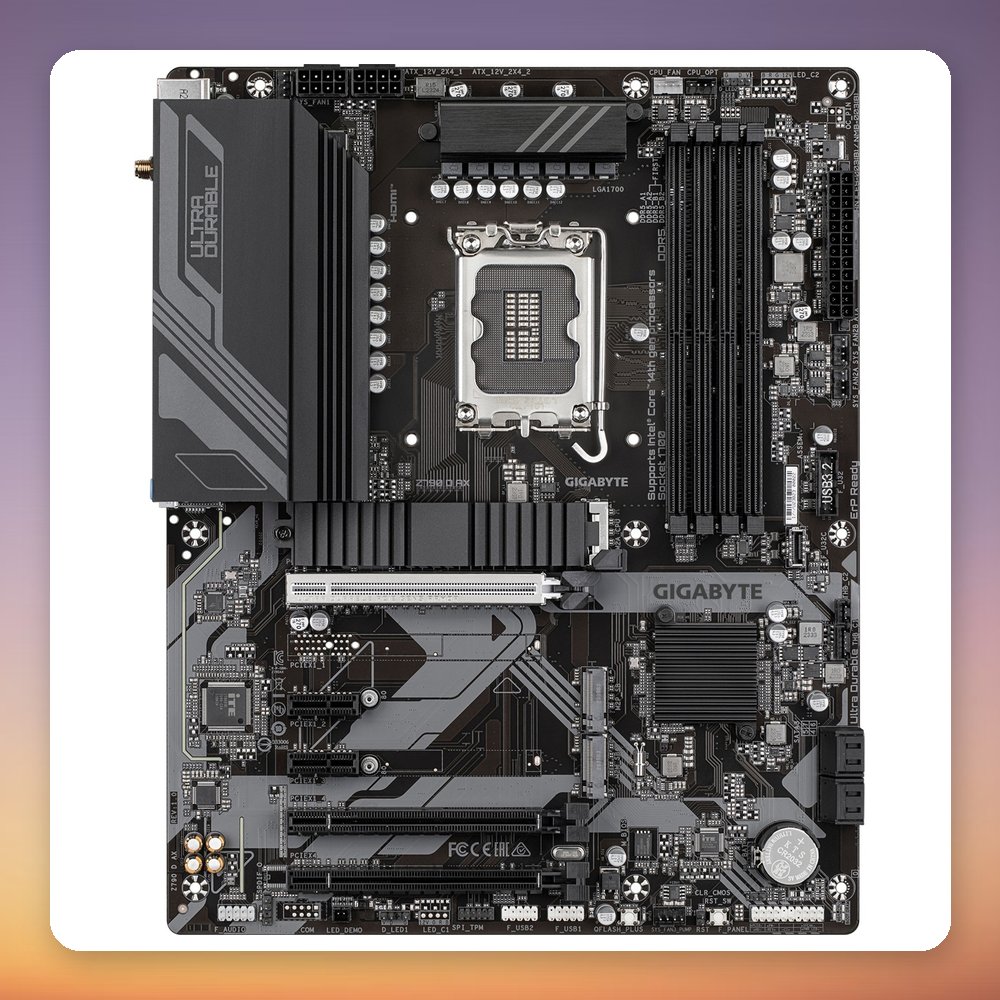

The Gigabyte Z790 D AX is an ATX motherboard for LGA 1700 Intel processors, built on the Intel Z790 chipset. It has four DDR5 DIMM slots supporting speeds up to 7600 MHz (O.C.), three M.2 slots, a PCIe 5.0 x16 slot, and Intel Wi-Fi 6E AX211 with Bluetooth 5.3 alongside Realtek 2.5GbE LAN.

This board suits a mainstream Intel gaming or general-purpose build where you want current wireless, fast networking and plenty of storage options. The rear I/O includes HDMI 2.1, DisplayPort 1.2, a USB-C port and one 10 Gbit/s USB-A port, and the board offers RGB Fusion headers plus five 4-pin PWM fan connectors. Note that a BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: GigaByte
• Model: Z790 D AX
• MPN: Z790 D AX
• EAN: 4719331860592
• Socket: LGA 1700
• Chipset: Intel Z790 Express
• Form factor: ATX
• Memory slots: 4x DDR5 DIMM, dual-channel
• Memory speed: DDR5-4400 to DDR5-7600 (O.C.)
• Maximum memory: 256 GB (per Wave); Icecat lists 192 GB
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe 3.0 x1
• M.2 slots: 3x M.2 (M key), PCIe, 80-110 mm
• SATA ports: 4x SATA III, RAID 0/1/5/10
• Networking: Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX211, Bluetooth 5.3
• Rear USB: 1x USB-A 10 Gbit/s, 1x USB-C 5 Gbit/s, 4x USB-A 5 Gbit/s, 2x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.2
• Audio: Realtek ALC897, 7.1 channels
• RGB and fans: 2x RGB, 2x addressable RGB, 5x 4-pin PWM fan headers
• Dimensions (W x H): 244 x 305 mm
