Product Overview

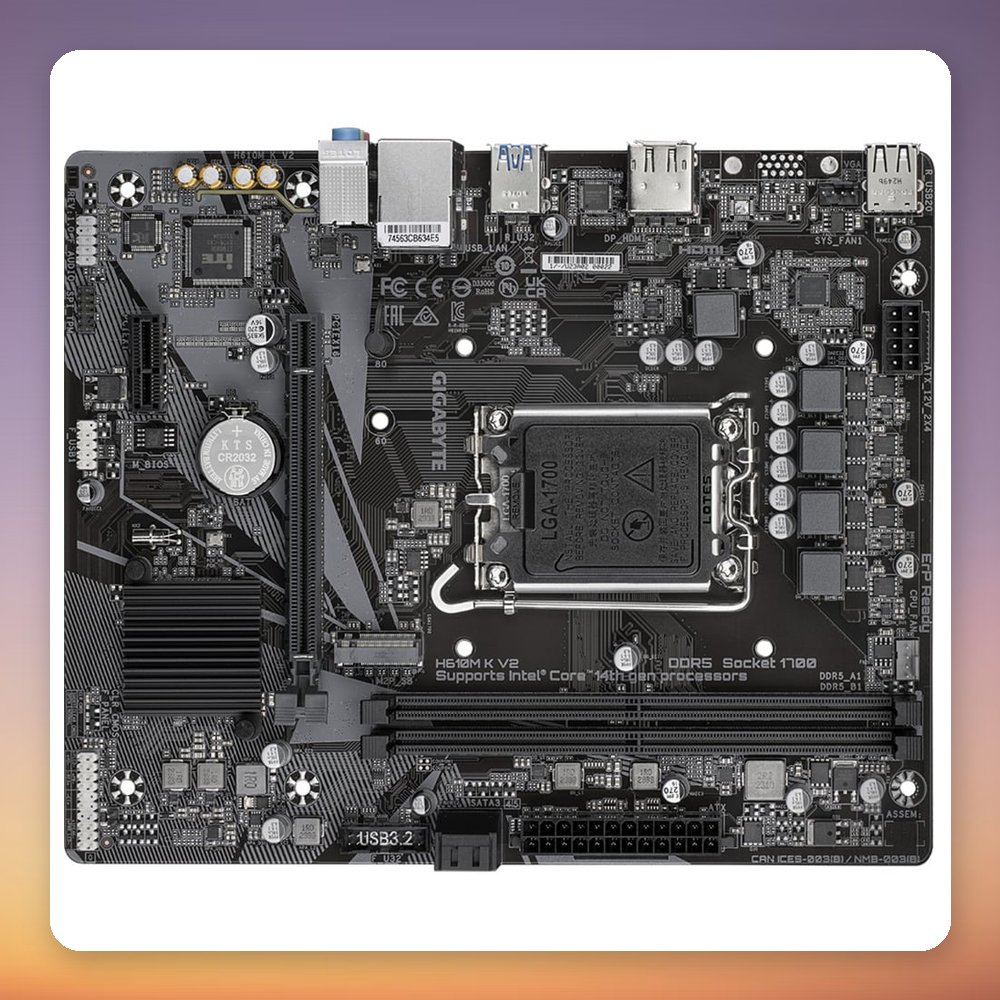

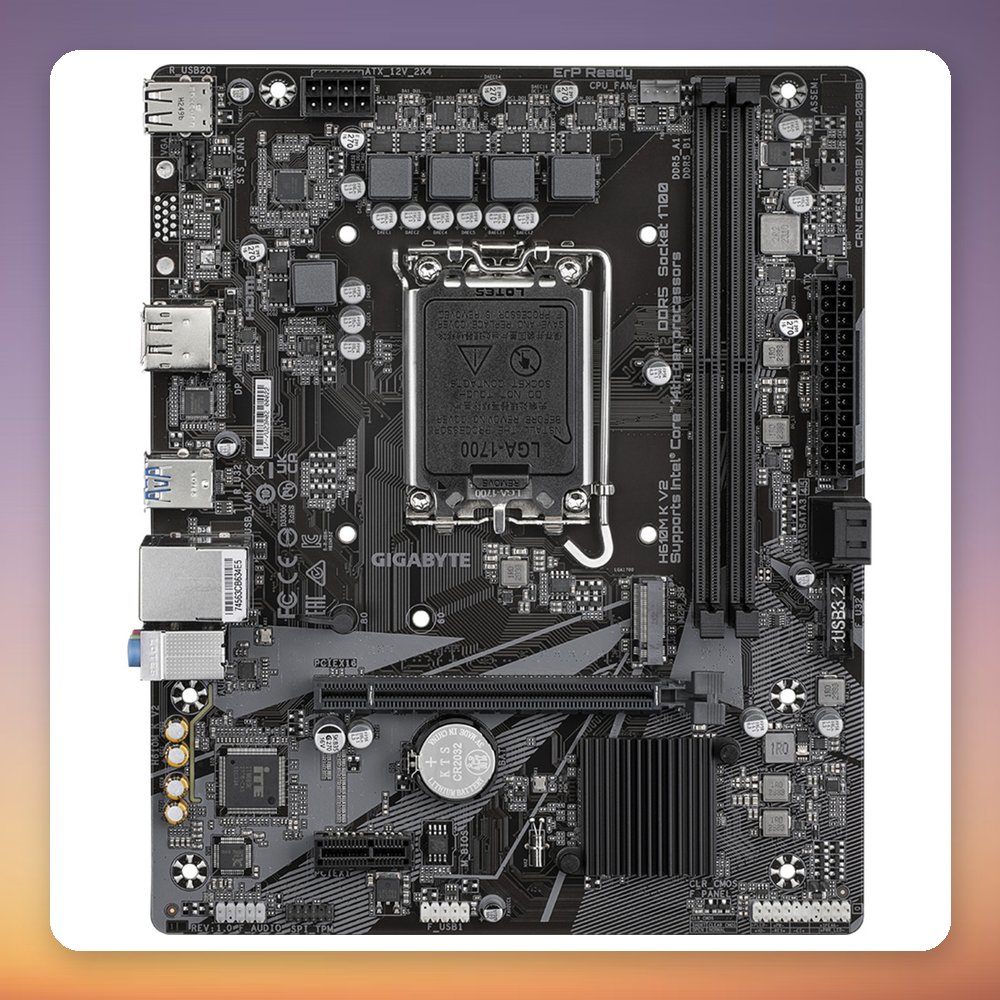

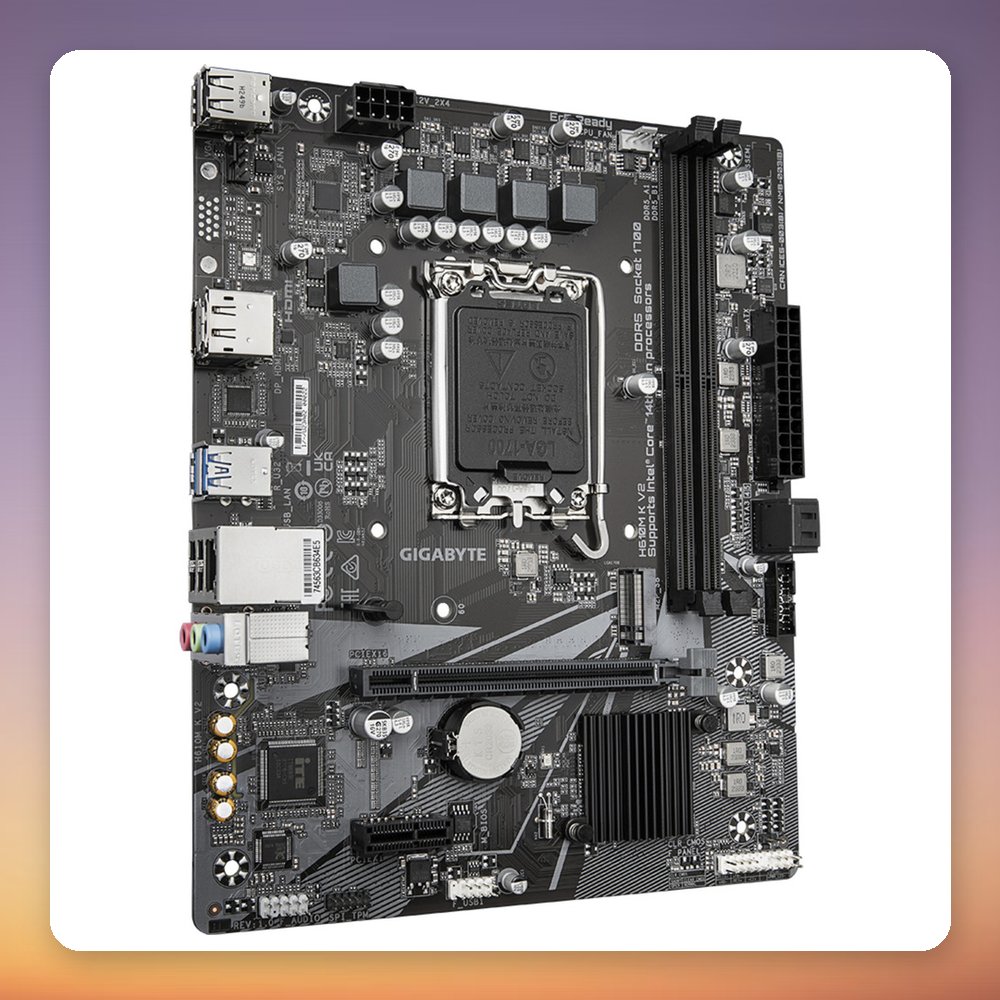

The GigaByte H610M K V2 is a micro ATX motherboard built on the Intel H610 chipset for LGA 1700 processors. It uses two DDR5 DIMM slots in dual-channel mode, supporting up to 128 GB of memory at speeds up to 5600 MHz, which sets it apart from H610 boards that stay on DDR4. It has a PCIe 4.0 x16 slot, one M.2 2280 slot and two SATA III ports.

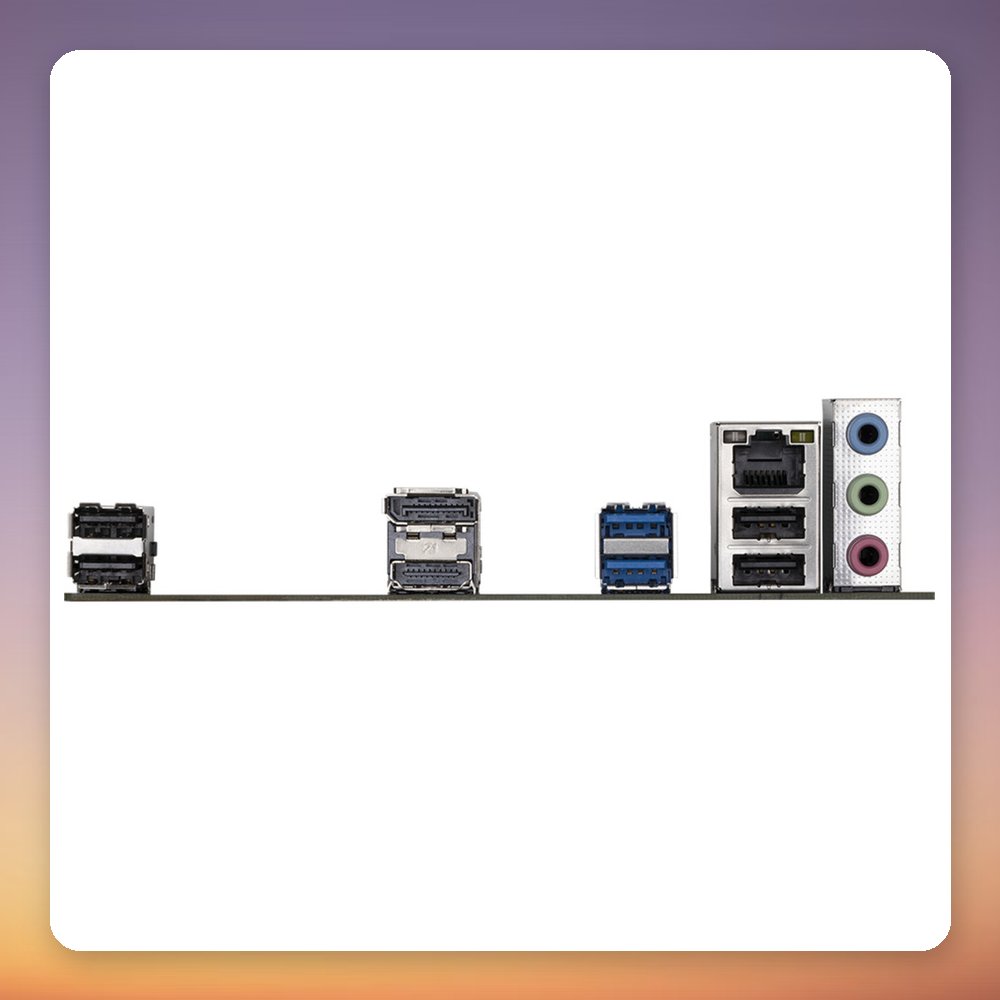

This board suits compact, budget-friendly builds around Intel Celeron, Pentium Gold and Core i3 to i9 processors from the 12th, 13th and 14th generations. Connectivity includes Gigabit LAN (Realtek RTL8111H), 7.1-channel audio (Realtek ALC897), HDMI 2.1 and DisplayPort 1.2 video outputs, two USB 3.2 Gen 1 and four USB 2.0 ports at the rear. There is no onboard Wi-Fi, and some CPUs may need a BIOS update before they are recognised.

Specification

• Manufacturer: GigaByte
• Model: H610M K V2
• MPN: H610M K V2
• EAN: 47193318601340
• CPU socket: LGA 1700
• Chipset: Intel H610
• Form factor: micro ATX
• Memory type: DDR5, 2x DIMM slots, dual-channel
• Maximum memory: 128 GB (64 GB per slot)
• Supported memory speeds: 4400 / 4800 / 5200 / 5600 MHz
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• M.2 slots: 1x M.2 2280 (PCIe 3.0)
• SATA ports: 2x SATA III
• Rear USB ports: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.2
• Networking: Gigabit Ethernet (Realtek RTL8111H), no Wi-Fi
• Audio: Realtek ALC897, 7.1 channels
• Weight: 650 g
• Dimensions (W x H x D): 226 x 35 x 185 mm
• Manufacturer warranty: 3 years
