Product Overview

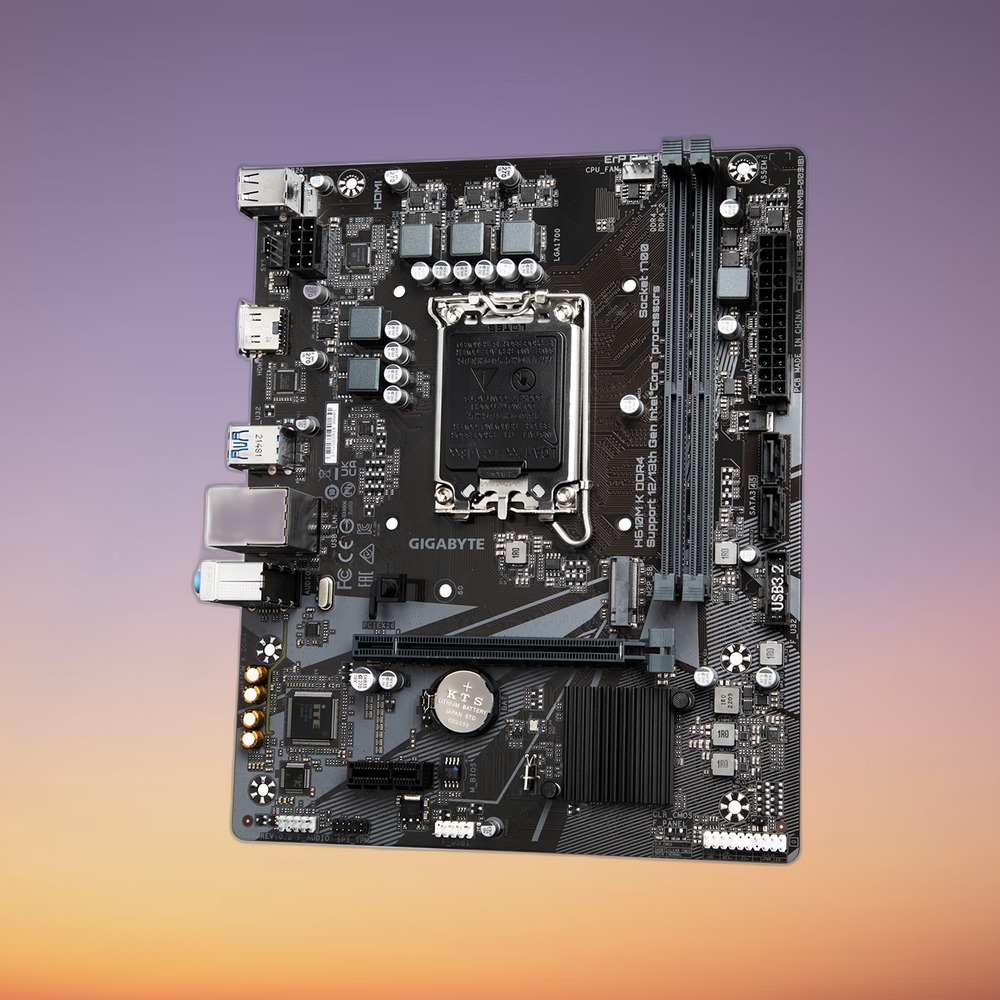

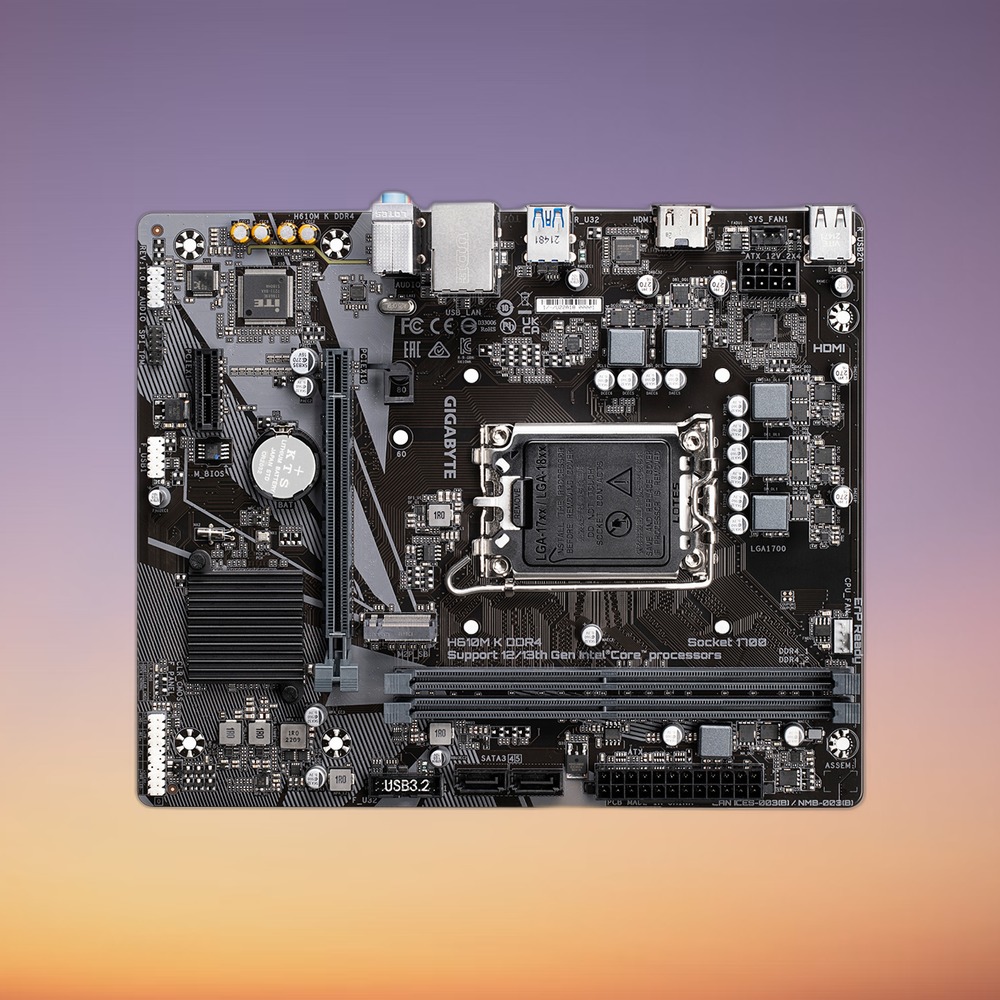

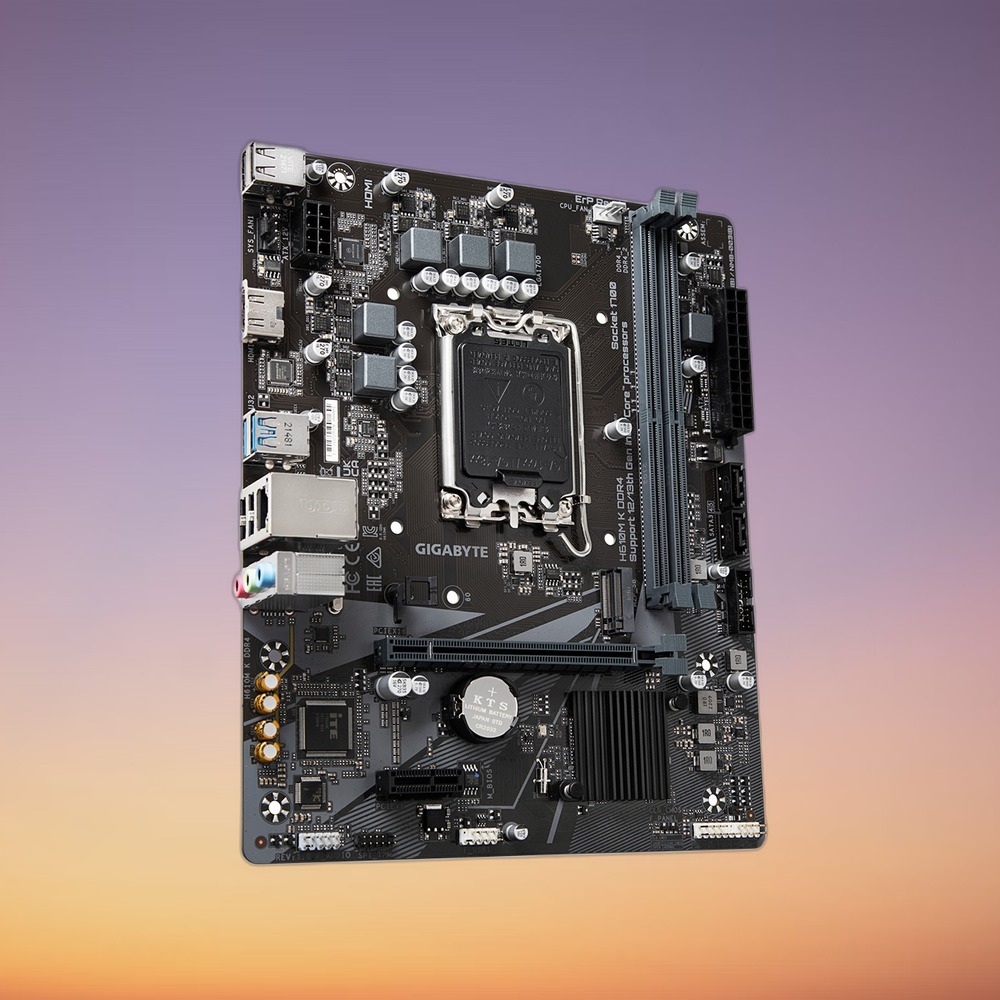

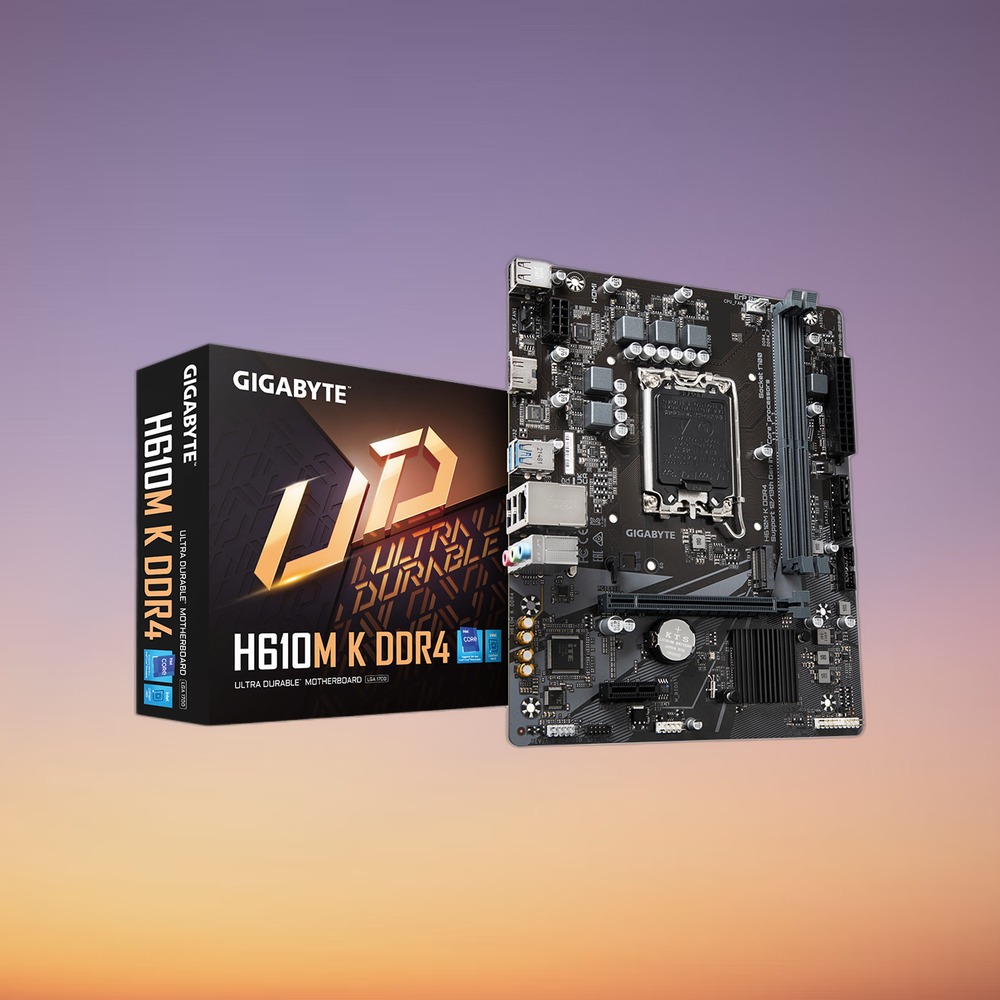

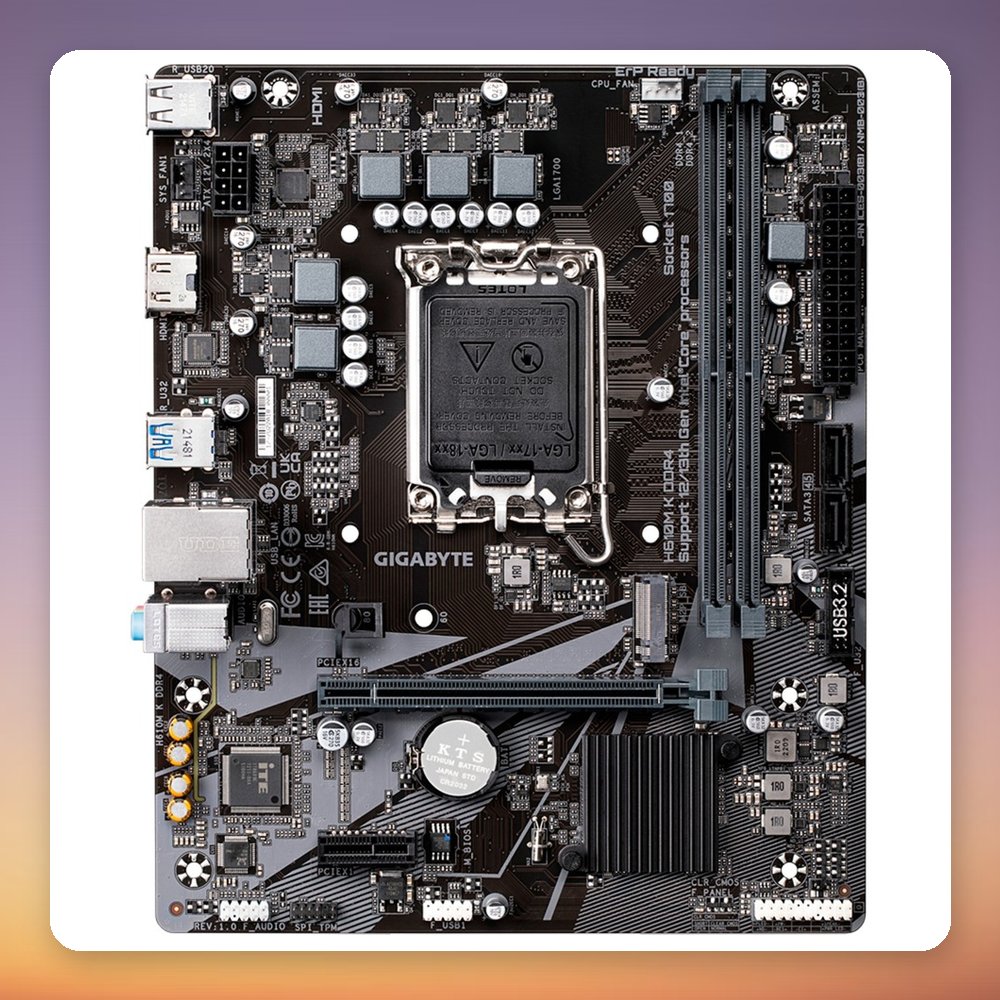

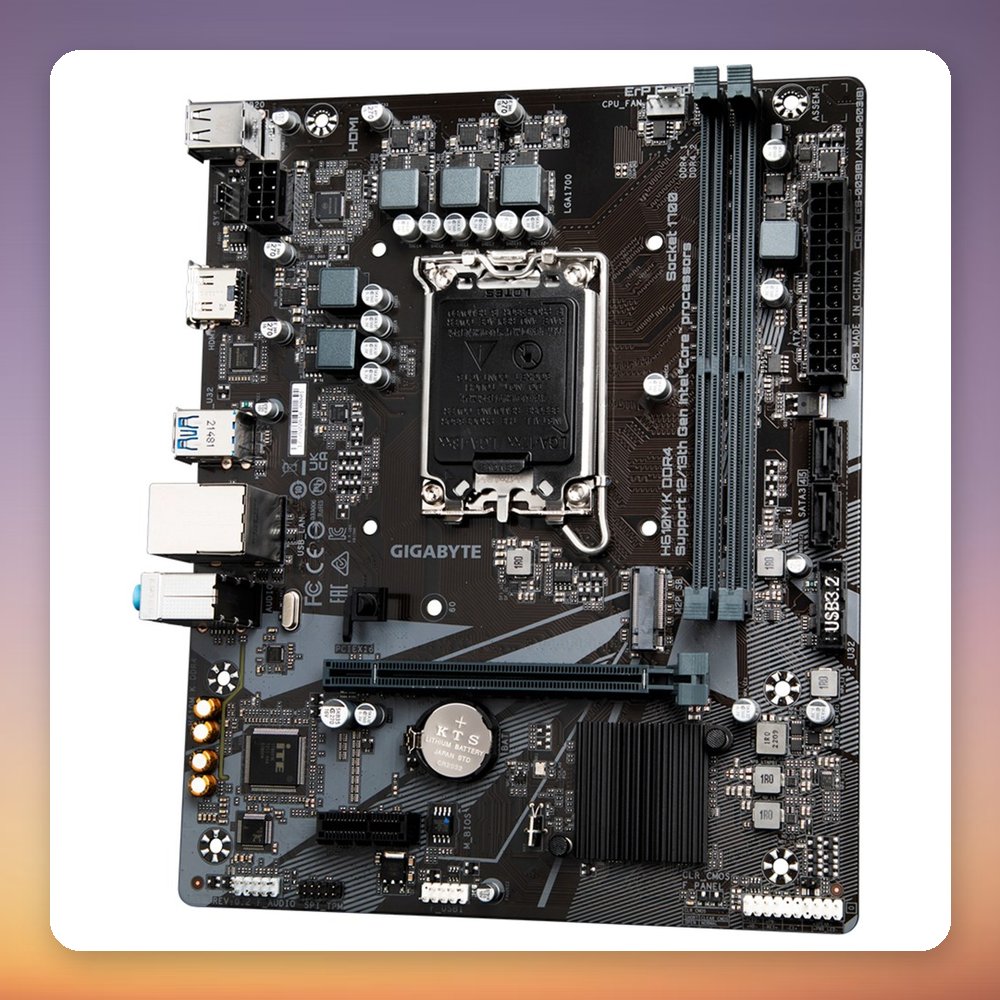

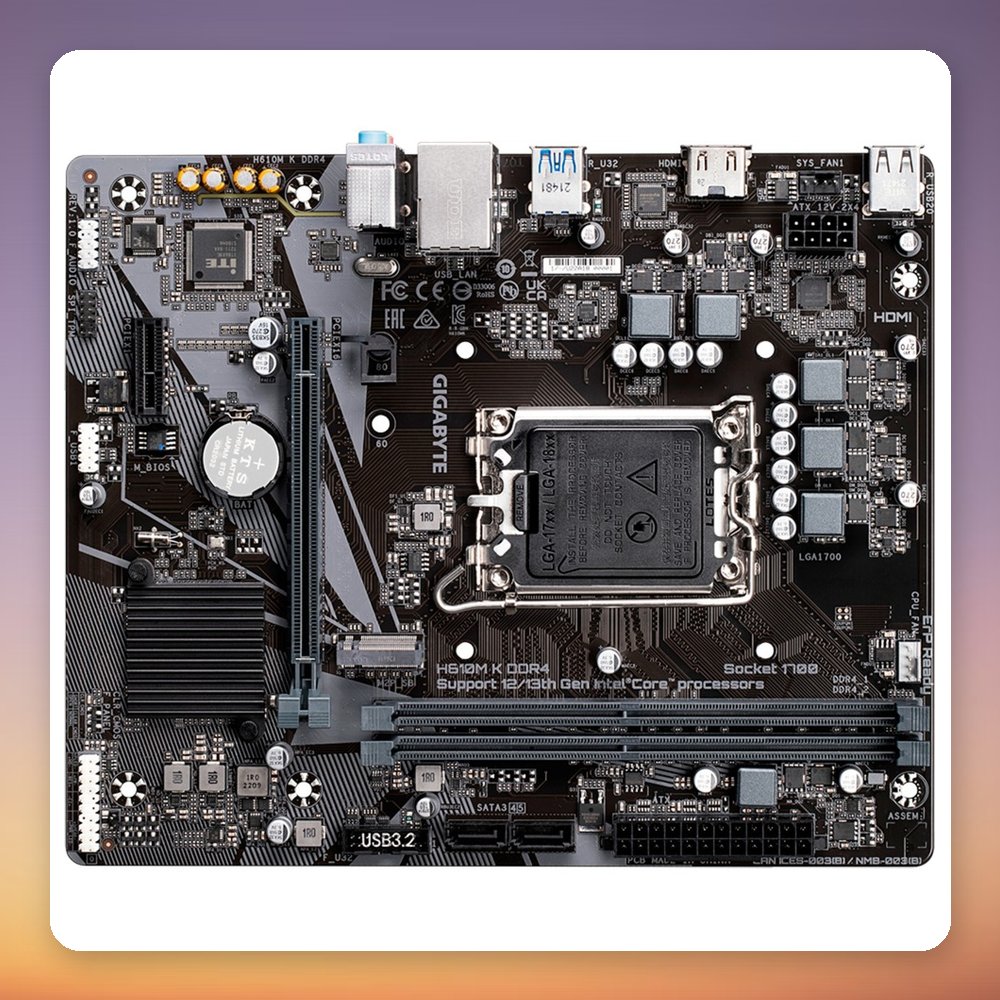

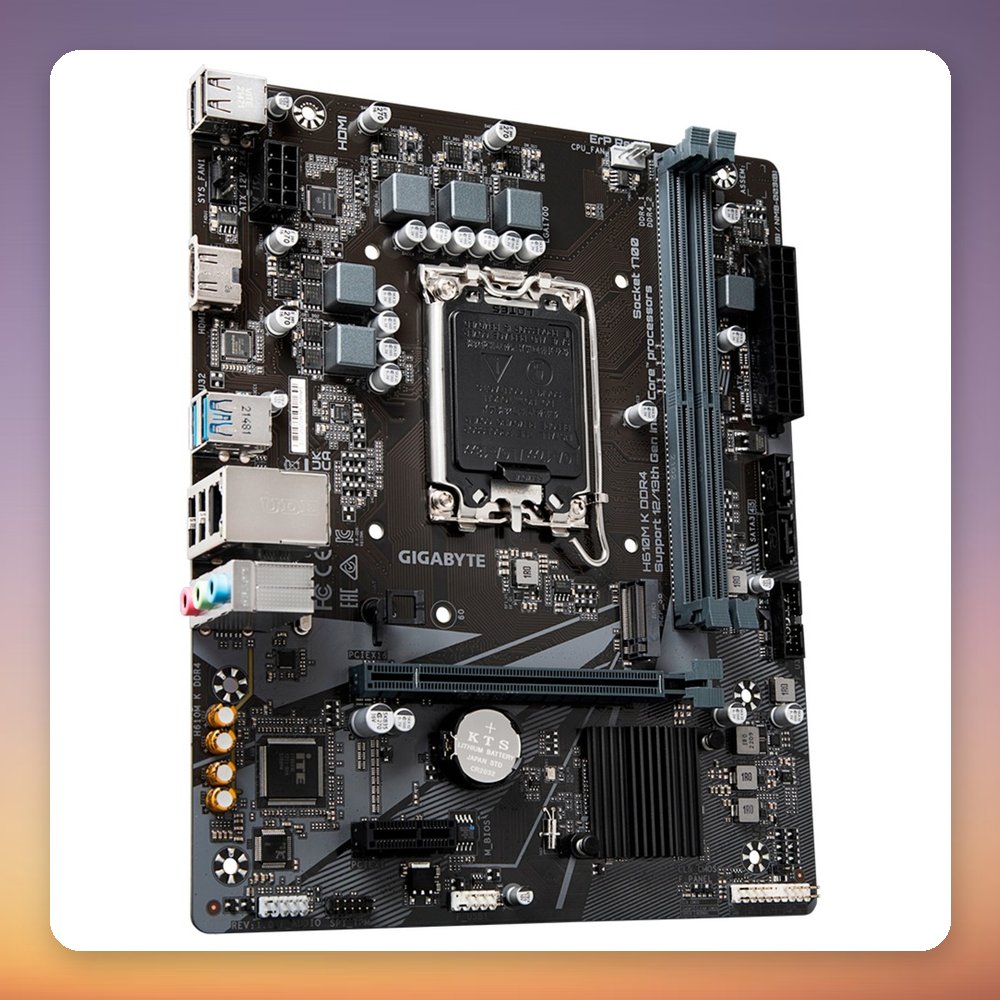

The Gigabyte H610M K DDR4 Micro ATX motherboard is built on the Intel H610 chipset for LGA 1700 processors, with support for 12th and 13th generation Intel CPUs listed by Gigabyte. It has two DDR4 DIMM slots running dual-channel at up to 3200 MHz, with a maximum of 64 GB, one PCIe 4.0 x16 slot, one M.2 slot and two SATA III ports.

This board suits a compact, budget-conscious Intel build where existing or low-cost DDR4 memory is being reused. Rear I/O includes HDMI 2.1, Gigabit Ethernet (Realtek RTL8111H), two USB 3.2 Gen 1 and four USB 2.0 Type-A ports, plus 7.1-channel audio from a Realtek ALC897 codec. HDMI output only works with a CPU that has integrated graphics. Gigabyte notes that a BIOS update may be needed for the newest processors. The board measures 226 x 185 mm and does not include Wi-Fi.

Specification

• Manufacturer: GigaByte
• Model: H610M K DDR4
• MPN: H610M K DDR4
• EAN: 47193318516750
• Socket: LGA 1700
• Chipset: Intel H610 Express
• Form factor: Micro ATX
• Memory: 2x DDR4 DIMM, dual-channel, up to 64 GB
• Memory speeds: DDR4 2133 / 2400 / 2666 / 2933 / 3000 / 3200 MHz
• Expansion slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
• Storage: 1x M.2, 2x SATA III
• Rear USB: 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A
• Video output: 1x HDMI 2.1 (requires CPU with integrated graphics)
• LAN: Gigabit Ethernet, Realtek RTL8111H
• Audio: Realtek ALC897, 7.1 channels
• Power connectors: 24-pin ATX, 8-pin EPS 12V
• BIOS: AMI UEFI, 128 Mbit
• Dimensions (W x D): 226 x 185 mm
• Manufacturer warranty: 3 years
