Product Overview

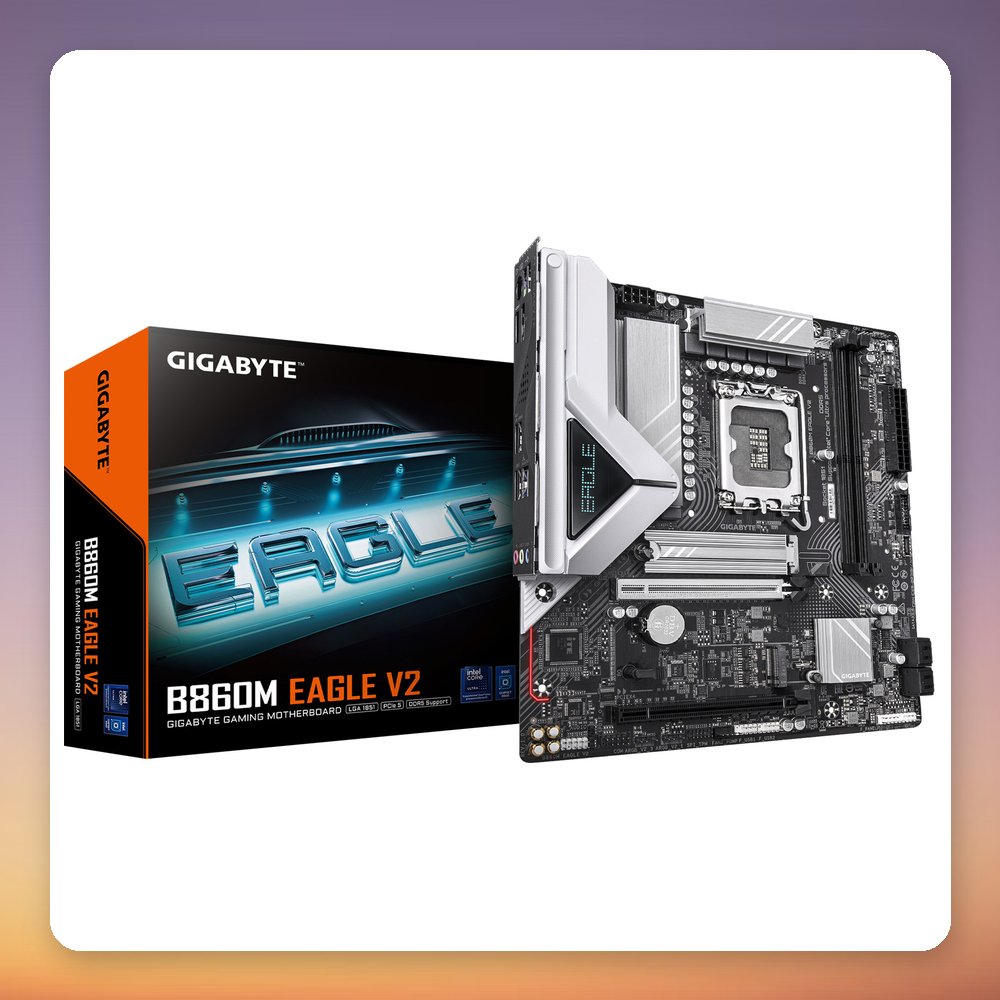

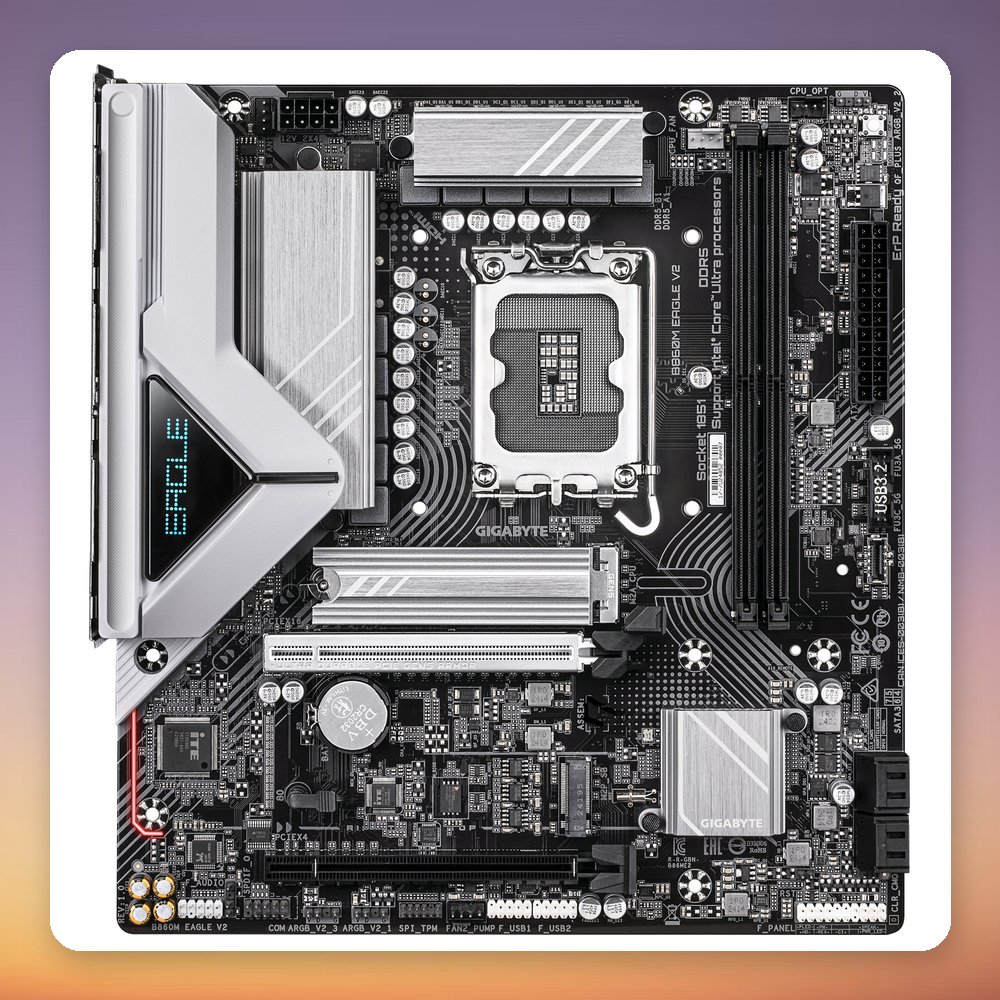

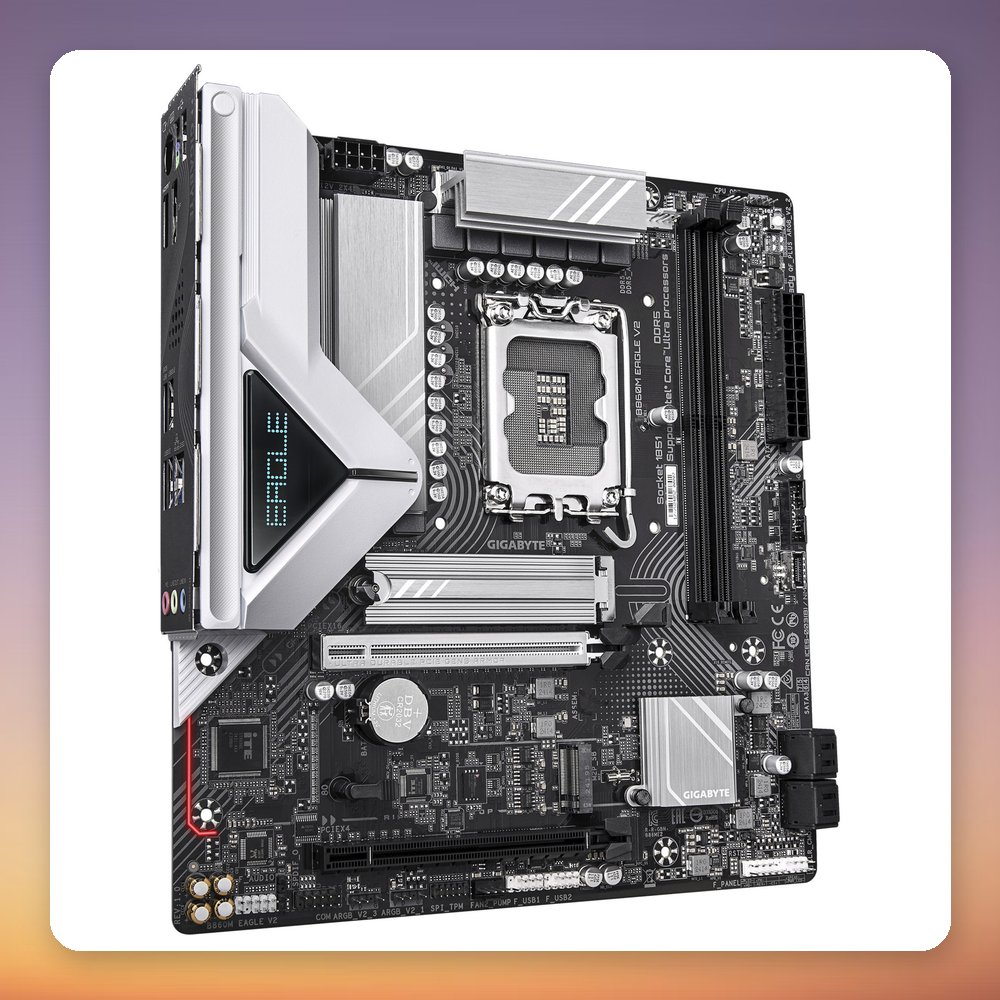

The GigaByte B860M EAGLE V2 is a micro-ATX motherboard built on the Intel B860 chipset for LGA 1851 processors, covering the Intel Core Ultra (Series 2, Arrow Lake) range. It has two DDR5 DIMM slots that support up to 128 GB of memory, with rated speeds up to 9066 MT/s (overclocked), and a PCIe 5.0 x16 slot for the graphics card. Icecat lists a 6+1+2 phase VRM design.

With two M.2 2280 slots (one PCIe 5.0, one PCIe 4.0), four SATA III ports and RAID 0/1/5/10 support, it suits a compact gaming or everyday PC that needs a fast boot drive and extra storage. Networking is a Realtek RTL8125 2.5 GbE port. Display outputs are HDMI 2.1 and DisplayPort 2.1, which work only with a CPU that has integrated graphics. A BIOS update may be needed for the newest processors, and there is no onboard Wi-Fi.

Specification

• Manufacturer: GigaByte
• Model: B860M EAGLE V2
• MPN: B860M EAGLE V2
• EAN: 4719331869656
• Chipset: Intel B860
• CPU socket: LGA 1851
• Supported CPUs: Intel Core Ultra (Series 2, Arrow Lake)
• Form factor: micro-ATX
• Memory: 2x DDR5 DIMM, dual-channel, up to 128 GB
• Memory speed: Up to DDR5-9066 (O.C.)
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 slot (x4 lanes)
• M.2 slots: 2x M.2 2280 (1x PCIe 5.0, 1x PCIe 4.0)
• SATA ports: 4x SATA III, RAID 0/1/5/10
• Networking: Realtek RTL8125 2.5 GbE (no Wi-Fi)

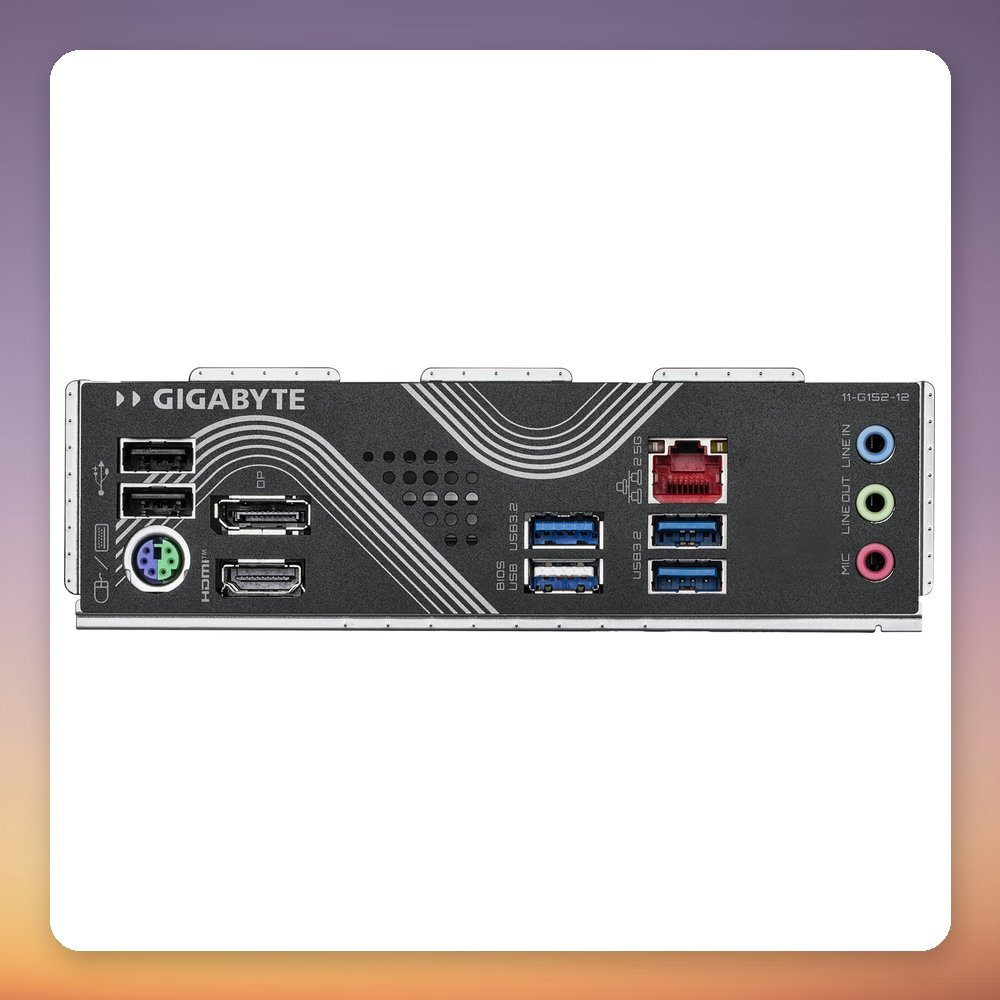

• Rear USB: 3x USB-A 3.2 Gen 1, 3x USB-A 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 2.1
• Audio: Realtek ALC897, 7.1 channels
• Power connectors: 24-pin ATX + 1x 8-pin EPS (ATX12V 24+2×8-pin per Wave)
• Dimensions (W x D): 244 x 225 mm
