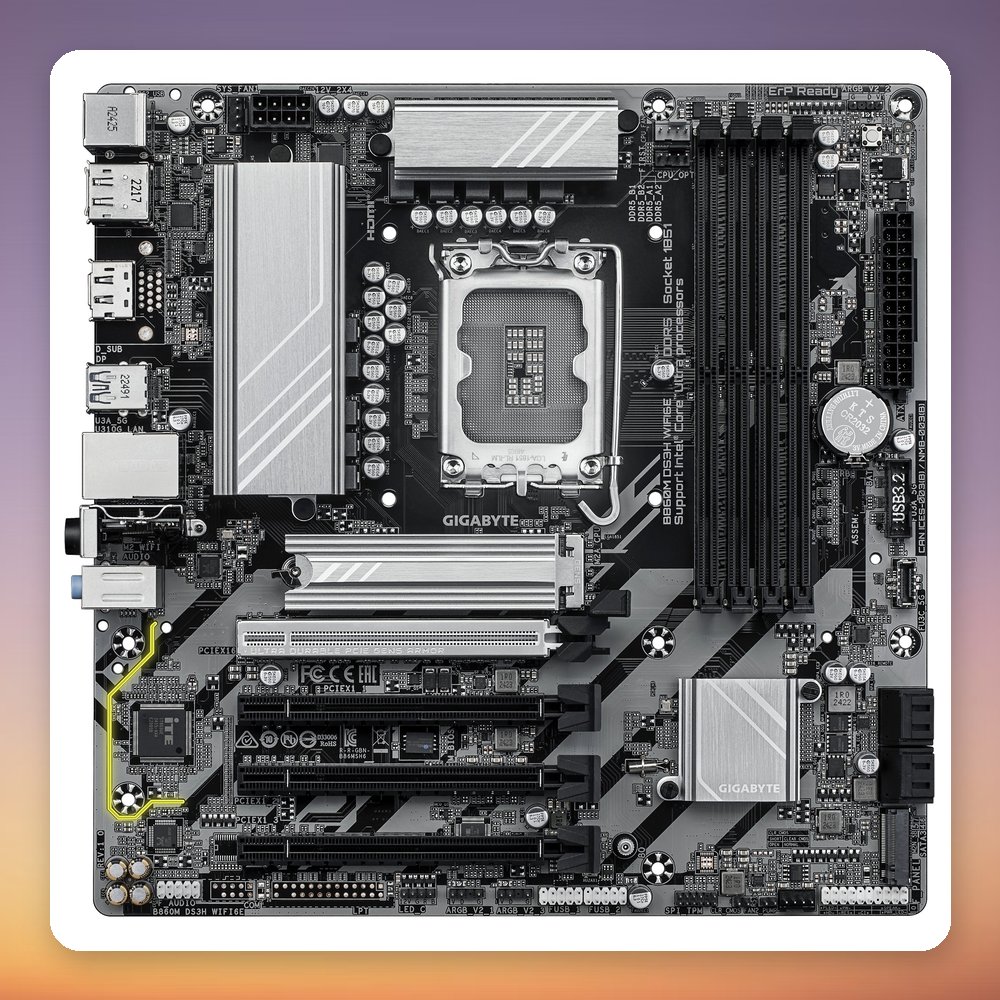

GigaByte B860M DS3H WIFI6E LGA 1851 Micro ATX Motherboard, DDR5, Wi-Fi 6E
€185.06
Delivery: 7-12 business days
GigaByte B860M DS3H WIFI6E LGA 1851 Micro ATX Motherboard, DDR5, Wi-Fi 6E
- PCIe 5.0 M.2 slot plus a second PCIe 4.0 M.2 slot
- Wi-Fi 6E and Bluetooth 5.3 built in
- 2.5 GbE LAN with four SATA III ports
- DDR5 up to 9066 MT/s (O.C.), 256 GB max
More information about warranty, delivery is in the FAQ ->
WARRANTY&FAQ DELIVERY
This product comes with a 1-year warranty provided by Xcellent PC.
In stock
✅
Product Overview
The GigaByte B860M DS3H WIFI6E is an LGA 1851 micro ATX motherboard built on the Intel B860 chipset for Intel Core Ultra (Arrow Lake) processors. It has four DDR5 slots supporting up to 256 GB, with listed speeds up to 9066 MT/s (O.C.), and two M.2 slots, one running at PCIe 5.0 and one at PCIe 4.0.
With Intel Wi-Fi 6E AX211, Bluetooth 5.3 and a Realtek 2.5 GbE LAN port on board, it suits a compact Core Ultra gaming or everyday PC without needing add-in network cards. HDMI 2.1 and two DisplayPort 2.1 outputs work with CPUs that have integrated graphics. Four SATA III ports and a PCIe 5.0 x16 slot cover storage and a graphics card. A BIOS update may be needed for the newest processors.
Specification
- Manufacturer: GigaByte
- Model: B860M DS3H WIFI6E
- MPN: B860M DS3H WIFI6E
- EAN: 4719331866815
- Socket: LGA 1851
- Chipset: Intel B860
- Form factor: Micro ATX (244 x 244 mm)
- Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
- Memory speed: Up to DDR5-9066 (O.C.)
- M.2 slots: 2x M.2 2280 (1x PCIe 5.0, 1x PCIe 4.0)
- SATA: 4x SATA III, RAID 0/1/5/10
- Expansion slots: 1x PCIe 5.0 x16, 3x PCIe x1
- Networking: Realtek RTL8125 2.5 GbE LAN, Intel Wi-Fi 6E AX211, Bluetooth 5.3
- Video outputs: 1x HDMI 2.1, 2x DisplayPort 2.1
- Rear USB: 1x USB-A 10 Gbit/s, 2x USB-A 5 Gbit/s, 3x USB 2.0
- Audio: Realtek ALC897, 7.1 channels
- Power connectors: 24-pin ATX, 1x 8-pin EPS
- BIOS: 256 Mbit AMI UEFI
delivery time 7-12 business days
| Weight | 1.5 kg |
|---|
