Product Overview

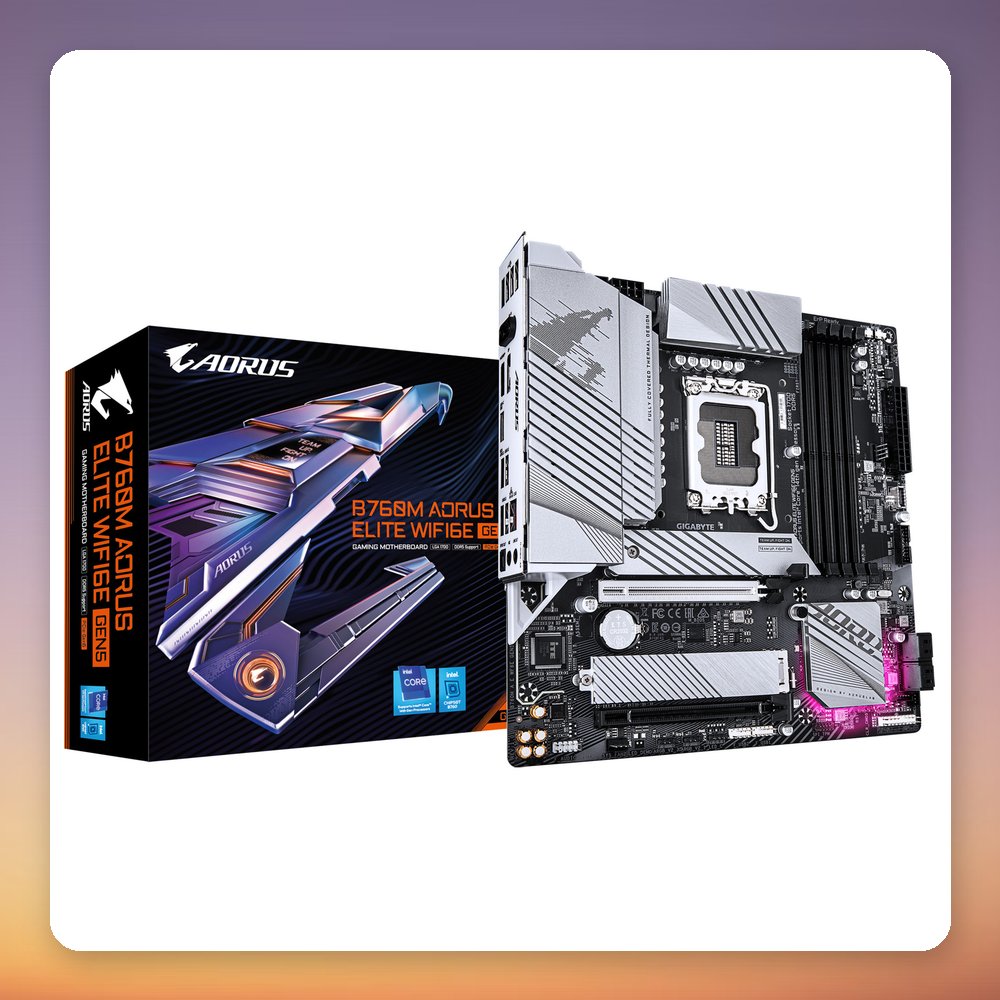

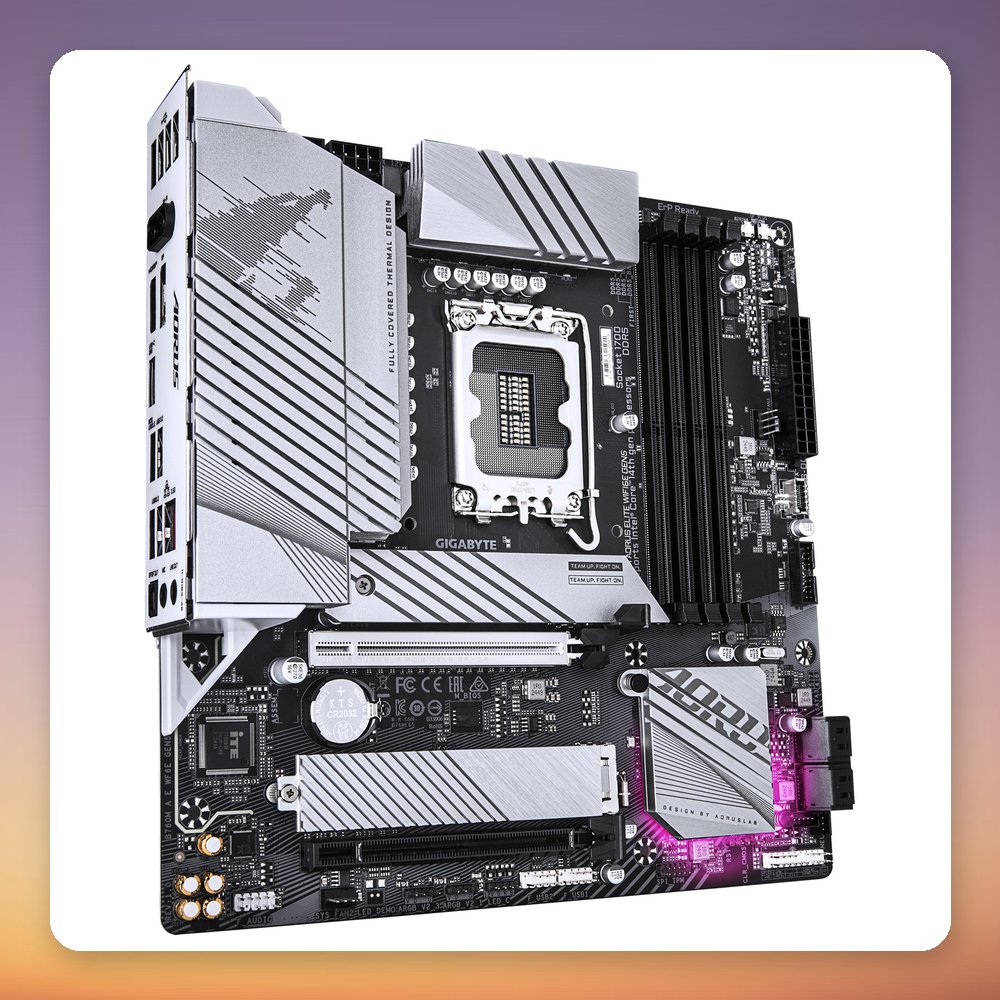

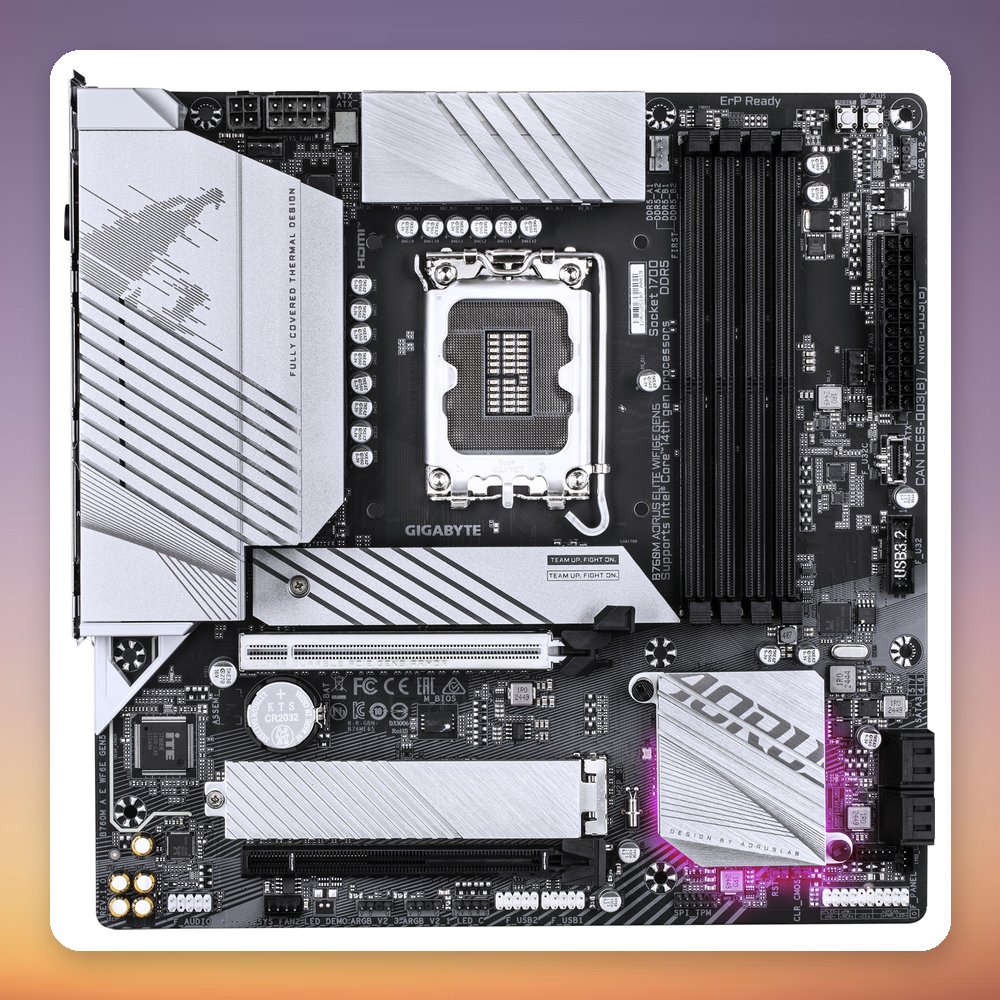

The GigaByte B760M AORUS ELITE WIFI6E GEN5 is a micro ATX motherboard built on the Intel B760 chipset for LGA 1700 processors from the 12th, 13th and 14th generations. It has four DDR5 DIMM slots in dual-channel for up to 256 GB, a PCIe 5.0 x16 slot, two M.2 slots, 2.5GbE LAN and Intel Wi-Fi 6E AX210 with Bluetooth 5.3 already on the board.

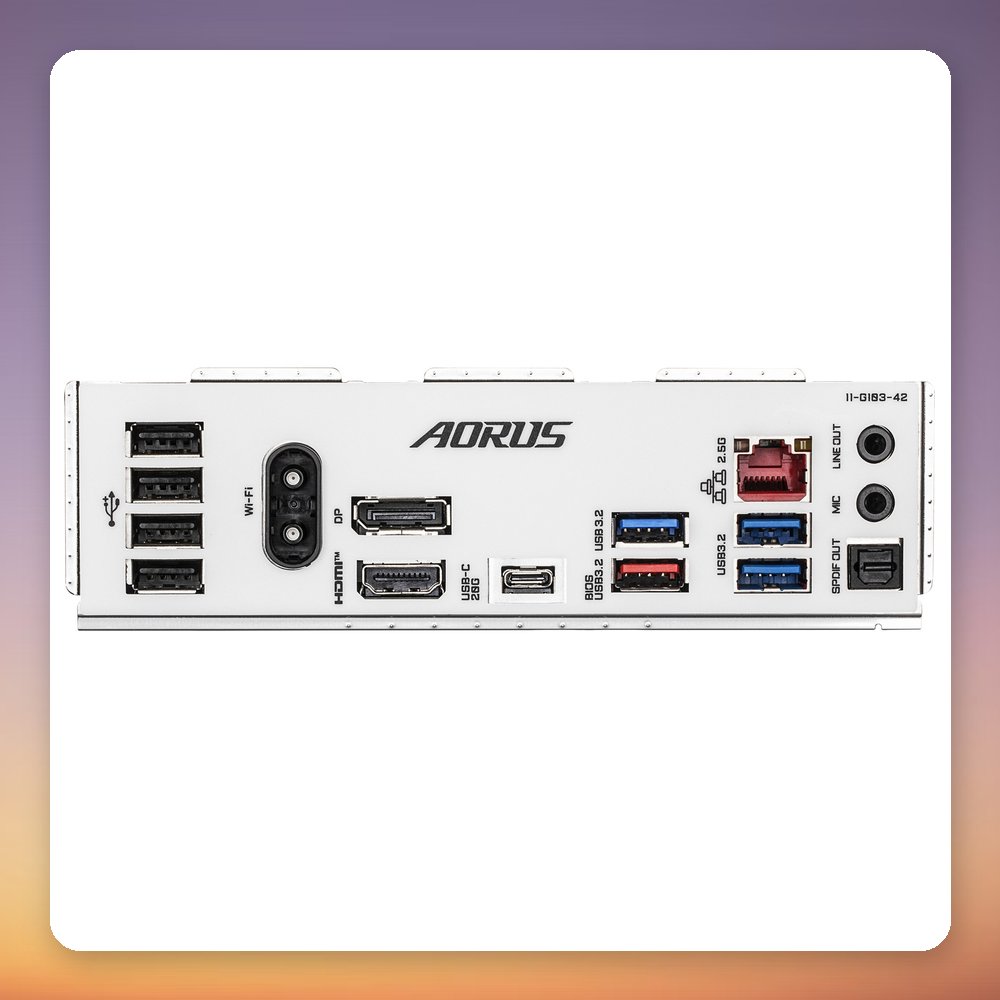

With a PCIe 5.0 x16 slot for the graphics card and a second PCIe 4.0 x16 slot, this board suits a compact gaming or general-purpose build on an Intel 12th to 14th generation CPU. Four SATA III ports and two M.2 sockets cover storage, and the rear I/O includes a USB-C 3.2 Gen 2×2 (20 Gbit/s) port, HDMI and DisplayPort for CPUs with integrated graphics. The board comes in white, which suits light-coloured builds.

Specification

• Manufacturer: GigaByte
• Model: B760M AORUS ELITE WIFI6E GEN5
• MPN: B760M A E WF6E GEN5
• EAN: 47193318720690
• Socket: LGA 1700
• Chipset: Intel B760
• Form factor: micro ATX (µATX)
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
• M.2 slots: 2x M.2 (M key), PCIe 4.0, up to 22110 on the second slot
• SATA: 4x SATA III, RAID 0/1/5/10
• LAN: Realtek 2.5GbE
• Wireless: Intel Wi-Fi 6E AX210, Bluetooth 5.3
• Rear USB: 1x USB-C 3.2 Gen 2×2 (20 Gbit/s), 1x USB 3.2 Gen 2 (10 Gbit/s), 3x USB 3.2 Gen 1 Type-A, 4x USB 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (CPU with integrated graphics required)
• Audio: Realtek ALC1220-VB, 7.1 channels
• Power connectors: 24-pin ATX, 8-pin EPS, 4-pin 12V
• Colour: White
• Dimensions (W x H): 244 x 244 mm
