Product Overview

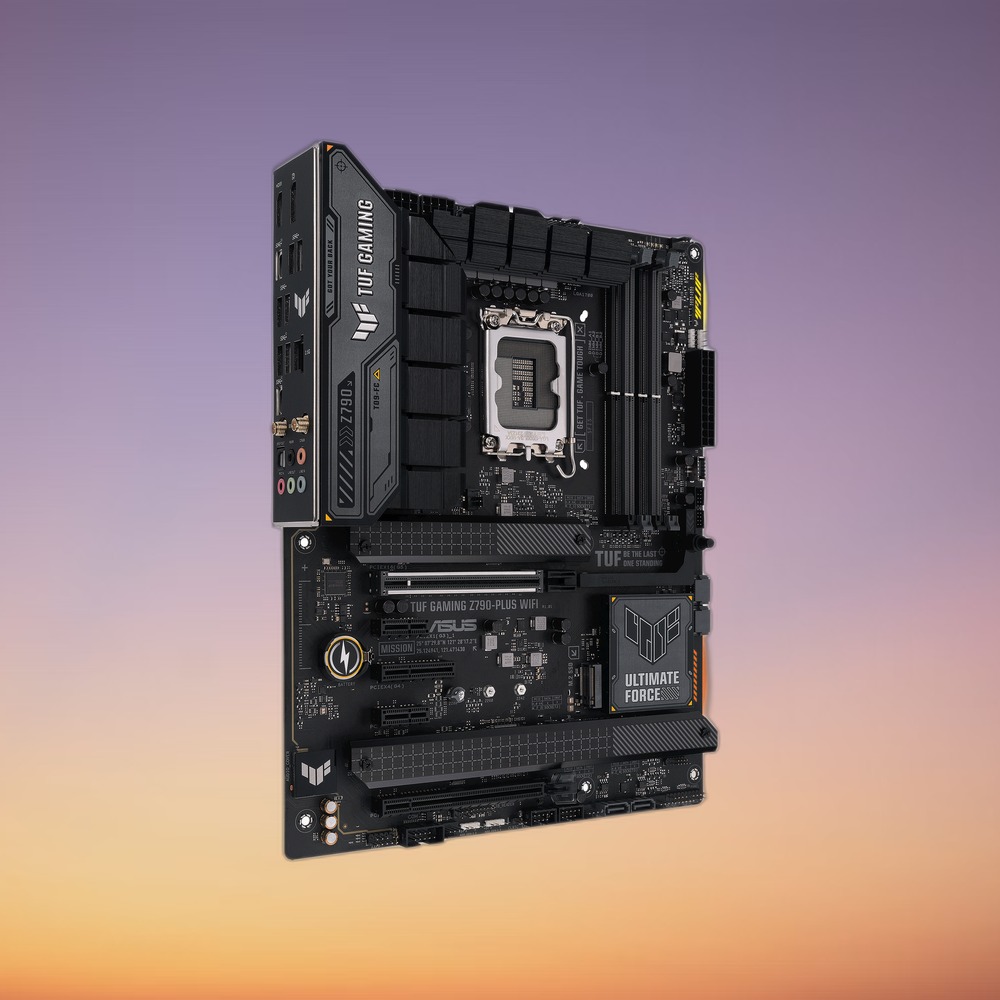

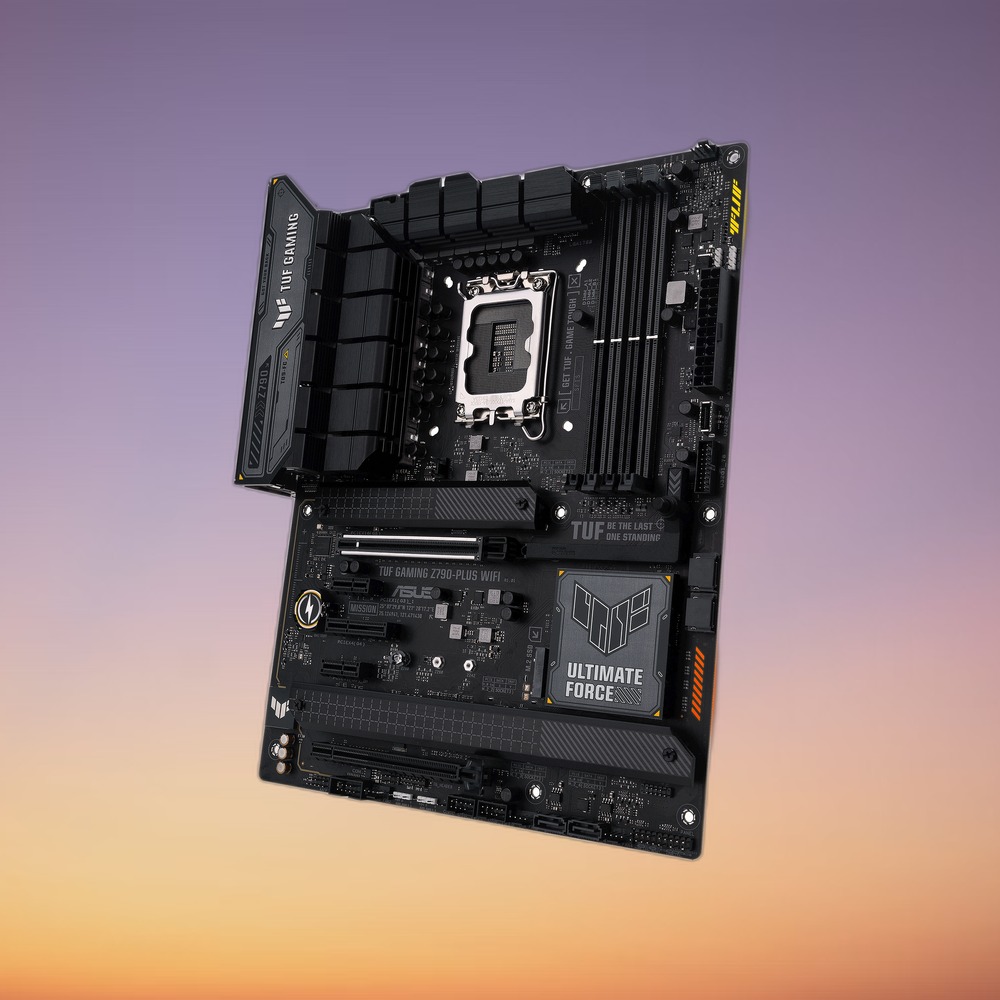

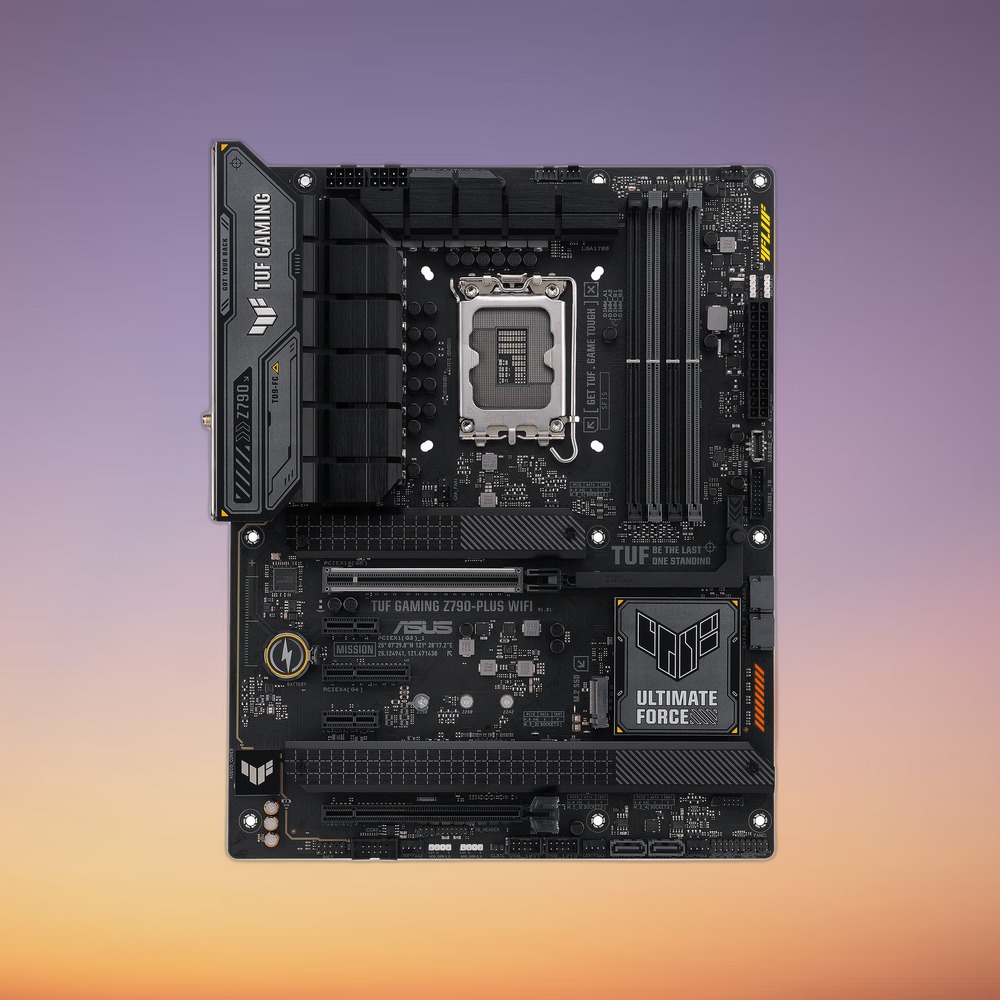

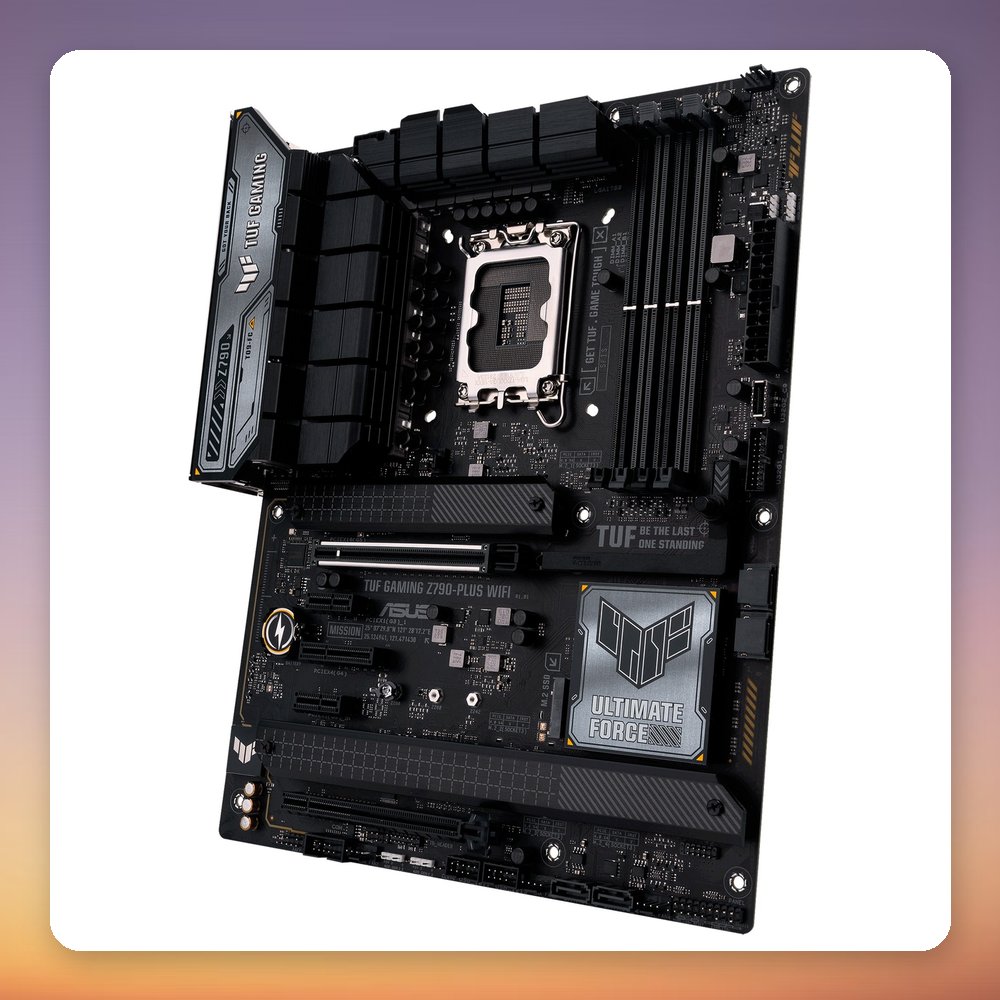

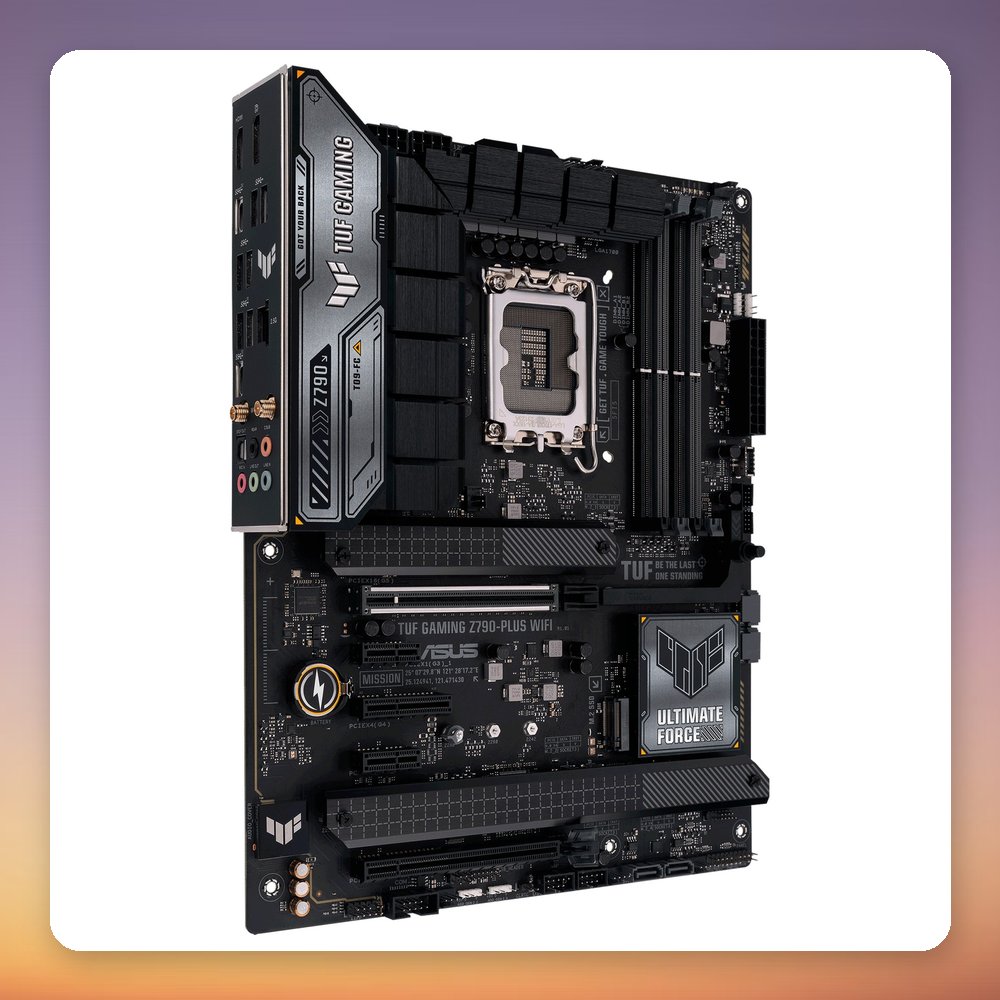

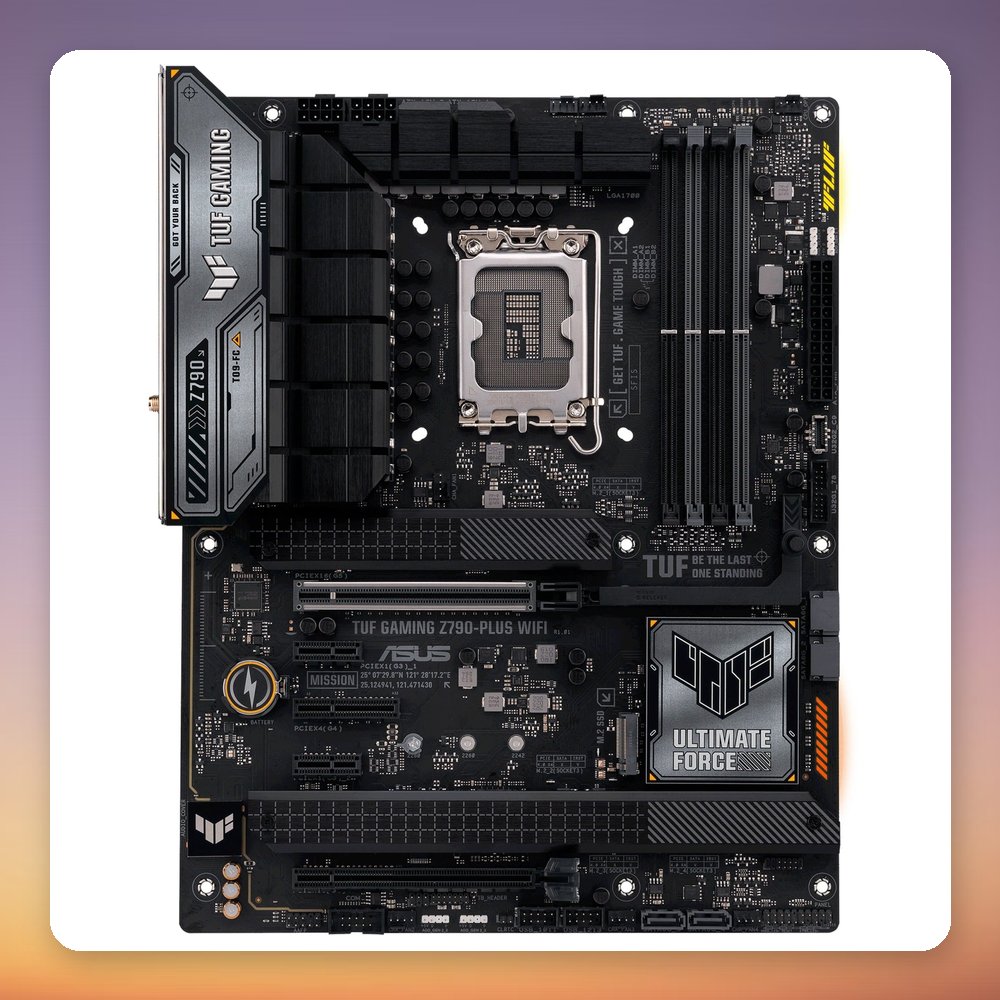

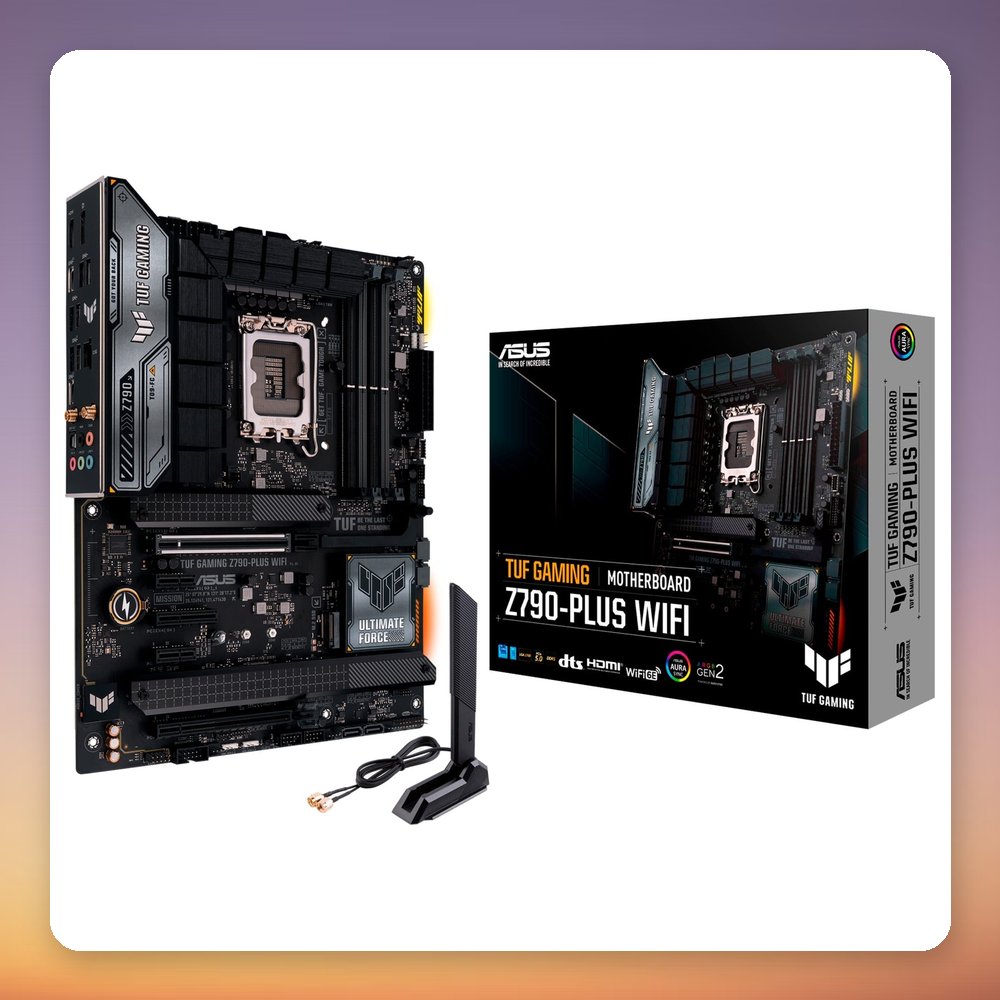

The ASUS TUF Gaming Z790-Plus WiFi is an ATX motherboard for Intel LGA 1700 processors, built on the Intel Z790 chipset. It supports four DDR5 slots in dual-channel, with speeds up to DDR5-7200 (OC) and up to 256 GB of memory, and adds a PCIe 5.0 x16 slot plus four M.2 slots, each running PCIe Gen 4.0. Connectivity includes 2.5 Gb Ethernet, Wi-Fi 6E and Bluetooth 5.3.

This board suits an Intel gaming or general-purpose build that needs plenty of storage and fast memory. With four M.2 slots, four SATA ports and RAID 0, 1, 5 and 10, it handles multi-drive setups. The 16+1 DrMOS power stages (60 A each), seven 4-pin PWM fan headers and AURA Sync RGB support suit cooling-focused builds. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: TUF Gaming Z790-Plus WiFi
• MPN: 90MB1D80-M1EAY0
• EAN: 47113870145090
• Socket: LGA 1700
• Chipset: Intel Z790
• Form factor: ATX
• Memory: 4x DDR5 DIMM, dual-channel, up to 256 GB
• Memory speed: DDR5-4800 up to 7200 (OC)
• PCIe slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1
• M.2 slots: 4x M.2 (key M), PCIe Gen 4.0, 42-110 mm
• SATA ports: 4x SATA III
• RAID: 0, 1, 5, 10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
• Audio: Realtek S1220A 7.1 channel

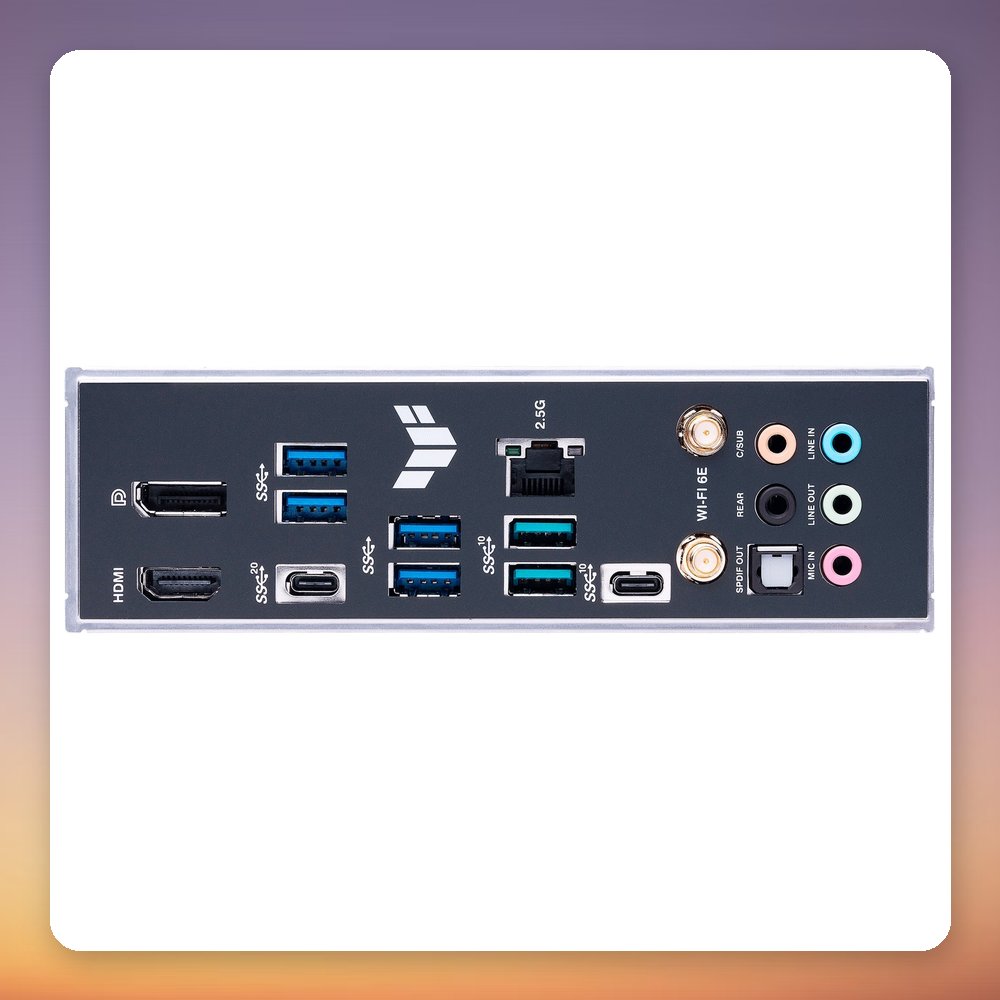

• Rear video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4

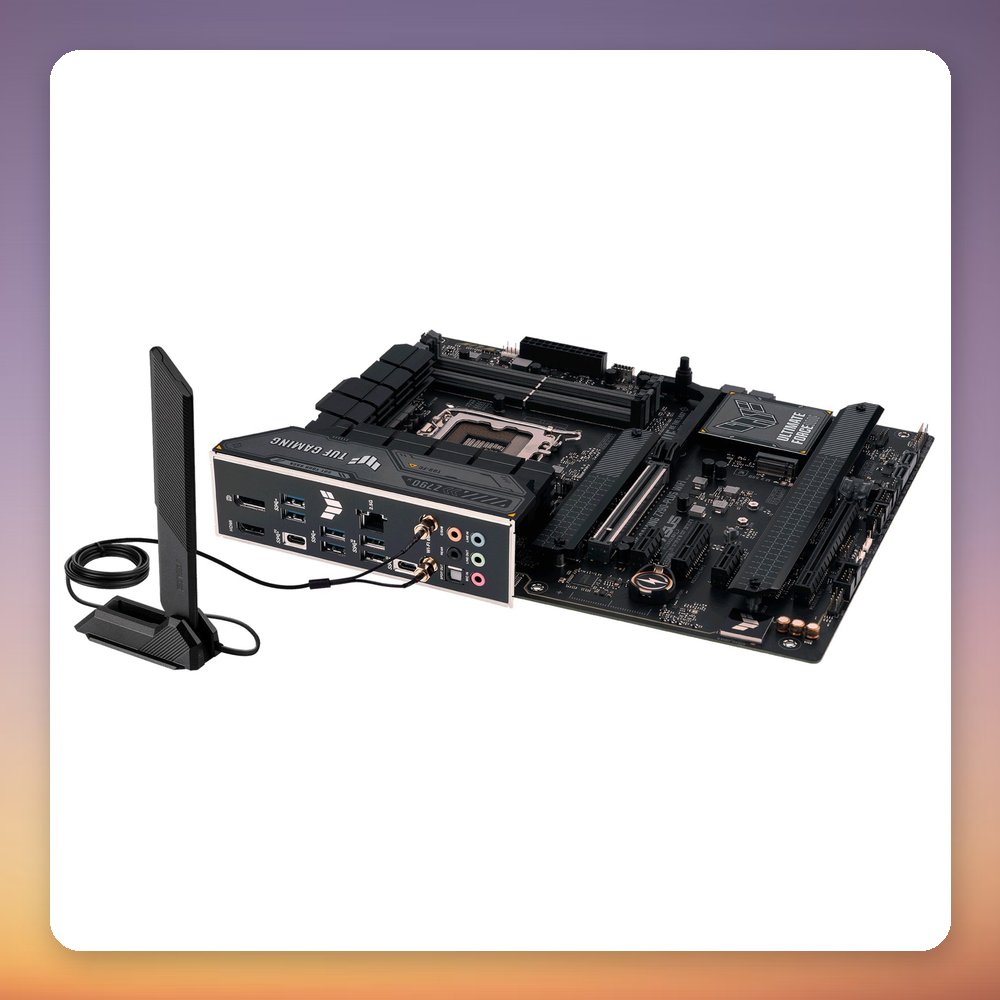

• Rear USB: 1x USB-C 10 Gbit/s, 2x USB-A 10 Gbit/s, 4x USB-A 5 Gbit/s
• Fan headers: 7x 4-pin PWM
• RGB: 1x RGB header, 3x addressable RGB headers, AURA Sync
• Dimensions (W x D): 244 mm x 305 mm
