Product Overview

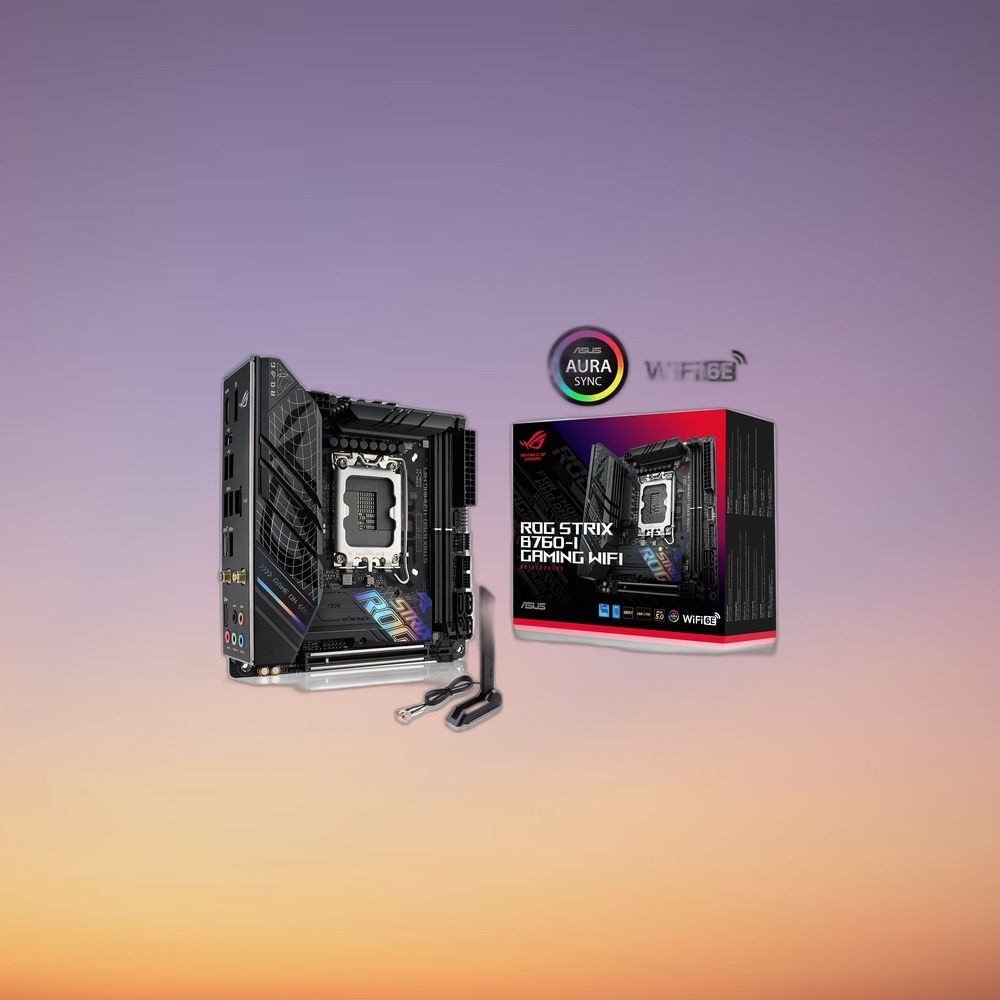

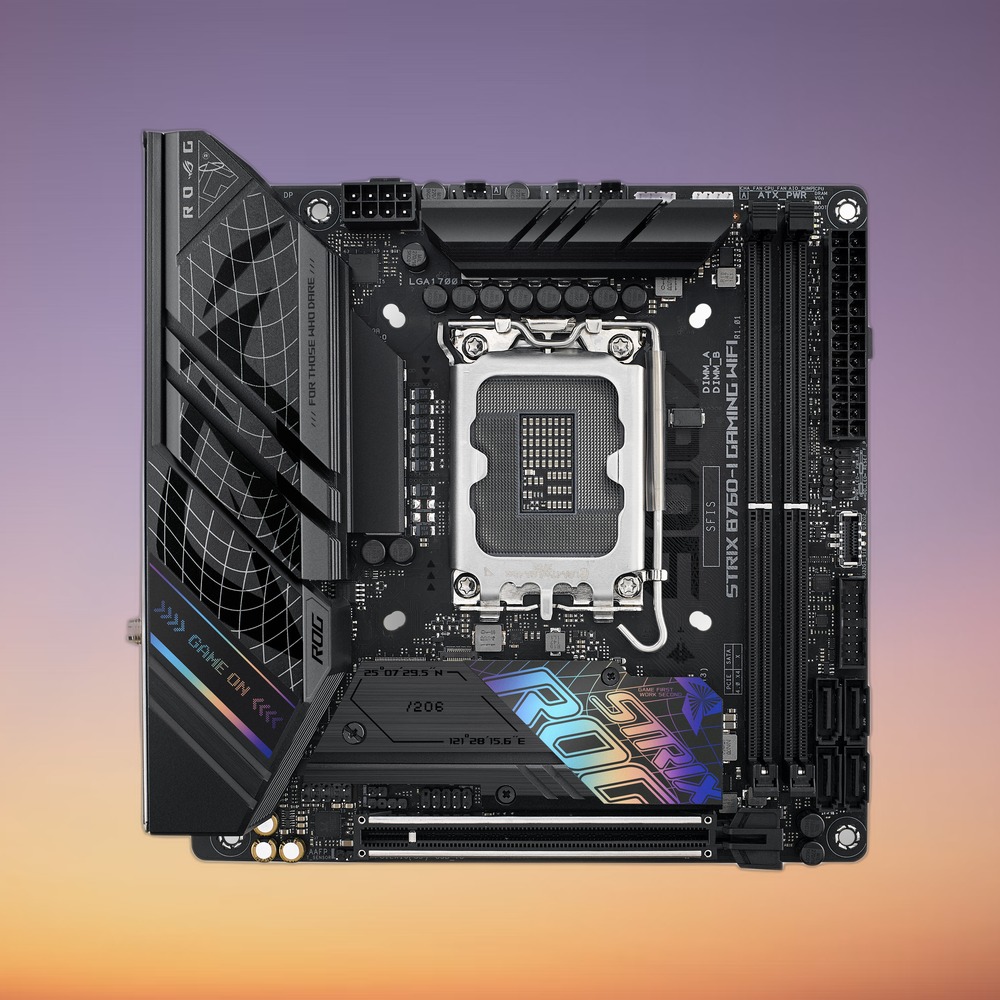

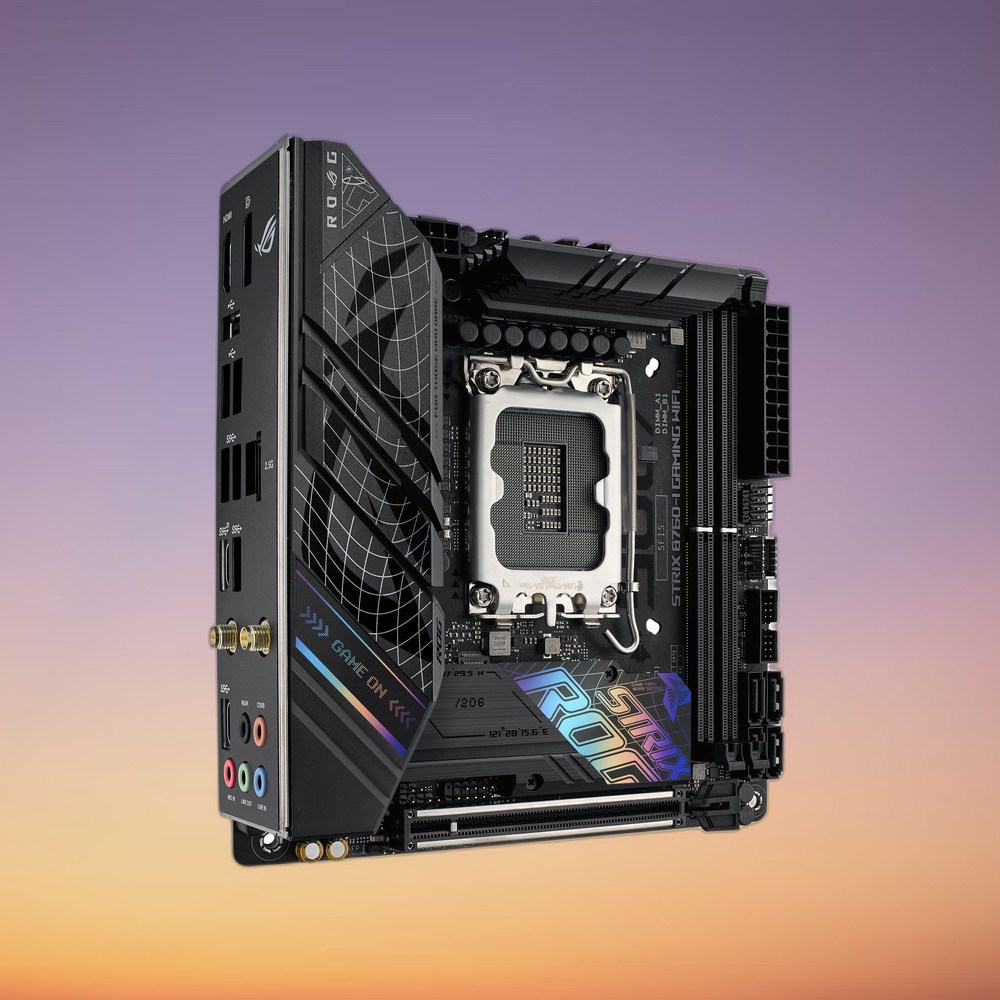

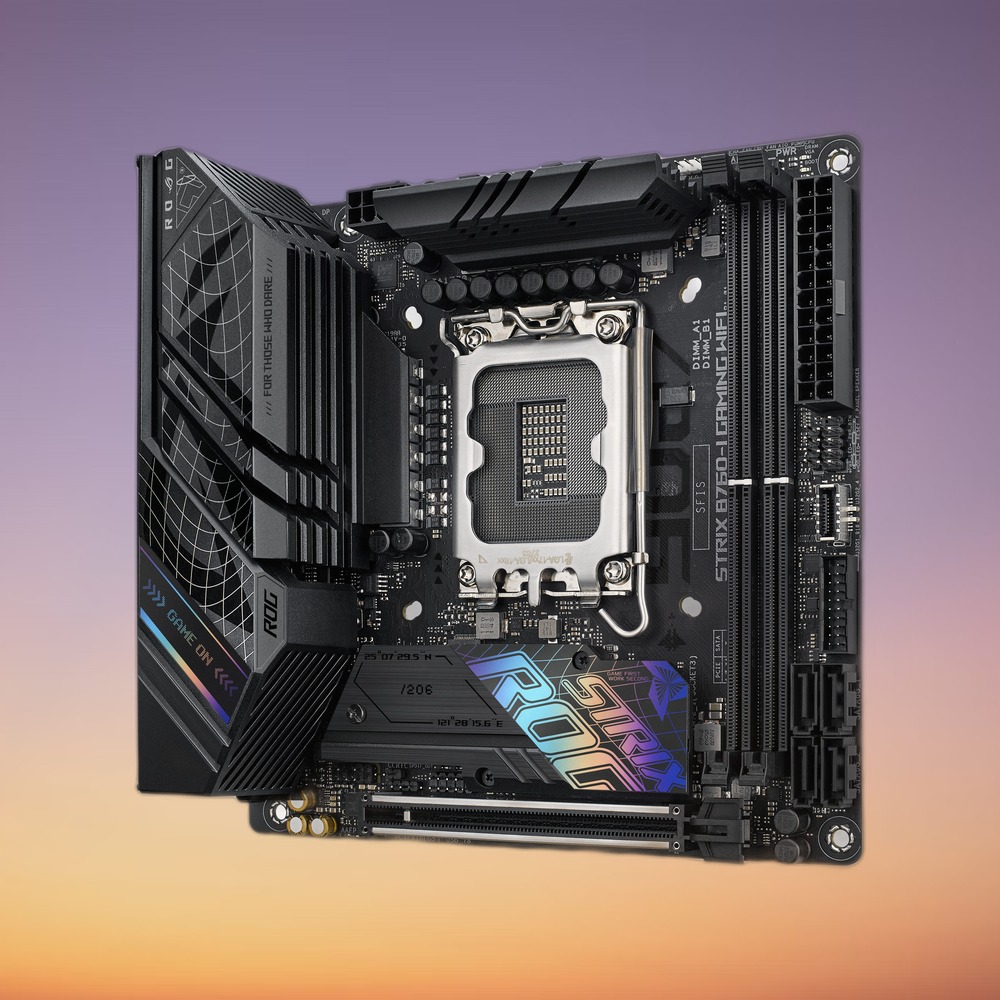

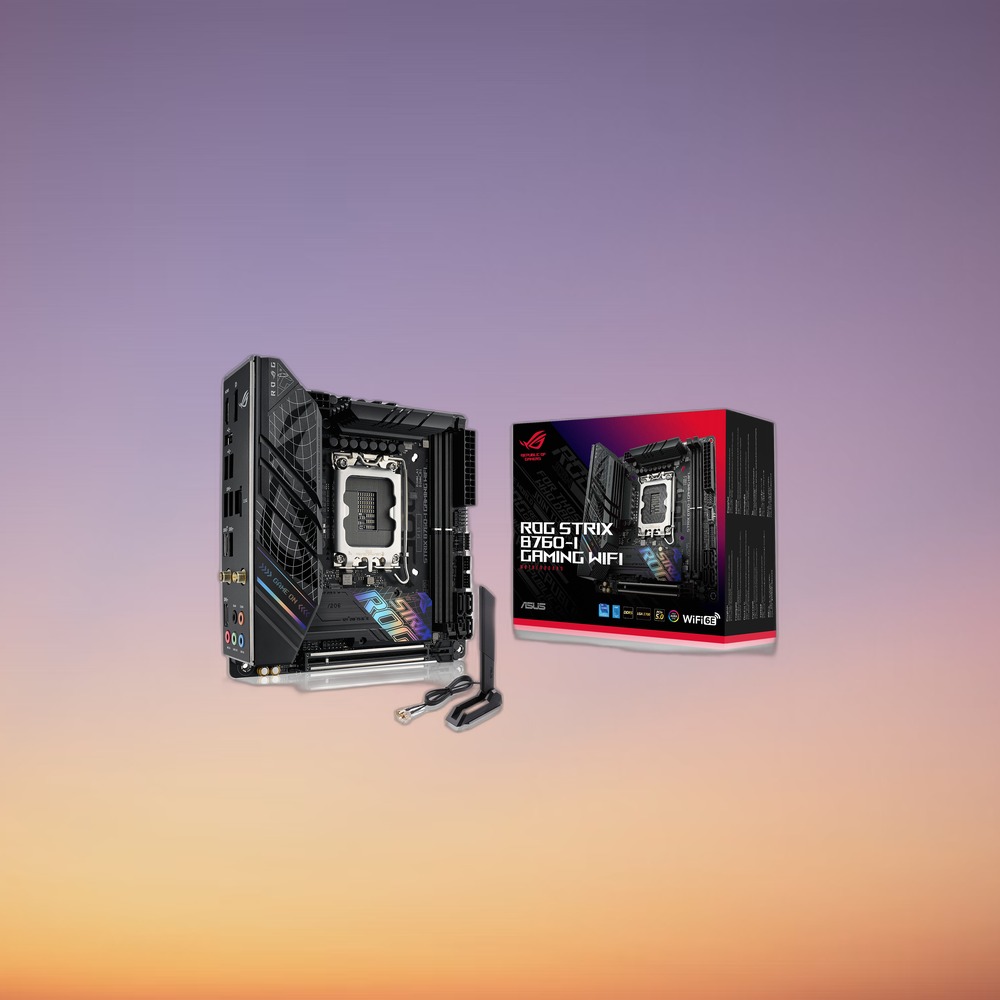

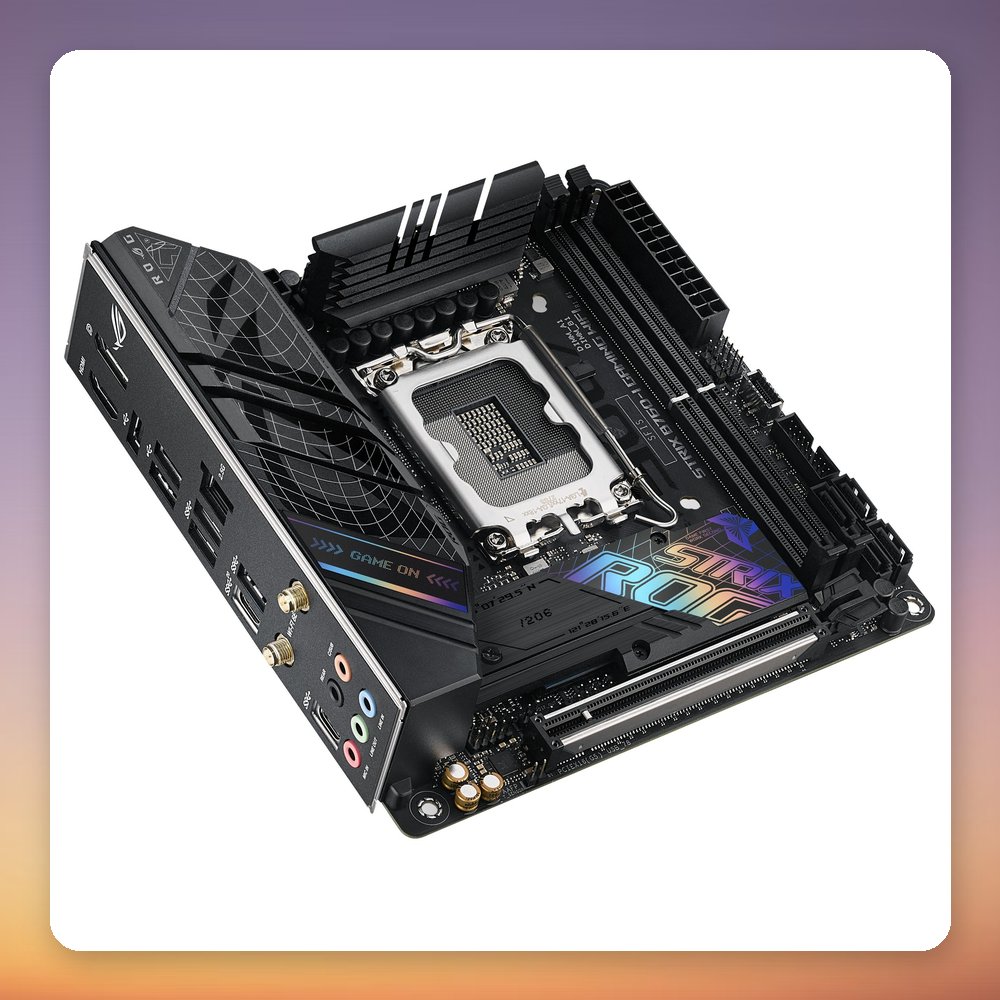

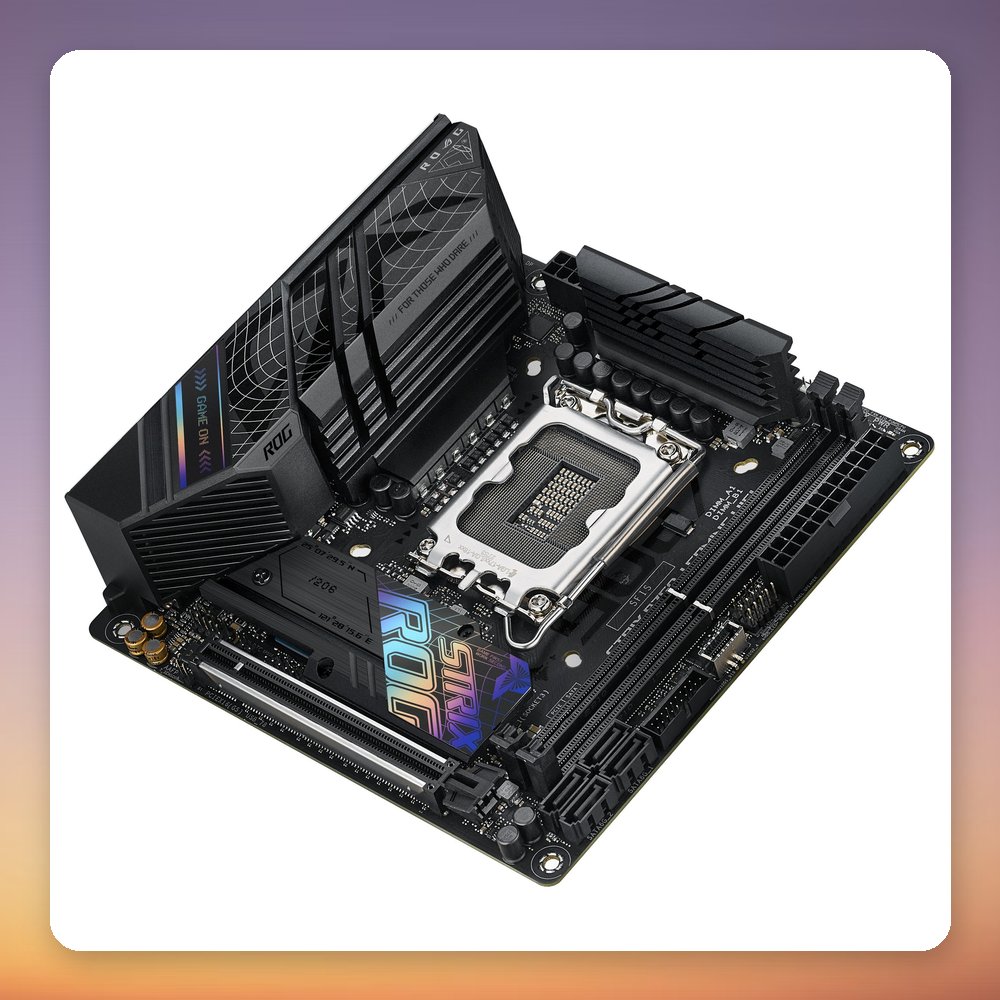

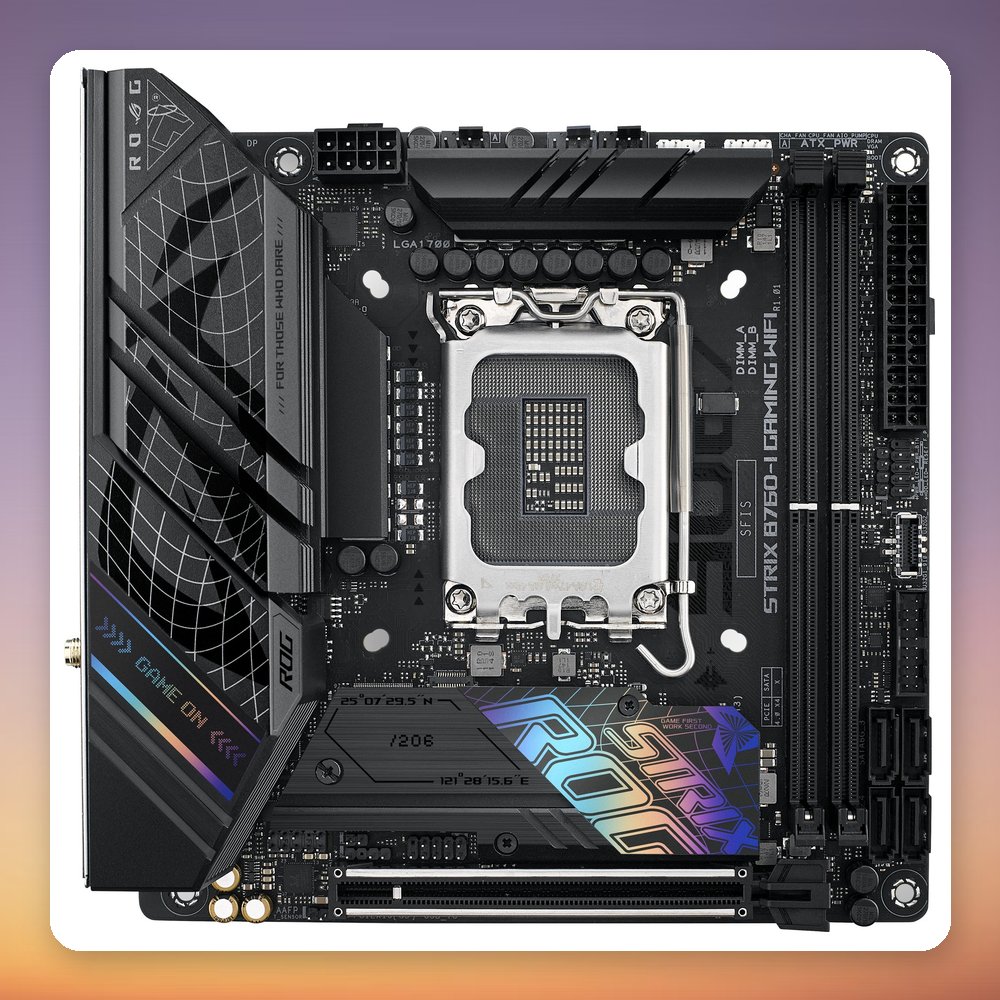

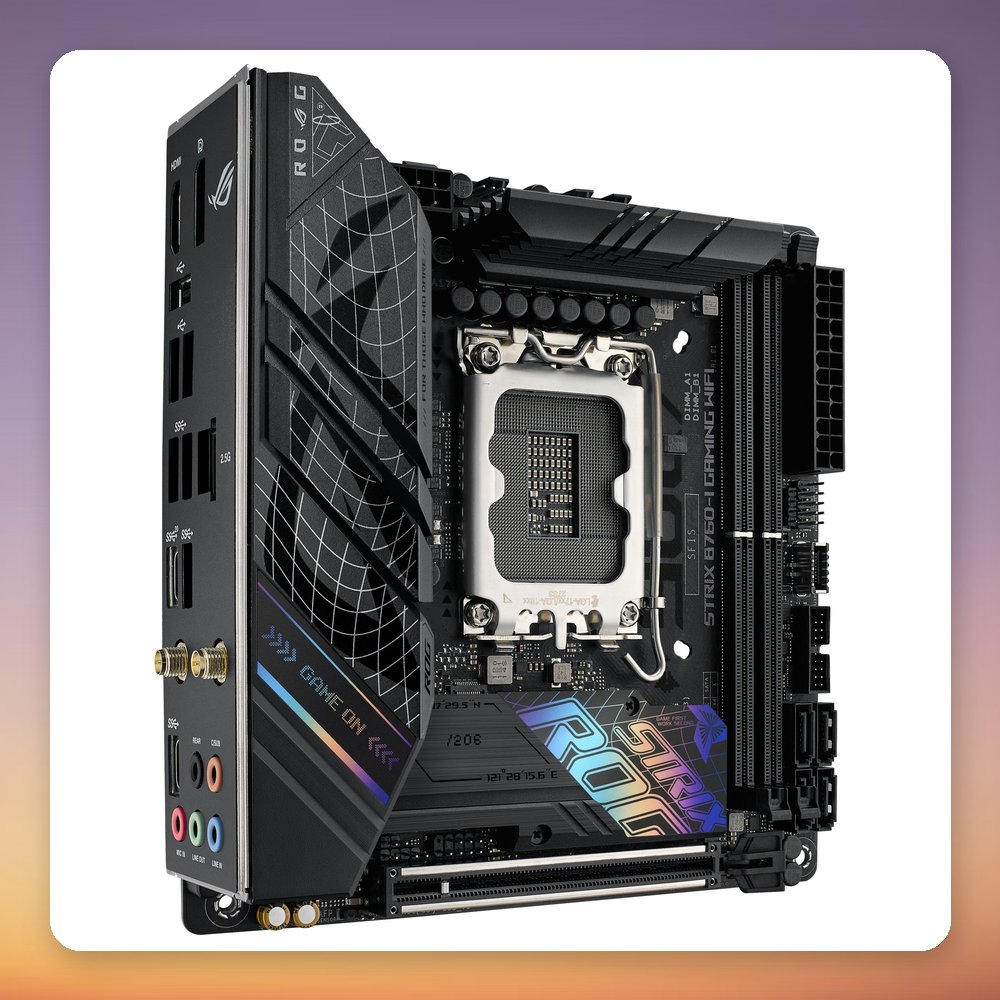

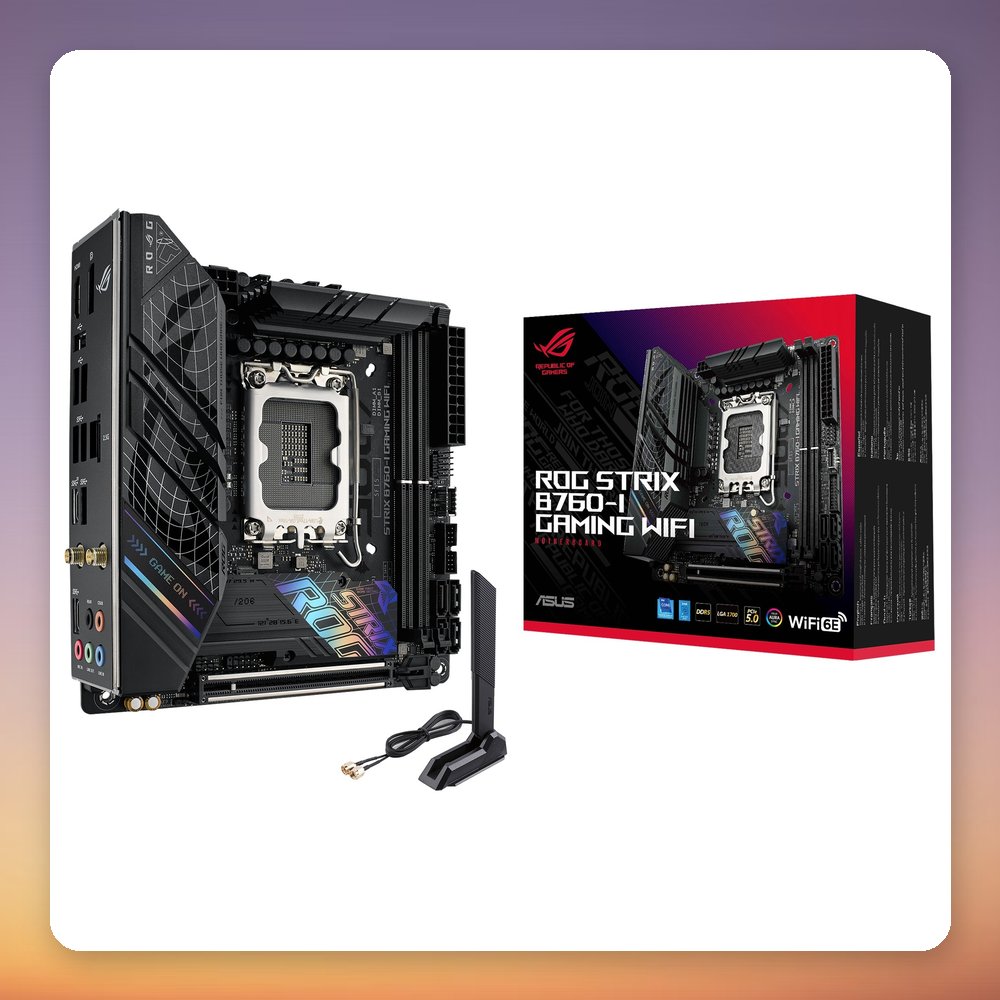

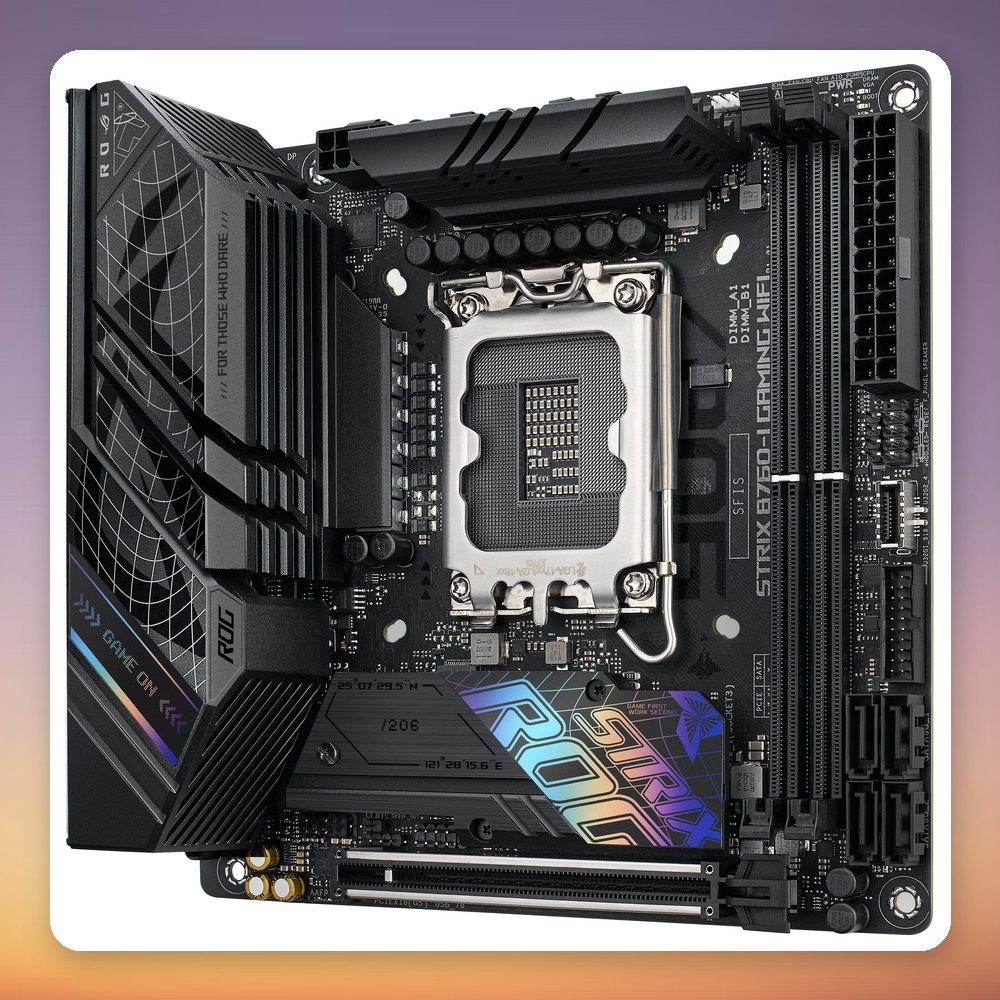

The Asus ROG Strix B760-I Gaming WiFi is a black Mini-ITX motherboard built on the Intel B760 chipset for LGA 1700 processors. It takes two DDR5 DIMMs in dual-channel mode, with support for memory speeds up to DDR5-7600 (OC), and adds a PCIe 5.0 x16 slot, two M.2 slots and Wi-Fi 6E with Bluetooth 5.3 in a 170 x 170 mm footprint.

This board suits compact gaming and small-form-factor builds that still need fast storage and modern connectivity. Networking includes Intel 2.5 Gb Ethernet, and the rear I/O offers a USB-C 3.2 Gen 2×2 (20 Gbit/s) port, HDMI and DisplayPort for CPUs with integrated graphics. It also carries SupremeFX 7.1-channel audio, four SATA ports and AURA Sync RGB headers. A BIOS update may be needed for the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix B760-I Gaming WiFi
• MPN: 90MB1D90-M1EAY0
• EAN: 4711081997658
• Socket: LGA 1700
• Chipset: Intel B760
• Form factor: Mini-ITX (170 x 170 mm)
• Memory: 2x DDR5 DIMM, dual-channel, up to 64 GB (Asus lists 96 GB)
• Memory speed: DDR5-4800 to DDR5-7600 (OC)
• Expansion slot: 1x PCIe 5.0 x16
• M.2 slots: 2x M.2 (M key), PCIe 4.0, 42-80 mm
• SATA: 4x SATA III, RAID 0/1/5/10
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3
• Rear USB: 1x USB-C 3.2 Gen 2×2, 1x USB-C 3.2 Gen 1, 3x USB-A 3.2 Gen 1, 3x USB-A 2.0
• Video outputs: 1x HDMI, 1x DisplayPort (needs CPU with integrated graphics)
• Audio: ROG SupremeFX 7.1-channel (S1220A)
• RGB: 1x RGB header, 1x addressable RGB header, AURA Sync
• Weight: 644 g
• Dimensions (W x H x D): 170 x 50 x 170 mm
