Product Overview

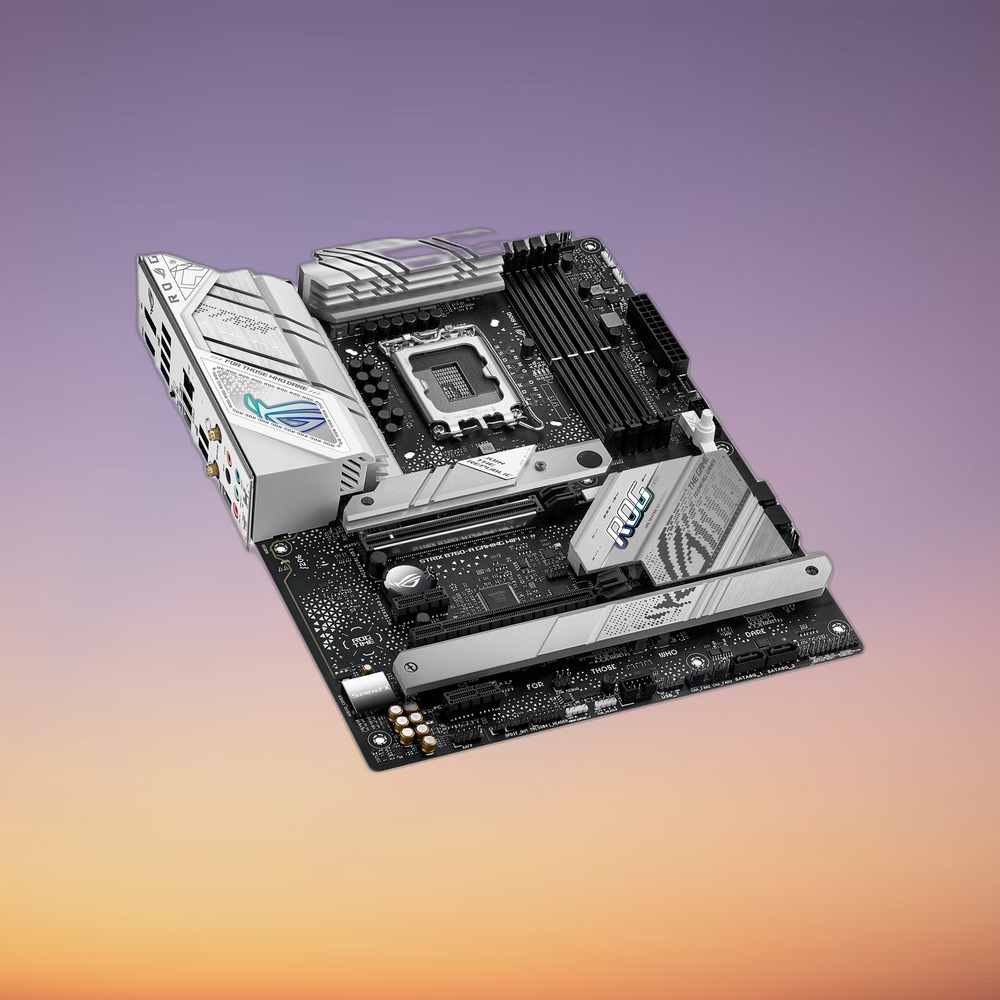

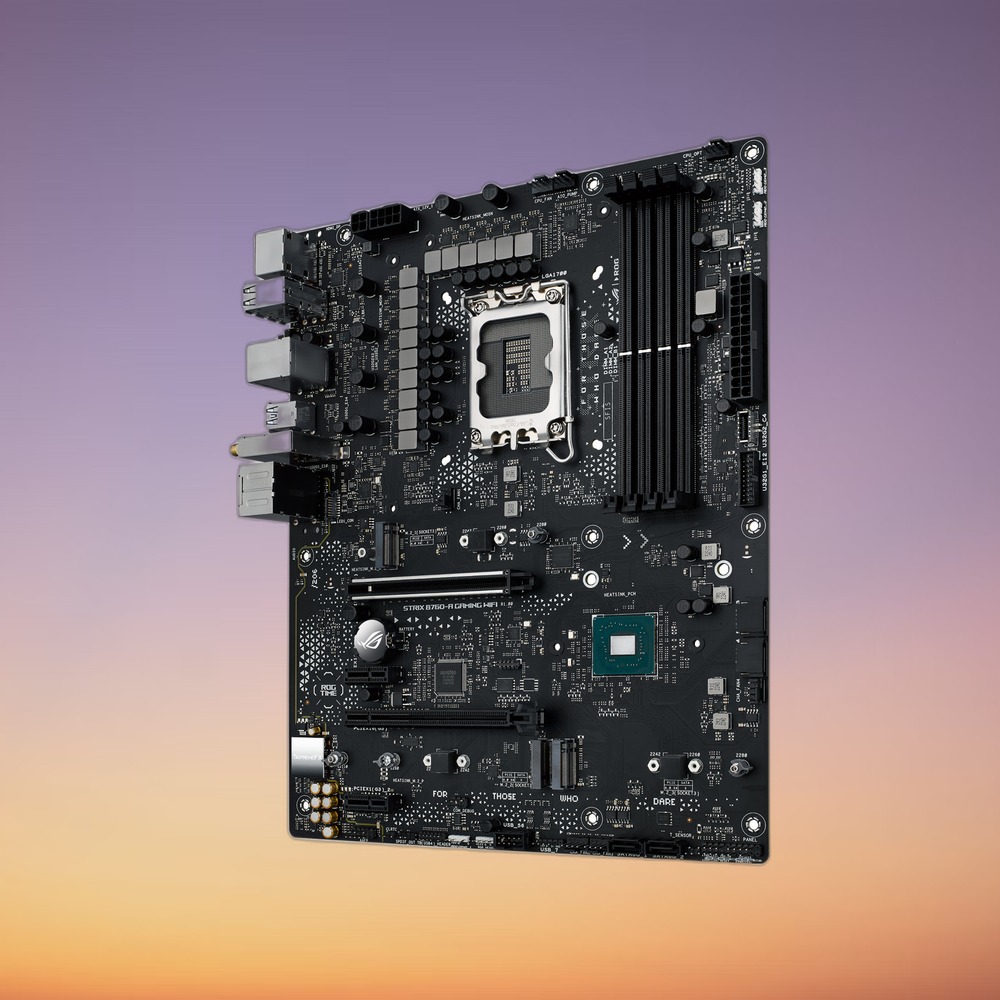

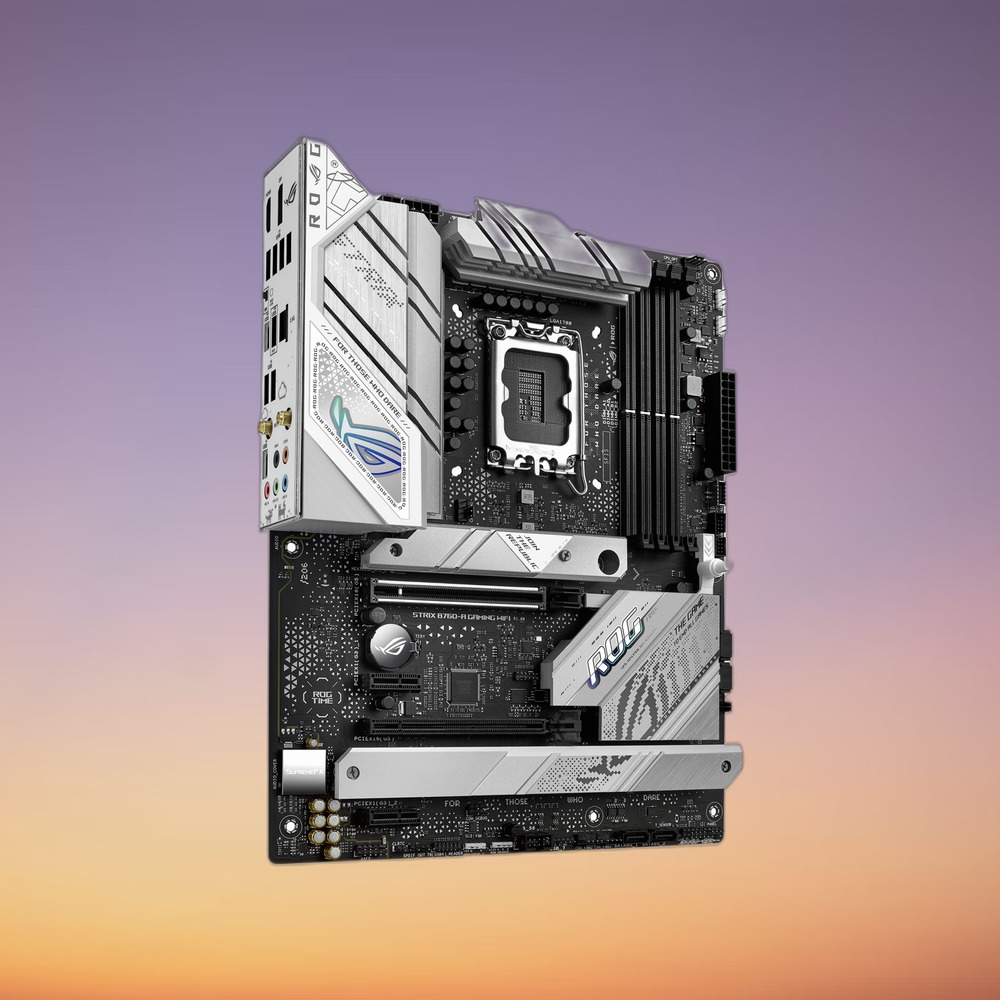

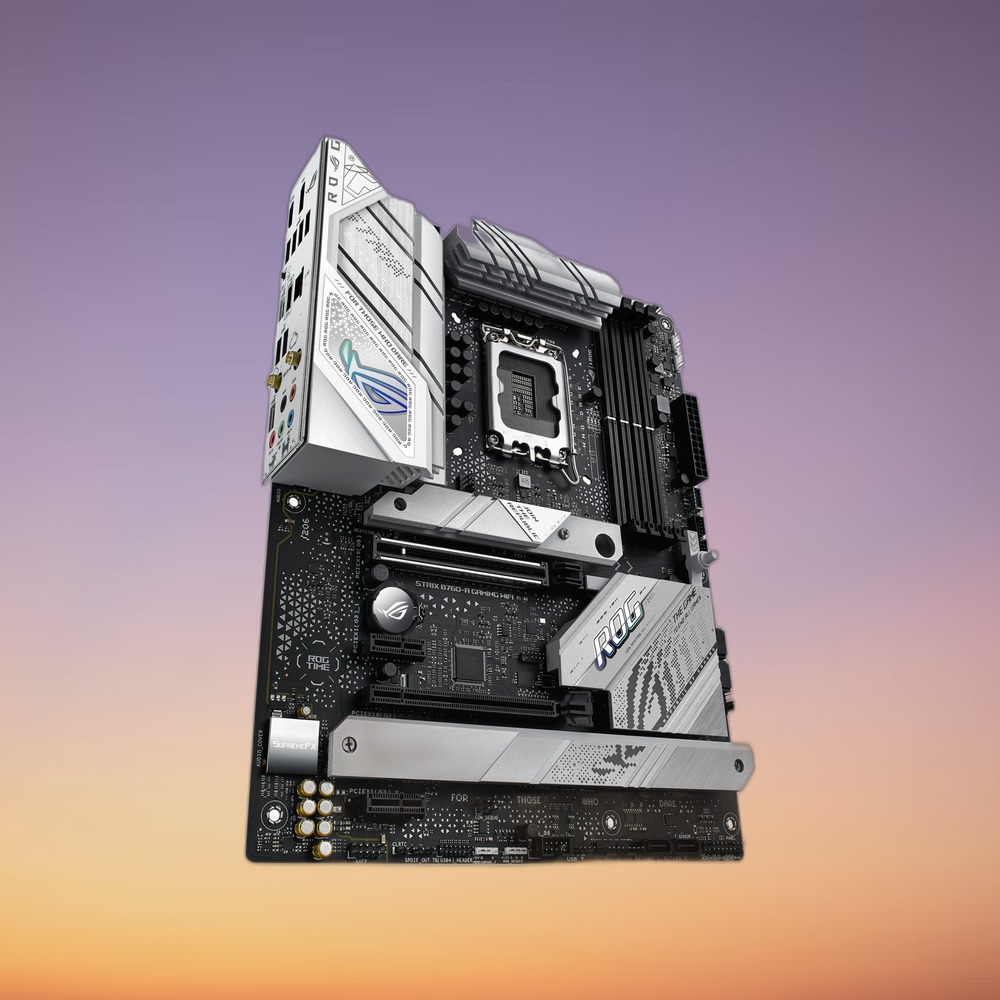

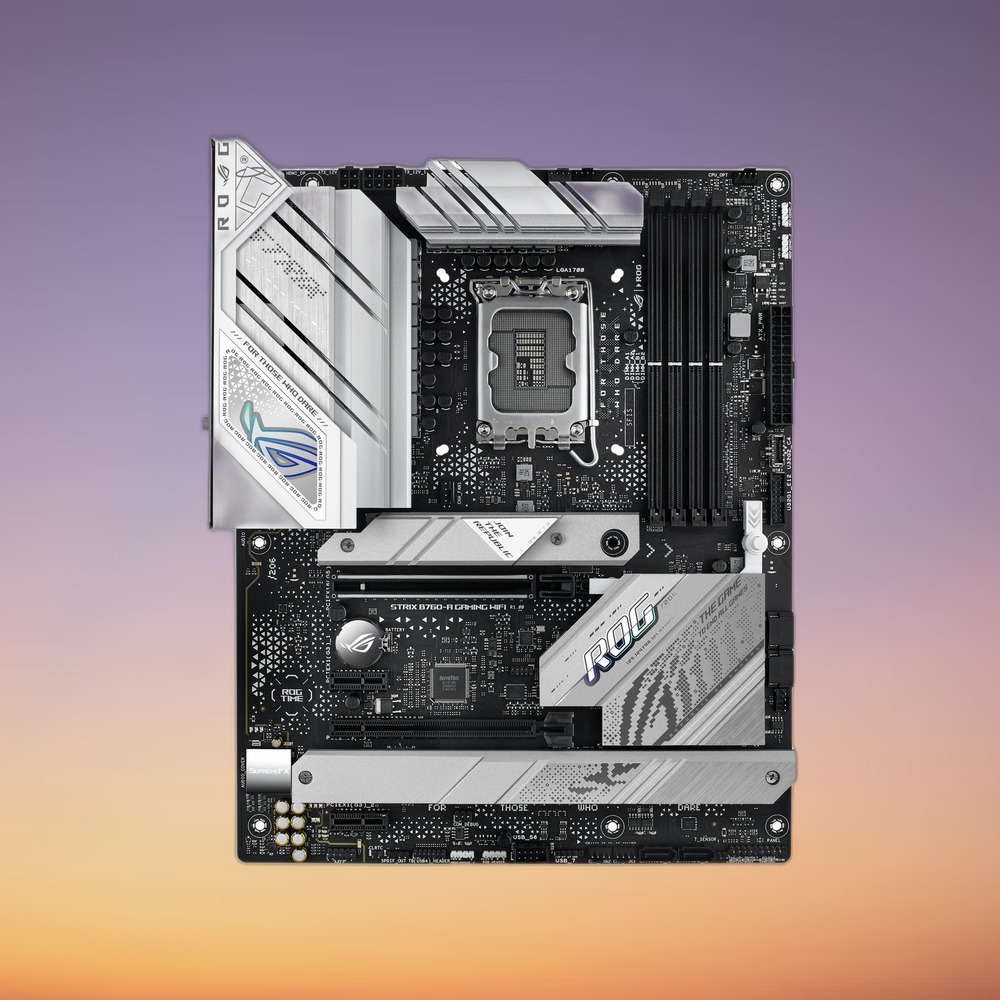

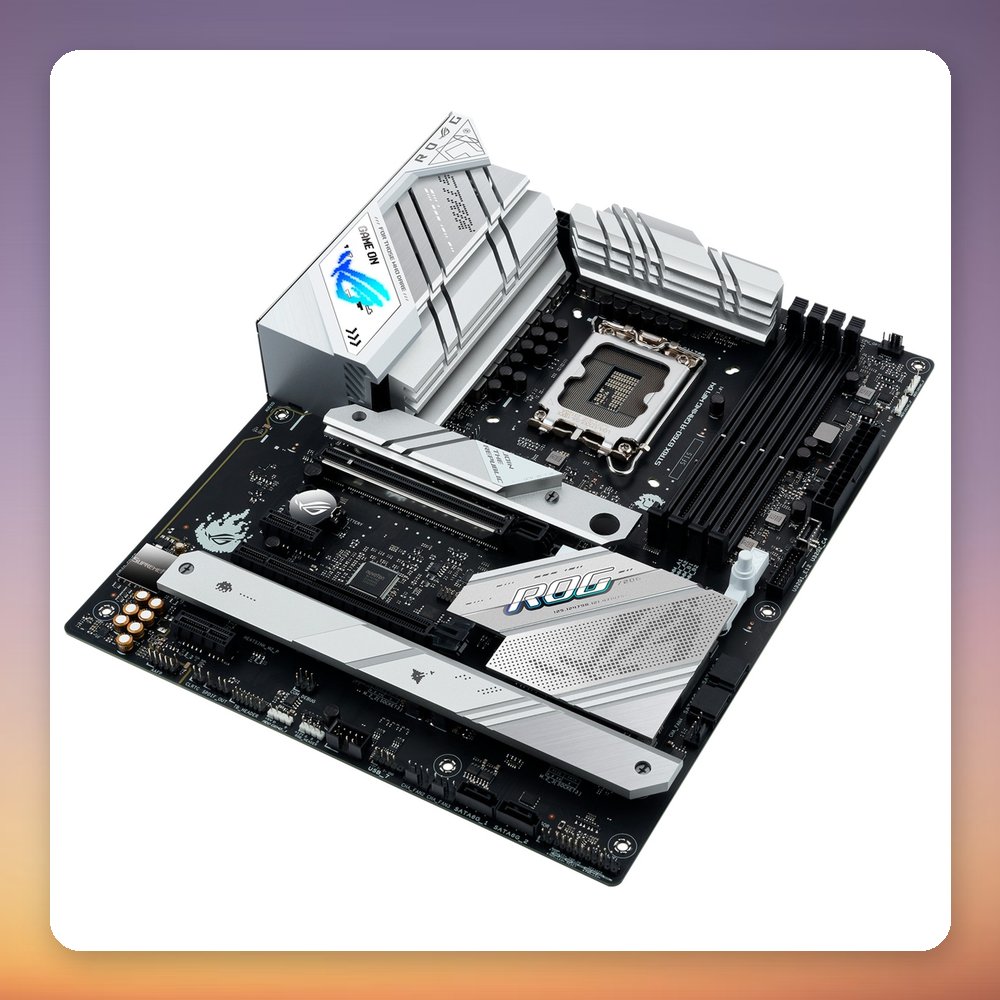

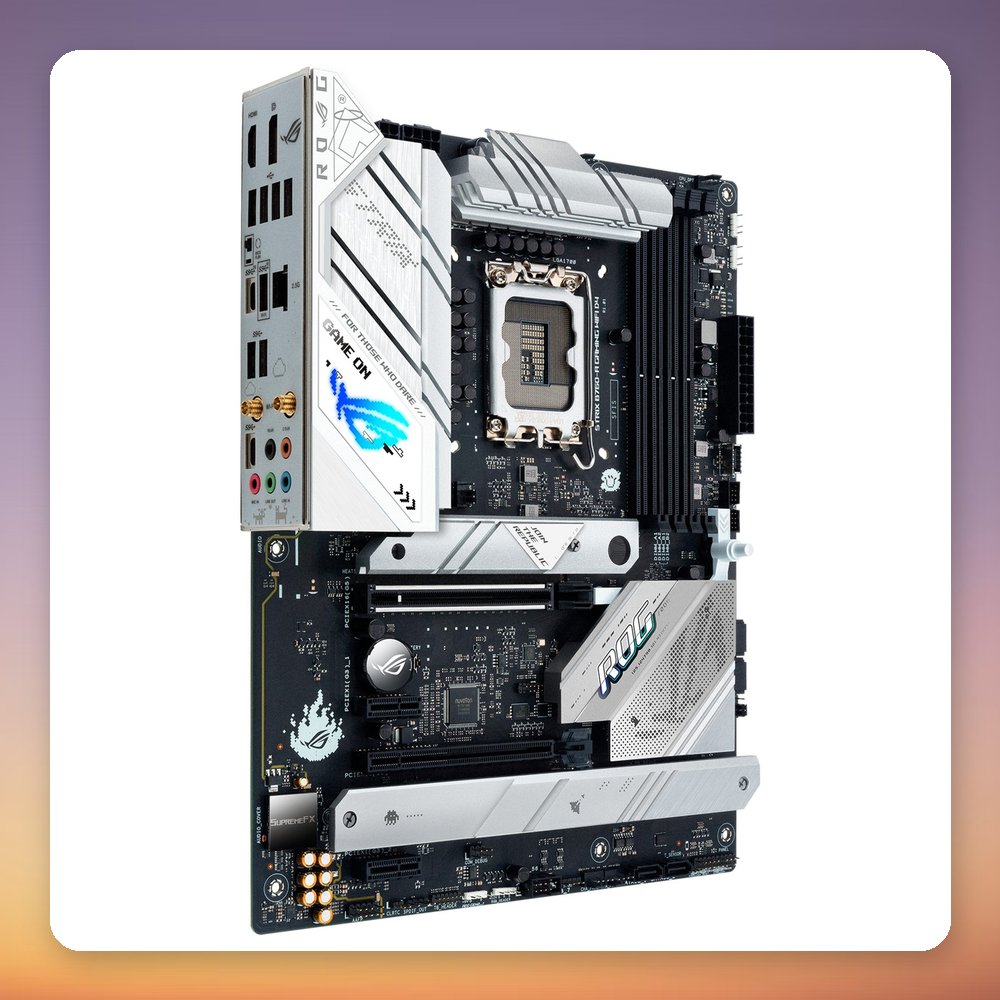

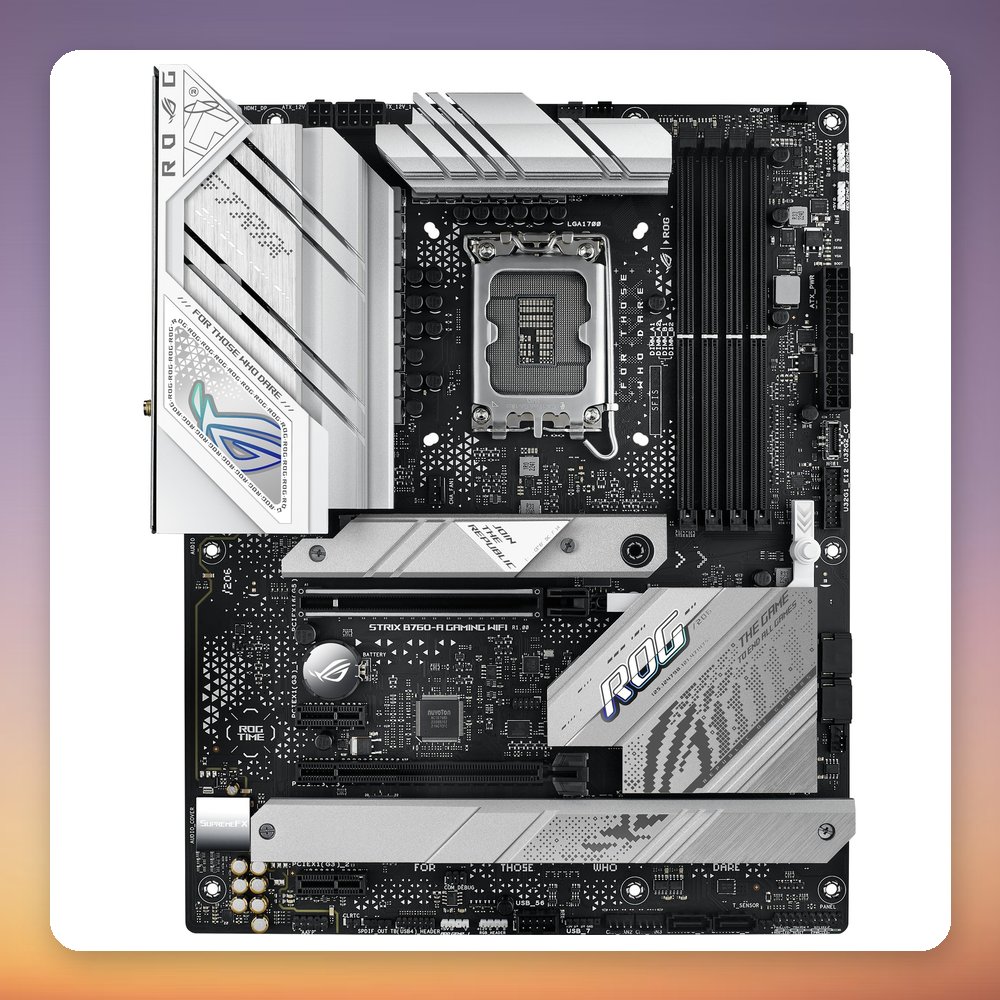

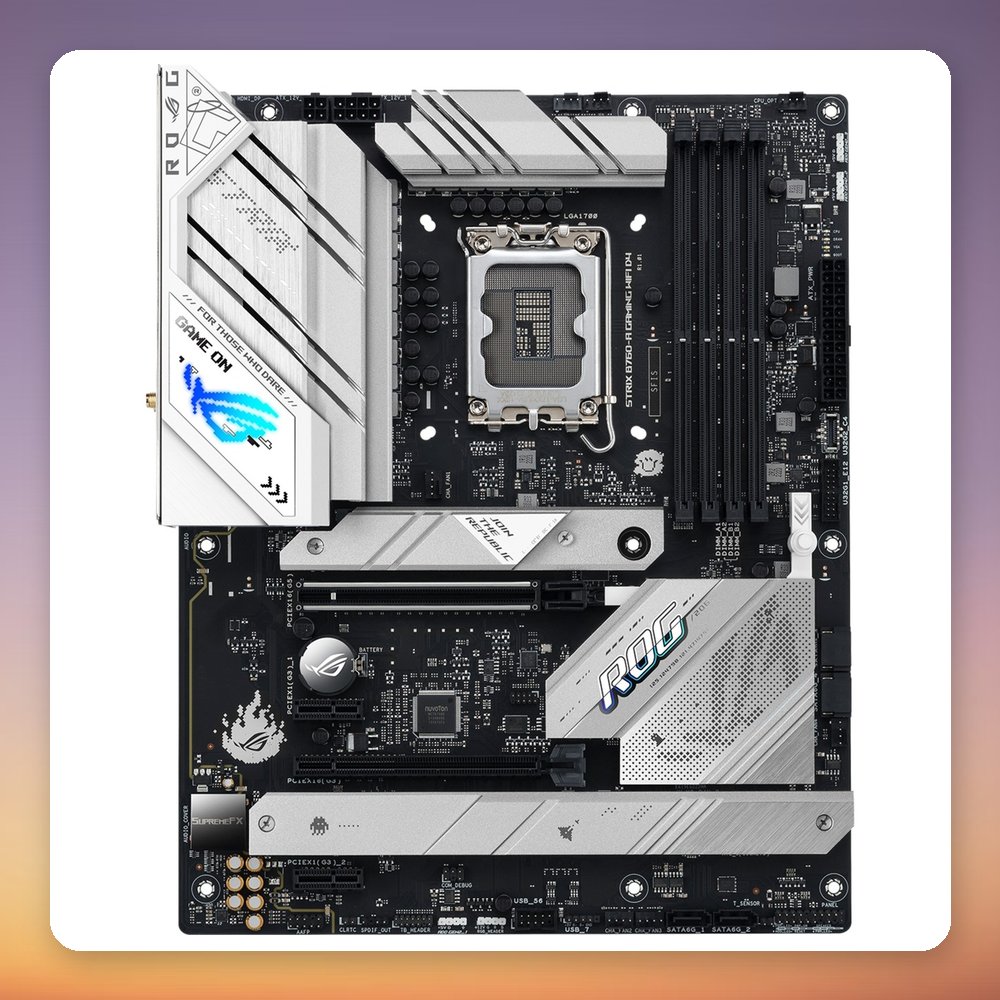

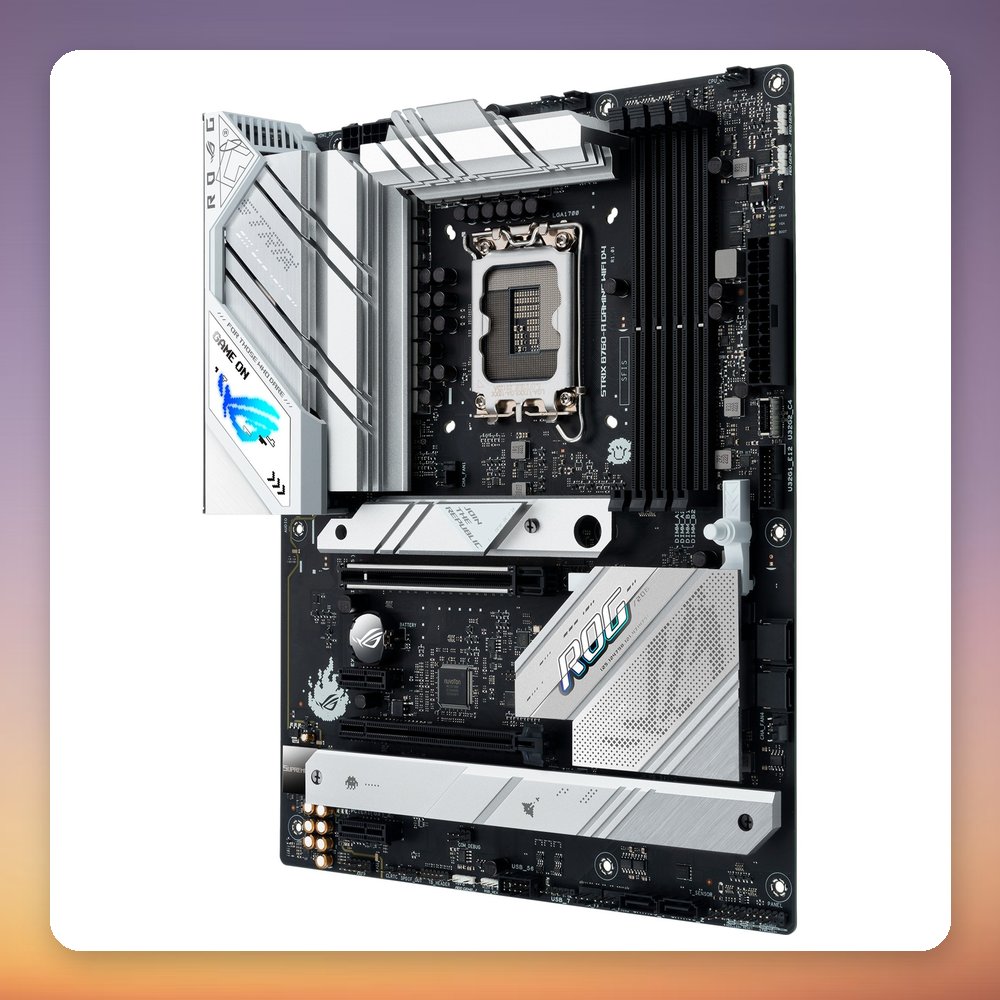

The Asus ROG Strix B760-A Gaming WiFi is an ATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It uses DDR5 memory across four DIMM slots, supporting up to 192 GB with speeds listed up to 7800 MHz (OC), and offers three M.2 slots with PCIe Gen 4.0. Connectivity includes 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3 and a USB 3.2 Gen 2×2 Type-C port at 20 Gbit/s.

This board suits a gaming PC built around a 12th or 13th generation Intel Core processor, where fast DDR5 memory and several NVMe drives matter. The M.2 Q-Latch lets you fit or remove an SSD without a screw, and two VRM heatsinks cover the power delivery. ROG SupremeFX audio with the ALC4080 codec, Aura Sync RGB headers and seven 4-pin PWM fan headers round out the feature set. A BIOS update may be needed to support the newest processors.

Specification

• Manufacturer: Asus
• Model: ROG Strix B760-A Gaming WiFi
• MPN: 90MB1EP0-M1EAY0
• EAN: 4711387114063
• CPU socket: LGA 1700
• Chipset: Intel B760
• Form factor: ATX
• Memory: 4x DIMM, DDR5, dual-channel, non-ECC, up to 192 GB
• Memory speed: DDR5-4800 to 7800+ (OC)
• M.2 slots: 3x (M key, PCIe Gen 4.0, 42-110 mm)
• SATA III ports: 4
• Expansion slots: 1x PCIe x16, 1x PCIe x4 (x16 slot), 2x PCIe x1
• Networking: Intel 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3

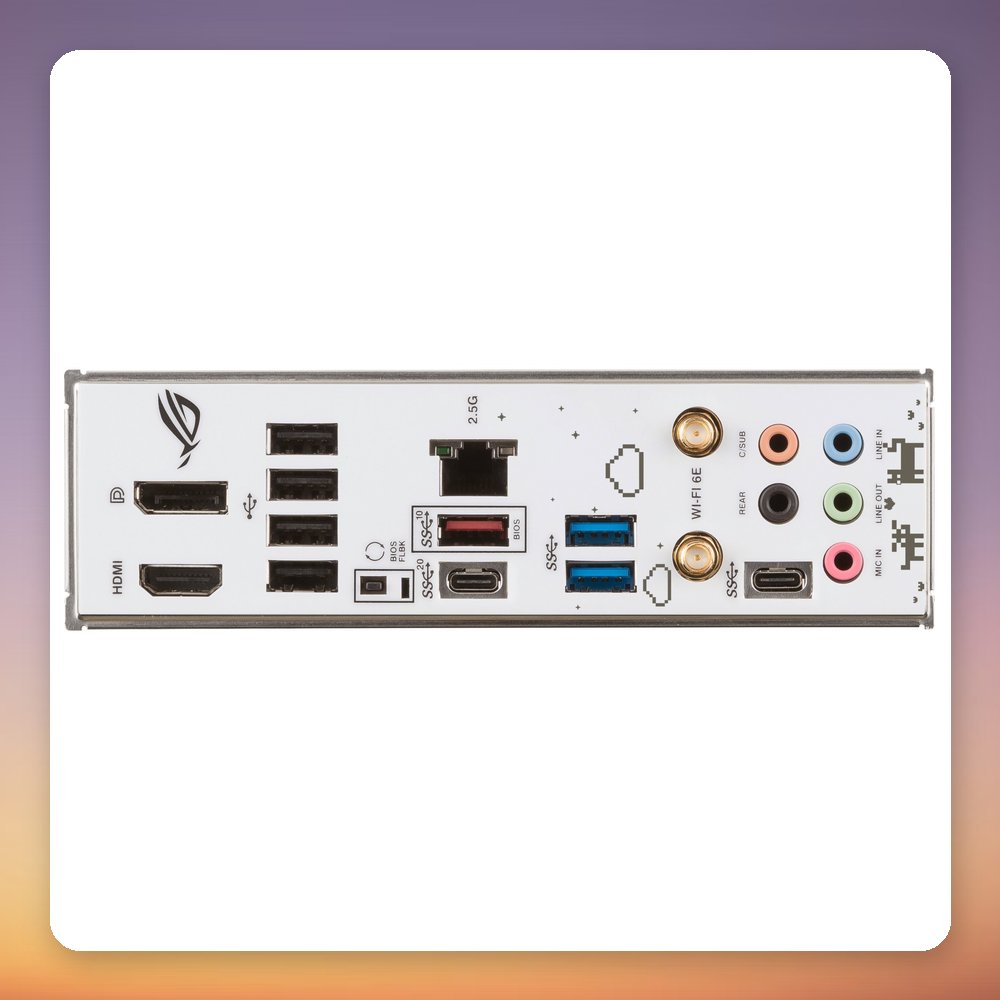

• Rear USB: 1x USB-C 20 Gbit/s, 1x USB-A 10 Gbit/s, 1x USB-C 5 Gbit/s, 2x USB-A 5 Gbit/s, 4x USB 2.0
• Video outputs: 1x HDMI 2.1, 1x DisplayPort 1.4
• Audio: ROG SupremeFX 7.1, Realtek ALC4080
• RGB: Aura Sync, 3x addressable RGB header, 1x RGB header
• RAID: 0, 1, 5, 10
• Dimensions (W x D): 244 x 305 mm
• Weight: 1.2 kg
