Product Overview

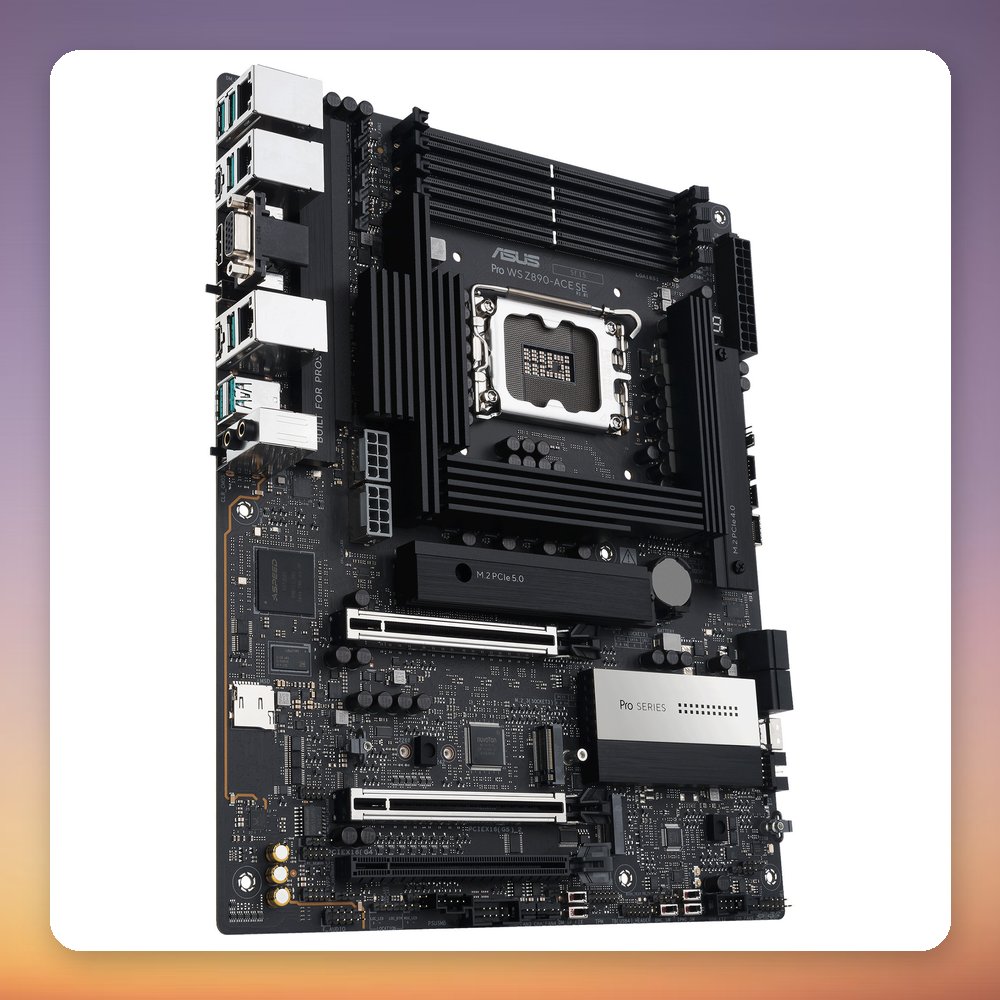

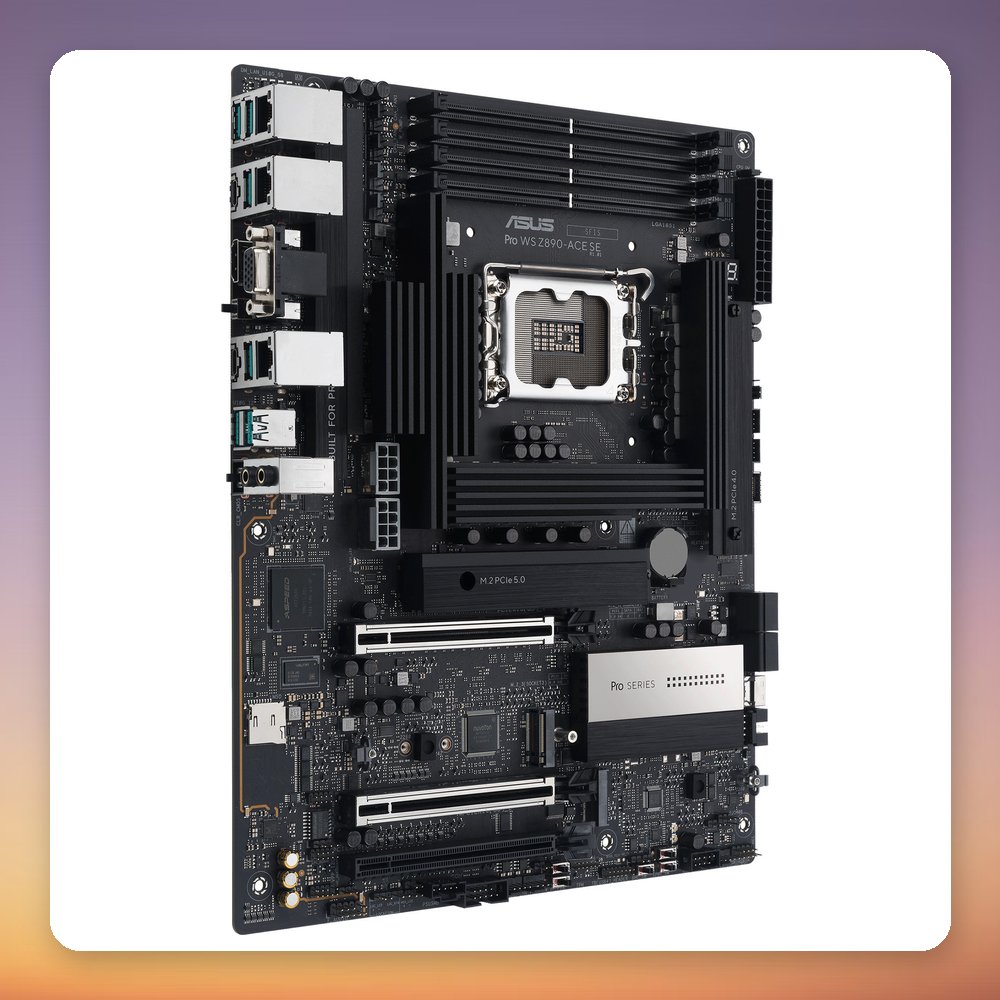

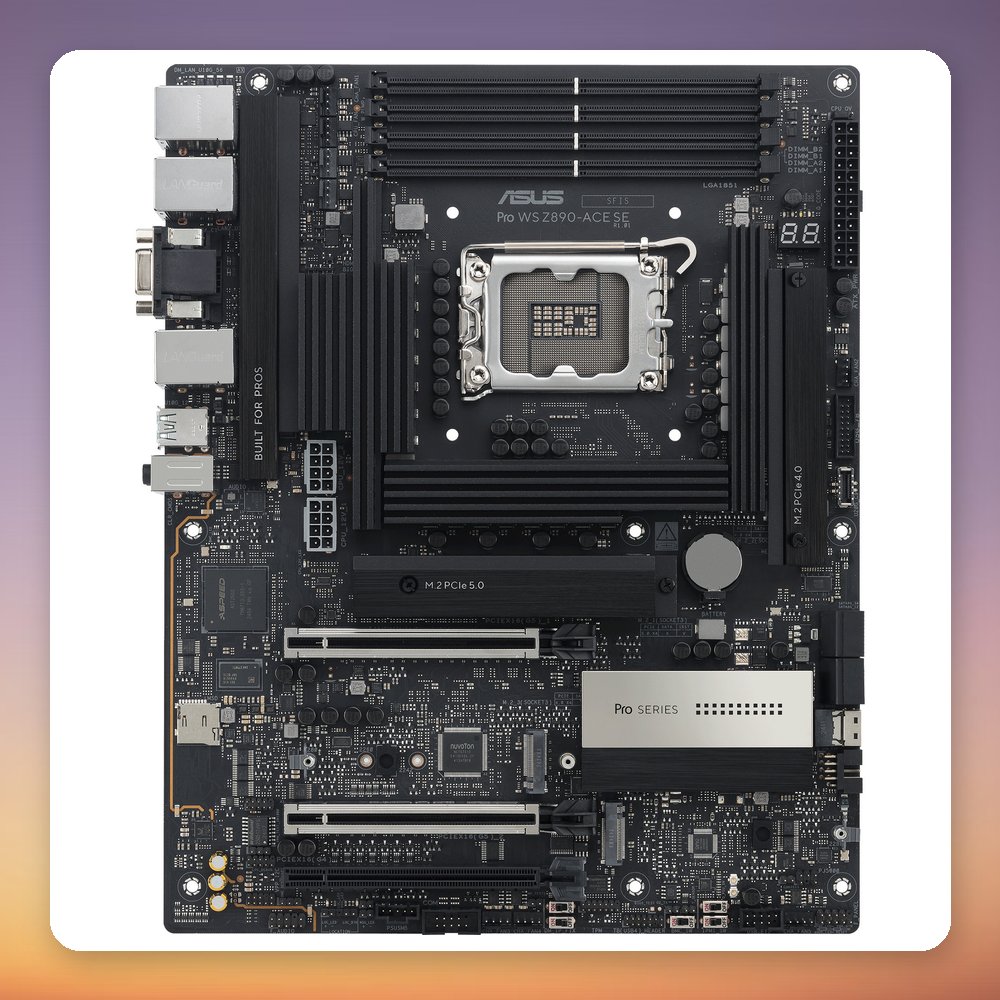

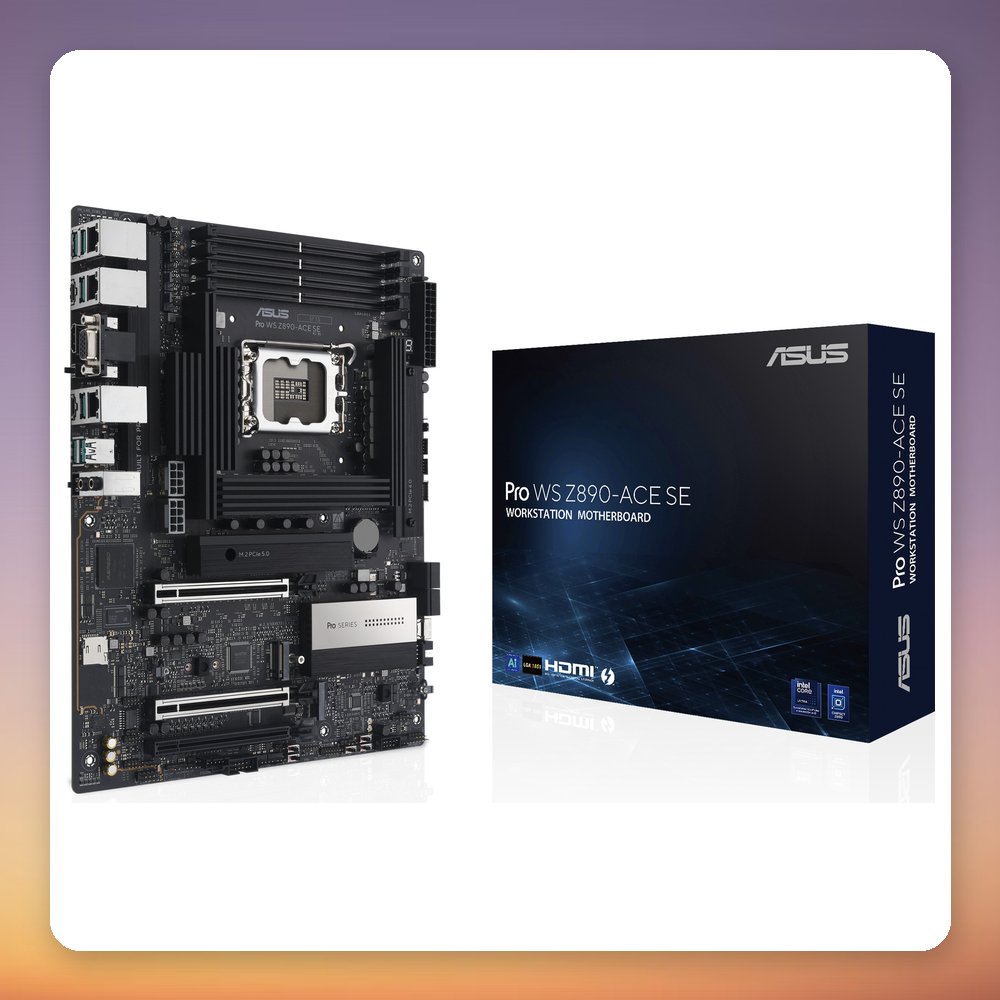

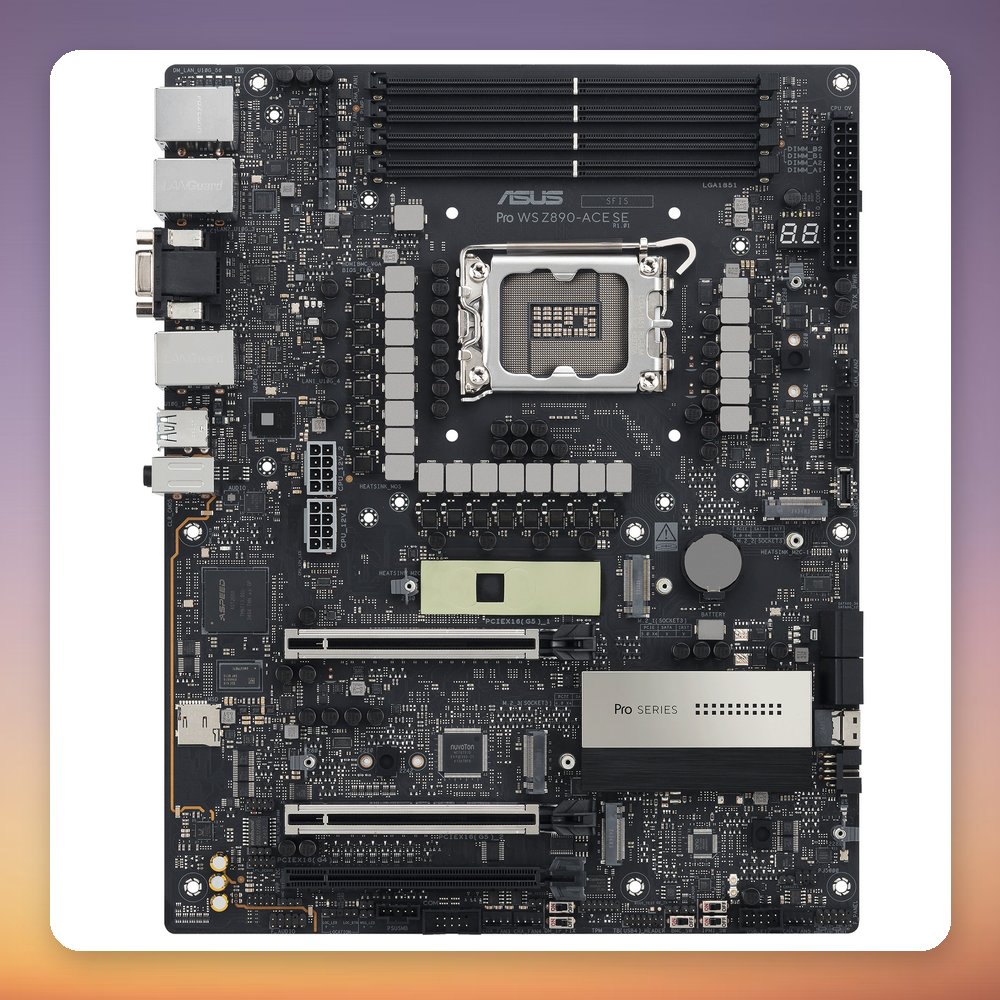

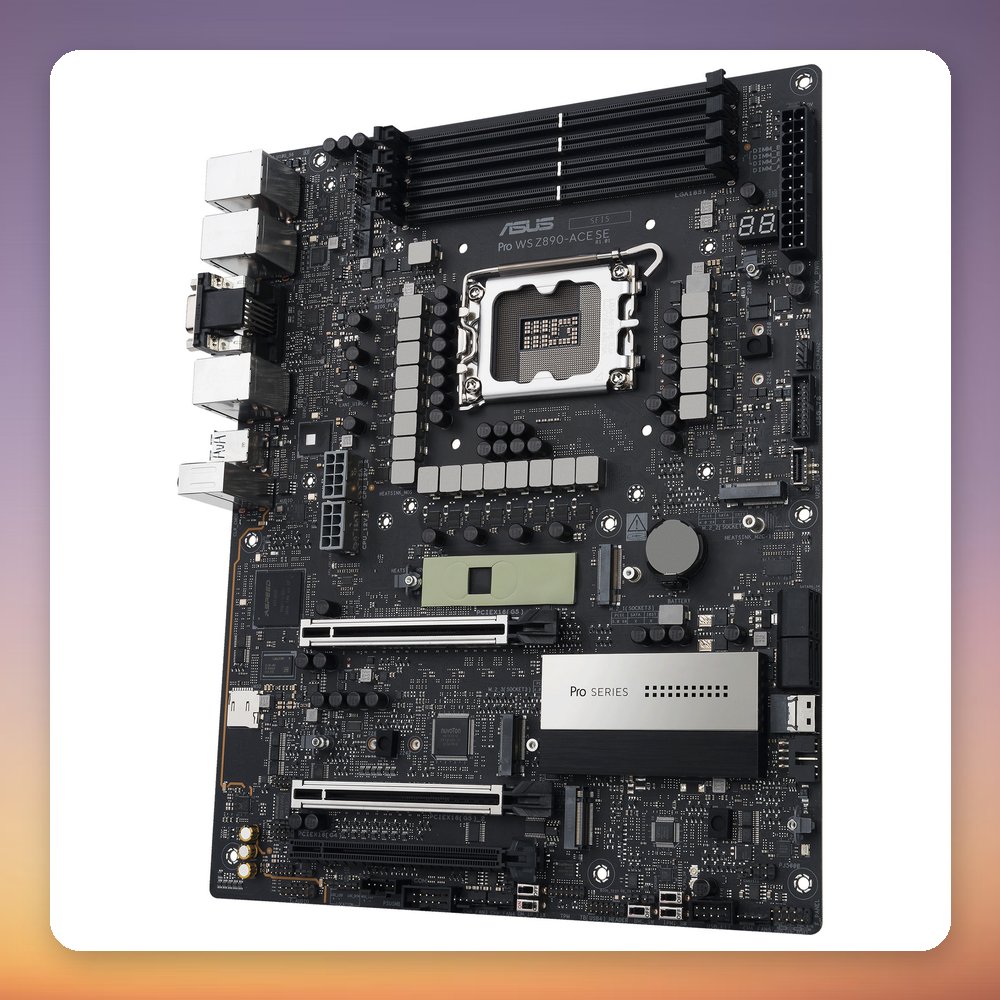

The Asus PRO WS Z890-ACE SE is an ATX motherboard for Intel Core Ultra 200-series (Arrow Lake) processors on the LGA1851 socket, built on the Z890 chipset. What sets it apart is the networking and expansion: a Marvell AQtion 10GbE port, an Intel 2.5Gb Ethernet port and a dedicated Realtek 1Gb port for the AST2600, alongside four DDR5 slots for up to 256 GB and four M.2 sockets.

This board suits workstation-style builds that need fast networking, plenty of storage and room for multiple expansion cards. It offers one PCIe 5.0 x16 slot, one PCIe 5.0 x16 slot running at x8 and one PCIe 4.0 x16 slot running at x4, plus Thunderbolt 4, a USB-C 20 Gbps port on the rear I/O and TPM support. A BIOS update may be required to support the newest processors.

Specification

• Manufacturer: Asus
• Model: PRO WS Z890-ACE SE
• MPN: 90MB1JC0-M0EAY0
• EAN: 4711387828892
• Socket: LGA1851
• Chipset: Intel Z890
• Form factor: ATX
• Memory slots: 4x DDR5 (dual channel), up to 256 GB
• Memory support: DDR5 up to 9066 MT/s (also 5200 / 4800 / 4400)
• PCIe slots: 1x PCIe x16, 1x PCIe x8, 1x PCIe x4 (3 x16-length slots)
• M.2 slots: 4x M.2 (Key M, PCIe, 42 – 80 mm)
• SATA ports: 4x SATA 6Gb/s (RAID 0, 1, 5, 10)
• LAN: Marvell AQtion 10GbE, Intel 2.5Gb Ethernet, Realtek 1Gb (dedicated for AST2600)
• Rear USB: 1x USB-C 20 Gbps, 6x USB-A 10 Gbps, 3x USB-A 5 Gbps, 1x Thunderbolt 4
• Video outputs: HDMI, VGA, Thunderbolt 4 DisplayPort (requires CPU with integrated graphics)
• Audio: Realtek ALC1220P
• Power connectors: 24-pin ATX + 2x 8-pin ATX12V
• Fan headers: 8x 4-pin PWM, 3x addressable RGB (AURA Sync)
• Dimensions (W x H): 244 x 305 mm
